Siirry sivupalkkiinSiirry alaosaanKubota K1 130 – 170

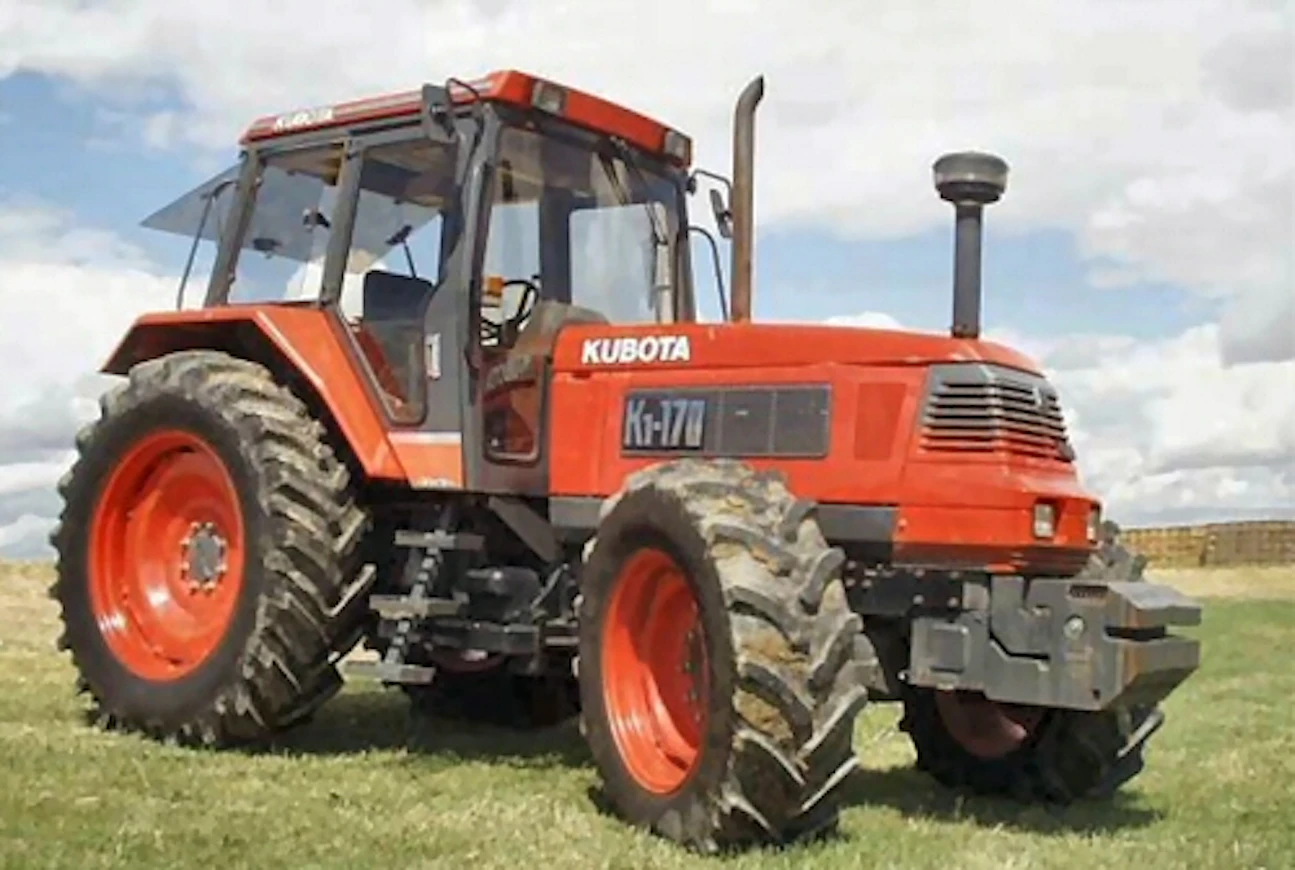

After Kubota acquired Ebro, it began developing a larger-scale range in the late 1980s, which was launched on the market under the name Kubota K1. As with the last Ebros, the engine was a 6.0-litre Nissan built in Spain. There were three models; the smallest, at 125 horsepower, did not have a turbo. The gearbox offered six main gears and a 3-range splitter plus reverse. With the quick-shift option it had 36 forward and 12 reverse speeds, and with crawler gears 60 forward and 24 reverse. The hydraulics were beefed up: combined output was 140 l/min and lift capacity 7 tonnes. The front axle was made by Carraro and featured Kubota’s Bi-Speed system, which increases the front-axle rotation speed when the wheels are turned more than 35 degrees. The cab was based on Kubota’s Japanese designs. Noise level was 76 dB.
The K1 was developed quickly and had several problems at the start. Kubota’s faith in Spanish tractor production ended in 1994, and the factory was closed.
This is an automated translation. Please report any issues in the translation.
| Model | Kubota K1 130 | Kubota K1 150 | Kubota K1 170 |
|---|---|---|---|
| Imported to Finland | No | No | No |
| Years | 1990-94 | 1990-94 | 1990-94 |
| Engine model | B6.60 | B6.60TH | B6.60TH |
| Cyl/Turbo/Intercooler | 6 | 6T | 6T |
| Displacement | 5982 cm³ | 5982 cm³ | 5982 cm³ |
| Bore x stroke | 100×127 mm | 100×127 mm | 100×127 mm |
| Rated power | 115/ hp DIN/rpm | 135/ hp DIN/rpm | 155/ hp DIN/rpm |
| Max power | 125/2250 hp DIN/rpm | 145/2250 hp DIN/rpm | 165/2250 hp DIN/rpm |
| Gears | 18+6/36+12 | 18+6/36+12 | 18+6/36+12 |
| Synchronized gears | 18+6/36+12 | 18+6/36+12 | 18+6/36+12 |
| Powershift gears | -/hydr. | -/hydr. | -/hydr. |
| Speeds in km/h | 1,9-40 | 1,9-40 | 1,9-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 140 l/min | 140 l/min | 140 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 7000 kg | 7000 kg | 7000 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9 | 9 | 9 |
| Front tyres 4WD | 16.9R28 | 16.9R28 | 16.9R28 |
| Rear tyres 4WD | 20.8R38 | 20.8R38 | 20.8R38 |
| Weight 4WD | 6440 kg | 6440 kg | 6440 kg |
| Height with cab | 273 cm | 273 cm | 273 cm |
| Length (2WD/4WD) | 467 cm | 467 cm | 467 cm |
| Fuel tank | 250 l | 250 l | 250 l |
| Cab noise level | 76 dB | 76 dB | 76 dB |
| Solid cab | x | x | x |
| Diff. lock | x | x | x |
| Creeper gear | opt. | opt. | opt. |
| Torque | - | - | - |
