Roadless 78-118

Manufacturer
Models
Roadless 78 J/K, Roadless 78 S, Roadless 98, Roadless 98 J/K, Roadless 98 S, Roadless 118 J/K
Years
1975-83
Info

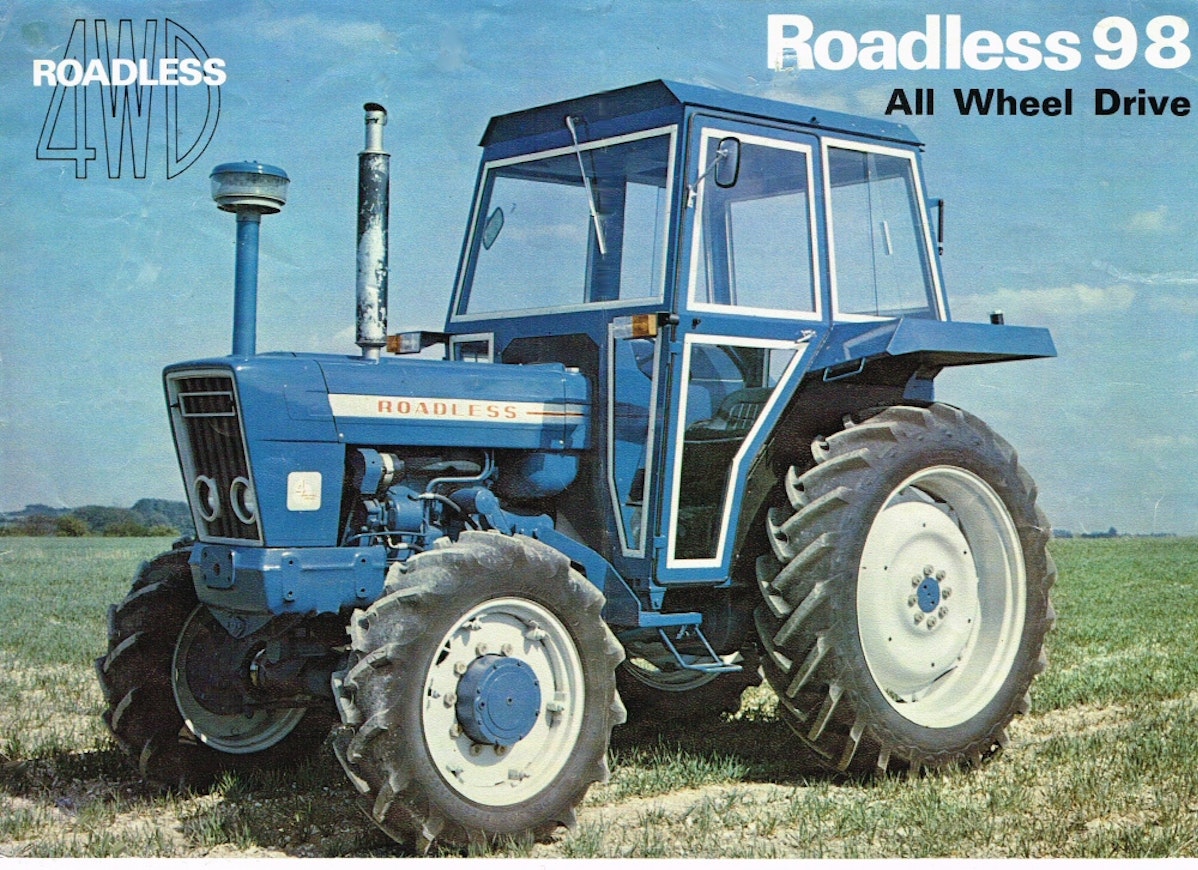

In 1975 Roadless introduced the first Ford 600 series based models 78 and 98, which had the power according to the model designation. The transmission was 8+2 and the 98 had Dual Power as an option. The hydraulics were Ford-standard. The standard cab was a rudimentary Duncan and the Lambourn Q-Cab as an option. The 78 still did not have a lock on the front axle, but the 98 did.

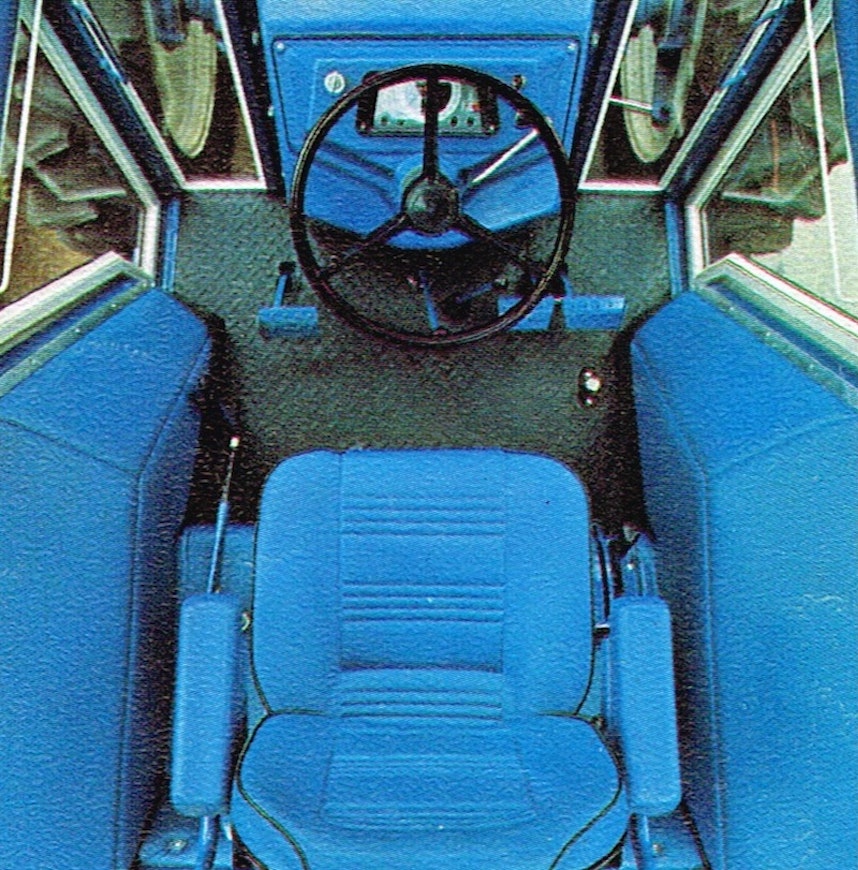

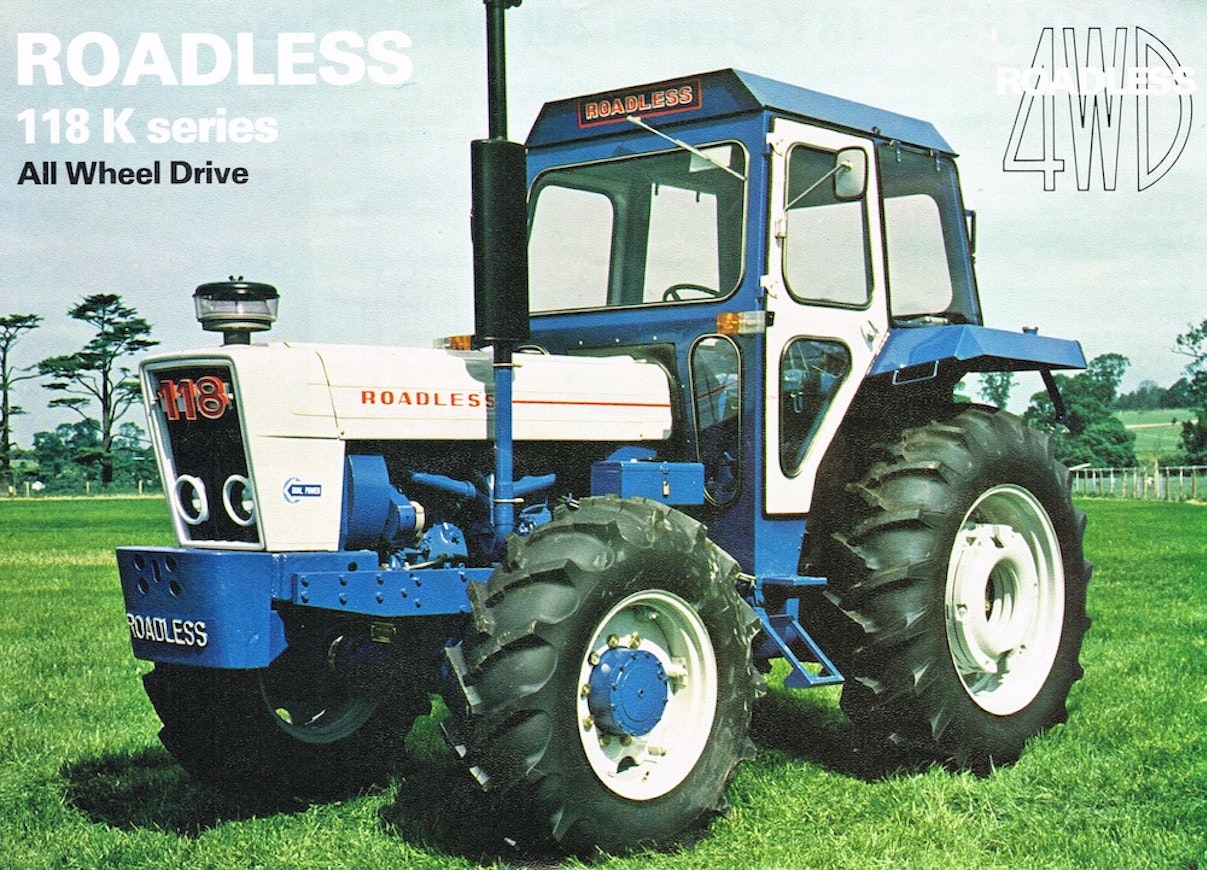

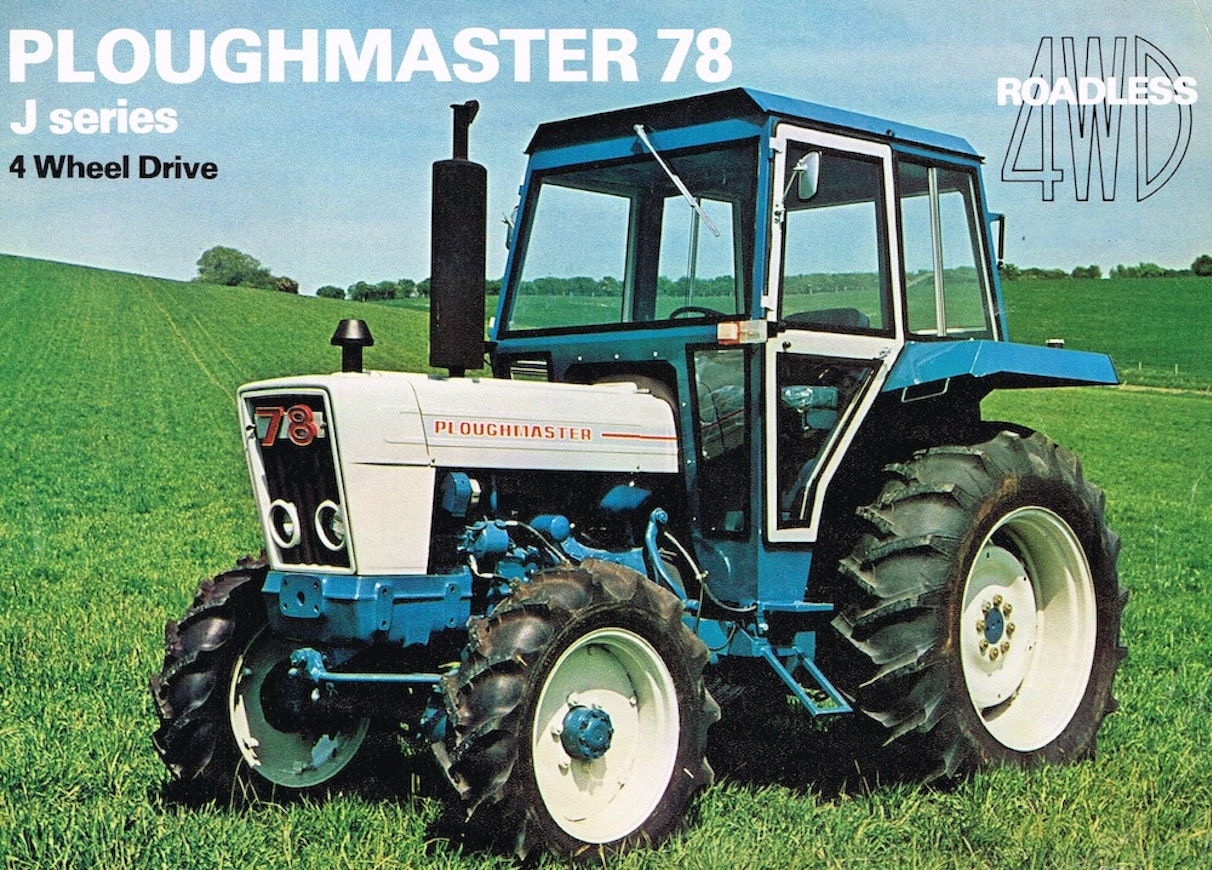

A year later the J Series models were introduced, which had a flat-floor Lambourn cab with a noise level of 82 dB. The 118 with a 2715E six-cylinder engine was added to the series. Its lifting device had one auxiliary cylinder, the transmission was 2-speed and the steering was hydrostatic.

The K Series models introduced in 1979 had a redesigned, slightly higher cab. The 78 K had a 13” clutch. The 98 K had a 2-speed pto and Dual Power quickshift as standard.

The last S series models had the 4.4-liter engine in the 78 and 98. There was also more power in the 118. The hydraulic pump was slightly more efficient.

At this point, it was difficult to find features in the Roadless that would have surpassed Ford's own four-wheel drive models. The company went bankrupt in 1983.

Technical data
ModelRoadless 78 J/KRoadless 78 SRoadless 98Roadless 98 J/KRoadless 98 SRoadless 118 J/K
Manufacturer nameRoadlessRoadlessRoadlessRoadlessRoadlessRoadless
Imported to FinlandNoNoNoNoNoNo
Years1976-811981-831975-761976-811981-831977-81
Engine model256DFBSD444256DFT256DFTBSD4442715E
Cyl/Turbo/Intercooler444T4T4T6
Displacement4195 cm³4390 cm³4195 cm³4195 cm³4390 cm³6220 cm³
Bore x stroke112×107 mm112×112 mm112×107 mm112×107 mm112×112 mm107,2x114,9 mm
Rated power78/2100 hp DIN/rpm86/2100 hp DIN/rpm98/2100 hp DIN/rpm98/2100 hp DIN/rpm103/2100 hp DIN/rpm114/2300 hp DIN/rpm
Torque------
Gears8+2 (16+4)8+2 (16+4)8+2 (16+4)8+2 (16+4)16+416+4
Powershift gearsopt.opt.opt.opt.hydr.hydr.
Speeds in km/h2,8-29,12,8-29,12,6-27,02,8-29,12,8-29,13,0-31,7
Hydr. flow l/min35 l/min41 l/min35 l/min35 l/min41 l/min35 l/min
Hydraulic pressure176 bar-176 bar176 bar-176 bar
Lift controlsmech.mech.mech.mech.mech.mech.
Lift capacity2672 kg2672 kg2672 kg2672 kg2672 kg3456 kg
PTO speeds540540540540/1000540540/1000
Brakeswet discwet discwet discwet discwet discwet disc
Steeringpowerpowerpowerpowerpowerhydrost.
Turning circle m 4WD11,6411,6411,611,611,611,86
Front tyres 4WD11.2-2411.2-2411.2-2411.2-2411.2-2414.9-24
Rear tyres 4WD13.6-3813.6-3813.6-3813.6-3813.6-3816.9-34
Weight 4WD3460 kg3460 kg3609 kg3660 kg3660 kg4265-4580 kg
Height with cab277/282 cm282 cm249/274 cm282 cm282 cm277 cm
Length (2WD/4WD)361 cm361 cm361 cm361 cm361 cm425 cm
Wheelbase (2WD/4WD)214 cm214 cm214 cm214 cm214 cm215 cm
Fuel tank68 l68 l68 l68 l68 l182 l
Cab noise level82 dB82 dB-82 dB82 dB82 dB
Solid cabxxxxxx
Diff. lock---differential lock with cogsdifferential lock with cogs-
