Roadless Ploughmaster 75-105

Manufacturer
Models
Roadless Ploughmaster 75, Roadless Ploughmaster 94T, Roadless Ploughmaster 95, Roadless Ploughmaster 105
Years
1968-77
Info

Roadless bought GMC off-road truck front axles from a surplus stock in Spain. The problem was that the high torques when used with tractors caused the driveshafts to break. In addition, because the differentials were turned upside down to increase ground clearance, the gear bearings failed, as lubrication was inadequate in this position.

In the Roadless Ploughmaster 95, introduced in 1967, lubrication was improved by welding a tab to the differential, which directed oil to the bearing. In addition, a stronger bearing was installed and better driveshafts began to be ordered from Germany. The 95 also had a more powerful lift.

With the revamped Ford Force series, the Ploughmaster 65 was replaced by the more powerful 4.2-liter 75.

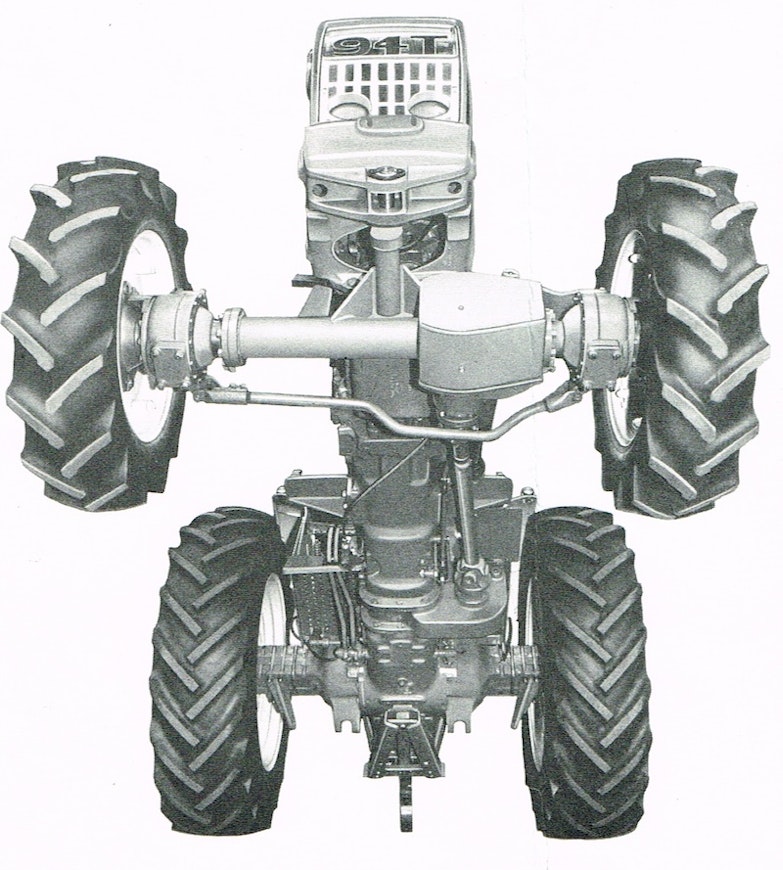

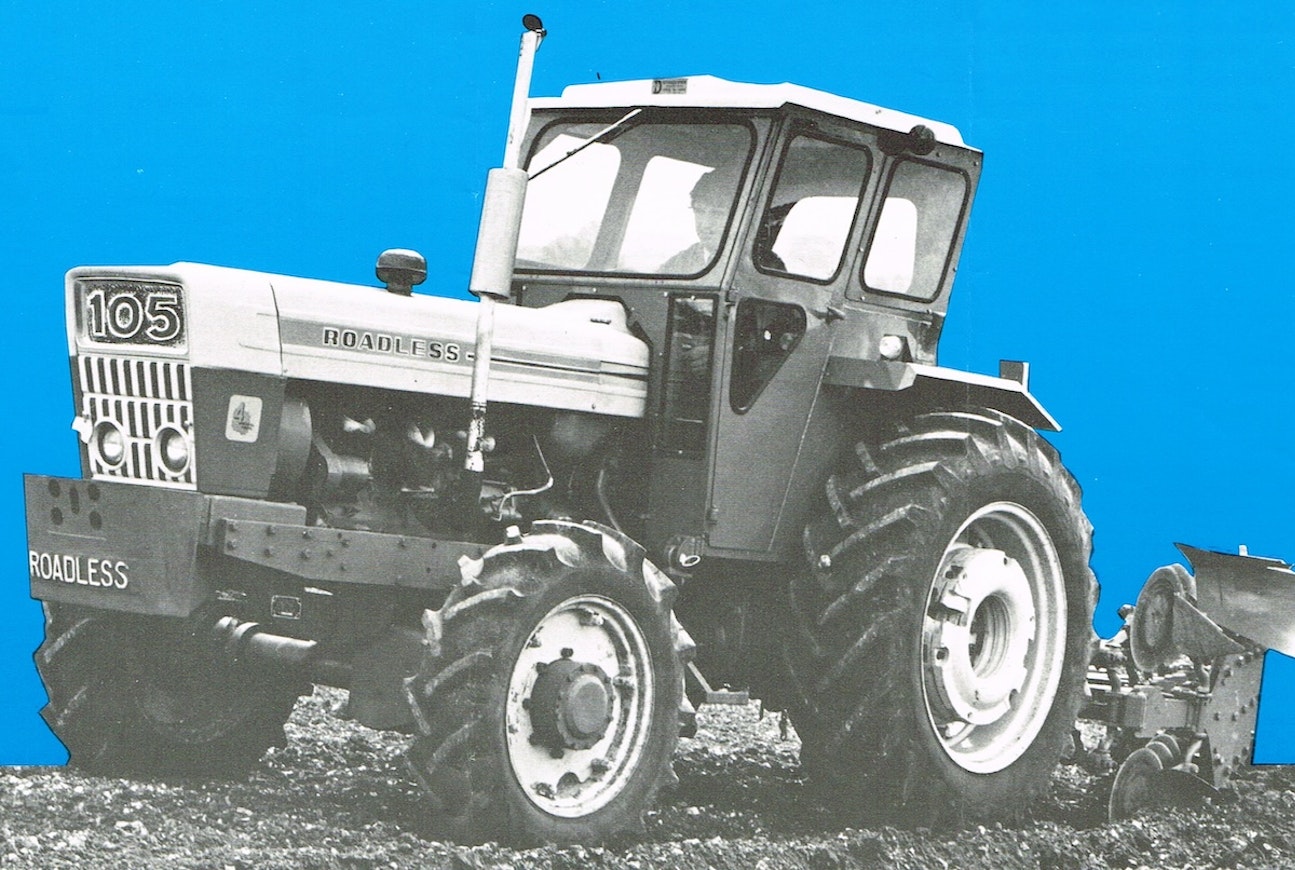

In 1971, the turbocharged 94T, based on the Ford 7000, was introduced, and in 1974, the 105, with a 6-cylinder 6.2-liter engine, was introduced. These models featured Roadless' own, more durable, and higher-clearance front axle.

The Ploughmaster 75 was Roadless' most popular model during the Ford era, but competing, more affordable four-wheel drive tractors began to appear from various manufacturers, and Roadless production volumes dropped to a few hundred per year.

Technical data
ModelRoadless Ploughmaster 75Roadless Ploughmaster 94TRoadless Ploughmaster 95Roadless Ploughmaster 105
Manufacturer nameRoadlessRoadlessRoadlessRoadless
Imported to FinlandNoNoNoNo
Years1968-751971-751966-741974-77
Cyl/Turbo/Intercooler44T66
Displacement4195 cm³4195 cm³5416 cm³6220 cm³
Bore x stroke111,8×106,7 mm111,8×106,7 mm100x115 mm107,2x114,9 mm
Rated power----
Torque----
Gears8+28+28+28+2
Speeds in km/h2,4-27,02,6-27,02,4-27,02,9-30,8
Hydr. flow l/min22.7 l/min22.7 l/min22.7 l/min22.7 l/min
Hydraulic pressure176 bar176 bar176 bar176 bar
Lift controlsmech.mech.mech.mech.
Lift capacity1750 kg1750 kg2721 kg2721 kg
PTO speeds540540540540
Brakeswet discwet discwet discwet disc
Steeringpowerpowerpowerpower
Turning circle m 4WD11,6411,6-10,98
Front tyres 4WD11.2/10-2411.2/10-2411.2/10-2411.2/10-24
Rear tyres 4WD13.6/12-3813.6/12-3813.6/12-3813.6/12-38
Weight 4WD3375 kg3602 kg(4041) kg4388 kg
Height with cab249 cm249 cm(183) cm247 cm
Length (2WD/4WD)361 cm361 cm422 cm422 cm
Wheelbase (2WD/4WD)214 cm214 cm214 cm209 cm
Fuel tank68 (186) l68 (186) l76 l68 (186) l
Diff. lock-differential lock with cogs-differential lock with cogs
Engine model--2703E2714E
