Siirry sivupalkkiinSiirry alaosaanClaas Lexion 440-480

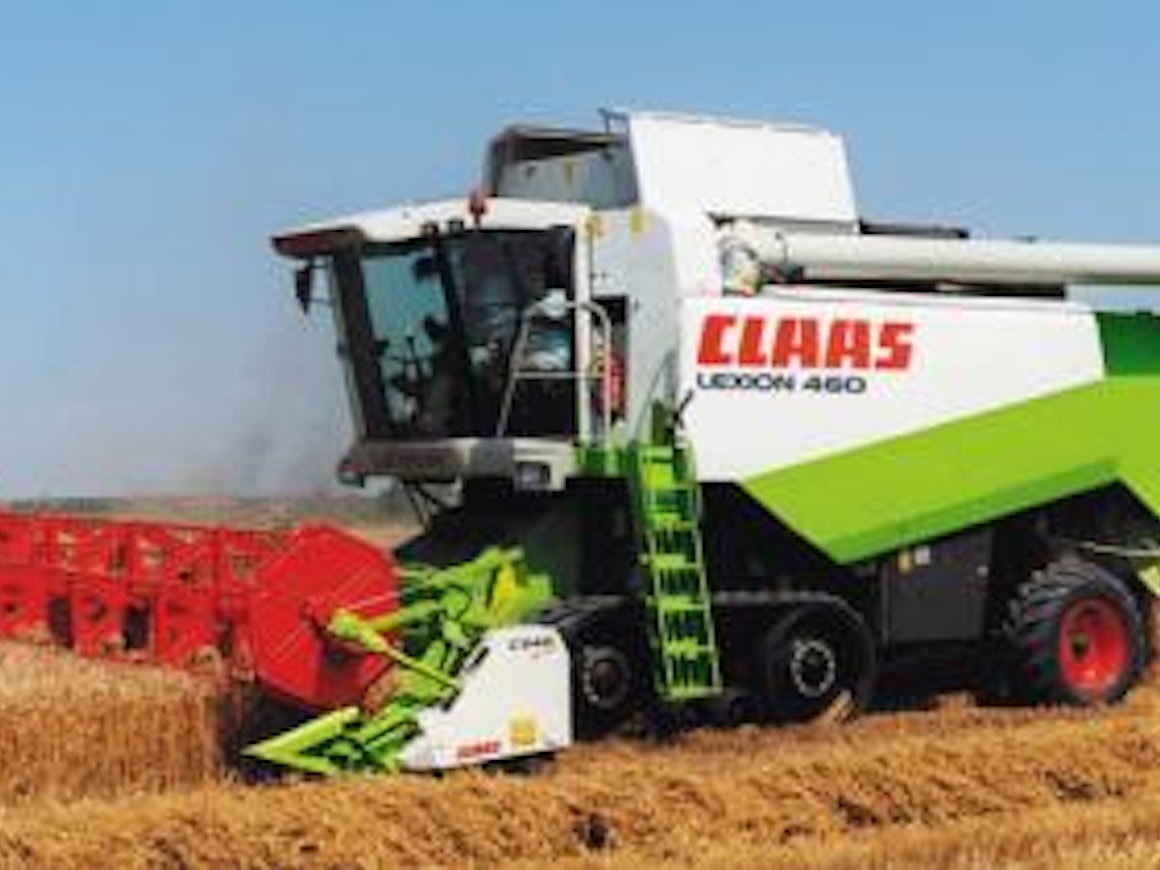

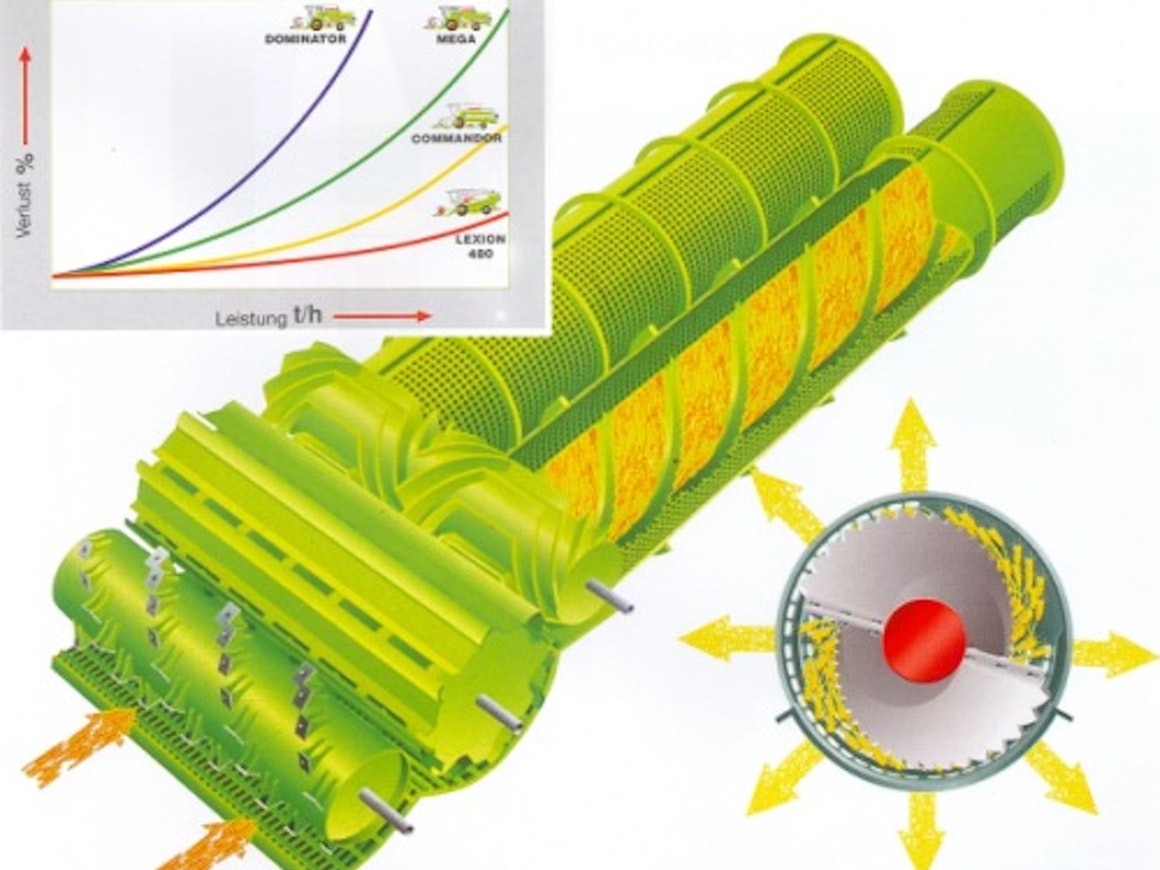

The first model of the popular Lexion series was the 480, in which the concaves were replaced by two transverse separating rotors. In 1997, the concave combines 440-460 were introduced alongside it, which also had an APS accelerator drum in front of the threshing cylinder. The functions were controlled and monitored using the CEBIS display, which also allowed threshing settings to be saved. In addition to standard cutting tables, foldable tables or new Vario tables were available, whose length could be adjusted to be 10 cm shorter or 20 cm longer than normal (with cover plates, even up to 50 cm longer). As an optional accessory, the Laser Pilot was available, which guided the combine along the edge of the swath. Some models were also available in the Terra Trac tracked version. The Caterpillar-engined Evolution models introduced for the 2002 season can be distinguished by the model designation decal, similar to the one shown in the picture. The most popular combine harvester in Europe in the early 2000s was the Lexion 480.
This is an automated translation. Please report any issues in the translation.
| Model | Claas Lexion 440 | Claas Lexion 440 Evol. | Claas Lexion 450 | Claas Lexion 450 Evol. | Claas Lexion 460 | Claas Lexion 460 Evol. | Claas Lexion 470 Evol. | Claas Lexion 480 | Claas Lexion 480 Evol. |
|---|---|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1997-2001 | 2001-03 | 1997-2001 | 2001-03 | 1997-2001 | 2001-03 | 2001-03 | 1996-2001 | 2001-03 |
| Engine | Perkins | Caterpillar | MB | Caterpillar | MB | Caterpillar | Caterpillar | MB | Caterpillar |
| Engine type | 1306-9TA | 3126B | OM 401 LA | C9 | OM 401 LA | C9 | C9 | OM 441 LA | C12 |
| Displacement | 8685 cm³ | 7200 cm³ | 9570 cm³ | 8800 cm³ | 9570 cm³ | 8800 cm³ | 8800 cm³ | 10964 cm³ | 11946 cm³ |
| Cyl/turbo | 6 TI | 6 TI | V6 TI | 6 TI | V6 TI | 6 TI | 6 TI | V6 TI | 6 TI |
| Power | 250 hp DIN | 260 hp DIN | 275 hp DIN | 286 hp DIN | 300 hp DIN | 320 hp DIN | 320 hp DIN | 400 hp DIN | 412 hp DIN |
| Fuel tank | 500 l | 650 l | 650 l | 650 l | 650 l | 650 l | 650 l | 650 l | 830 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h |
| Cutting width | 600 cm | 600 cm | 660 cm | 660 cm | 660 cm | 660 cm | 660 cm | 750 cm | 750 cm |
| Cutting width, alternative | 540, 660 cm | 540, 660 cm | 600, 750 cm | 600, 750 cm | 600, 750 cm | 600, 750 cm | 600, 750 cm | 660, 900 cm | 660, 900 cm |
| Reel diameter | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm |
| Header length | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| 2. cyl. diameter | 38 cm | 38 cm | 38 cm | 38 cm | 38 cm | 38 cm | 38 cm | 38 cm | 38 cm |
| Threshing cyl. width | 170 cm | 170 cm | 170 cm | 170 cm | 170 cm | 170 cm | 142 cm | 170 cm | 170 cm |
| Number of straw walkers | 6 | 6 | 6 | 6 | 6 | 6 | 2 cylinders | 2 cylinders | 2 cylinders |
| Area of walkers | 748 dm² | 748 dm² | 748 dm² | 748 dm² | 748 dm² | 748 dm² | - | - | - |
| Lenght of walkers | 440 cm | 440 cm | 440 cm | 440 cm | 440 cm | 440 cm | - | - | - |
| Straw shieve | 320 dm² | 320 dm² | 320 dm² | 320 dm² | 320 dm² | 320 dm² | 240 dm² | 320 dm² | 320 dm² |
| Bottom shieve | 260 dm² | 260 dm² | 260 dm² | 260 dm² | 260 dm² | 260 dm² | 200 dm² | 260 dm² | 260 dm² |
| Total screening area | 580 | 580 | 580 | 580 | 580 | 580 | 480 | 580 | 580 |
| Overall lenght | 1064 cm | 1064 cm | 1064 cm | 1064 cm | 1064 cm | 1064 cm | 1025 cm | 1025 cm | 1025 cm |
| Width without header | 390 cm | 390 cm | 390 cm | 390 cm | 390 cm | 390 cm | 390 cm | 390 cm | 390 cm |
| Height with cabin | 387 cm | 387 cm | 387 cm | 387 cm | 387 cm | 387 cm | 387 cm | 387 cm | 387 cm |
| Weight with cabin | 14800 kg | 14800 kg | 15400 kg | 15400 kg | 15400 kg | 15400 kg | - | - | - |
| Weight without header | 13000 kg | 13000 kg | 13600 kg | 13600 kg | 13600 kg | 13600 kg | 14000 kg | 14000 kg | 14000 kg |
| Grain tank | 81 hl | 81 hl | 86 hl | 86 hl | 96 hl | 96 hl | 96 hl | 105 hl | 105 hl |
| Unl. height | 424 cm | 424 cm | 445 cm | 445 cm | 445 cm | 445 cm | 445 cm | 445 cm | 445 cm |
| Tyres front (Finland) | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 900/60R32 |
| Tyres front, alternative | 73×44-32 | 1050/50R32 | 73×44-32 | 73×44-32 | 73×44-32 | 73×44-32 | 1050/50R32 | 73×44-32 | 1050/50R32 |
| Tyres rear (Finland) | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 |
| Tyres rear, alternative | 500/70-24 | 500/70-24 | 500/70-24 | 500/70-24 | 500/70-24 | 500/70-24 | 500/70-24 | 500/60-26.5 | 500/70-24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | autom. | autom. | autom. | autom. | autom. | autom. | autom. | autom. | autom. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | disc | disc | disc | disc | disc | disc | disc | disc | disc |
| Reverser | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. | autom. | autom. | autom. | autom. |
| Autom. control of cutting height | - | - | x | x | x | x | x | x | x |
| Cutting platform lateral tilt | - | - | x | x | x | x | x | x | x |
| Slope levelling | - | - | - | - | - | - | Montana | - | - |
