Siirry sivupalkkiinSiirry alaosaanClaas Lexion 510-560

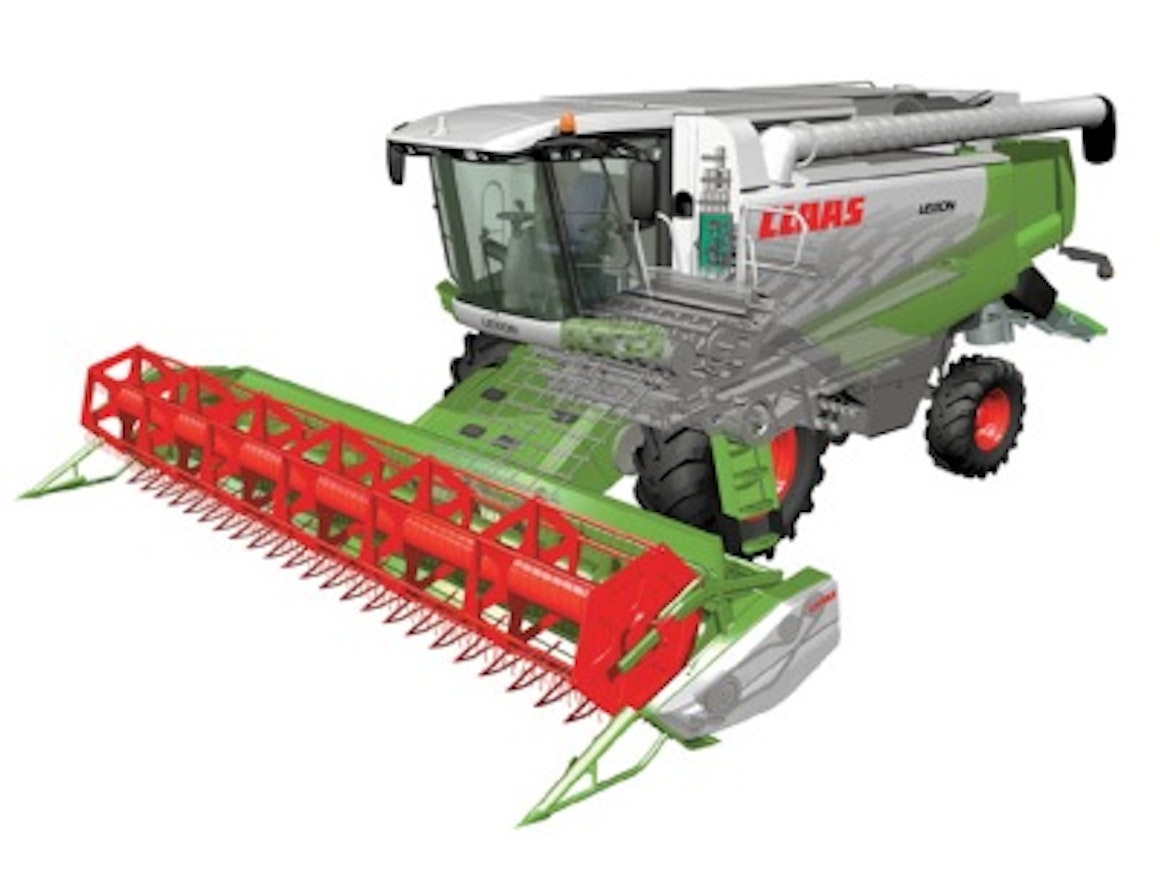

In the autumn of 2003, the 500 series Lexion models were introduced. The lineup had jumped up a notch, so for example the previous 420 was succeeded by the 510 in terms of engine power and grain tank capacity. For hillside harvesting, Montana sidehill models were available, and the 560 could also be ordered in a Terra-Trac tracked version. All models came standard with a straw conditioner. A high-capacity forage chopper was also offered. The engagement of the header drive had been softened. On models equipped with the straw walker, the tailboard now deflected downward under overload conditions even on the smaller machines. The six-walker models featured a more powerful tank unloading system.

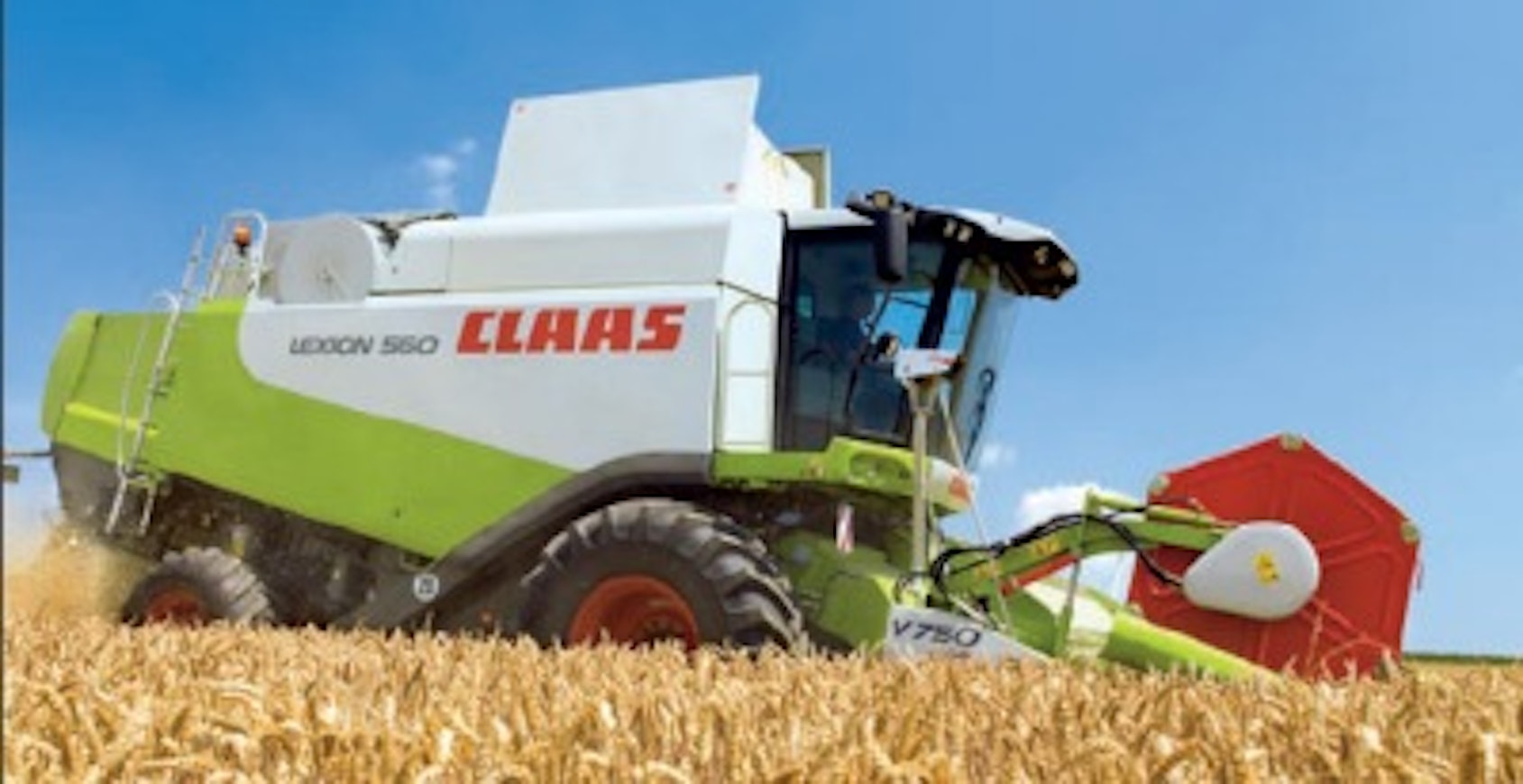

As with the preceding Evolution series, the engines were made by Caterpillar. In the 560, there was a new 10.3-liter, 360-horsepower engine with common-rail injection. For 2006, most models received updated engines, and the outputs of the larger machines were increased slightly. At the same time, the forage choppers were made more powerful.
This is an automated translation. Please report any issues in the translation.
| Model | Claas Lexion 510 | Claas Lexion 520 | Claas Lexion 530 | Claas Lexion 540C | Claas Lexion 540 | Claas Lexion 550 | Claas Lexion 560 | Claas Lexion 560 |
|---|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | No | No | Yes | Yes | No | No | Yes |
| Years | 2003-10 | 2003-10 | 2003-10 | 2003-10 | 2003-10 | 2003-10 | 2003-05 | 2005-10 |
| Engine | Caterpillar | Caterpillar | Caterpillar | Caterpillar | Caterpillar | Caterpillar | Caterpillar | Caterpillar |
| Engine type | 3126B/C6.6 | 3126B/C6.6 | 3126B/C6.6 | 3126B/C6.6 | 3126B/C9 | C9 | C10 | C13 |
| Displacement | 7200/6600 cm³ | 7200/6600 cm³ | 7200/6600 cm³ | 7200/6600 cm³ | 7200/8800 cm³ | 8800 cm³ | 10300 cm³ | 12500 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | 220 hp DIN | 260 hp DIN | 286/295 hp DIN | 260 hp DIN | 286/295 hp DIN | 321/330 hp DIN | 340 hp DIN | 360 hp DIN |
| Fuel tank | 600 l | 600 l | 600 l | 800 l | 800 l | 800 l | 800 l | 800 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h | 0-26,5 km/h |
| Cutting width | 540 cm | 540 cm | 540 cm | 600 cm | 600 cm | 600 cm | 600 cm | 600 cm |
| Cutting width, alternative | 450, 600 cm | 450, 600 cm | 450, 600 cm | 540, 660 cm | 540, 660 cm | 660 cm | 660-900 cm | 660-900 cm |
| Reel diameter | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm |
| Header length | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| 2. cyl. diameter | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm |
| Threshing cyl. width | 142 cm | 142 cm | 142 cm | 170 cm | 170 cm | 170 cm | 170 cm | 170 cm |
| Number of straw walkers | 5 | 5 | 5 | 6 | 6 | 6 | 6 | 6 |
| Area of walkers | 625 dm² | 625 dm² | 625 dm² | 748 dm² | 748 dm² | 748 dm² | 748 dm² | 748 dm² |
| Lenght of walkers | 440 cm | 440 cm | 440 cm | 440 cm | 440 cm | 440 cm | 440 cm | 440 cm |
| Straw shieve | 240 dm² | 260 dm² | 260 dm² | 310 dm² | 310 dm² | 310 dm² | 310 dm² | 310 dm² |
| Bottom shieve | 200 dm² | 210 dm² | 210 dm² | 270 dm² | 270 dm² | 270 dm² | 270 dm² | 270 dm² |
| Total screening area | 440 | 480 | 480 | 580 | 580 | 580 | 580 | 580 |
| Overall lenght | 1064 cm | 1064 cm | 1064 cm | 1064 cm | 1064 cm | 1064 cm | 1064 cm | 1064 cm |
| Overall width | 590 cm | 590 cm | 590 cm | 650 cm | 650 cm | 650 cm | 650 cm | 650 cm |
| Width without header | 362 cm | 362 cm | 362 cm | 390 cm | 390 cm | 390 cm | 390 cm | 390 cm |
| Height with cabin | 387 cm | 387 cm | 387 cm | 387 cm | 387 cm | 387 cm | 387 cm | 387 cm |
| Weight with cabin | 13550 kg | - | - | 15900 kg | - | - | - | - |
| Weight without header | 11000 kg | 11800 kg | 13500 kg | 14000 kg | 14100 kg | 14200 kg | 14500 kg | 14500 kg |
| Grain tank | 73 hl | 78 hl | 86 hl | 81 hl | 86 hl | 96 hl | 105 hl | 105 hl |
| Unl. height | 424 cm | 424 cm | 424 cm | 424 cm | 424 cm | 424 cm | 424 cm | 424 cm |
| Tyres front (Finland) | 800/65R32 | 800/65R32 | 800/65R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 |
| Tyres front, alternative | 650/75R32 | 900/60R32 | 900/60R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 |
| Tyres rear, alternative | 500/70R24 | 500/70-24 | 500/70-24 | 500/70-24 | 500/70-24 | 500/70-24 | 500/70-24 | 500/70-24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | autom. | autom. | autom. | autom. | autom. | autom. | autom. | autom. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | disc | disc | disc | disc | disc | disc | disc | disc |
| Reverser | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x | x | x |
| Autom. control of cutting height | x | x | x | x | x | x | x | x |
| Cutting platform lateral tilt | x | x | x | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. | autom. | autom. | autom. |
| Slope levelling | - | Montana | Montana | - | - | Montana | Montana | Montana |
