Siirry sivupalkkiinSiirry alaosaanClaas Lexion 740-780






The Lexion 700 series cylinder combines were updated for the 2016 season. With the exception of the Mercedes engine, the middle model now featured a 12.5-liter Perkins engine. All engines had urea injection and exhaust gas recirculation. The diameter of the straw chopper rotor was increased by 5 cm, and the straw spreader was renewed. The sieving system of the hillside combine version had a new system called 4D, which, in addition to lateral oscillation of the upper sieve, included an additional row of rotor closing flaps and automatic speed control of the fan. The range of cutting platforms included many new versions. Maxflex platforms equipped with a spring steel beam, adapted to ground surface contours, were now available starting from 5.6 meters. Mechanically length-adjustable Cerio platforms also had narrower options than before.

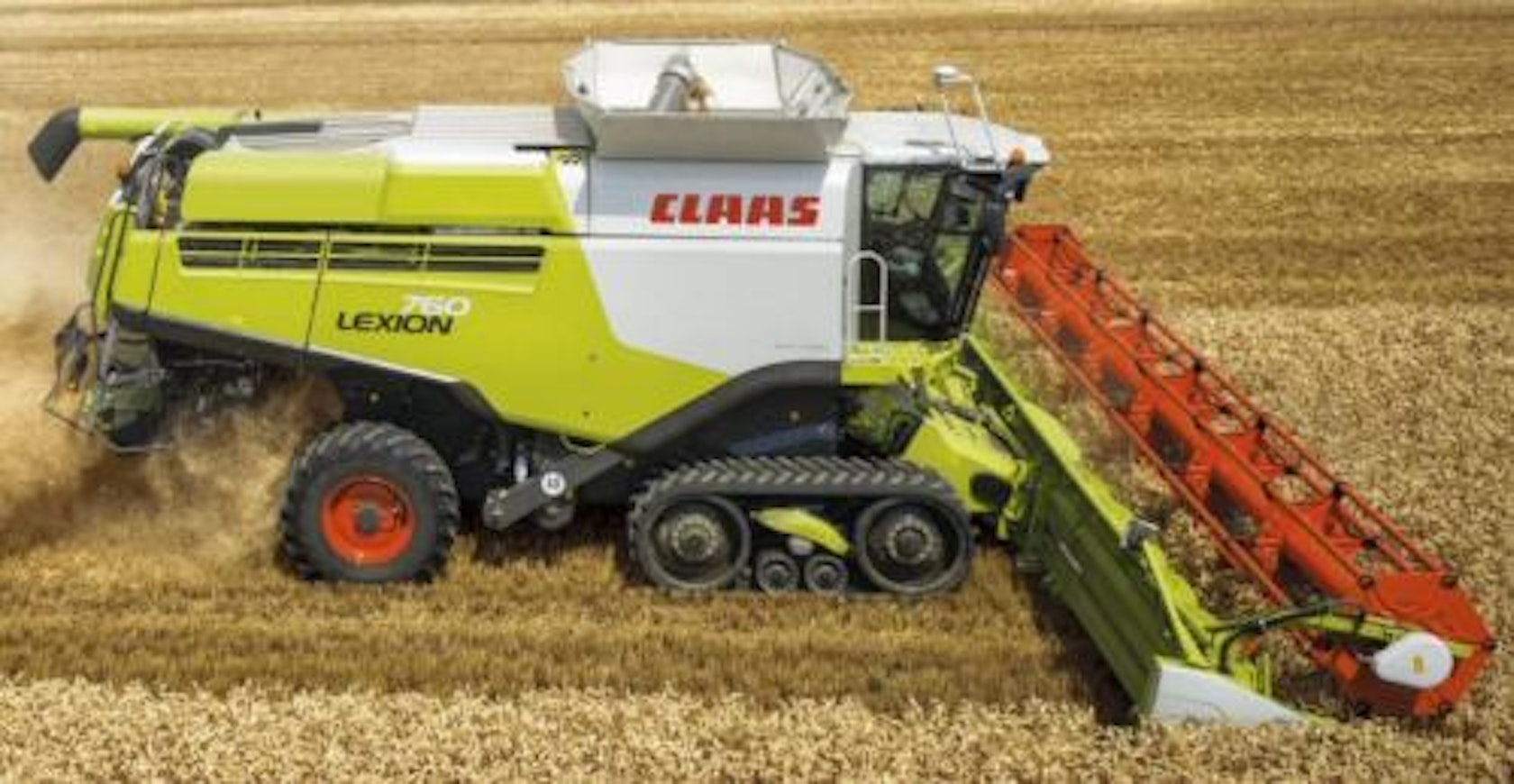

Except for the 740, a Terra Trac tracked version was also available, with the track system being hydropneumatically suspended. The tracked versions could also be equipped for a road speed of 40 km/h. The Montana hillside combine version was available for models 750 and 760. The cab now featured a 43-liter cooler box. The noise level was reported as 70 dB.
This is an automated translation. Please report any issues in the translation.
| Model | Claas Lexion 740 | Claas Lexion 750 | Claas Lexion 760 | Claas Lexion 770 | Claas Lexion 780 |
|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 2016-2020 | 2016-2020 | 2016-2020 | 2016-2020 | 2016-2020 |
| Engine | Mercedes-Benz | Mercedes-Benz | Perkins | Mercedes-Benz | Mercedes-Benz |
| Engine type | OM 470 LA | OM 470 LA | 2206F-E13TA | OM 473 LA | OM 473 LA |
| Displacement | 10677 cm³ | 10677 cm³ | 12500 cm³ | 15569 cm³ | 15569 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | - | - | - | - | - |
| Fuel tank | 800+AB80 l | 800+AB80 l | 1150+AB80 l | 1150+AB80 l | 1150+AB80 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-25 (30) km/h | 0-25 (30) km/h | 0-25 (30/40) km/h | 0-30 (40) km/h | 0-30 (40) km/h |
| Cutting width | 770 cm | 770 cm | 930 cm | 930 cm | 1230 cm |
| Cutting width, alternative | 620-930 cm | 620-930 cm | 620-1050 cm | 680-1230 cm | 680-1050 cm |
| Reel diameter | 112 cm | 112 cm | 112 cm | 112 cm | 112 cm |
| Header length | 58 cm | 58 cm | 58 cm | 58 cm | 58 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| 2. cyl. diameter | 45, 45 cm | 45, 45 cm | 45, 45 cm | 45, 45 cm | 45, 45 cm |
| Threshing cyl. width | 142 cm | 142 cm | 142 cm | 170 cm | 170 cm |
| Number of straw walkers | 2 cylinders | 2 cylinders | 2 cylinders | 2 cylinders | 2 cylinders |
| Lenght of walkers | 420 cm | 420 cm | 420 cm | 420 cm | 420 cm |
| Straw shieve | 267 dm² | 267 dm² | 267 dm² | 384 dm² | 384 dm² |
| Bottom shieve | 243 dm² | 243 dm² | 243 dm² | 236 dm² | 236 dm² |
| Total screening area | 510 | 510 | 510 | 620 | 620 |
| Overall lenght | 1126 cm | 1126 cm | 1126 cm | 1126 cm | 1126 cm |
| Width without header | 362 cm | 362 cm | 362 cm | 349 cm | 349 cm |
| Height with cabin | 395 cm | 395 cm | 395 cm | 395 cm | 395 cm |
| Weight with cabin | 18300 kg | 18300 kg | 18300 kg | 20000 kg | 20950 kg |
| Weight without header | 16230 kg | 16780 kg | 17390 kg | 18530 kg | 18920 kg |
| Grain tank | 90 (100) hl | 100 hl | 110 hl | 128 (135) hl | 135 hl |
| Unl. height | 466 cm | 466 cm | 466 cm | 466 cm | 466 cm |
| Tyres front (Finland) | 900/60R32 | 900/60R32 | 900/60R32 | telat | telat |
| Tyres front, alternative | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | - |
| Tyres rear (Finland) | 500/85R24 | 500/85R24 | 600/65R28 | 600/65R28 | 600/65R28 |
| Tyres rear, alternative | 710/45R26.5 | 710/45R26.5 | 710/45R26.5 | 710/45R26.5 | 710/45R26.5 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | autom. | autom. | autom. | autom. | autom. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. |
| Brakes | disc | disc | disc | disc | disc |
| Reverser | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Heating | x | x | x | - | - |
| Grain loss indicator | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x |
| Autom. control of cutting height | x | x | x | x | x |
| Cutting platform lateral tilt | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. |
| Slope levelling | - | - | Montana | - | - |
