Siirry sivupalkkiinSiirry alaosaanClaas Medion 310-340

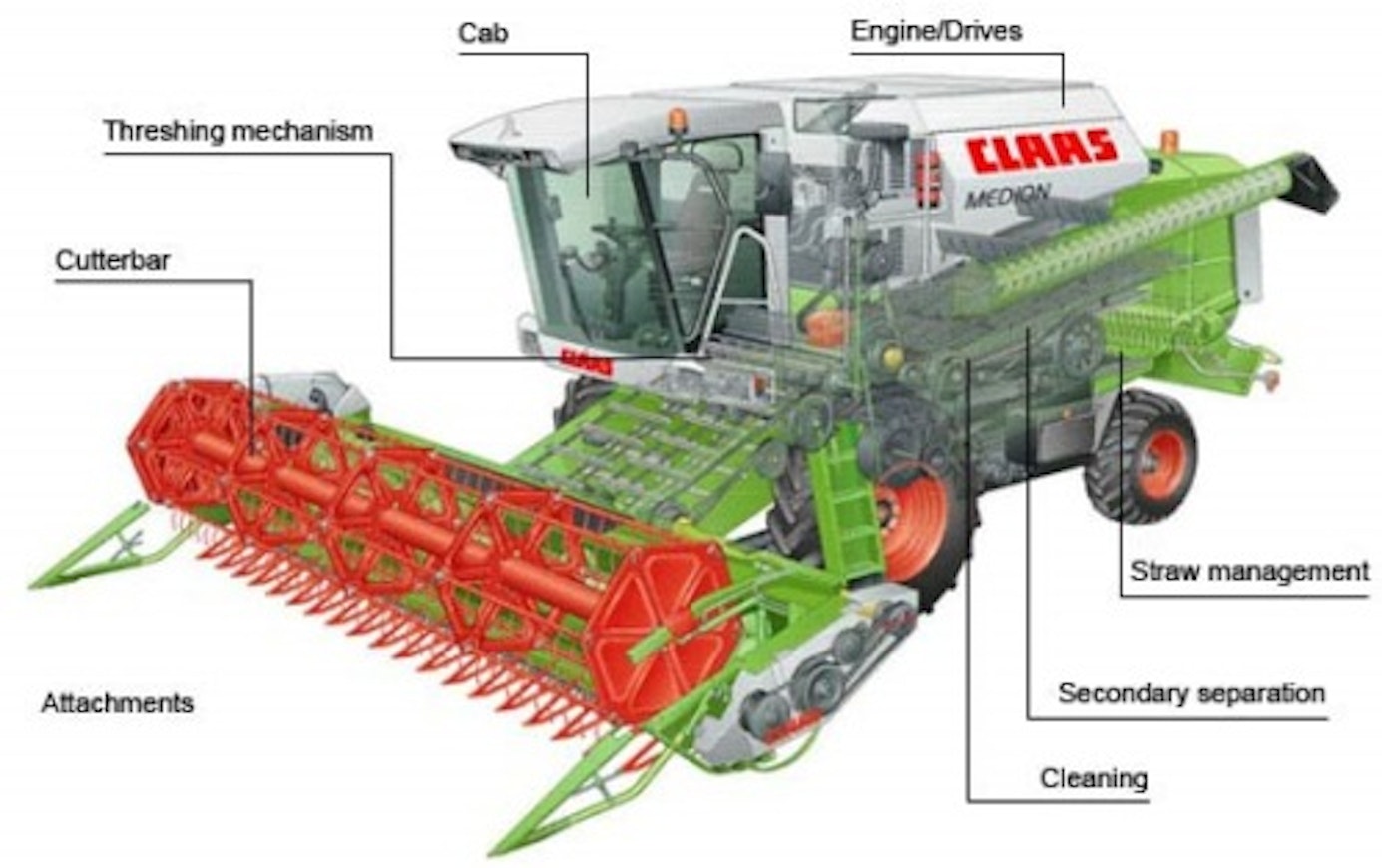

The follow-up to the popular 88–118 models was named the Medion. The 88-series was dropped altogether because even the smallest Medion matched the former 98. The concave length grew from 3.9 to 4.4 meters, and each set of concaves was fitted with two straw-walker axles. The 340 was the only model in the range with six walkers. Otherwise, the differences between models were largely limited to engine output. All engines were MB’s 6.4-liter, intercooled units. In its first years on the market, the 310 was also delivered to Finland equipped with a Perkins engine.

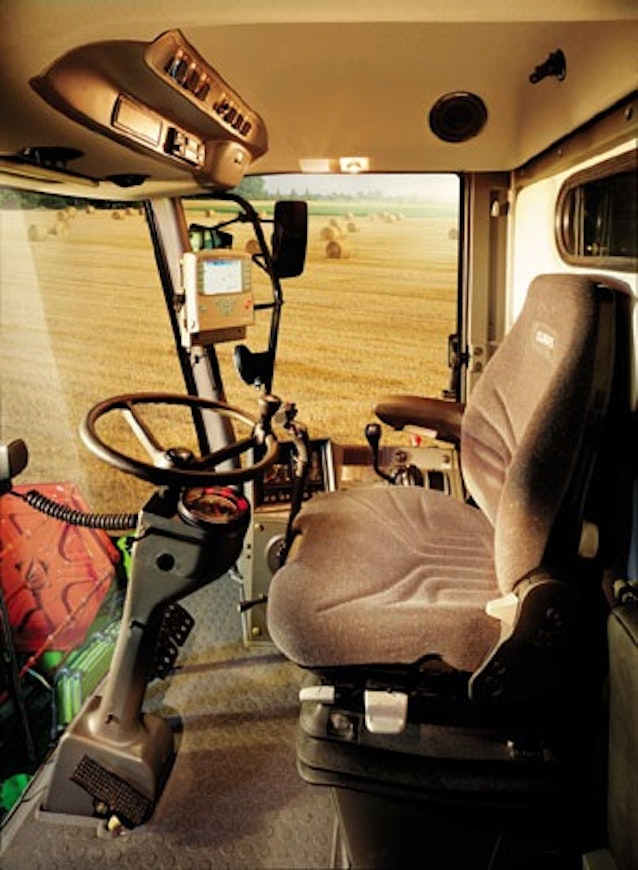

The upper and lower sieves moved in opposite directions, and each sieve consisted of two parts for easier handling. The grain elevator was now the same as those used in the Lexion series. Grain-tank capacity had increased to 5.8 m³ (58 hl), and the diameter of the unloading auger was also larger than before. The hydraulic system was built around Linde components. The front axle was beefed up and fitted with disc brakes. The cab was largely identical to the Lexion-style cab used on the 88 VX, and noise levels were quoted at 78 dB. Prices were noticeably higher than those of the predecessors.
This is an automated translation. Please report any issues in the translation.
| Model | Claas Medion 310 | Claas Medion 320 | Claas Medion 330 | Claas Medion 340 |
|---|---|---|---|---|
| Imported to Finland | Yes | No | No | No |
| Years | 2000-09 | 2000-07 | 2001-09 | 2000-09 |
| Engine | MB | MB | MB | MB |
| Engine type | OM 906 LA | OM 906 LA | OM 906 LA | OM 906 LA |
| Displacement | 6370 cm³ | 6370 cm³ | 6370 cm³ | 6370 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | 185 hp DIN | 200 hp DIN | 220 hp DIN | 245 hp DIN |
| Alternative hp | 185 Perkins hp | 200 Perkins hp | - | - |
| Fuel tank | 400 l | 400 l | 400 l | 400 l |
| Transmission | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 450 cm | 450 cm | 450 cm | 510 cm |
| Cutting width, alternative | 360-510 cm | 390-600 cm | 390-600 cm | 600, 660 cm |
| Reel diameter | 112 cm | 112 cm | 112 cm | 112 cm |
| Header length | 48 cm | 48 cm | 48 cm | 48 cm |
| Threshing cyl. diameter | 45 cm | 45 cm | 45 cm | 45 cm |
| Threshing cyl. width | 132 cm | 132 cm | 132 cm | 156 cm |
| Number of straw walkers | 5 | 5 | 5 | 6 |
| Area of walkers | 580 dm² | 580 dm² | 580 dm² | 695 dm² |
| Lenght of walkers | 440 cm | 440 cm | 440 cm | 440 cm |
| Straw shieve | 230 dm² | 230 dm² | 230 dm² | 270 dm² |
| Bottom shieve | 190 dm² | 190 dm² | 190 dm² | 240 dm² |
| Total screening area | 425 | 425 | 425 | 510 |
| Overall lenght | 1050 cm | 1050 cm | 1050 cm | 1050 cm |
| Overall width | 500 cm | 500 cm | 500 cm | 560 cm |
| Width without header | 300 cm | 300 cm | 300 cm | 330 cm |
| Height with cabin | 385 cm | 385 cm | 385 cm | 385 cm |
| Weight with cabin | 10300 kg | 10780 kg | 10780 kg | 11220 kg |
| Weight without header | 9340 kg | 9340 kg | 9340 kg | 10050 kg |
| Grain tank | 58 hl | 65 hl | 72 hl | 82 hl |
| Unl. height | 385 cm | 385 cm | 385 cm | 385 cm |
| Tyres front (Finland) | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 |
| Tyres front, alternative | 620/75R30 | 620/75R30 | 620/75R30 | 620/75R30 |
| Tyres rear (Finland) | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 |
| Tyres rear, alternative | 365/70R18 | 14.5/75-20 | 14.5/75-20 | 14.9/80-24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. |
| Brakes | disc | disc | disc | disc |
| Reverser | x | x | x | x |
| Floating cutting platform | x | x | x | x |
| Autom. control of cutting height | opt. | opt. | opt. | opt. |
| Type of cutting platform floating | autom. | autom. | autom. | autom. |
| Air conditioning | - | x | x | x |
