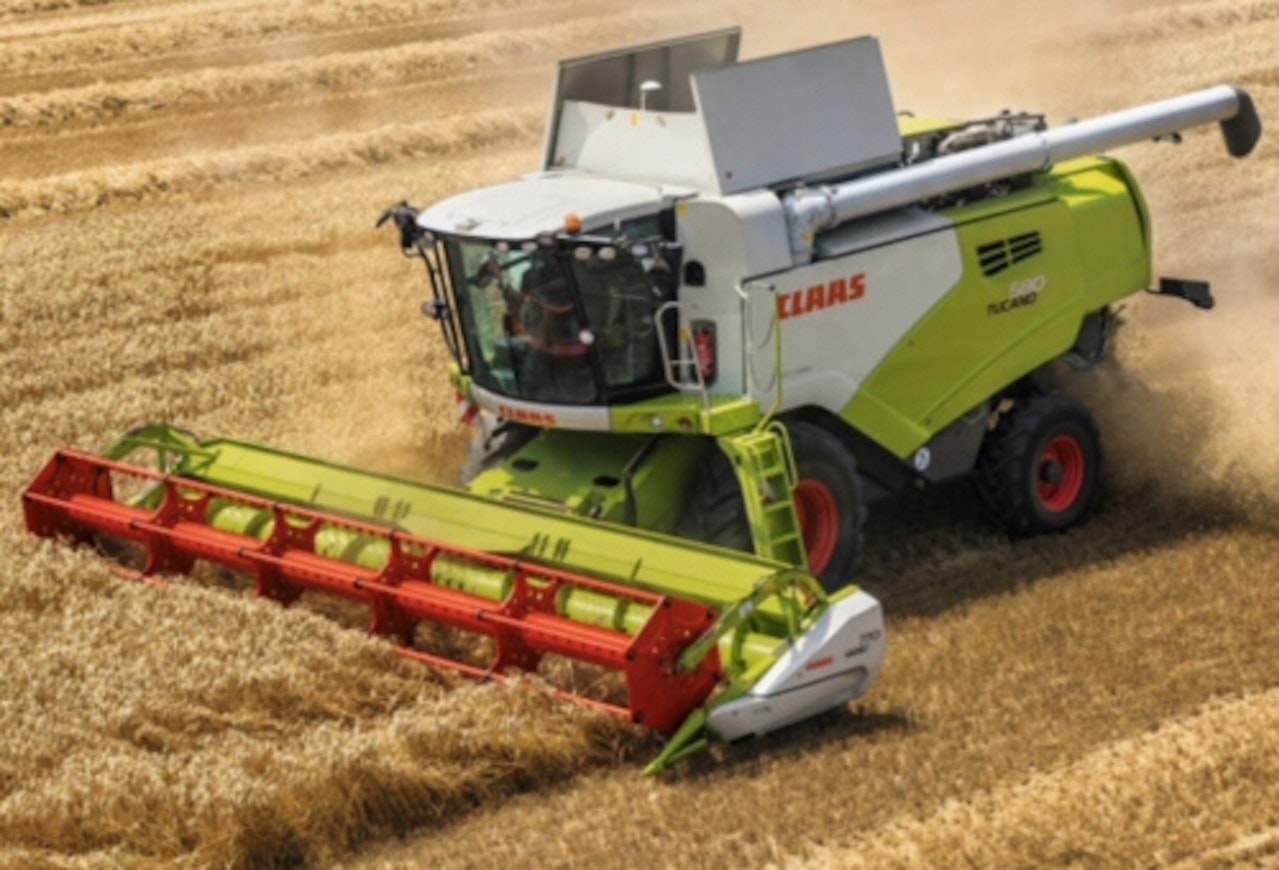

Siirry sivupalkkiinSiirry alaosaanClaas Tucano 550-580 Hybrid




Since the beginning of 2019, Tucanos have been equipped with Stage V compliant Mercedes-Benz engines featuring a new Dynamic Power function. In situations where full power was not required, the engine switched to an economy mode. The engines were 7.7 liters in size and their maximum power output remained unchanged. However, there were now two Hybrid models available, both equipped with 132 cm and 158 cm threshing drums respectively. Instead of rasp bars, the Hybrids had a longitudinal separating cylinder with a diameter of 57 centimeters.
The cab featured a new armrest, a new control lever, and a new color Cebis touchscreen. The armrest included toggle switches for the most important threshing adjustments, so the display was needed less frequently than before. Electric adjustment of the sieves was standard in Finland, while electric adjustment of the threshing gap was always standard. New were also quick buttons for favorite functions on the screen. At the end of the discharge pipe, there was an automatically operating flap that prevented grains from falling to the ground when the pipe was folded into the rest position. The chain lubrication of the unloading auger was automatic.
As an option, the Auto Crop Flow system was available, which stopped the header and, if necessary, also the threshing machinery when it detected a blockage in the threshing drum, separating drum, or chopper. Other new optional features included electronic monitor control of the grain tank extensions, a vacuum cleaner that sucked dust from grain conveyed by the tilt conveyor, and Vario headers adjustable in length from 7.7 to 9.3 meters. Slope harvesting versions were improved with a new front axle from the Montana models and the Auto Slope feature, which adjusted the fan speed when going uphill and downhill.
This is an automated translation. Please report any issues in the translation.
| Model | Claas Tucano 550 | Claas Tucano 560 | Claas Tucano 570 | Claas Tucano 580 |
|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 2019-2021 | 2019-2021 | 2019-2021 | 2019-2021 |
| Engine | Mercedes-Benz | Mercedes-Benz | Mercedes-Benz | Mercedes-Benz |
| Engine type | OM 926 LA | OM 926 LA | OM 926 LA | OM 926 LA |
| Displacement | 7698 cm³ | 7698 cm³ | 7698 cm³ | 7698 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | - | - | - | - |
| Fuel tank | 650 l | 650 l | 650 l | 650 l |
| Transmission | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 678 cm | 678 cm | 770 cm | 770 cm |
| Cutting width, alternative | 556-922 cm | 556-922 cm | 556-922 cm | 556-922 cm |
| Reel diameter | 112 cm | 112 cm | 112 cm | 112 cm |
| Header length | 58 cm | 58 cm | 58 cm | 58 cm |
| Threshing cyl. diameter | 45 cm | 45 cm | 45 cm | 45 cm |
| 2. cyl. diameter | 45 cm | 45 cm | 45 cm | 45 cm |
| Threshing cyl. width | 132 cm | 132 cm | 158 cm | 158 cm |
| Number of straw walkers | 1 cylinder | 1 cylinder | 1 cylinder | 1 cylinder |
| Straw shieve | 230 dm² | 230 dm² | 276 dm² | 276 dm² |
| Bottom shieve | 195 dm² | 195 dm² | 234 dm² | 234 dm² |
| Total screening area | 470 | 470 | 565 | 565 |
| Overall lenght | 1080+pöytä cm | 1080+pöytä cm | 1080+pöytä cm | 1080+pöytä cm |
| Overall width | 715 cm | 715 cm | 805 cm | 805 cm |
| Width without header | 349 cm | 349 cm | 375 cm | 375 cm |
| Height with cabin | 397 cm | 397 cm | 397 cm | 397 cm |
| Weight with cabin | 16940 kg | 16940 kg | 18019 kg | 18019 kg |
| Weight without header | 14800 kg | 14800 kg | 15600 kg | 15600 kg |
| Grain tank | 90 hl | 90 hl | 100 (110) hl | 110 hl |
| Unl. height | 432 cm | 432 cm | 432 cm | 432 cm |
| Tyres front (Finland) | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 |
| Tyres front, alternative | 900/60R32 | 900/60R32 | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 | 600/55-26.5 |
| Tyres rear, alternative | 500/70R24 | 500/70R24 | 500/70R24 | 500/70R24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. |
| Brakes | disc | disc | disc | disc |
| Reverser | x | x | x | x |
| Air conditioning | x | x | x | x |
| Heating | x | x | x | x |
| Grain loss indicator | x | x | x | x |
| Floating cutting platform | x | x | x | x |
| Autom. control of cutting height | opt. | opt. | opt. | opt. |
| Slope levelling | opt. | opt. | opt. | opt. |
| Cutting platform lateral tilt | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. |
