Fendt 5275 C – 6335 C






Here is the English translation of the given text:
At Agritechnica in autumn 2011, the redesigned C-series Fendt combine harvesters, manufactured in Italy, were introduced. Sister models in the series included the MF 7300 Beta and Laverda M 400. The models still included one with a 5-rotor and one with a 6-rotor. The larger engine was a more powerful 8.4-liter Agco Power compared to earlier versions. The engines used SCR technology for emissions control.
Assisting the threshing drum was the MCS double threshing drum and an additional feeding drum between the drums. Maintaining the machine level on an 8-degree longitudinal tilt and 20-degree lateral tilt was possible with the ParaLevel models, which also featured permanent four-wheel drive. The PowerFlow belt conveyor cutting table developed by Dronningborg was now also available as an option for Fendt.

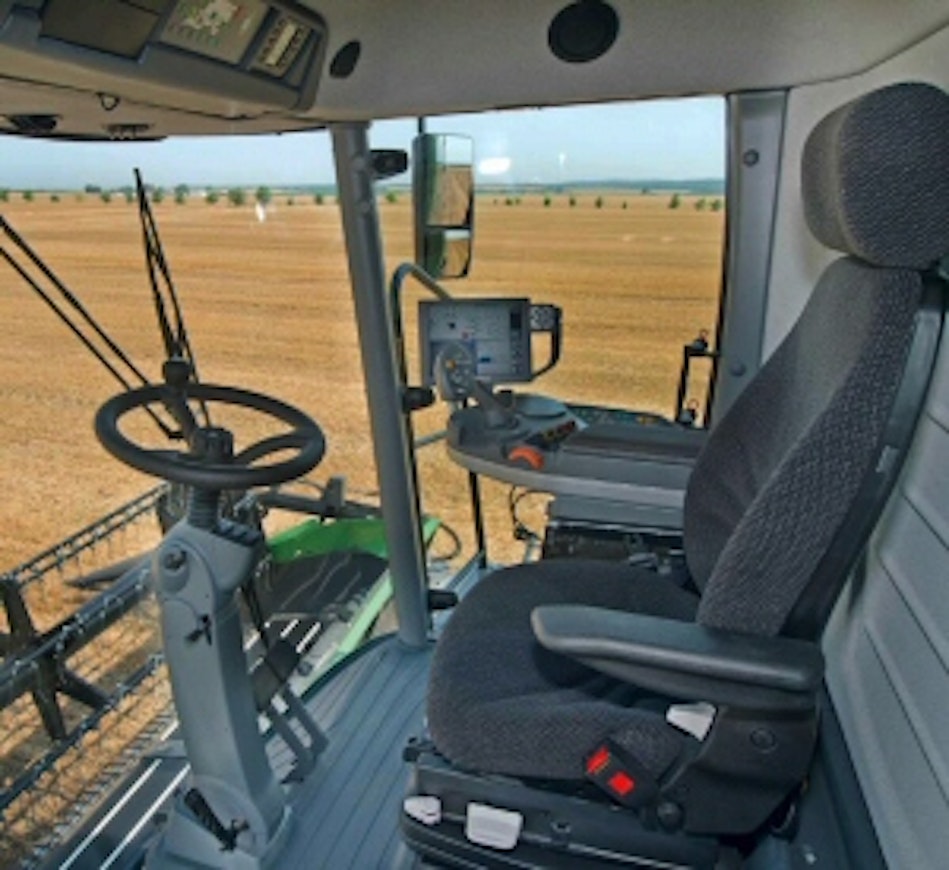

The new Skyline cab (74 dB), with new Varioterminal control panels, was introduced in the 2013 combine harvesters.
Let me know if you need any further help!
This is an automated translation. Please report any issues in the translation.
| Model | Fendt 5275 C | Fendt 6335 C | Fendt 5275 C ( | Fendt 6335 C |
|---|---|---|---|---|
| Imported to Finland | No | No | Yes | Yes |
| Years | 2011-14 | 2011-14 | 2015- | 2015- |
| Engine | Agco Power | Agco Power | Agco Power | Agco Power |
| Engine type | 74 AWI | 84 AWI | 74 AWF/LFTN-D5 | 84 AWF/LFTN-D5 |
| Displacement | 7368 cm³ | 8400 cm³ | 7368 cm³ | 8400 cm³ |
| Cyl/turbo | 6TI | 6TI | 6TI | 6TI |
| Power | 276 ISO hp DIN | 335(360) ISO hp DIN | 276(306) ISO hp DIN | 335(360) ISO hp DIN |
| Fuel tank | 620+AB80 l | 620+AB80 l | 620+AB80 l | 680+AB80 l |
| Transmission | hydr. | hydr. | hydr. | hydr. |
| Gears | 4 | 4 | 4 | 4 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 540 cm | 600 cm | 600 cm | 700 cm |
| Cutting width, alternative | 540-760 cm | 540-760 cm | 480-760 cm | 480-770 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm |
| 2. cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 134 cm | 160 cm | 134 cm | 160 cm |
| Number of straw walkers | 5 | 6 | 5 | 6 |
| Area of walkers | 573 dm² | 681 dm² | 573 dm² | 681 dm² |
| Lenght of walkers | 426 cm | 426 cm | 426 cm | 426 cm |
| Straw shieve | 263 dm² | 276 dm² | 263 dm² | 276 dm² |
| Bottom shieve | 204 dm² | 244 dm² | 204 dm² | 244 dm² |
| Total screening area | 467 | 558 | 467 | 558 |
| Overall lenght | 891+pöytä cm | 910+pöytä cm | 904+pöytä cm | 904+pöytä cm |
| Width without header | 365 cm | 390 cm | 365 cm | 390 cm |
| Height with cabin | 400 cm | 400 cm | 400 cm | 400 cm |
| Weight with cabin | 12960 kg | 13360 kg | 13500 kg | 15700 kg |
| Grain tank | 90 (86) hl | 90 (86) hl | 90 (86) hl | 90 (86) hl |
| Unl. height | 445 cm | 445 cm | 445 cm | 445 cm |
| Tyres front (Finland) | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 |
| Tyres front, alternative | 650/75R32 | 650/75R32 | 650/75R32 | 900/60R32 |
| Tyres rear (Finland) | 460/70R24 | 460/70R24 | 460/70R24 | 460/70R24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x |
| Air conditioning | x | x | x | x |
| Heating | x | x | x | x |
| Grain loss indicator | x | x | x | x |
| Floating cutting platform | x | x | x | x |
| Autom. control of cutting height | x | x | x | x |
| Slope levelling | opt. | opt. | opt. | opt. |
| Cutting platform lateral tilt | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. |
| Tyres rear, alternative | - | - | 540/65R24 | 540/65R24 |
