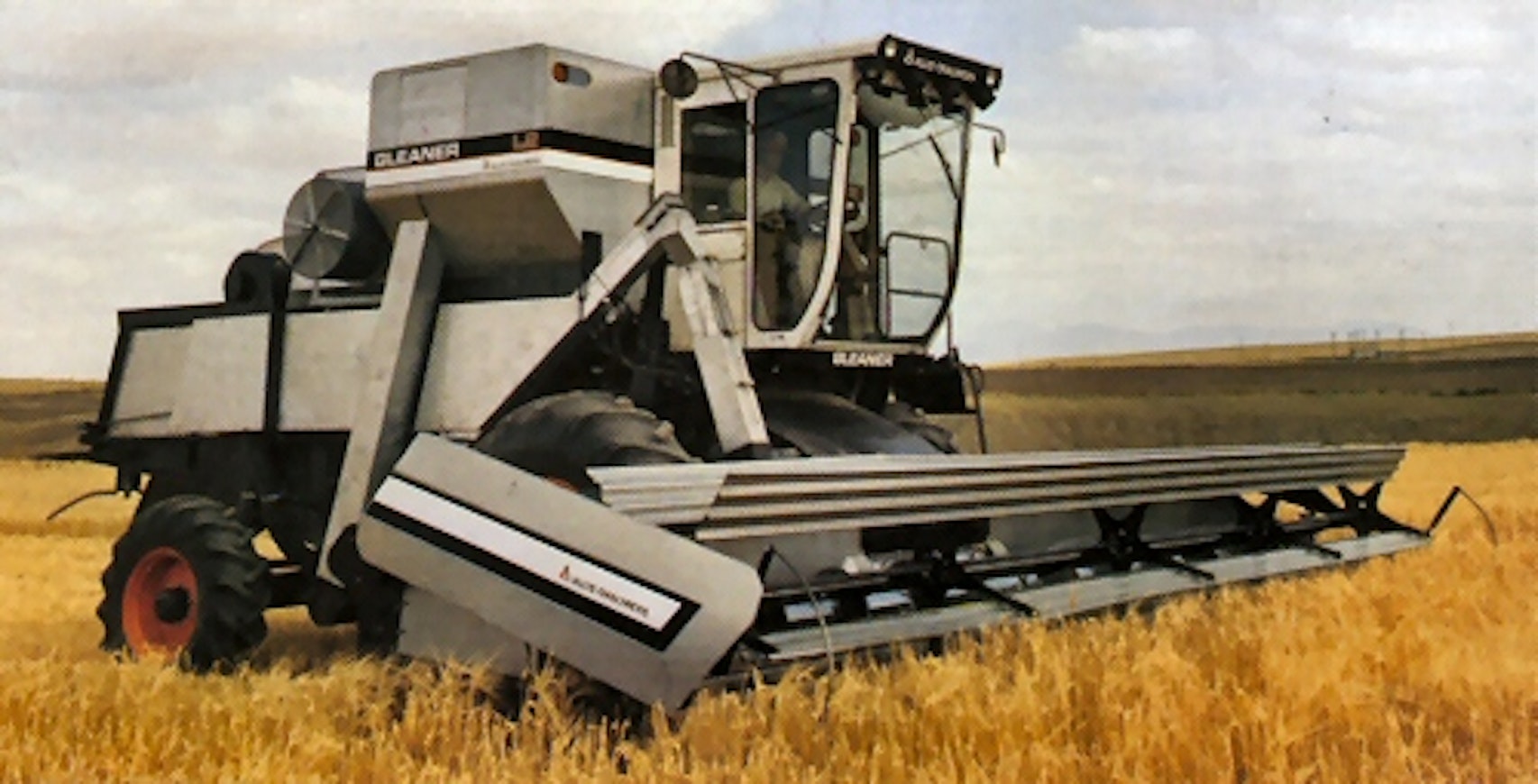

Gleaner F2 / M2 / L2
Manufacturer
Models
Gleaner F2, Gleaner M2, Gleaner L2
Years
1977-82
Info
In the second-generation machines, the F2 model still had Gleaner's original threshing technology, but the M2 and L2 featured the perforated straw walkers and other changes introduced in the previous models. Only Allis turbo diesel engines were offered as power units. The M2 and L2 now came standard with axle speed monitoring. As with Gleaner, many optional extras were available, but the standard equipment was minimal. A new optional feature was a hydrostatic driven rear axle complementing the track equipment. The grain tanks of the larger models had grown noticeably. A hillside threshing version with tilting capability, the MH2, was available based on the M2.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Gleaner F2 | Gleaner M2 | Gleaner L2 |
|---|---|---|---|
| Imported to Finland | No | No | No |
| Years | 1977-82 | 1977-82 | 1977-82 |
| First year sold | 1977 | 1977 | 1977 |
| Last year sold | 1982 | 1982 | 1982 |
| Power | 95 | 130 | 145 |
| Engine | Allis-Chalmers | Allis-Chalmers | Allis-Chalmers |
| Engine type | 433T | 649T | 649T |
| Displacement | 3277 cm³ | 4933 cm³ | 4933 cm³ |
| Cyl/turbo | 4T | 6T | 6T |
| Power hp DIN | 95 | 130 | 145 |
| Alternative hp | - | - | 6,9 l 158 hv hp |
| Fuel tank | 265 l | 280 l | 333 l |
| Transmission | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) |
| Gears | 5 (4) | 5 (4) | 5 (4) |
| Speed min-max. | 0,4-27,6 (0-27,7) km/h | 0,7-30,7 (0-32,2) km/h | 0,8-32,9 (0-34,6) km/h |
| Cutting width | 460 cm | 460 cm | 550 cm |
| Cutting width, alternative | 400-610 cm | 400-670 cm | 400-730 cm |
| Threshing cyl. diameter | 49 cm | 49 cm | 49 cm |
| Threshing cyl. width | 95 cm | 102 cm | 122 cm |
| Number of straw walkers | 4 | 4 | 5 |
| Area of walkers | 251 dm² | 339 dm² | 372 dm² |
| Lenght of walkers | 229 cm | 305 cm | 305 cm |
| Total screening area | 221 | 301 | 356 |
| Overall lenght | 720 cm | 843 cm | 843 cm |
| Overall width | 511 cm | 511 cm | 601 cm |
| Width without header | 284 cm | 301 cm | 313 cm |
| Height with cabin | 331 cm | 353 cm | 353 cm |
| Weight with cabin | 5218 kg | 7072 kg | 7320 kg |
| Grain tank | 28 (42) hl | 63.4 hl | 70.5 hl |
| Tyres front (Finland) | 18.4-26 | 18.4-30 | 23.1-34 |
| Tyres front, alternative | 28L26 | 30.5-32 | 30.5-32 |
| Tyres rear (Finland) | 7.50-16 | 11L-16 | 11.00-16 |
| Tyres rear, alternative | 11.00-16 | 18.4-16 | 12.4-24 |
| Reel forward/backw. adjustment | holes | holes | holes |
| Reel speed adjustment | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc |
| Type of cutting platform floating | gas damper | gas damper | gas damper |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
