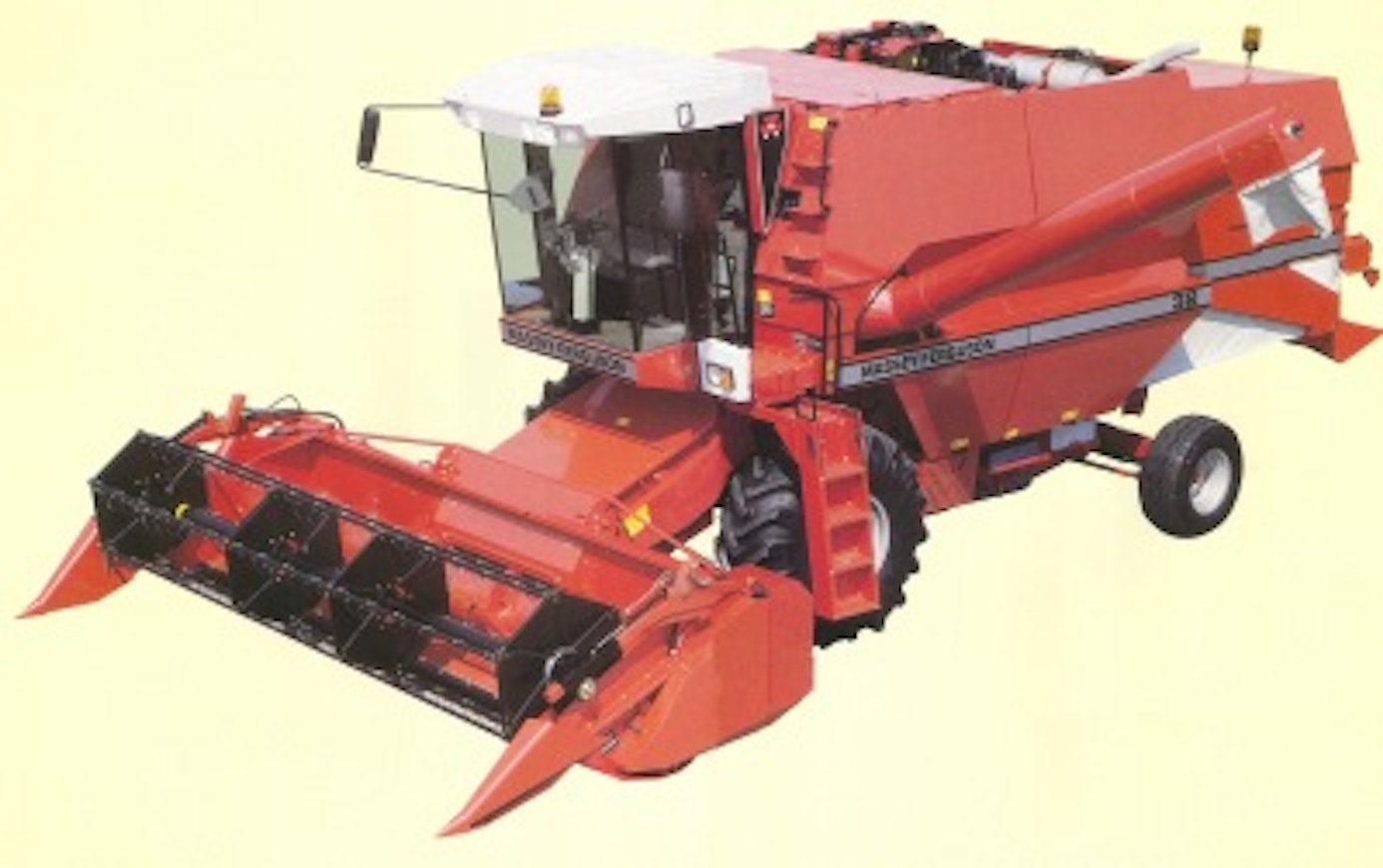

Massey Ferguson 30 – 36 RS

91MF32
91MF30ohjaamo
91MF32
91MF30ohjaamo
Manufacturer
Models
MF 30, MF 32, MF 32 RS, MF 34, MF 34 RS, MF 36 RS
Years
1990-99
Info

Here is the translation of the text to English:


The MF models introduced for the year 1991 differed more from the previous lineup sold under the Dronningborg name, although the engines had now been standardized as Valmet units. The MFs corresponded, in terms of the sieving and threshing components, to Dronningborg’s smaller Jumbo, but the engine, grain tank, and threshing drum were smaller. The MF 34 was otherwise similar to the D 8900 Jumbo, but the grain tank was larger. The RS parallel model featured a rotary separator cylinder rotating in front of the concaves. These models also had an extended cutter bar with the help of a canvas conveyor, which facilitated harvesting in tall crops. Unlike the Dronningborg models, the after-threshing device was present in the Massikos only starting from model 34.

The cab was quieter than before (80 dB). Daniavision was standard equipment (see Dronningborg Jumbo). However, crop measurement was only standard on the 34 models. Starting from 1991, a GPS-based precision farming system was available as an option. From 1993 on, Daniavision was replaced with the upgraded Datavision, and optional equipment was expanded to include a tilting cutter bar with an automatic adjustment of the reel speed based on driving speed.

At the same time, the 34 RS was replaced by the more powerful 36 RS, and another RS model, the 32 RS, was added. In 1997, a new curved-glass cab was introduced (see MF 38), featuring a new multi-function handle and a completely redesigned Datavision II.

The data presented in the table corresponds to the Swedish market. Internationally, for example, standard cutter bars are narrower and the tires are smaller.


This is an automated translation. Please report any issues in the translation.

Technical data
ModelMF 30MF 32MF 32 RSMF 34MF 34 RSMF 36 RS
Imported to FinlandNoNoNoNoNoNo
Years1990-991990-991993-991990-991990-921992-99
EngineValmetValmetValmetValmetValmetValmet
Engine type620 DSL620 DSL620 DSL612 DSL612 DSL612 DSL
Displacement6600 cm³6600 cm³6600 cm³7400 cm³7400 cm³7400 cm³
Cyl/turbo6T6T6T6T6T6T
Power150 hp DIN175 hp DIN175 hp DIN200 hp DIN200 hp DIN220 hp DIN
Fuel tank400 l400 l400 l400/600 l400 l400/600 l
Transmissionhydr.hydr.hydr.hydr.hydr.hydr.
Gears333333
Speed min-max.0-26 km/h0-26 km/h0-26 km/h0-26 km/h0-26 km/h0-26 km/h
Cutting width495 cm556 cm495 cm616 cm556 cm556 cm
Cutting width, alternative372, 434 cm434, 495 cm434, 556 cm434-556 cm434, 495 cm434, 495 cm
Reel diameter100 cm100 cm100 cm100 cm100 cm100 cm
Header length44 cm44 cm89 cm44 cm89 cm89 cm
Threshing cyl. diameter45 cm45 cm45 cm60 cm60 cm60 cm
Threshing cyl. width140 cm140 cm140 cm140 cm140 cm140 cm
Number of straw walkers555555
Area of walkers613 dm²613 dm²551 dm²613 dm²551 dm²551 dm²
Lenght of walkers440 cm440 cm400 cm440 cm400 cm400 cm
Straw shieve260 dm²260 dm²260 dm²260 dm²260 dm²260 dm²
Bottom shieve190 dm²190 dm²190 dm²190 dm²190 dm²190 dm²
Total screening area460460460460460460
Overall lenght957 cm957 cm957 cm987 cm987 cm987 cm
Overall width547 cm608 cm547 cm668 cm608 cm608 cm
Width without header320 cm340 cm340 cm340 cm340 cm350 cm
Height with cabin395 cm395 cm395 cm400 cm400 cm400 cm
Weight with cabin10300 kg10500 kg10500 kg11200 kg11300 kg11300 kg
Grain tank52 hl52 hl52 hl64 hl64 hl64 hl
Unl. height370 cm370 cm370 cm430 cm430 cm430 cm
Tyres front (Finland)23.1LR2628LR2628LR2628LR2628LR2630.5LR32
Tyres front, alternative18LR2623.1LR2623.1LR2630.5LR3230.5LR3224.5R32
Tyres rear (Finland)12.5/80-1815.0/70-1815.0/70-18400-22.5400-22.5500/60-22.5
Tyres rear, alternative15.0/70-18400-22.5400-22.5500/60-22.5500/60-22.515.0/70-20
Reel forward/backw. adjustmenthydr.hydr.hydr.hydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.hydr.hydr.hydr.
Threshing cyl. speed adjustmentelec.elec.elec.elec.elec.elec.
Bottom sieveadj.adj.adj.adj.adj.adj.
Brakeswet discwet discwet discwet discwet discwet disc
Reverserxxxxxx
Air conditioning93->xxxxx
Heatingxxxxxx
Floating cutting platformxxxxxx
Type of cutting platform floatinggas dampergas dampergas dampergas dampergas dampergas damper
