Siirry sivupalkkiinSiirry alaosaanMassey Ferguson 38 – 40 RS






The 1991 MF 38 was in broad outline equivalent to the Dronningborg D 9000 Jumbo. The RS parallel model featured a rotary separator in front of the sieves. As an optional extra, a header extension with a canvas conveyor was available, which made threshing tall crops easier. The 38-series Valmet 7.4-litre engine produced 240 hp, and the threshing mechanism on the six-concave machine was 168 cm wide. The standard header in Sweden was 6.8 metres.

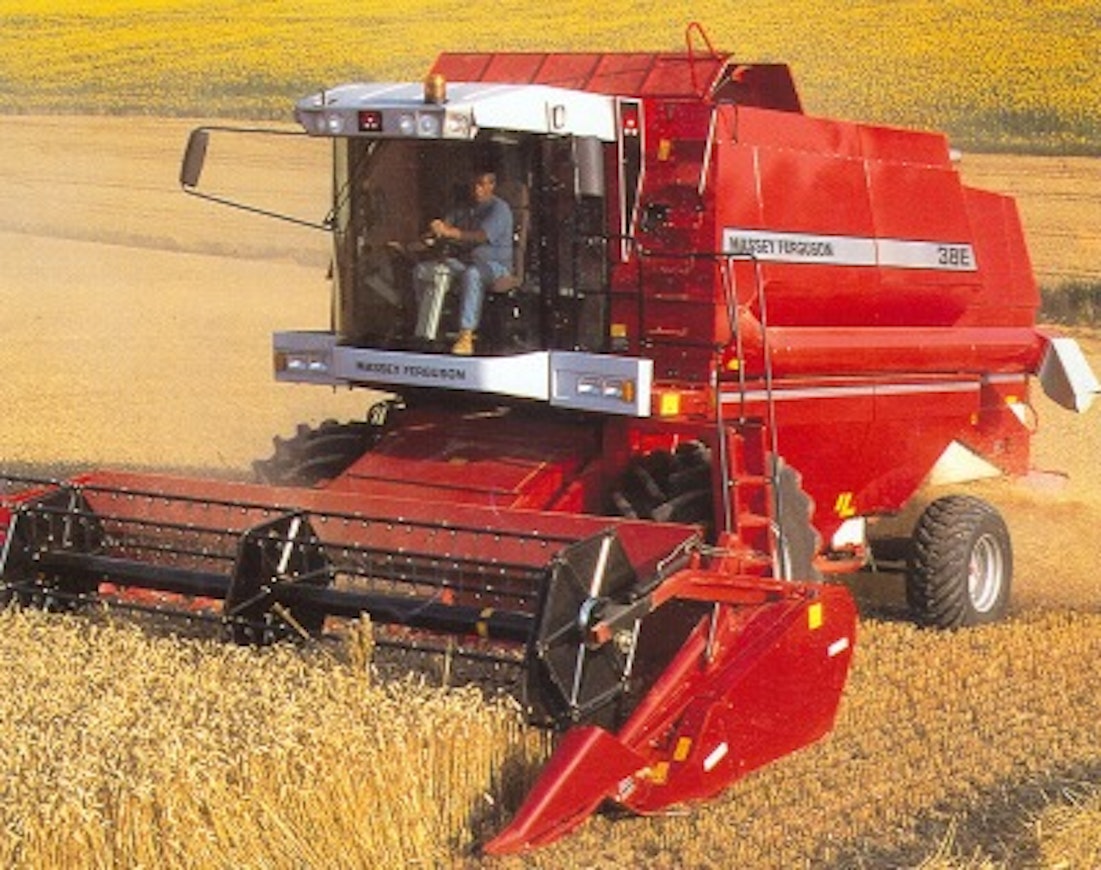

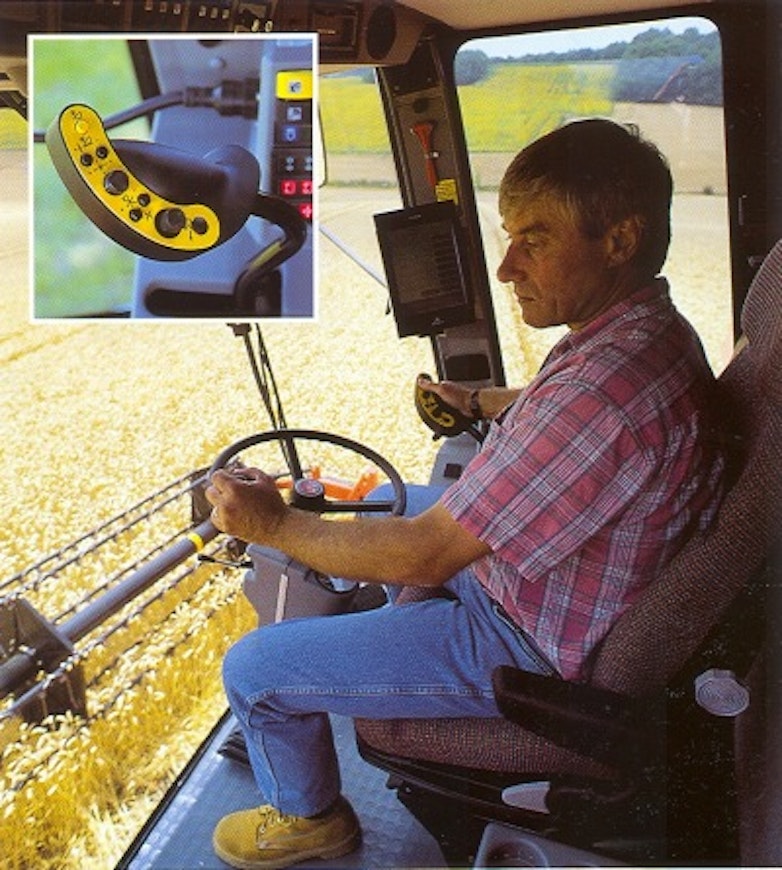

In 1993 engine power was increased to 265 hp, and the 40 RS model rose to 290 hp. At the same time the Daniavision onboard computer was replaced by Datavision, although its user interface remained character-based. A more modern look was introduced in the 1997 Datavision II version. That same year the cab was redesigned to be quieter and given curved glass, and the controls were updated. The fuel tank was enlarged to 600 litres. At the lower end of the six-concave range a budget model, the 38E, was introduced with a 225-hp engine and smaller tyres. The 40 RS’s power was also increased to 300 hp.
This is an automated translation. Please report any issues in the translation.
| Model | MF 38 | MF 38 RS | MF 38E | MF 38 | MF 40 RS | MF 40 RS |
|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No |
| Years | 1990-93 | 1990-93 | 1997-99 | 1993-99 | 1991-93 | 1993-99 |
| Engine | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet |
| Engine type | 612 DSJL | 612 DSJL | 612 DSL | 612 DSJL | 612 DSJL | 612 DSJL |
| Displacement | 7400 cm³ | 7400 cm³ | 7400 cm³ | 7400 cm³ | 7400 cm³ | 7400 cm³ |
| Cyl/turbo | 6TI | 6TI | 6T | 6TI | 6TI | 6TI |
| Power | 240 hp DIN | 240 hp DIN | 225 hp DIN | 265 hp DIN | 265 hp DIN | 290/300 hp DIN |
| Fuel tank | 400 l | 400 l | 600 l | 400/600 l | 400 l | 400/600 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-26 km/h | 0-26 km/h | 0-26 km/h | 0-26 km/h | 0-26 km/h | 0-26 km/h |
| Cutting width | 677 cm | 610 cm | 555 cm | 677 cm | 610 cm | 610 cm |
| Cutting width, alternative | 556-610 cm | 556 cm | 495 cm | 556-760 cm | 495-677 cm | 556-760 cm |
| Reel diameter | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm |
| Header length | 44 (89) cm | 44 (89) cm | 44 (89) cm | 44 (89) cm | 44 (89) cm | 44 (89) cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 168 cm | 168 cm | 168 cm | 168 cm | 168 cm | 168 cm |
| Number of straw walkers | 6 | 6 | 6 | 6 | 6 | 6 |
| Area of walkers | 740 dm² | 666 dm² | 740 dm² | 740 dm² | 666 dm² | 666 dm² |
| Lenght of walkers | 440 cm | 400 cm | 440 cm | 440 cm | 400 cm | 400 cm |
| Straw shieve | 295 dm² | 295 dm² | 295 dm² | 295 dm² | 295 dm² | 295 dm² |
| Bottom shieve | 235 dm² | 235 dm² | 235 dm² | 235 dm² | 235 dm² | 235 dm² |
| Total screening area | 540 | 540 | 540 | 540 | 540 | 540 |
| Overall lenght | 987 cm | 987 cm | 987 cm | 987 cm | 987 cm | 987 cm |
| Width without header | 375 cm | 375 cm | 339 cm | 375 cm | 375 cm | 375 cm |
| Height with cabin | 400 cm | 400 cm | 400 cm | 400 cm | 400 cm | 400 cm |
| Weight with cabin | 12900 kg | 13000 kg | 12500 kg | 12900 kg | 13400 kg | 13000 kg |
| Grain tank | 79 hl | 79 hl | 79 hl | 79 hl | 79 hl | 79 hl |
| Unl. height | 430 cm | 430 cm | 430 cm | 430 cm | 430 cm | 430 cm |
| Tyres front (Finland) | 73/44.0-32 | 73/44.0-32 | 23.1R26 | 73/44.0-32 | 73/44.0-32 | 73/44.0-32 |
| Tyres front, alternative | 24.5R32 | 24.5R32 | 24.5R32 | 24.5R32 | 30.5LR32 | 30.5LR32 |
| Tyres rear (Finland) | 600/60-22.5 | 600/60-22.5 | 16.0/70-20 | 600/60-22.5 | 600/60-22.5 | 600/60-22.5 |
| Tyres rear, alternative | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x |
| Air conditioning | x | x | - | x | x | x |
| Heating | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
