Massey Ferguson 86-99

64MF87
Manufacturer
Models
MF 86, MF 87, MF 87, MF 99
Years
1963-68
Info

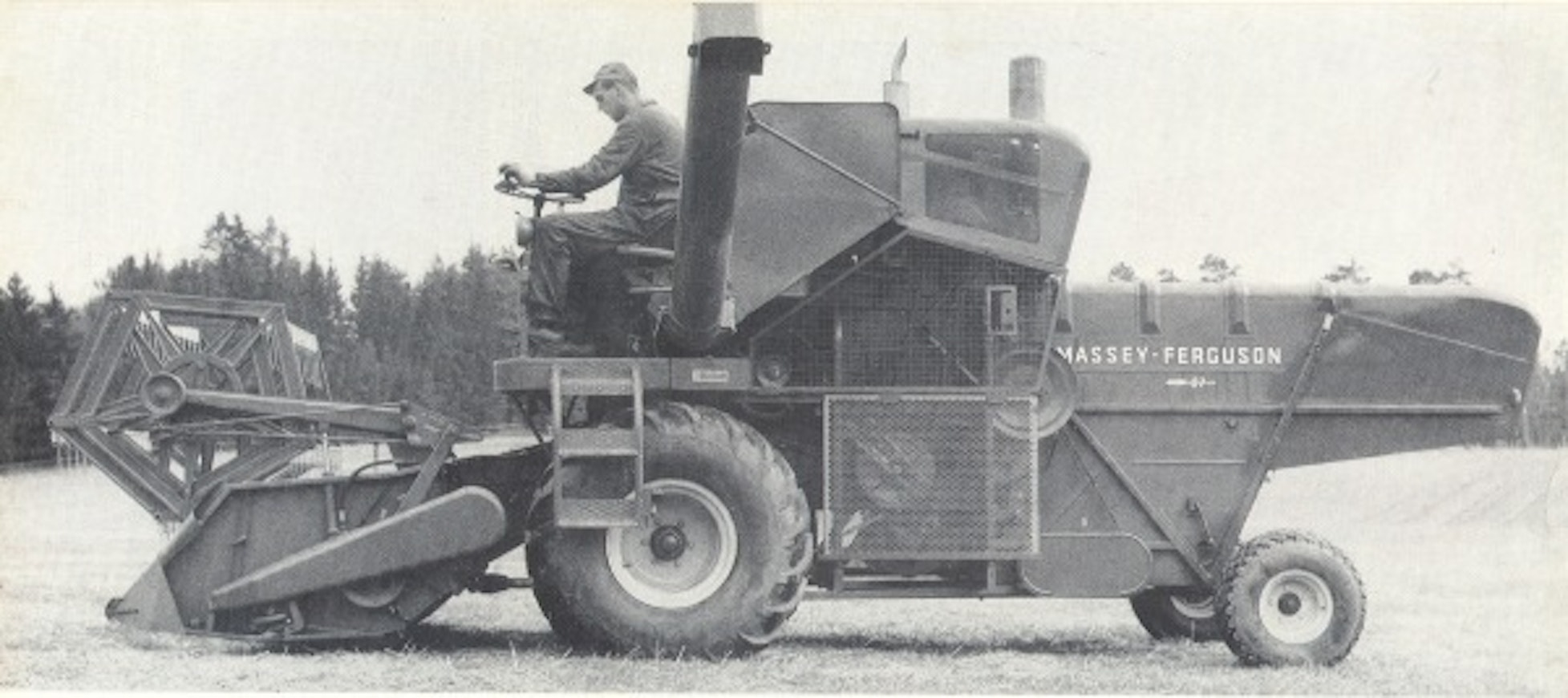

The MF 87, manufactured in Germany, replaced the model 685 S. Features it had in common with its predecessor included, among others, the 63 hp Perkins engine, the width of the threshing drum, and the specifications of the threshing teeth. However, the diameter of the threshing drum had increased to 56 centimeters. The rotational speed of the crop divider drum could be adjusted steplessly. Feeding to the threshing drum was now done by a hammer conveyor. The speed of the threshing drum was changed by chain to either 730 or 1100 revolutions. There were three rasp bars, and weed seeds were separated by a cylindrical sieve. The number of daily grease points for the sheaves was reduced to a fraction of what it used to be. The front tires were large balloon tires, sized 20×20". The cabin was located on the left side, and the engine was on top of the combine, behind the grain tank. The straw spreaders were, in the traditional MF style, a fixed part of the header.

In 1966, a cheaper parallel model, the MF 86, was introduced to Finland. It had a smaller engine from the 165 tractor and smaller tires. There was no weed seed separator. At the same time, the MF 87's engine was replaced with the newer Perkins engine used in the 175.

The big brother of the 86 and 87 was the updated version of the MF 890/892, the MF 99, which was not imported to Finland. The 99 was already outdated in design at birth and extremely low. The grain tank unloading pipe started right at the bottom of the combine. However, its features were better than those of the smaller models: for example, the speed of the threshing drum and the distance of the straw-lifting drum could be adjusted steplessly from the driver's seat.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMF 86MF 87MF 87MF 99
Imported to FinlandYesYesYesYes
Years1963-681963-661966-681965-68
EnginePerkinsPerkinsPerkinsPerkins
Engine typeAD4.203AD4.270A4.236A4.236
Displacement3330 cm³4425 cm³3860 cm³3860 cm³
Cyl/turbo4444
Power60 SAE hp DIN63 hp DIN65 SAE hp DIN70 SAE hp DIN
Fuel tank80 l80 l80 l150 l
Transmissionmech.mech.mech.mech.
Gears3333
Speed min-max.1,4-20 km/h1,2-17,5 km/h1,2-17,5 km/h1,4-19,0 km/h
Cutting width251 cm251 cm295 cm285 cm
Threshing cyl. diameter56 cm56 cm56 cm56 cm
Threshing cyl. width80.5 cm80.5 cm80.5 cm94 cm
Number of straw walkers3333
Area of walkers231 dm²231 dm²231 dm²297 dm²
Lenght of walkers282 cm282 cm282 cm267 cm
Straw shieve91 dm²91 dm²91 dm²110 dm²
Bottom shieve77 dm²77 dm²77 dm²89 dm²
Total screening area168168168199
Overall lenght725 cm700 cm725 cm740 cm
Overall width291 cm300 cm300 cm346 cm
Height without cabin298 cm305 cm298 cm274 cm
Weight without cabin3100 kg3560 kg3400 kg4000 kg
Grain tank17 hl17 hl17 hl21.6 hl
Tyres front (Finland)14.9-2620-2020-2016.9-24
Tyres rear (Finland)8.50-128.50-128.50-126.00-16
Reel forward/backw. adjustmentwrenchwrenchwrenchadj, in cabin
Reel speed adjustmentwrenchwrenchwrenchstepless
Threshing cyl. speed adjustmentby moving the chainby moving the chainby moving the chainadj, in cabin
Bottom sieveconvertibleconvertibleconvertibleconvertible
Brakeshydr. drumhydr. drumhydr. drumdisc brakes
Type of cutting platform floatinggas dampergas dampergas dampergas damper
Cutting width, alternative-295 cm-265, 360 cm
