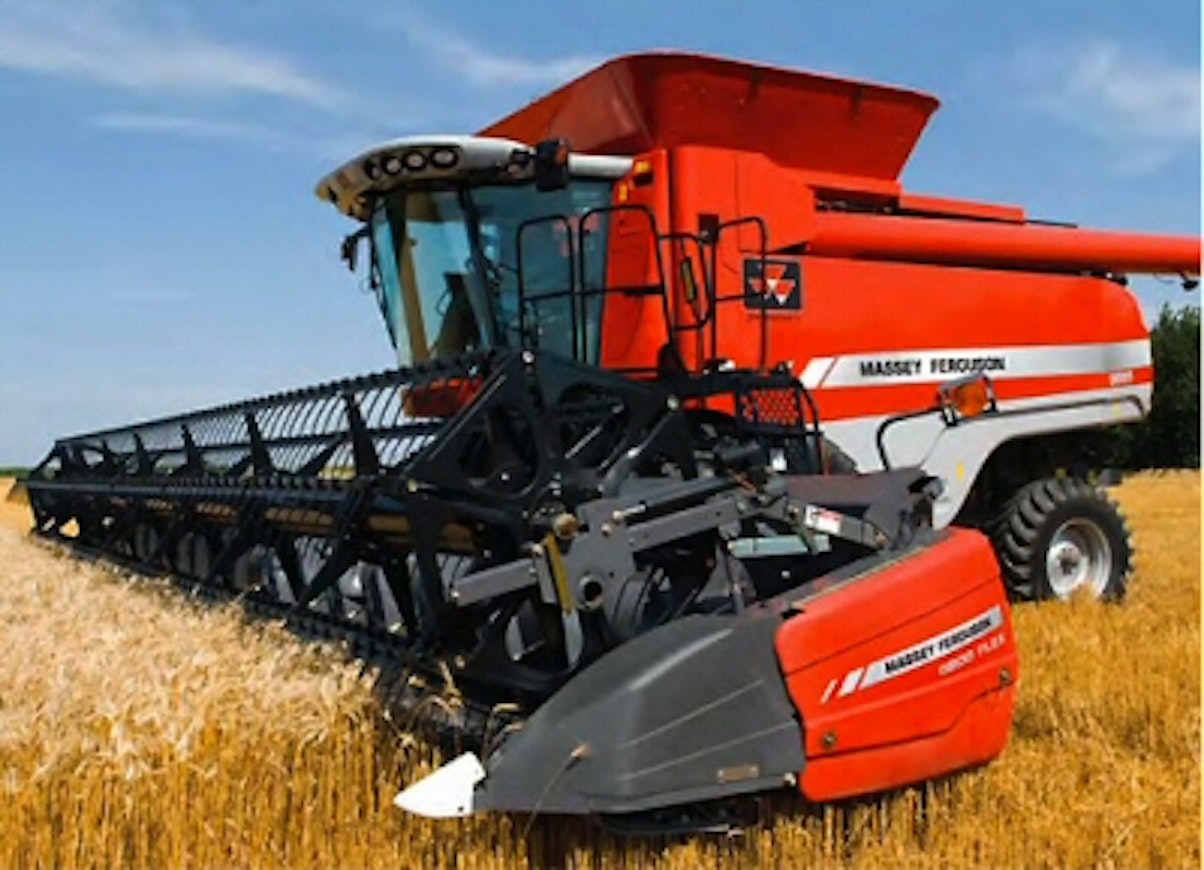

Massey Ferguson 9695-9895 Fortia

09MFFortia
09MFFortiaOhjaamo
09MFFortia
09MFFortiaOhjaamo
Manufacturer
Models
MF 9695 Fortia, MF 9795 Fortia, MF 9895 Fortia
Years
2007-14
Info

In Canada, MF purchased the rotor combine production of White, which was facing difficulties, in 1986. In 2003, the 8000 series derived from White was updated with minor modifications to the more modern 9000 series.

The rotor combine 9895 Fortia, manufactured by MF at the Hesston factory in the USA, was introduced to the European market with minor changes in 2007. The distribution of grain more evenly in the rotor had been improved, and the cutting platform chosen for Western Europe was the Power Flow developed by Dronningborg. In Eastern Europe, the American platform was used. In appearance, the Fortia was originally designed to resemble MF models based on Laverda, and the cab monitor was the GTA II used in MF tractors.

The 9895 Fortia was equipped with a 12.5-liter Caterpillar engine producing 459 hp. The threshing mechanism consisted of an 80-centimeter diameter cylinder and a sieving system comparable in size to competitors. The rotation speed of the cylinder was basically adjusted with a 3-speed gearbox and fine-tuned hydraulically. The speed aimed to be kept automatically constant despite load variations. The grain tank's capacity, 12,300 liters, and the unloading rate, 158 liters per second, were top figures at least on the European market.

In 2009, the range was expanded with the 9695 and 9795 models, equipped with 8.4-liter Agco Power engines and a 70-centimeter diameter cylinder, whose basic technology corresponded to the earlier 9690 and 9790 models. The most significant difference was a much more powerful grain tank unloading system. The smallest model had a narrower structure, so, for example, the sieve and grain tank were smaller than those of the other models. In these models, additional power was available only when the grain tank unloading was in operation.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMF 9695 FortiaMF 9795 FortiaMF 9895 Fortia
Imported to FinlandNoNoNo
Years2009-112009-142007-14
EngineAgco PowerAgco PowerCAT
Engine type84CTA84CTAC13 ACERT
Displacement8400 cm³8400 cm³12500 cm³
Cyl/turbo6TI6TI6TI
Power300(330) ISO hp DIN350(380) ISO hp DIN425(459) ISO hp DIN
Fuel tank606 l606 l870 l
Transmissionhydr.hydr.hydr.
Gears444
Speed min-max.0-33,8 km/h0-33,8 km/h0-33,8 km/h
Cutting width680 cm770 cm920 cm
Cutting width, alternative770 cm680-920 cm1050 cm
Threshing cyl. diameter70 cm70 cm70 cm
Number of straw walkers1 cylinder1 cylinder1 cylinder
Area of walkers144 dm²144 dm²144 dm²
Lenght of walkers356 cm356 cm356 cm
Straw shieve234 dm²286 dm²286 dm²
Bottom shieve197 dm²244 dm²244 dm²
Total screening area436535535
Overall lenght987+pöytä cm987+pöytä cm987+pöytä cm
Width without header413 cm413 cm418 cm
Height with cabin392 cm392 cm396 cm
Weight with cabin15565+pöytä kg16956+pöytä kg17755+pöytä kg
Grain tank106 hl123 hl123 hl
Unl. height434 cm434 cm434 cm
Tyres front (Finland)800/65R32800/65R32900/60R32
Tyres rear (Finland)480/80R30480/80R30620/75R26
Reel forward/backw. adjustmenthydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.
Threshing cyl. speed adjustmentgears+hydr.gears+hydr.gears+hydr.
Bottom sieveadj.adj.adj.
Brakeswet discwet discwet disc
Reverserxxx
Air conditioningxxx
Heatingxxx
Grain loss indicatorxxx
Floating cutting platformxxx
Autom. control of cutting heightxxx
Cutting platform lateral tiltxxx
Type of cutting platform floatingautom.autom.autom.
