YuMZ-8070-8280, UMZ-8040-8244

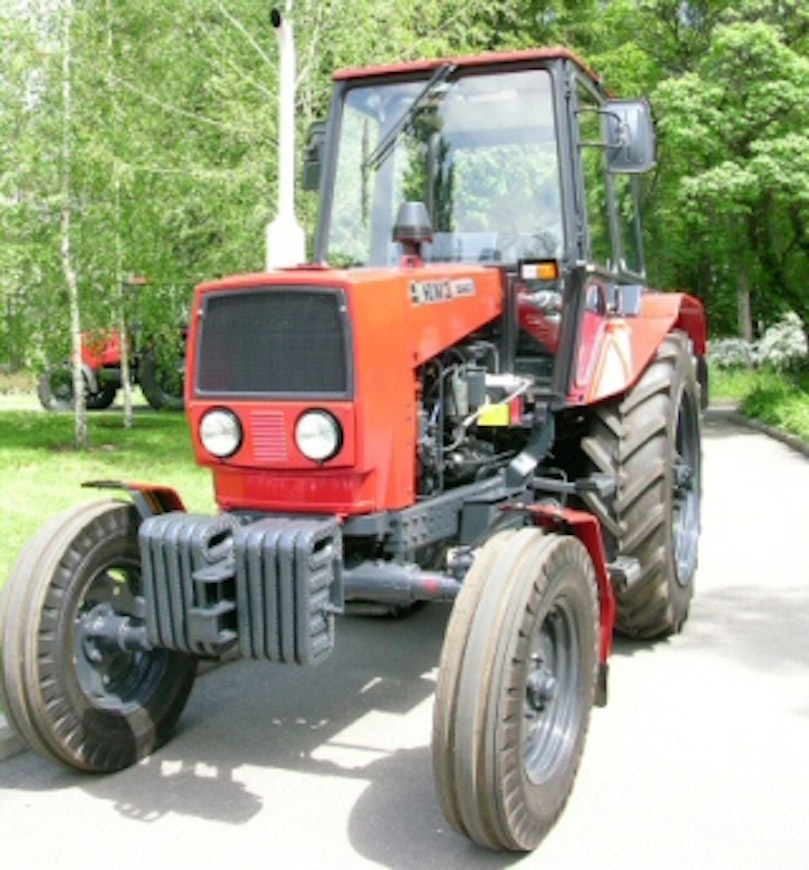

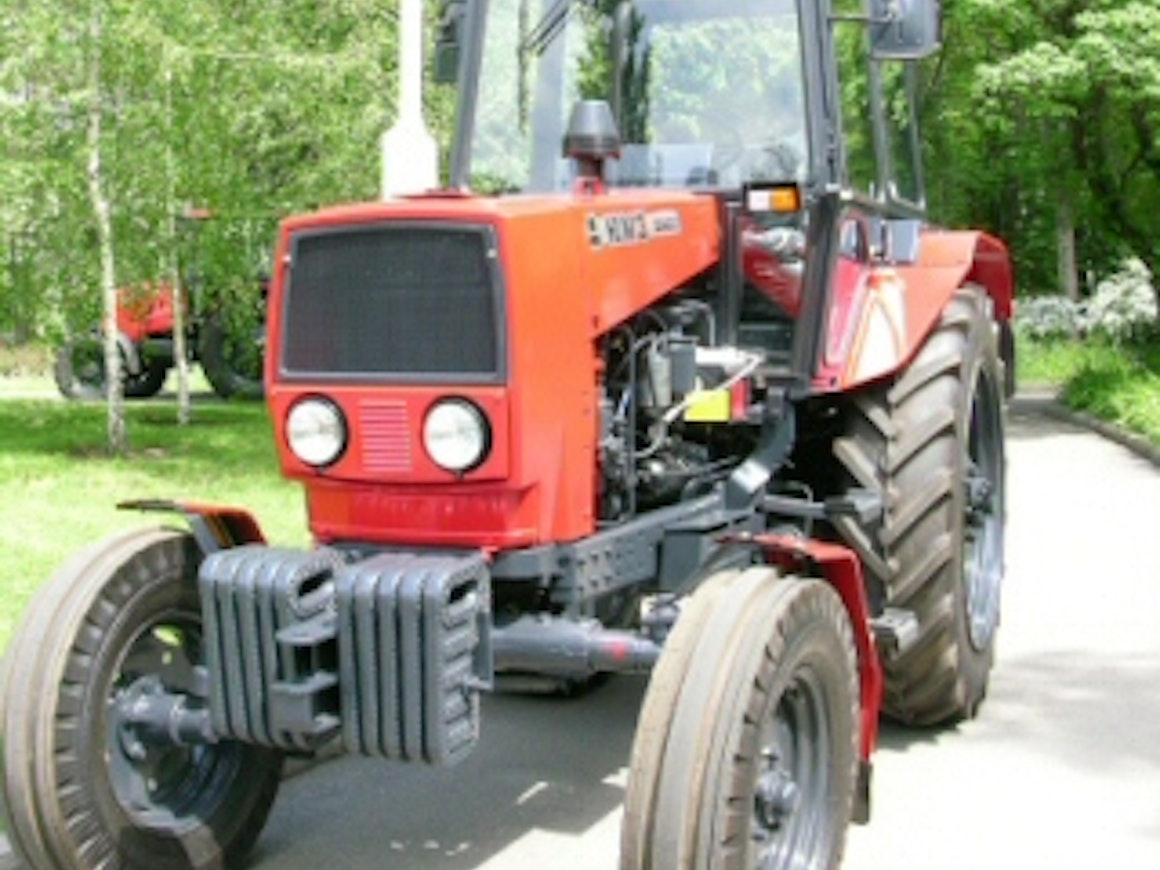

10UMZ-8040

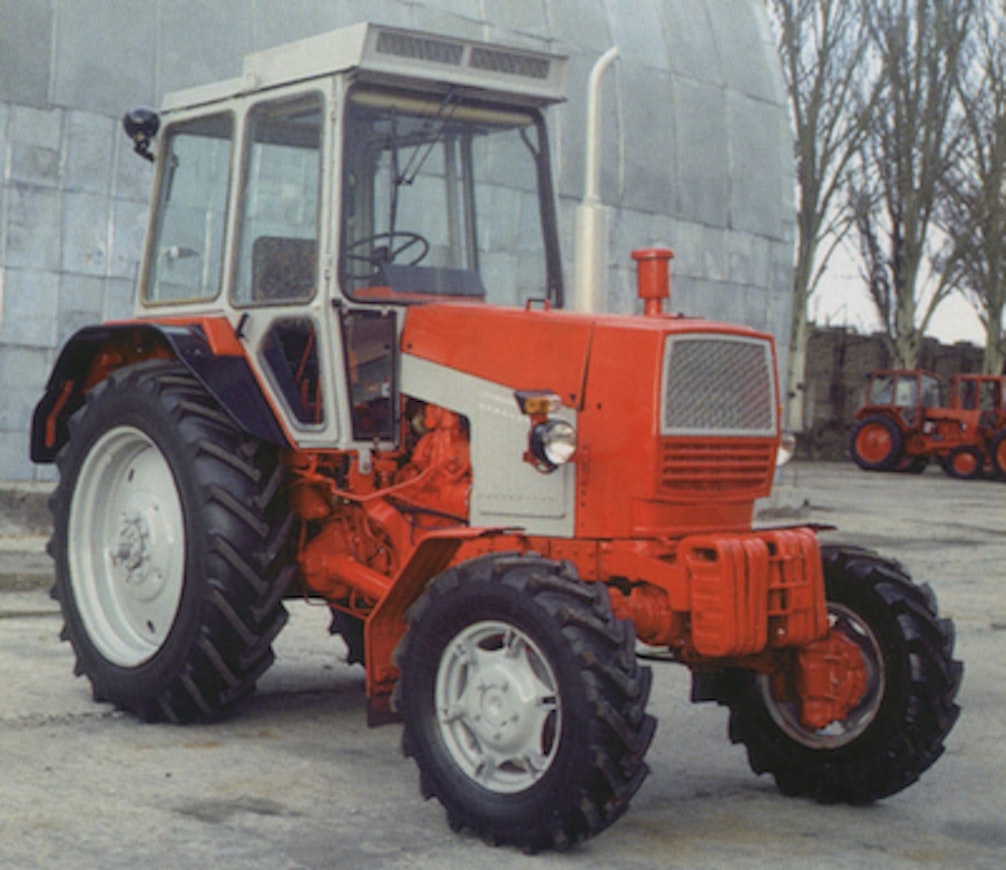

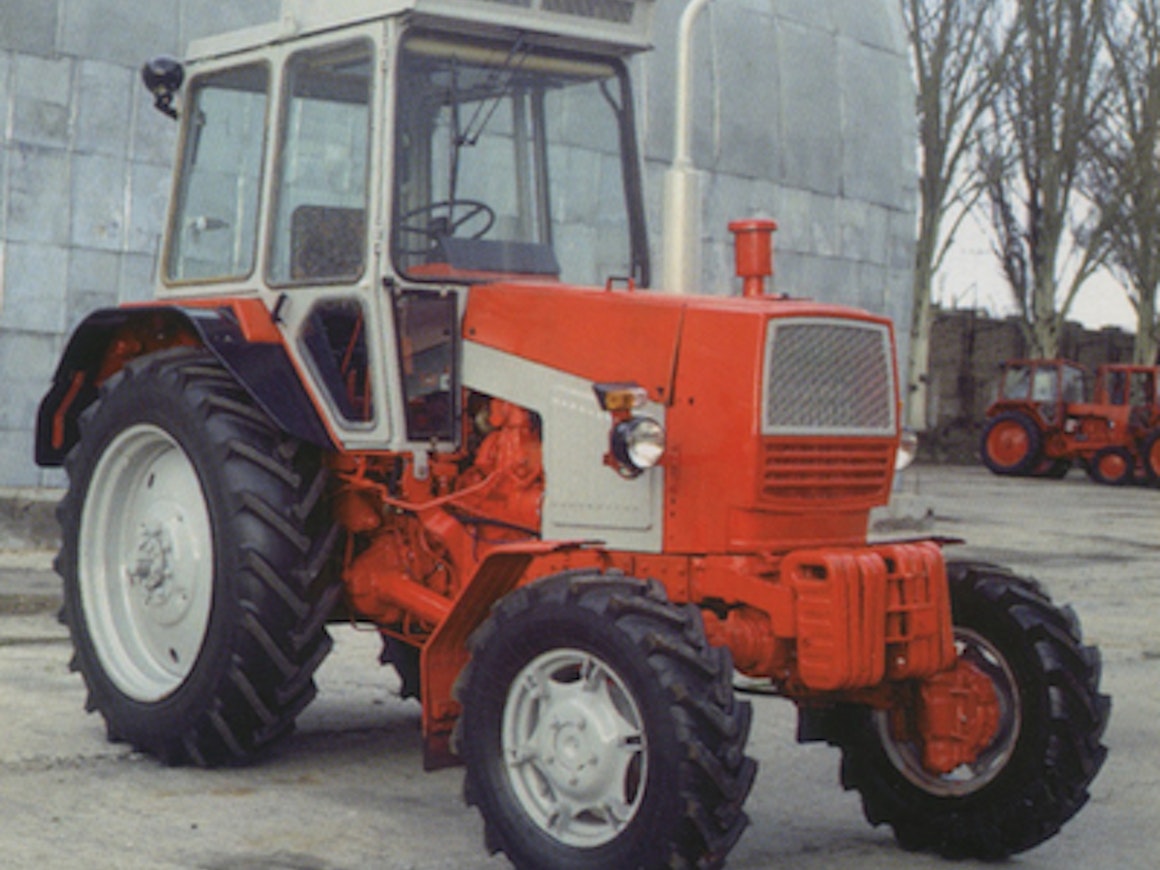

00YuMZ-8271

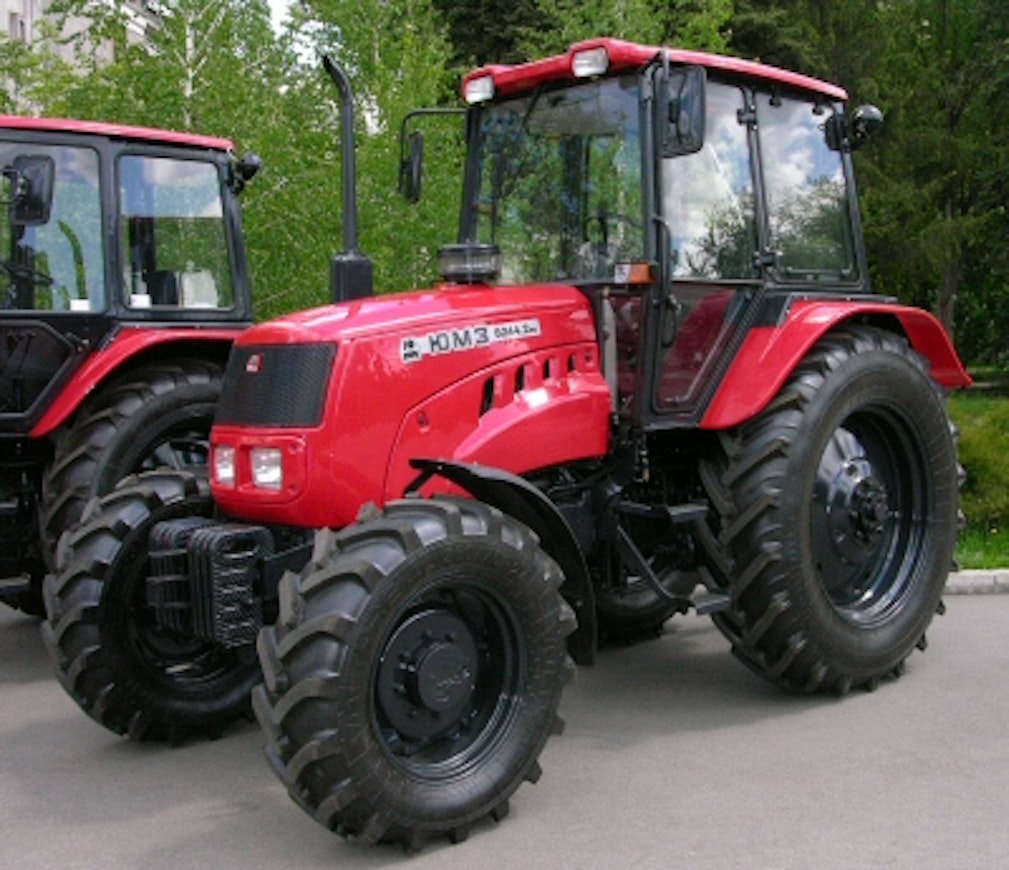

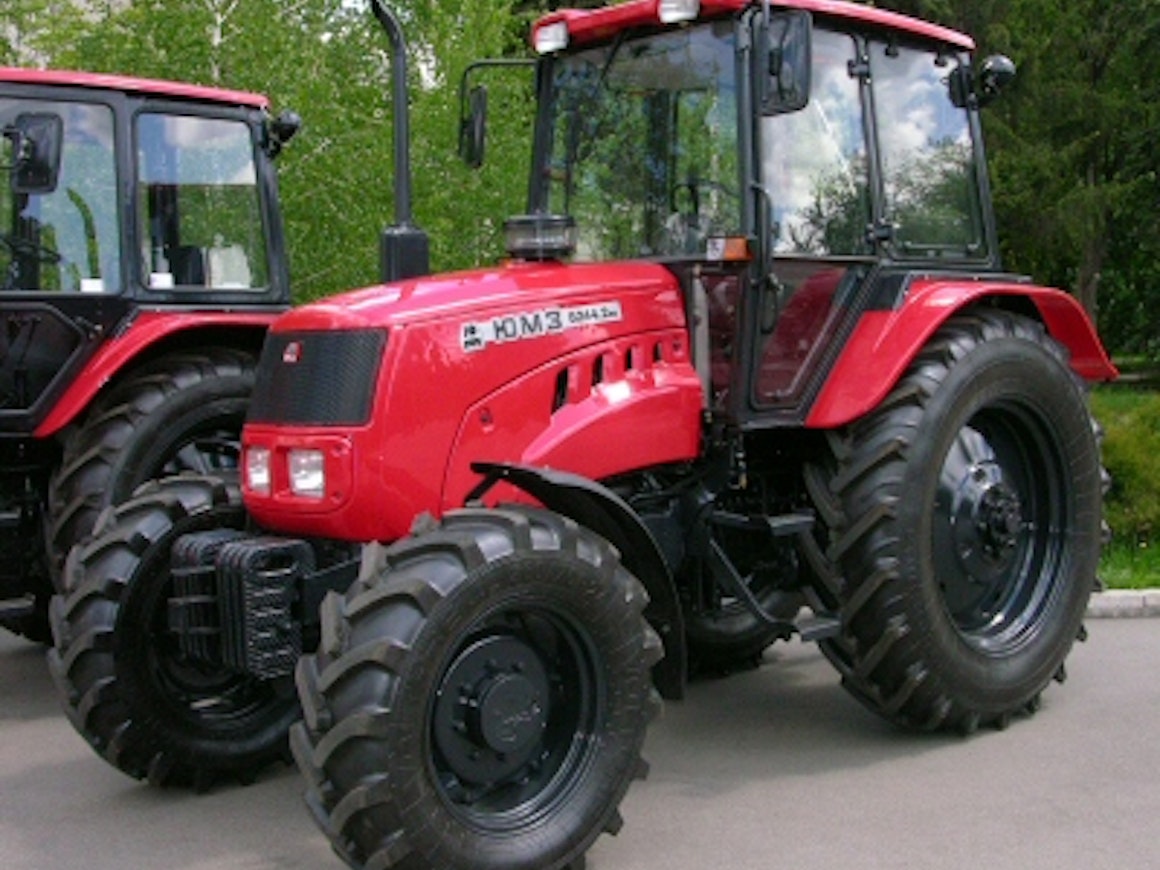

09UMZ-8244
10UMZ-8040
00YuMZ-8271
09UMZ-8244
Manufacturer
Models
YuMZ-8070/8270, YuMZ-8080/8280, UMZ-8040/8244
Years
1998-2015
Info

At the Ukrainian YuMZ factory, development was slow even by Eastern Bloc standards. However, in 1998, the age-old engine was tuned to produce 80 horsepower in the 8070/8270 models. Other differences compared to the parallel 60-horsepower 6 model were minimal. During power take-off at 1000 rpm, a power output independent of the driving clutch was achieved. The clutch was stronger. The steering wheel was adjustable. The factory introduced its first four-wheel drive models alongside these: the 8270 and the 8271, equipped with a gasoline engine starter. In the early 2000s, production also included the 8080/8280 equipped with an 82-horsepower Iveco engine. However, the majority of the factory's production still consisted of the 60-horsepower 6 models.

The 8040 and 8240 models came in 2003. These had an MTZ factory engine and a 12+3 speed gearbox. The 8244 model featured a Carraro front axle. The 8040.2 and 8244.2 models had a faster 9+2 speed gearbox for road speeds. In later M models, the red parts of the outer shell were replaced with more rounded plastic parts, and the controls were modernized. Four-wheel drive models had significantly larger 12.4R24 front wheels.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelYuMZ-8070/8270YuMZ-8080/8280UMZ-8040/8244
Options
Imported to FinlandNoNoNo
Years1998-1998-2003-2015
First year sold199819982003
Last year sold--2015
Engine modelD-65HT18045.25D-243
Cyl/Turbo/Intercooler444
Displacement4940 cm³3908 cm³4750 cm³
Bore x stroke110×130 mm104×115 mm110×125 mm
Rated power hp/rpm DIN80/180082/220078/2200
Rated power808278
Rated speed180022002200
Gears9+2 (12+3)9+2 (12+3)9+2 (12+3)
Synchronized gearspartialpartialpartial
Speeds in km/h2,2-30,7 (2,9-24,9)2,8-31,21,5-33,1, 4WD 1,6-35,4 (2,9-30,4)
Hydr. flow l/min50 l/min50 l/min50 l/min
Hydraulic pressure160 bar160 bar160 bar
Lift controlsmech.mech.mech.
Lift capacity1400 kg1400 kg2500 kg
PTO speeds540/1000540/1000540/1000
Brakesdry discdry discdry disc
Steeringhydr.hydr.hydr.
Turning circle m 2WD8.48.49.2
Turning circle m 4WD--9.6
Front tyres 2WD9.00-209.00-209.00-20
Front tyres 4WD--11.2-20
Rear tyres 2WD15.5-3815.5-3815.5R38
Rear tyres 4WD--15.5R38
Weight 2WD4070 kg3945 kg4103 kg
Weight 4WD4270 kg4125 kg4535 kg
Height with cab266 cm266 cm275/280 cm
Length (2WD/4WD)417 cm417 cm417/414 cm
Wheelbase (2WD/4WD)245 cm245 cm246/236 cm
Fuel tank100 l100 l100 l
Solid cabxxx
Diff. lock--friction lock
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
