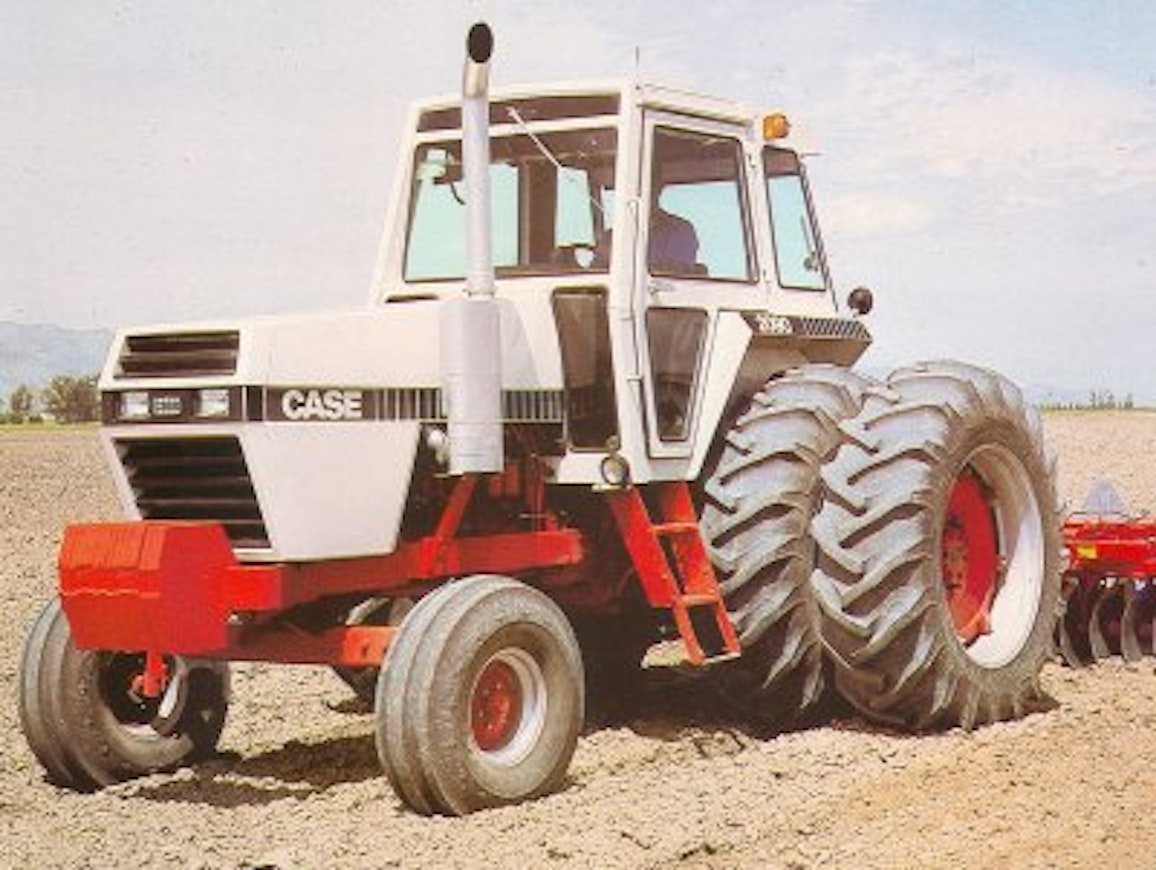

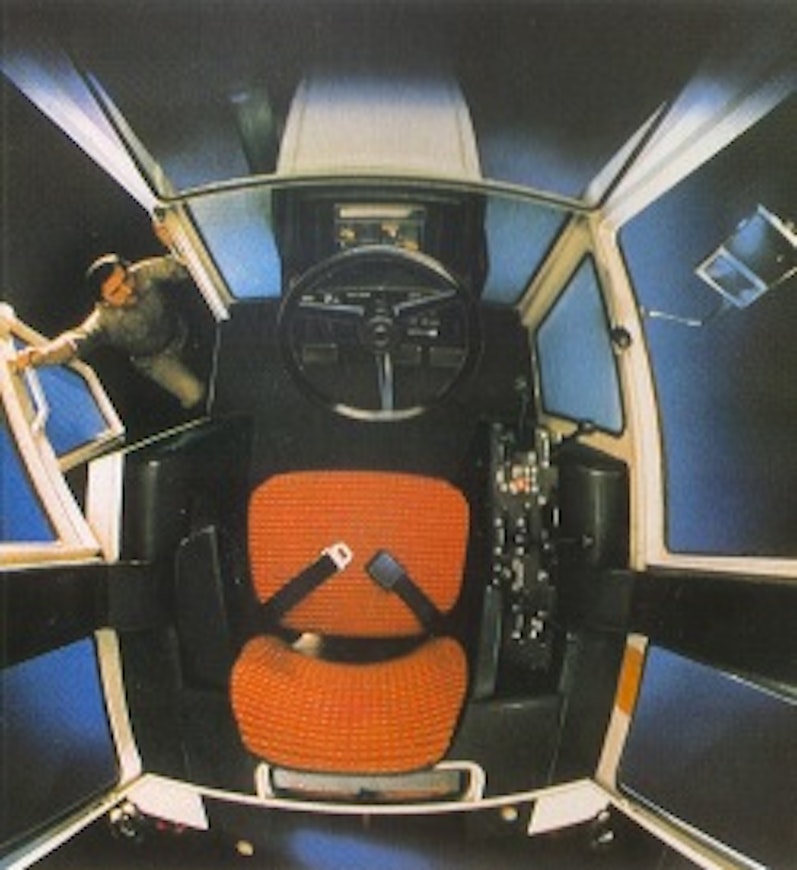

At the end of 1978, the USA switched to the 90-series. The fiberglass hood was styled in a sleek, angular design. The rear-wheel-drive models were the 2090 (120 hp), 2290 (139 hp), 2390 (171 hp), and 2590 (191 hp). All models were powered by Case’s 8.3-liter engine, turbocharged on all but the smallest. Transmissions remained 8+2 and 12+3. The cab’s noise level was only 75.5–77 dB. Most of the controls were hydraulically operated. The closed hydraulic system, Con Trol, was more efficient than before.

This is an automated translation. Please report any issues in the translation.

Case 2090

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Case 2290

Case 2390

Case 2090-2590

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Case 2090	Case 2290	Case 2390
Manufacturer name	Case	Case	Case
Imported to Finland	No	No	No
Years	1978-83	1978-83	1978-83
Engine model	504 BD	504 BDT	504 BDT
Cyl/Turbo/Intercooler	6	6T	6T
Displacement	8259 cm³	8259 cm³	8259 cm³
Bore x stroke	117,5×127 mm	117,5×127 mm	117,5×127 mm
Rated power	120/2100 hp DIN/rpm	150/2100 hp DIN/rpm	171/2100 hp DIN/rpm
Torque	-	-	-
Gears	12+3	12+3	12+3
Synchronized gears	12+3	12+3	12+3
Powershift gears	3-step	3-step	3-step
Speeds in km/h	3,1-29,1	3,1-29,1	3,2-32,3
Hydr. flow l/min	87 l/min	87 l/min	103 l/min
Hydraulic pressure	155 bar	155 bar	155 bar
Lift controls	mech.	mech.	mech.
Lift capacity	4500/5500 kg	4500/5500 kg	6100 kg
PTO speeds	540/1000	540/1000	1000
Brakes	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.
Turning circle m 2WD	8.48	8.48	8.6
Front tyres 2WD	11,00-16	11,00-16	14L-16
Front tyres 4WD	13.6-28	14.9-28	-
Rear tyres 2WD	18,4-38	18,4-38	20,8-38
Rear tyres 4WD	16.9-38	18.4-38	-
Weight 2WD	5200 kg	5250 kg	6000 kg
Weight 4WD	6620 kg	6820 kg	-
Height with cab	294 cm	294 cm	295 cm
Length (2WD/4WD)	450/470 cm	450/470 cm	465 cm
Wheelbase (2WD/4WD)	264/270 cm	264/270 cm	264 cm
Fuel tank	246 l	246 l	322 l
Cab noise level	76 dB	75.5 dB	77 dB
Solid cab	x	x	x
Air conditioning	x	x	x
