Siirry sivupalkkiinSiirry alaosaanJohn Deere 1640-3140

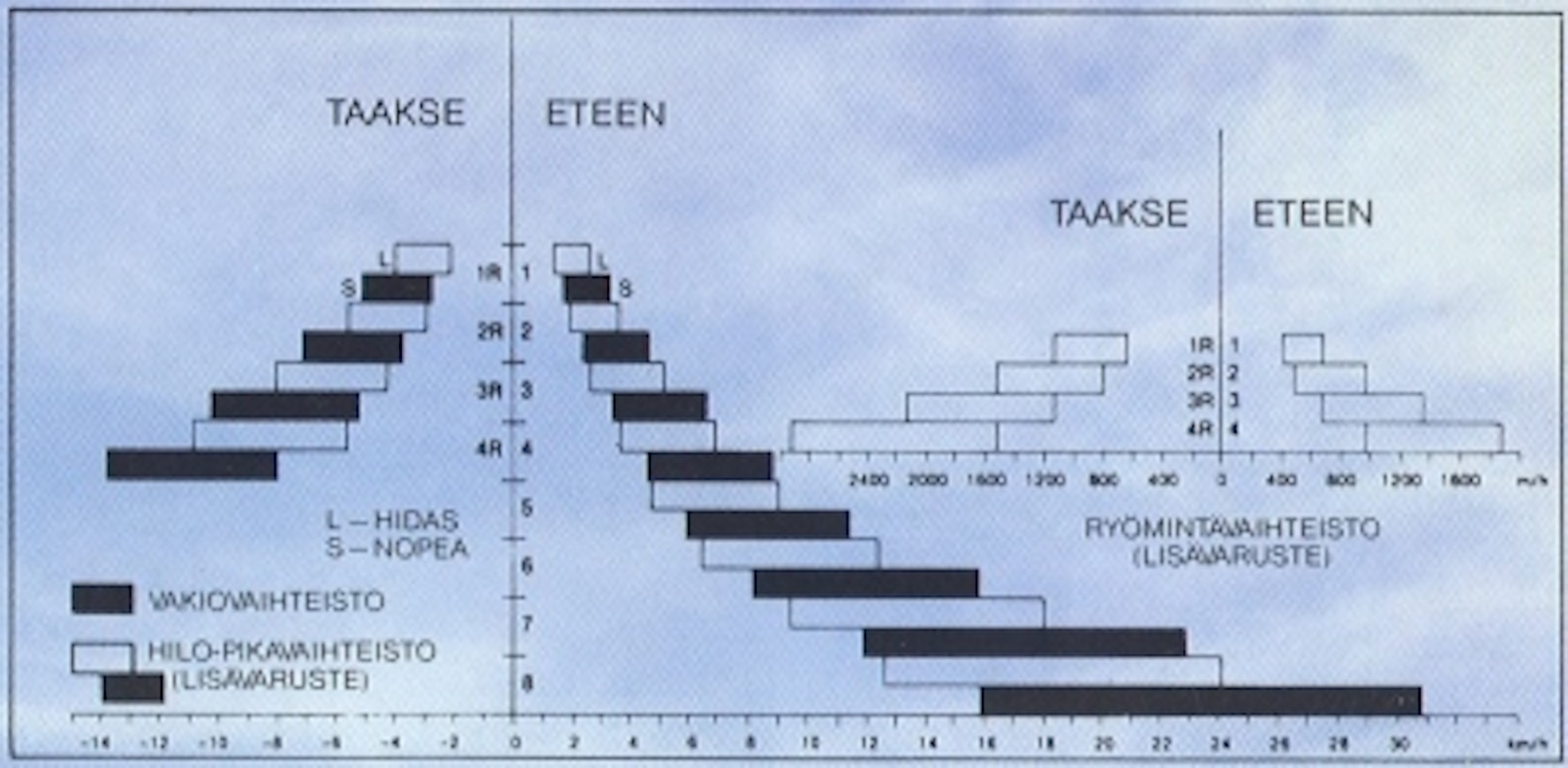

The 40-series European tractors were introduced at the end of 1979. The engine range had been rationalized, but the power classes remained roughly the same. The transmission was the familiar 8+4 (with a Hi-Lo quick-shift option, making it 16+8), but it was now synchronized. The quick-shift had been developed so that the tractor could now be started by towing and parked with the gear engaged.
The four-wheel drive was now mechanically implemented with better efficiency, like other brands. The front axle was a ZF-made central driveshaft version, and a limited-slip differential was an optional extra. Hydraulic pressure was increased from 16 MPa to 18.6 MPa, but hydraulic output was slightly reduced. John Deere reported lifting forces with the lift in the raised position, in which case the figures are about 15% higher than in the horizontal position. Draft sensing was a rather rare feature in this size category.
The cab was still the Sekura product used by many brands, and the gear levers were placed in the center.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 1640 | John Deere 2040 | John Deere 2140 | John Deere 3040 | John Deere 3140 |
|---|---|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 1980-81 | 1980-81 | 1980-81 | 1980-81 | 1980-81 |
| Engine model | 4239DL03 | 4239DL04 | 4239TL02 | 6359DL01 | 6359DL02 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4T | 6 | 6 |
| Displacement | 3920 cm³ | 3920 cm³ | 3920 cm³ | 5883 cm³ | 5883 cm³ |
| Bore x stroke | 106,5×110 mm | 106,5×110 mm | 106,5×110 mm | 106,5×110 mm | 106,5×110 mm |
| Rated power | 62/2500 hp DIN/rpm | 70/2500 hp DIN/rpm | 82/2500 hp DIN/rpm | 90/2500 hp DIN/rpm | 97/2500 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 16+8 |
| Synchronized gears | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 16+8 |
| Powershift gears | opt. | opt. | opt. | opt. | hydr. |
| Speeds in km/h | 3,2-30,4 | 3,3-30,4 | 3,3-30,1 | 3,1-28,7 | 2,5-28,7 |
| Hydr. flow l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 3070 kg | 3070 kg | 3560 kg | 4020 kg | 4020 kg |
| PTO speeds | 540 | 540 (1000) | 540 (1000) | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.6 | 7.6 | 7.6 | 9 | 9 |
| Turning circle m 4WD | 10.2 | 10.2 | 10.2 | 11.4 | 11.4 |
| Front tyres 2WD | 7,50-18 | 7,50-18 | 10,00-16 | 10,00-16 | 11,00-16 |
| Front tyres 4WD | 11.2-28 | 11.2-28 | 12.4-28 | 12.4-28 | 12.4-28 |
| Rear tyres 2WD | 13,6-38 | 13,6-38 | 14,9-38 | 16,9-38 | 16,9-38 |
| Rear tyres 4WD | 13.6-38 | 13.6-38 | 14.9-38 | 16.9-38 | 16.9-38 |
| Weight 2WD | 3360 kg | 3360 kg | 3535 kg | 4360 kg | 4360 kg |
| Weight 4WD | 3630 kg | 3630 kg | 3905 kg | 4730 kg | 4730 kg |
| Height with cab | 266 cm | 266 cm | 266 cm | 277 cm | 277 cm |
| Length (2WD/4WD) | 374/393 cm | 374/393 cm | 374/393 cm | 425/439 cm | 425/439 cm |
| Wheelbase (2WD/4WD) | 228/229 cm | 228/229 cm | 228/229 cm | 255/258 cm | 255/258 cm |
| Fuel tank | 95 l | 95 l | 102 l | 126 l | 126 l |
| Cab noise level | 84.5 dB | 84 dB | 84 dB | 83 dB | 83.5 dB |
| Solid cab | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
