Siirry sivupalkkiinSiirry alaosaanJohn Deere 2020-3120








In 1964, production of the American-based model 3020 began in Germany. The 3020 was a powerful four-cylinder tractor whose sophisticated technology included a closed hydraulic system and draft control, oil-immersed brakes, a synchronized transmission, and hydrostatic steering.

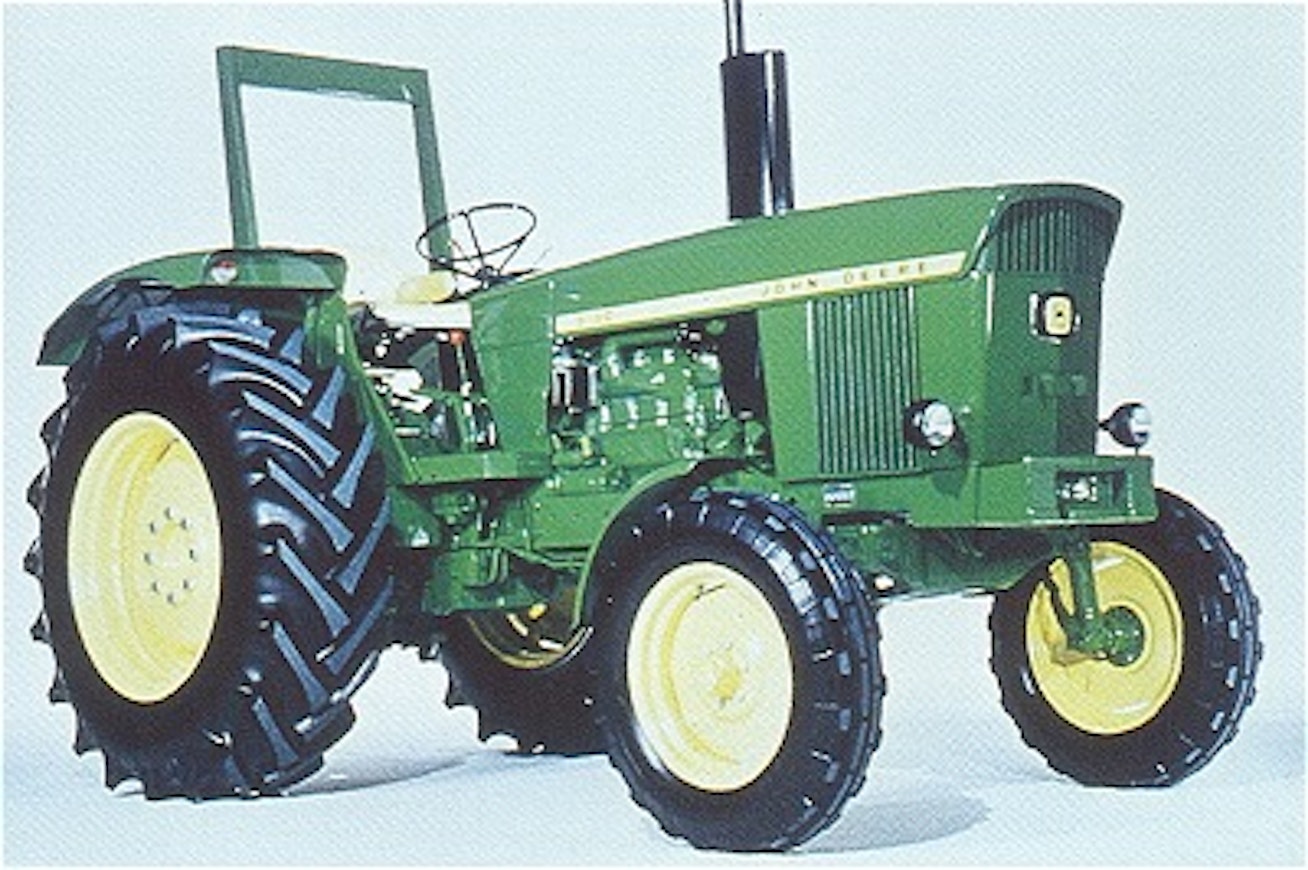

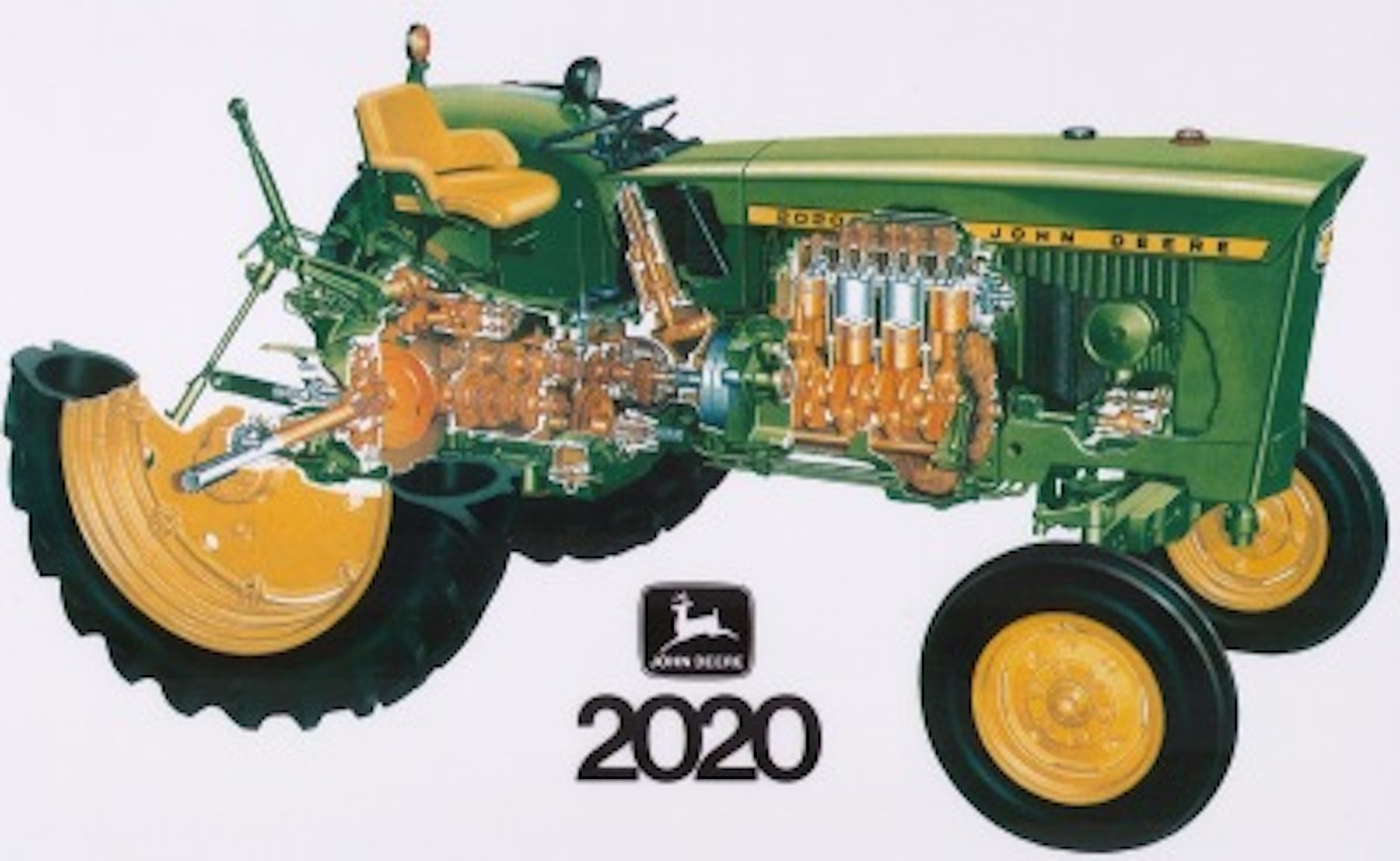

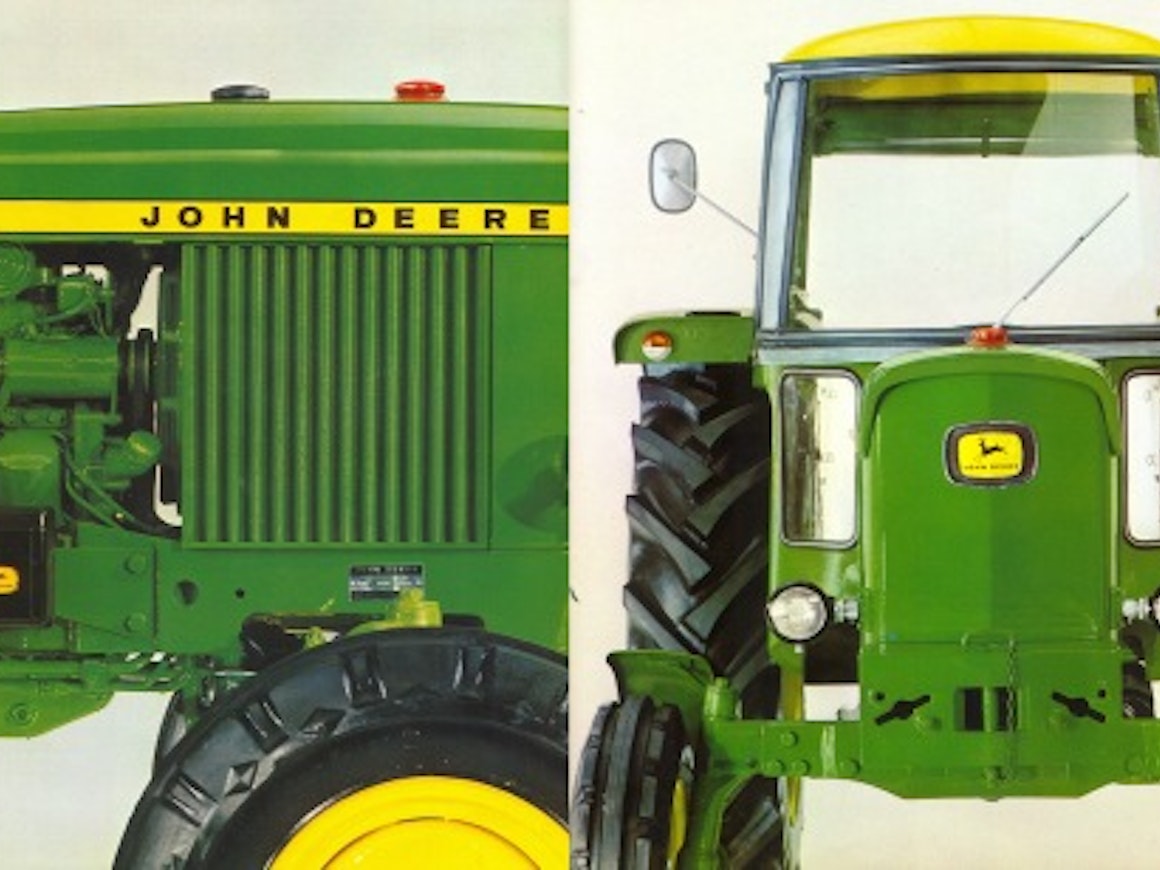

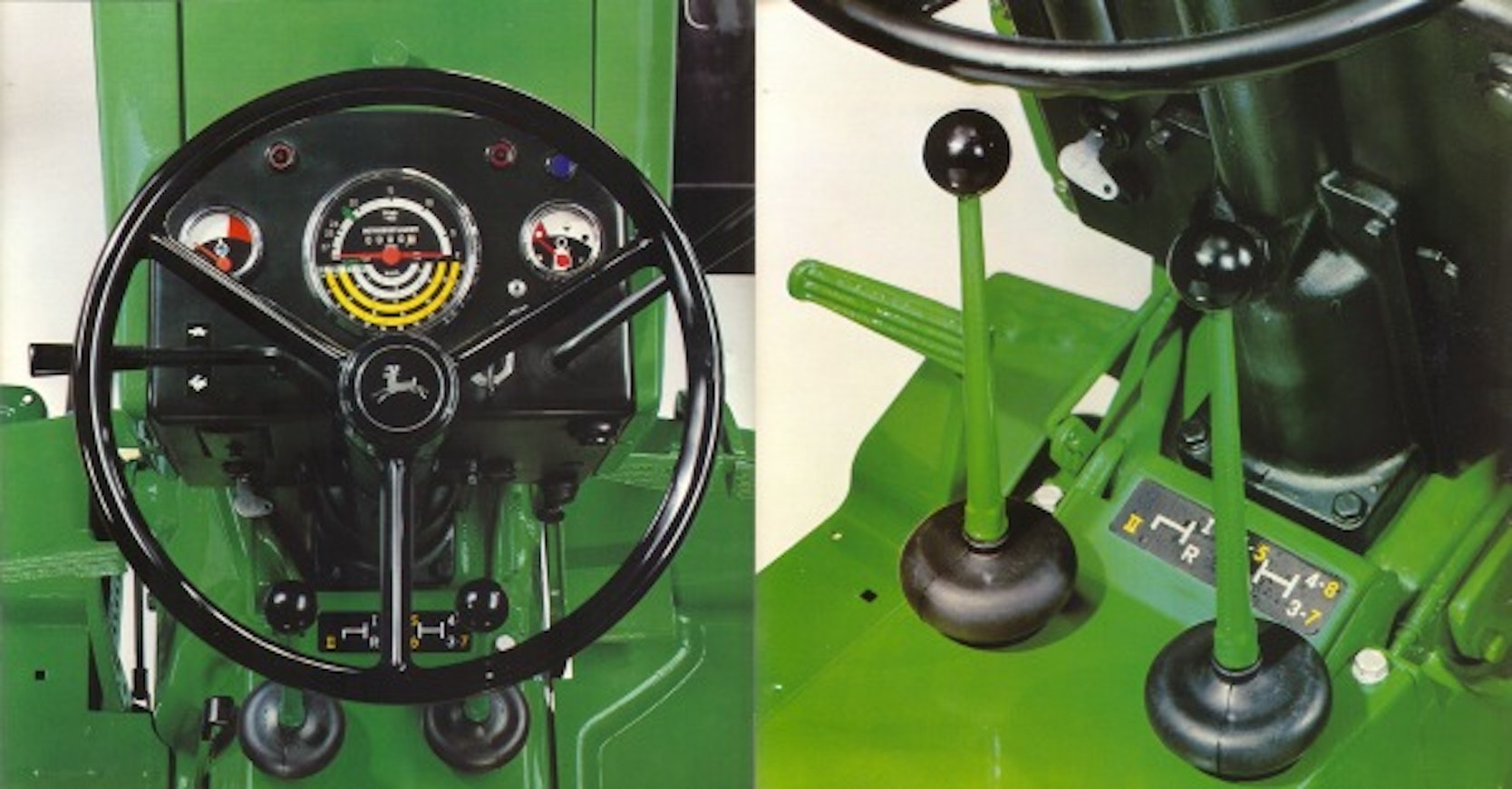

In 1967 and 1968, the smaller 2020 and 2120 models designed for Europe were introduced. These models were successors to the earlier JD-Lanz 710. New features included an 8+4-speed transmission, which could also be equipped with a hydraulic quick-shift. Other technologies included draft control, oil-immersed disc brakes, and a power take-off independent of the driving clutch. As an optional accessory, a cab equipped with air conditioning was even available. The Sekura cab initially used in Finland, however, was one of the most basic safety cabs. Telescopic draft arm ends were new technology at that time.
In 1969, the top model of the range, the six-cylinder 3120, was introduced. It had 81 horsepower and came standard with a 12+6-speed transmission equipped with a hydraulic quick-shift. The engine was manufactured at a new factory in France.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 2020 | John Deere 2120 | John Deere 3020 | John Deere 3120 |
|---|---|---|---|---|
| Manufacturer name | John Deere | John Deere | John Deere | John Deere |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 1967-72 | 1969-72 | 1964-72 | 1969-72 |
| Engine model | 202 | 219 D | 13 E | 303 D |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 6 |
| Displacement | 3320 cm³ | 3590 cm³ | 4425 cm³ | 4976 cm³ |
| Bore x stroke | 98×110 mm | 102×110 mm | 108×120 mm | 98×110 mm |
| Rated power | 60/2500 hp DIN/rpm | 68/2500 hp DIN/rpm | 75/2410 hp DIN/rpm | 81/2200 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 8+4/16+8 | 8+4/16+8 | 8+2 | 12+6 |
| Powershift gears | opt. | opt. | opt. | hydr. |
| Speeds in km/h | 1,8-27,4 | 1,7-26,5 | 1,8-28,0 | 1,9-24,9 |
| Max. speed | 30 km/h | 30 km/h | 32.2 km/h | 25 km/h |
| Hydr. flow l/min | 47 l/min | 47 l/min | 76 l/min | 43,5/76 l/min |
| Hydraulic pressure | 154 bar | 154 bar | 154 bar | 144/154 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 1850/2040 kg | 2040 kg | 1800 kg | 2150 kg |
| PTO speeds | 540 | 540 | 540/1000 | 540 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | mech./power | mech./power | hydrost. | hydrost. |
| Turning circle m 2WD | 6.8 | 7.42 | 5,6 jarruilla | 8.1 |
| Front tyres 2WD | 7.50-16 | 7.50-16 | 7.50-16 | 7.50-18 |
| Rear tyres 2WD | 13.6-36 | 15.5-38 | 18.4-30 | 15.5-38 |
| Weight 2WD | 2900 kg | 3000 kg | 3515 kg | 3900 kg |
| Height with cab | 245 cm | 245 cm | (160) cm | (238) cm |
| Length (2WD/4WD) | 357 cm | 360 (343) cm | 352 cm | 406 cm |
| Wheelbase (2WD/4WD) | 218 cm | 218 (205) cm | 229 cm | 246 cm |
| Fuel tank | 74 l | 74 l | 110 l | 106 l |
| Cab noise level | - | 87.5 dB | - | - |
| Synchronized gears | - | - | 8+2 | 12+6 |
