John Deere 4050-4850

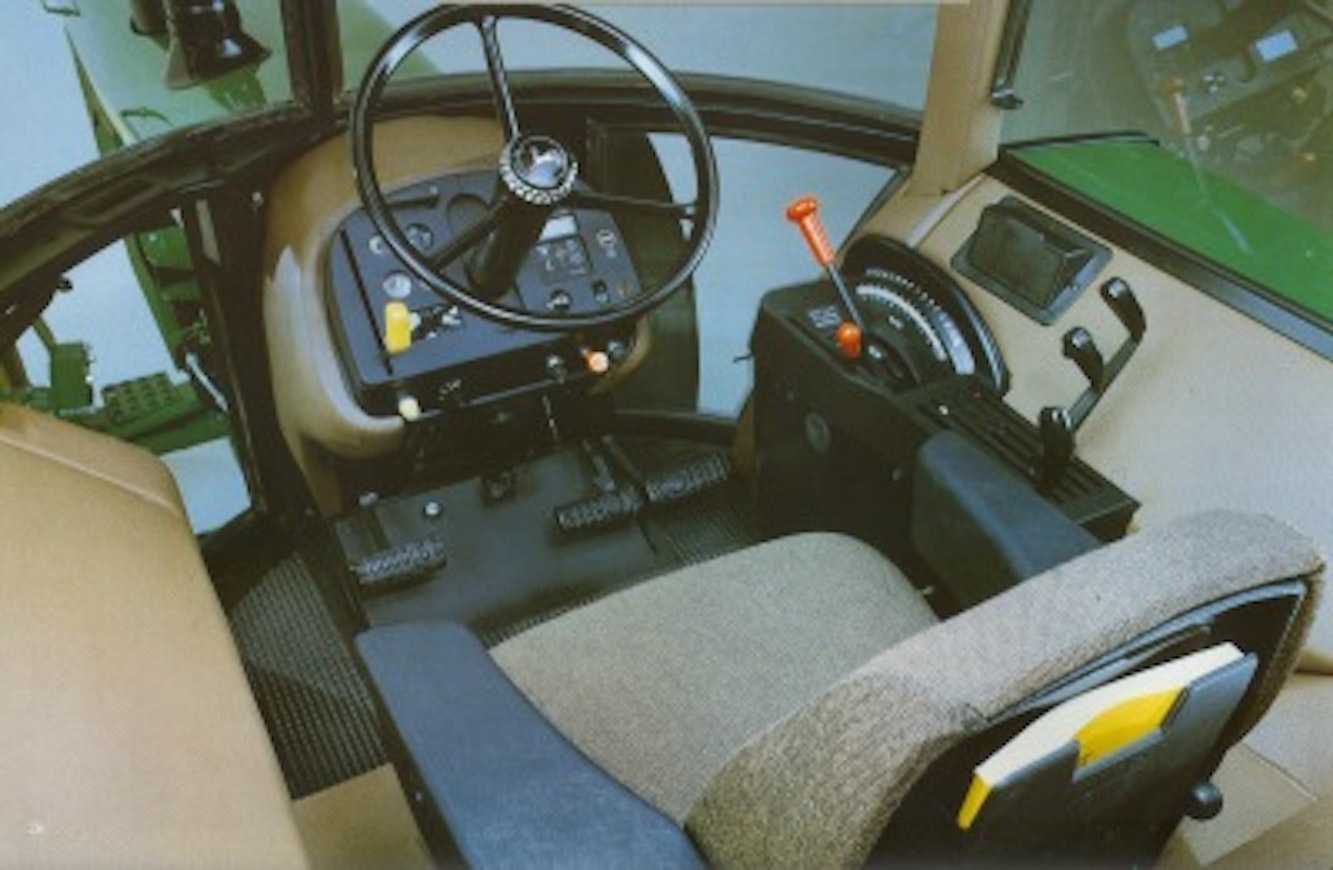

84JD4450ohjaamo
86JD4450
84JD4850halkileikkaus
87JD4650nopeudet
84JD4450ohjaamo
86JD4450
84JD4850halkileikkaus
87JD4650nopeudet
Manufacturer
Models
John Deere 4050, John Deere 4250, John Deere 4350, John Deere 4450, John Deere 4650, John Deere 4850
Years
1983-88
Info

The 50-series large tractors introduced at the end of 1982 were manufactured only in the USA, unlike their predecessors. All models had a turbocharged 7.6-liter engine, and the power had been increased again. The number of Power Shift transmission steps was increased to 15. The lifting capacities were significantly higher than before. The weight of the tractors was also considerably higher than earlier models. The cab noise was reduced to 76-80 decibels. The four-wheel drive was mechanical, and the driveshaft was now positioned in the center. In some European countries, starting from 1986, instead of the 4250 model, a 140-horsepower 4350 was sold, which was equipped with a traditional gearbox and had slightly reduced other features as well.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere 4050John Deere 4250John Deere 4350John Deere 4450John Deere 4650John Deere 4850
Manufacturer nameJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn Deere
Imported to FinlandNoYesNoYesYesNo
Years1983-881983-881985-881983-881983-881983-88
Engine model6466T6466T6466T6466T6466A6466A
Cyl/Turbo/Intercooler6T6T6T6T6TI6TI
Displacement7640 cm³7640 cm³7640 cm³7640 cm³7640 cm³7640 cm³
Bore x stroke115,8×120,6 mm115,8×120,6 mm115,8×120,6 mm115,8×120,6 mm115,8×120,6 mm115,8×120,6 mm
Rated power128/2200 hp DIN/rpm144/2200 hp DIN/rpm140/2200 hp DIN/rpm160/2200 hp DIN/rpm190/2200 hp DIN/rpm215/2200 hp DIN/rpm
Torque------
Gears15+415+416+615+415+415+4
Synchronized gearspowershiftpowershift16+6powershiftpowershiftpowershift
Powershift gearspowershiftpowershifthydr.powershiftpowershiftpowershift
Speeds in km/h2,3-31,32,2-30,33,3-29,02,2-29,92,3-30,92,3-30,9
Hydr. flow l/min105 l/min105 l/min96 l/min105 l/min126 l/min126 l/min
Hydraulic pressure172 bar172 bar172 bar172 bar172 bar172 bar
Lift controlsmech.mech.mech.mech.mech.mech.
Lift capacity5560/5830 kg5560/5830 kg5560 kg5560/6126 kg7290/8390 kg7290/8390 kg
PTO speeds540/1000540/1000540/1000540/100010001000
Brakeswet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD9.89.89.89.810.810.8
Front tyres 4WD16.9R2816.9R2814.9R2816.9-2816.9-3016.9-30
Rear tyres 4WD20.8R3820.8R3818.4R3820.8-3820.8-4220.8-42
Weight 4WD6343 kg6473 kg6390 kg6820 kg8224 kg8349 kg
Height with cab301 cm301 cm291 cm299 cm307 cm307 cm
Length (2WD/4WD)487 cm487 cm467 cm487 cm542 cm542 cm
Wheelbase (2WD/4WD)268 cm268 cm268 cm268 cm297 cm297 cm
Fuel tank246 l246 l174 l246 l386 l386 l
Cab noise level76 dB76 dB80 dB76 dB79 dB80 dB
Solid cabxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Air suspension seathydr. springhydr. spring-hydr. springhydr. springhydr. spring
Air conditioningxxxxxx
