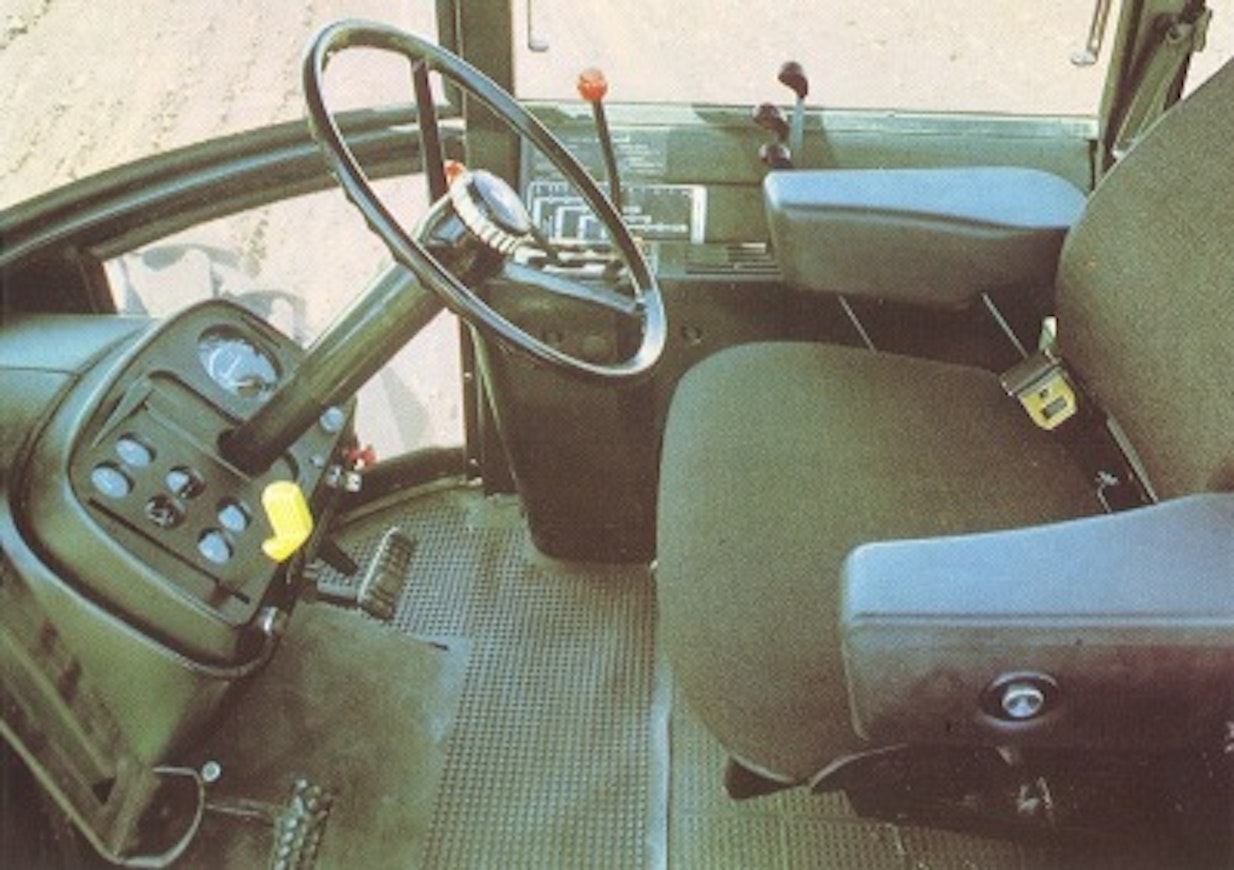

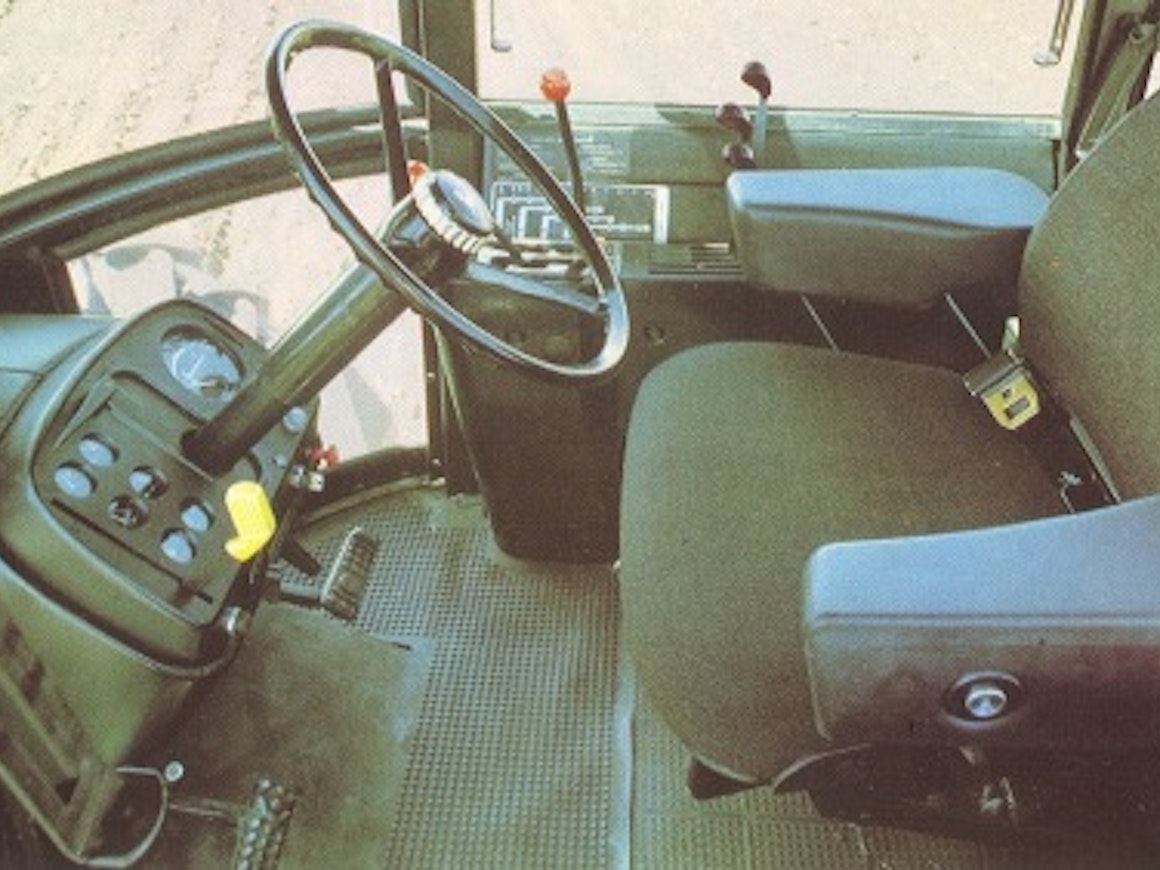

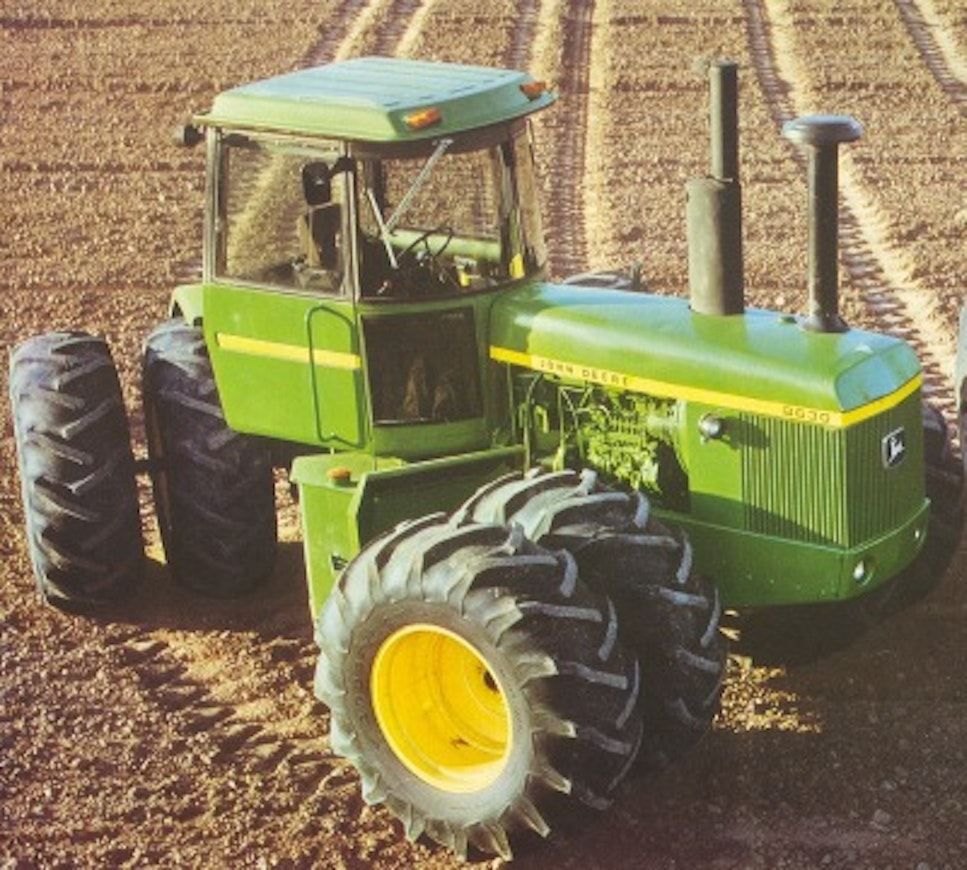

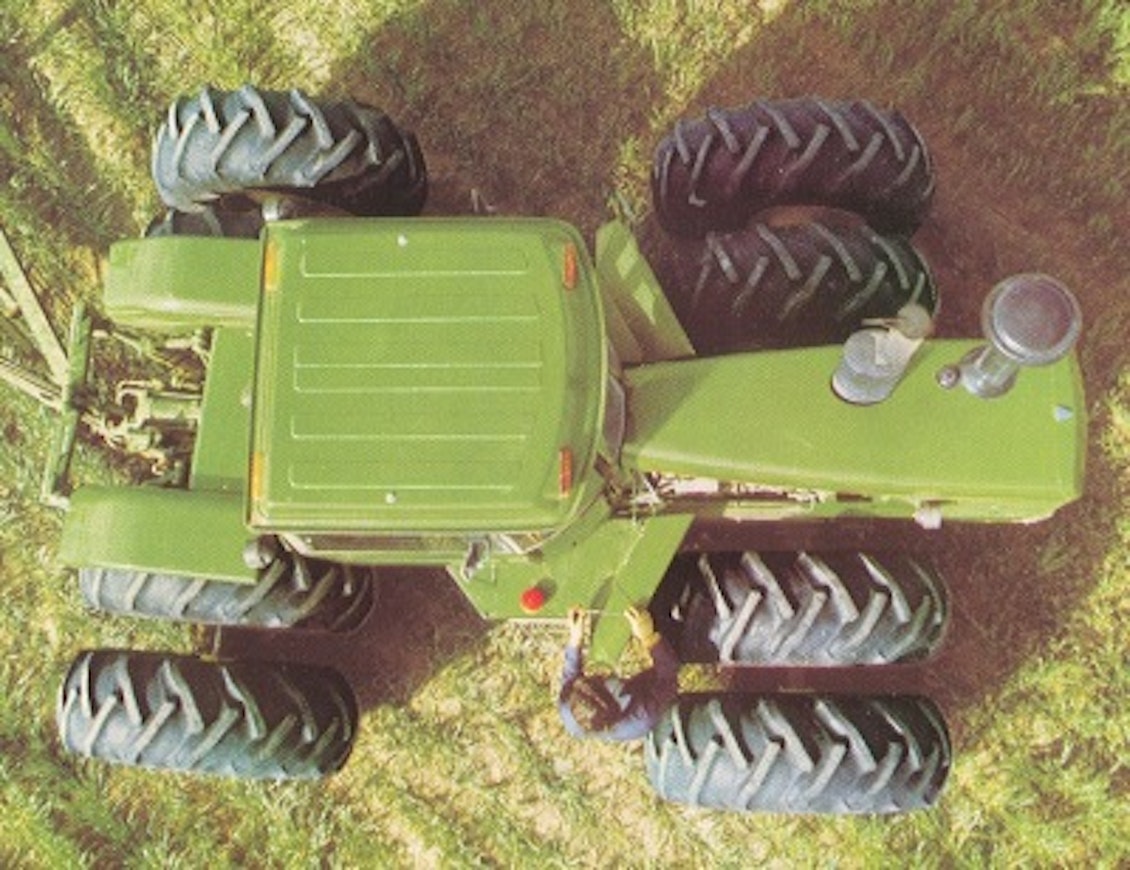

In 1975, JD’s frame-steered large tractors moved to the 30 series. At that time, the 8430 and 8630 models were introduced, with SAE engine power of 215 and 275 horsepower, respectively. The cab was a new rounded Sound Gard design, with a noise level of 80-82 dB. The engines were turbocharged and intercooled, with displacements of 7.6 and 10.1 liters. Torque characteristics were said to have been significantly improved compared to previous models. There were now 16+8 gears, and the quick shift was two-speed, as in the earlier models. The clutch was an oil-immersed Perma Clutch.

This is an automated translation. Please report any issues in the translation.

John Deere 8430

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

John Deere 8630

John Deere 8430-8630

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	John Deere 8430	John Deere 8630
Manufacturer name	John Deere	John Deere
Imported to Finland	No	No
Years	1975-79	1975-79
Engine model	6466	-
Cyl/Turbo/Intercooler	6TI	6TI
Displacement	7636 cm³	10144 cm³
Bore x stroke	115,8×120,7 mm	130×127 mm
Rated power	209/2100 hp DIN/rpm	271/2100 hp DIN/rpm
Gears	16+8	16+8
Synchronized gears	16+8	16+8
Powershift gears	2-step	2-step
Speeds in km/h	3,3-32,6	3,3-32,6
Max. speed	35.7 km/h	35.7 km/h
Hydr. flow l/min	107 l/min	107 l/min
Lift controls	mech.	mech.
PTO speeds	1000	1000
Brakes	wet disc	wet disc
Steering	hydrost.	hydrost.
Turning circle m 4WD	11.34	11.34
Front tyres 4WD	18.4-38	18.4-38
Rear tyres 4WD	18.4-38	18.4-38
Weight 4WD	10345 kg	11130 kg
Height with cab	342 cm	342 cm
Length (2WD/4WD)	568 cm	568 cm
Wheelbase (2WD/4WD)	318 cm	318 cm
Fuel tank	590 l	590 l
Cab noise level	80 dB	79 dB
Solid cab	x	x
Air conditioning	x	x
