Massey Ferguson 4215-4245

98MF4245
97MF4200
98MF4200LoProfile
98MF4200nopeudet12
98MF4245
97MF4200
98MF4200LoProfile
98MF4200nopeudet12
Manufacturer
Models
Massey Ferguson 4215, Massey Ferguson 4220, Massey Ferguson 4225, Massey Ferguson 4235, Massey Ferguson 4245
Years
1997-01
Info

Here is the English translation of the text:

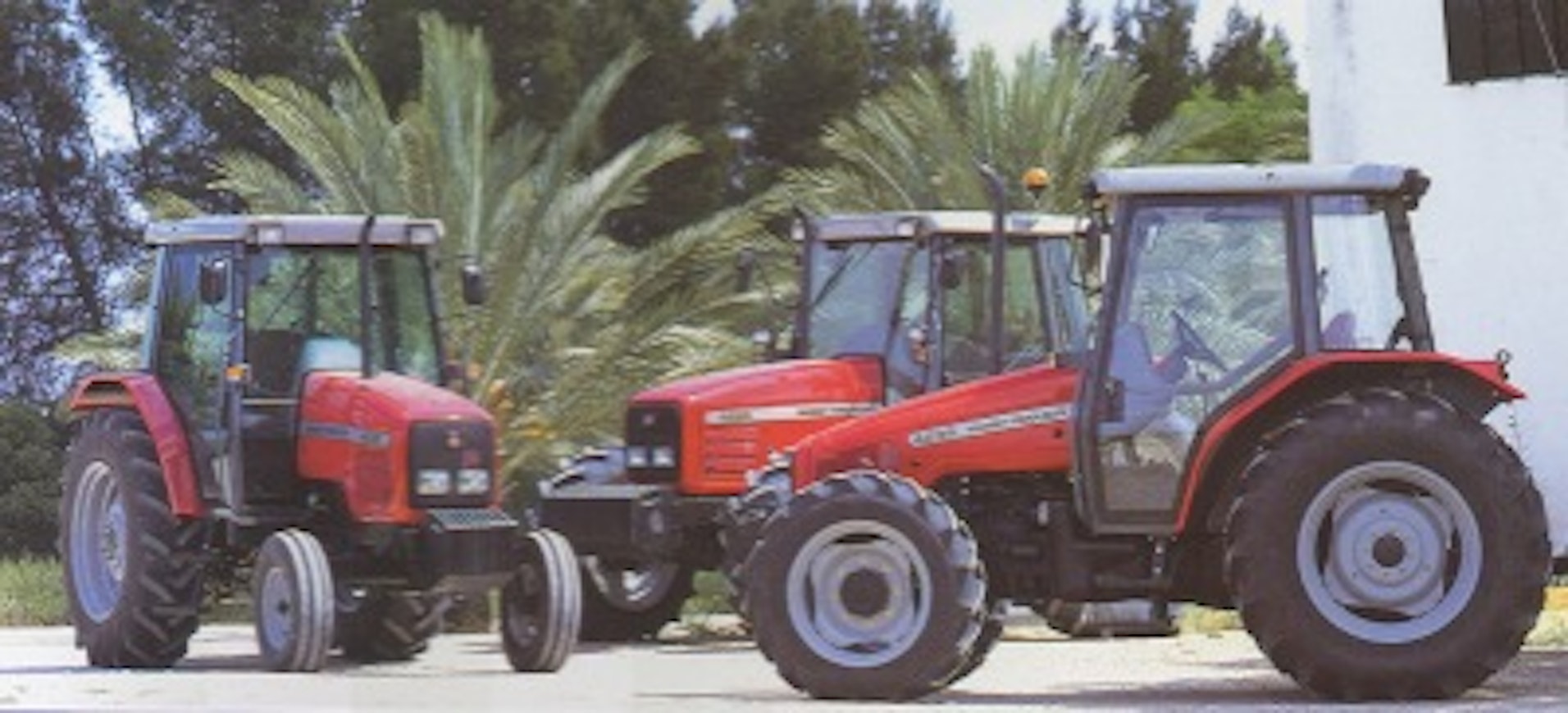

In the summer of 1997, the 300-series Massey Fergusons were replaced by the more modernly styled 4200 series. However, under the bodywork, the technology was mostly familiar English Massey Ferguson. The cab was new, but the noise level was above 80 decibels. The single-lever shuttle transmission was familiar from previous models. The electric lift was now available as an optional extra. The feeler operated in the traditional way via the push rod.

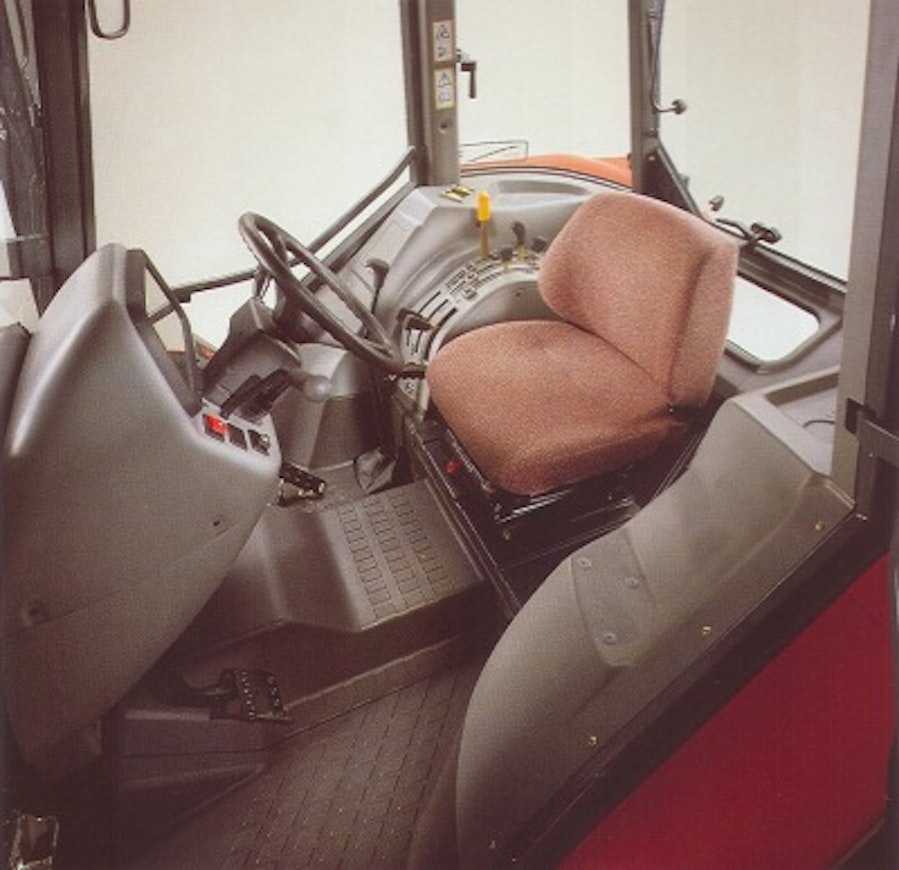

The two smallest models, 4215 (52 hp) and 4220 (60 hp), were equipped with an updated 3-cylinder Perkins Fastram engine, featuring a new key-switch shutoff. These models had an 8+8 shuttle transmission (or 12+4 Synchro Power) allowing speeds of up to 30 km/h. The 4215 was the only model in the range equipped with organic clutch facings. The hydraulic performance of the 3-cylinder models was lower than that of the other models, and the cab was always a low LoProfile model (interior photo above). Even these models now had a square-shaped rear axle housing structure.

The 4225 (65 hp) and 4235 (75 hp) models were equipped with an updated 4.1-liter Perkins engine, featuring an internally reinforced cylinder head and engine block derived from the 1000 series. The 4245 (85 hp) had a turbocharged Perkins Quadram engine. These models in Finland were equipped with a cab-switchable 1000 rpm PTO, 66 l/min hydraulic pumps, and a top speed of 40 km/h. The transmission in Finland was either a 12+12 shuttle gearbox or an 18+6 Speedshift transmission equipped with a quick shift but without a shuttle. Additionally, transmissions similar to those in the 3-cylinder models were also available.

In 1999, it was finally possible to combine the quick shift and shuttle in the same tractor. Hydraulic shuttle-equipped 12+12 and 24+24 transmissions were introduced. The softness of the hydraulic shuttle switching could be adjusted from the cab. In the 4-cylinder models, the standard cab in Finland was a high flat-floor version, with LoProfile or sloped-nose models as options. Additionally, forestry cabs with swivel seats and more rear legroom were built in Finland.

The difference of the 4245 compared to the smaller models is a 13" clutch and a somewhat sturdier front axle, and in Finland, an additional auxiliary lift cylinder, which allowed achieving a lifting capacity of 4000 kg.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMassey Ferguson 4215Massey Ferguson 4220Massey Ferguson 4225Massey Ferguson 4235Massey Ferguson 4245
Manufacturer nameMassey FergusonMassey FergusonMassey FergusonMassey FergusonMassey Ferguson
Imported to FinlandNoYesYesYesYes
Years1997-011997-011997-011997-011997-01
Engine model903.27903.27T4.414.411004.4TLR
Cyl/Turbo/Intercooler33T444T
Displacement2700 cm³2700 cm³4070 cm³4070 cm³4000 cm³
Bore x stroke95×127 mm95×127 mm101×127 mm101×127 mm100×127 mm
Rated power52/2250 hp DIN/rpm60/2250 hp DIN/rpm65/2200 hp DIN/rpm75/2200 hp DIN/rpm85/2200 hp DIN/rpm
Torque-----
Gears8+88+812+1212+1212+12
Synchronized gears8+88+812+1212+1212+12
Reversermech.mech.mech./-/hydr.mech./-/hydr.mech./-/hydr.
Speeds in km/h2,3-29,62,3-29,62,2-37,82,4-40,52,4-40,5
Hydr. flow l/min55 l/min55 l/min66 l/min66 l/min66 l/min
Hydraulic pressure210 bar210 bar210 bar210 bar210 bar
Lift controlsmech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)mech. (elec.)
Lift capacity2200 kg2200 kg3000 kg3000 kg4000 kg
PTO speeds540540540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD6.86.8888
Turning circle m 4WD7.87.8888
Front tyres 2WD7.50-167.50-1610.00-1610.00-1610,00-16
Front tyres 4WD8.3R2411.2R24380/70R24380/70R24380/70R24
Rear tyres 2WD12.4R3216.9R30480/70R34480/70R34480/70R34
Rear tyres 4WD12.4R3216.9R30480/70R34480/70R34480/70R34
Weight 2WD2385 kg2385 kg3490 kg3590 kg3590 kg
Weight 4WD2635 kg2635 kg3740 kg3730 kg3730 kg
Height with cab239 cm239 cm262 (254) cm262 (254) cm262 (254) cm
Length (2WD/4WD)374/386 cm374/386 cm385/394 cm401/405 cm401/405 cm
Wheelbase (2WD/4WD)213/223 cm213/223 cm235/235 cm235/235 cm235/235 cm
Fuel tank84 l84 l127 (84) l127 (84) l127 (113) l
Cab noise level81 dB81 dB82 dB82 dB81 dB
Solid cabxxxxx
Diff. lockdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogs
Powershift gears--opt.opt.opt.
Creeper gear--opt.opt.opt.
