Siirry sivupalkkiinSiirry alaosaanMassey Ferguson 6235-6265






In the spring of 1999, MF’s French range was updated with the introduction of the 6200 series. All of the four‐cylinder models now used turbocharged 1000‐series Perkins engines. With the exception of the smallest one, the engines were fitted with wastegate turbos, and the most powerful four‐cylinder, the 6265 (105 hp), featured an intercooler plus a different turbocharger, injection pump, and nozzles.
The transmission remained the familiar Dynashift Plus with a four-speed creeper gear. What was new was a conveniently positioned creeper control under the steering wheel, combined with a hand-operated clutch. The basic hydraulic system was unchanged, but as an option there was a closed-center hydraulic system offering 80/110 L/min, which in Finland was even promoted free of charge. All of the four-cylinder models had a lift capacity of 5,850 kg. The 6255 and 6265 also received a more robust front axle and came standard with three hydraulic control valves.

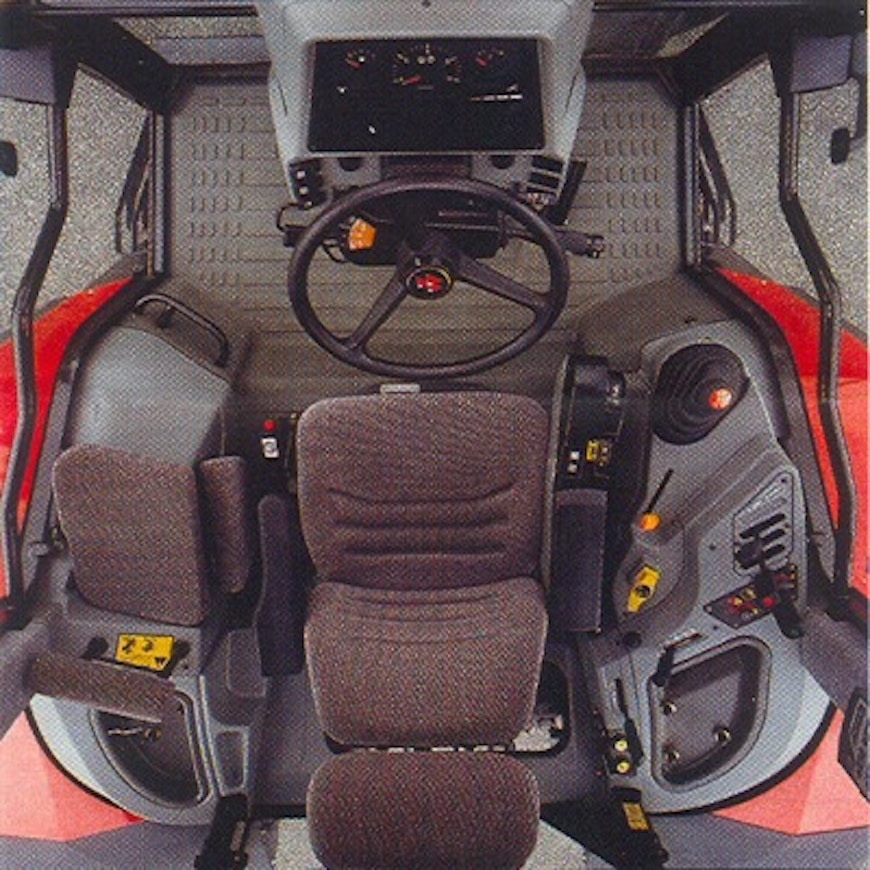

The cab was completely new and the controls were redesigned: for example, the draft‐control buttons were now built into the armrest. The noise level inside remained at 75 dB, the same as in the 3000 series models two generations earlier.
For the 2001 model year, automatic selection of the creeper speed step when changing the main gear became standard. As an optional upgrade, this could be expanded into full creeper‐gear automation (AutoDrive), with two shift programs. Another new option was joystick control of the hydraulic valves, mounted in the armrest. The system also recorded flow rates and timing sequences in memory. These features were packaged together in the newly introduced “4-star” and “5-star” cabs.
This is an automated translation. Please report any issues in the translation.
| Model | Massey Ferguson 6235 | Massey Ferguson 6245 | Massey Ferguson 6255 | Massey Ferguson 6265 |
|---|---|---|---|---|
| Manufacturer name | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson |
| Imported to Finland | No | Yes | Yes | Yes |
| Years | 1999-2003 | 1999-2003 | 1999-2003 | 1999-2003 |
| Engine model | 1004-40T | 1004-40TWG | 1004-40TWG | 1004-40TWG |
| Cyl/Turbo/Intercooler | 4T | 4T | 4T | 4TI |
| Displacement | 4000 cm³ | 4000 cm³ | 4000 cm³ | 4000 cm³ |
| Bore x stroke | 100×127 mm | 100×127 mm | 100×127 mm | 100×127 mm |
| Rated power | 75/2200 hp DIN/rpm | 85/2200 hp DIN/rpm | 95/2200 hp DIN/rpm | 105/2200 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 32+32 | 32+32 | 32+32 | 32+32 |
| Synchronized gears | 32+32 | 32+32 | 32+32 | 32+32 |
| Powershift gears | 4-step | 4-step | 4-step | 4-step |
| Reverser | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,1-37,5 | 2,1-37,5 | 2,1-37,5 | 2,1-37,5 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 56,5 (80) l/min | 56,5 (80) l/min | 56,5 (110) l/min | 56,5 (110) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. |
| Lift capacity | 5850 kg | 5850 kg | 5850 kg | 5850 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.4 | 7.4 | 7.4 | 7.4 |
| Turning circle m 4WD | 8.4 | 8.4 | 8.9 | 8.9 |
| Front tyres 2WD | 10.00-16 | 10.00-16 | 10.00-16 | 11.00-16 |
| Front tyres 4WD | 13.6R24 | 13.6R24 | 13.6R28 | 14.9R28 |
| Rear tyres 2WD | 16.9R34 | 16.9R34 | 16.9R38 | 18.4R38 |
| Rear tyres 4WD | 16.9R34 | 16.9R34 | 16.9R38 | 18.4R38 |
| Weight 2WD | 3890 kg | 4010 kg | 4040 kg | 4075 kg |
| Weight 4WD | 4130 kg | 4320 kg | 4420 kg | 4500 kg |
| Height with cab | 269 cm | 269 cm | 275 cm | 277 cm |
| Length (2WD/4WD) | 418 cm | 418 cm | 418 cm | 418 cm |
| Wheelbase (2WD/4WD) | 246 cm | 246 cm | 255 cm | 255 cm |
| Fuel tank | 130 l | 130 l | 130/160 l | 160 l |
| Cab noise level | 75 dB | 75 dB | 75 dB | 75 dB |
| Solid cab | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | x | x | x | x |
| Trip computer | opt. | opt. | opt. | opt. |
| Creeper gear | opt. | opt. | opt. | opt. |
