Massey Ferguson 6712 S – 6718 S Dyna-4/Dyna-6

Manufacturer
Models
Massey Ferguson 6712 S Dyna-4, Massey Ferguson 6713 S Dyna-4, Massey Ferguson 6713 S Dyna-6, Massey Ferguson 6714 S Dyna-4, Massey Ferguson 6714 S Dyna-6, Massey Ferguson 6715 S Dyna-4, Massey Ferguson 6715 S Dyna-6, Massey Ferguson 6716 S Dyna-6, Massey Ferguson 6718 S Dyna-6
Years
2016-
Info

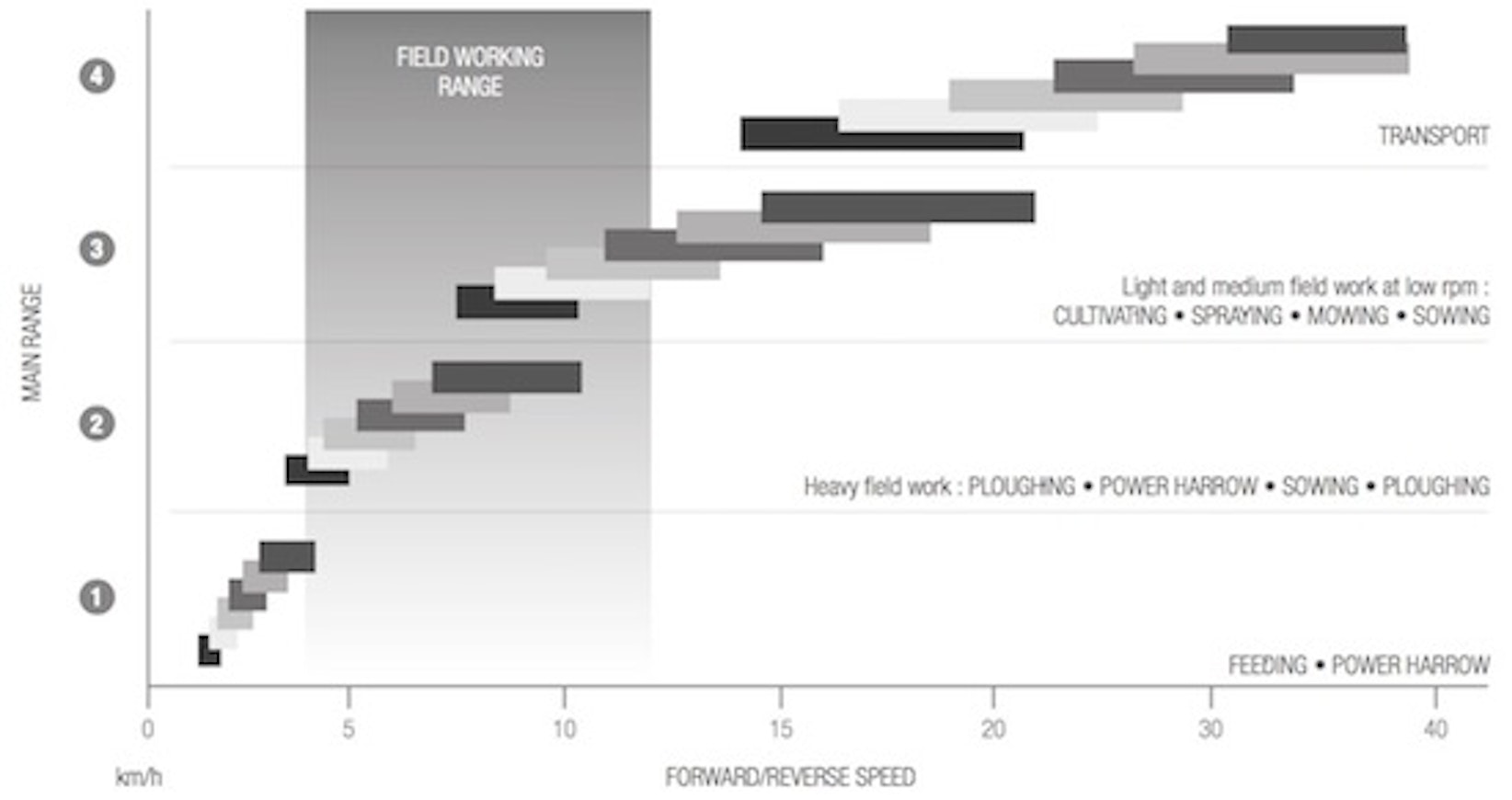

At the end of 2016, the MF 6700 S was introduced as mainly an update of the 6600 series to meet Stage 4 emission standards. Its appearance remained unchanged. Small updates were made to the cab’s instrument panel and controls. At the top of the range, a 6718 S with a maximum power of 200 horsepower was added, said to be the most powerful 4-cylinder tractor on the market. The engines were 4.9-liter Agco Powers. Additional power ranged from 20 to 25 hp and was available already at field speeds. The engine oil change interval was extended to 600 hours. The Dyna-4 transmission had 16+16 gears, and the Dyna-6 had 24+24. Only the Dyna-6 was available in a 50 km/h version. Both the 4- and 6-speed powershift transmissions featured an electro-hydraulic range gearbox, and gear automation with powershift adaptation was standard. Lifting capacity ranged from 7100 to 8100 kg.

There were three equipment levels. The base model Essential was available with either transmission option. Standard equipment included mechanically controlled hydraulics (3 sections), air conditioning, an air suspension seat, and a passenger seat. In Finland, the base model also came standard with an additional heater and a trailer brake valve.

The Efficient model featured the Dyna-6 transmission, 8100 kg lifting capacity, mechanical cab suspension, electro-hydraulic valves for hydraulics in two sections, 4-speed PTO, control armrest, cruise control memories, and a radio with an SD card slot. In Finland, front axle suspension and steerable front fenders were also standard.

The Exclusive model’s armrest included a multifunction joystick. Additionally, standard equipment included four electro-hydraulic hydraulic sections, automatic climate control, electric mirrors, a slip minimization sensor, the Datatronic 4 ISOBUS terminal, and headland management automation. A new optional feature was active cab suspension.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMassey Ferguson 6712 S Dyna-4Massey Ferguson 6713 S Dyna-4Massey Ferguson 6713 S Dyna-6Massey Ferguson 6714 S Dyna-4Massey Ferguson 6714 S Dyna-6Massey Ferguson 6715 S Dyna-4Massey Ferguson 6715 S Dyna-6Massey Ferguson 6716 S Dyna-6Massey Ferguson 6718 S Dyna-6
Manufacturer nameMassey FergusonMassey FergusonMassey FergusonMassey FergusonMassey FergusonMassey FergusonMassey FergusonMassey FergusonMassey Ferguson
Imported to FinlandYesYesYesYesYesYesYesYesYes
Years2016-212016-212016-212016-212016-212016-212016-212016-212016-21
Engine model49AWF-4V49AWF-4V49AWF-4V49AWF-4V49AWF-4V49AWF-4V49AWF-4V49AWF-4V49AWF-4V
Cyl/Turbo/Intercooler4TI4TI4TI4TI4TI4TI4TI4TI4TI
Displacement4912 cm³4912 cm³4912 cm³4912 cm³4912 cm³4912 cm³4912 cm³4912 cm³4912 cm³
Bore x stroke108×134 mm108×134 mm108×134 mm108×134 mm108×134 mm108×134 mm108×134 mm108×134 mm108×134 mm
Rated power---------
Max power---------
Torque---------
Gears16+1616+1624+2416+1624+2416+1624+2424+2424+24
Synchronized gears16+1616+1624+2416+1624+2416+1624+2424+2424+24
Powershift gears4-step4-step6-step4-step6-step4-step6-step6-step6-step
Reverserhydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h2,2-432,3-431,7-432,3-431,7-432,0-431,6-431,6-431,6-43
Max. speed 43 km/h43 km/h43/50 km/h43 km/h43/50 km/h43 km/h43/50 km/h43/50 km/h43/50 km/h
Hydr. flow l/min58/110 l/min58/110 l/min58/110 l/min58/110 l/min58/110 l/min58/110 l/min58/110 l/min58/110 l/min110 l/min
Hydraulic pressure200 bar200 bar200 bar200 bar200 bar200 bar200 bar200 bar200 bar
Lift controlselec.elec.elec.elec.elec.elec.elec.elec.elec.
Lift capacity7100 kg7100 kg8100 kg7100 kg8100 kg7100 kg8100 kg8100 kg8100 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD9.459.459.459.459.459.459.459.59.5
Front tyres 4WD380/85R28380/85R28380/85R28380/85R28380/85R28380/85R28380/85R28420/85R28420/85R28
Rear tyres 4WD460/85R38460/85R38460/85R38460/85R38460/85R38460/85R38460/85R38520/85R38520/85R38
Weight 4WD5900 kg6100 kg6100 kg6100 kg6100 kg6100 kg6100 kg6300 kg6300 kg
Height with cab299 cm299 cm299 cm299 cm299 cm299 cm299 cm301 cm301 cm
Length (2WD/4WD)472 cm472 cm472 cm472 cm472 cm472 cm472 cm472 cm472 cm
Wheelbase (2WD/4WD)267 cm267 cm267 cm267 cm267 cm267 cm267 cm267 cm267 cm
Fuel tank250+AB30 l250+AB30 l250+AB30 l250+AB30 l250+AB30 l250+AB30 l250+AB30 l250+AB30 l250+AB30 l
Cab noise level71 dB71 dB71 dB71 dB71 dB71 dB71 dB71 dB71 dB
Solid cabxxxxxxxxx
Diff. lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lock
Autom. differential locksxxxxxxxxx
Air suspension seatxxxxxxxxx
Air conditioningxxxxxxxxx
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.opt.
Trip computer--ExclusiveExclusiveExclusive-ExclusiveExclusiveExclusive
