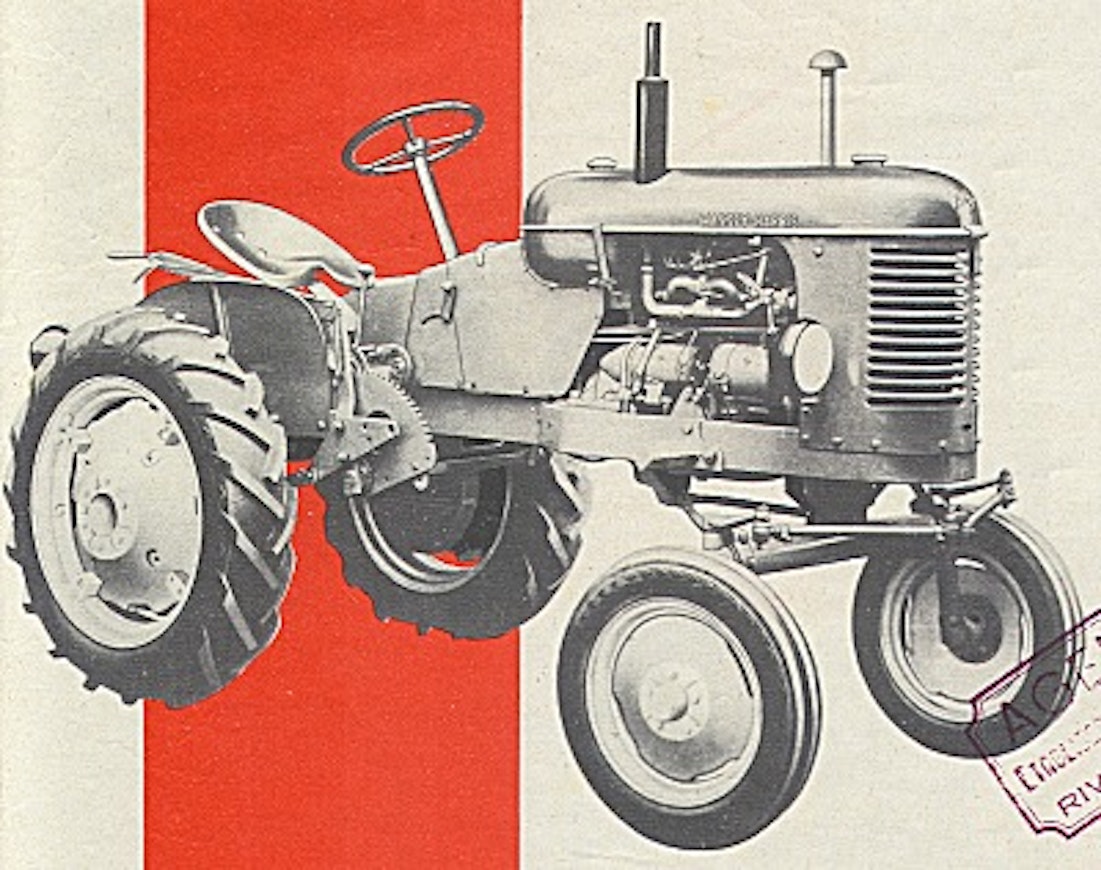

Massey-Harris Pony

52MHPony
Manufacturer
Models
Massey-Harris Pony, Massey-Harris Pony 811/812, Massey-Harris Pony 820
Years
1947-62
Info

The smallest model in the Massey-Harris lineup, the Pony, was introduced in Canada in 1947. It had a 1.0-liter gasoline engine from Continental and 3 forward gears. A hydraulic lift was added as an option in 1950. However, the Pony’s 3-point hitch did not meet the standard and required its own attachments. From 1951 onwards, the Pony was also manufactured in France, equipped with a 1.2-liter Simca engine. The original French model’s type designation was 811. In 1953, the Pony 812, featuring a welded frame, was introduced. In the newer 820 and 821 models from 1957 onwards, a 1.0-liter 2-stroke diesel from Hanomag was used, and as a carbureted engine, a 20-horsepower Simca. Later Ponies had 5 forward gears.

Production in Canada ended as early as 1954, but in France, it continued until 1962. In the final phase, the Pony was called the Massey-Ferguson 21. In total, about 29,000 Ponies were produced in Canada, and nearly 90,000 in France.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMassey-Harris PonyMassey-Harris Pony 811/812Massey-Harris Pony 820
Manufacturer nameMassey-HarrisMassey-HarrisMassey-Harris
Imported to FinlandYesYesYes
Years1947-541951-581957-62
Engine modelContinental N 62Simca 4.O.Hanomag
Cyl/Turbo/Intercooler442
Displacement1030 cm³1221 cm³1021 cm³
Bore x stroke60,3×88,9 mm72×75 mm85×95 mm
Rated power---
Gears3+13+1/5+15+1
Speeds in km/h4,2-10,94,4-11,32,8-14,2
Lift controlsmech.mech.mech.
PTO speeds540540540
Brakesdifferentialdifferentialdifferential
Steeringmech.mech.mech.
Turning circle m 2WD5.85.185.18
Front tyres 2WD4.00-154.00-154.00-15
Rear tyres 2WD8.00-248.00-249.00-24
Weight 2WD(820) kg(910) kg(1050) kg
Height with cab(134) cm(152) cm-
Length (2WD/4WD)277 cm--
Wheelbase (2WD/4WD)170 cm167 cm167 cm
Fuel tank28 l25.7 l-
Hydr. flow l/min-9.5 l/min9.5 l/min
