Siirry sivupalkkiinSiirry alaosaanMcCormick X50.20-X50.50 / Landini 5-090H – 5-115H

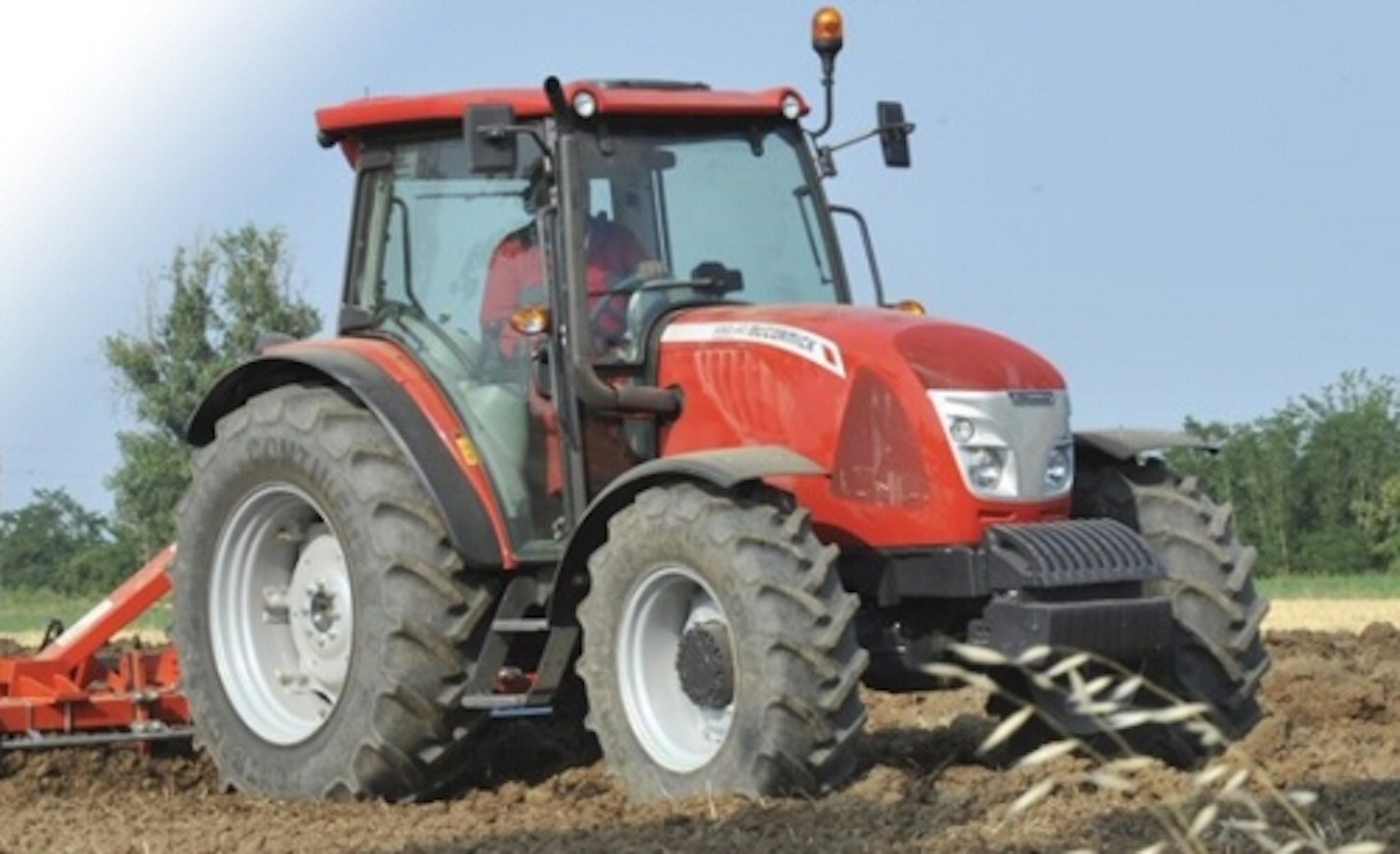

In 2012, the McCormick T Max was replaced by the X50 series. The 4.4-liter Perkins engine was replaced by a new 3.4-liter engine compliant with the T4i standard. It featured an intercooler, exhaust gas recirculation, and a particulate filter. The front design was new, and the interior color had changed from gray to beige. The lifting capacity had increased from 4350 to 4750 kilograms. Other technology remained the same. Available were the Synchro Shuttle version with a mechanical direction changer and mechanical powershift, as well as the Power Shuttle, which featured a 3-speed powershift, hydraulic direction changer, push-button clutch, electric hydraulic control, and air-suspended seat. The engine’s extra power function was available only in the Power Plus versions during road driving or when the power take-off was in use. Air conditioning was standard in the cab. The X50 was also included in the HS Tarvike sales program.

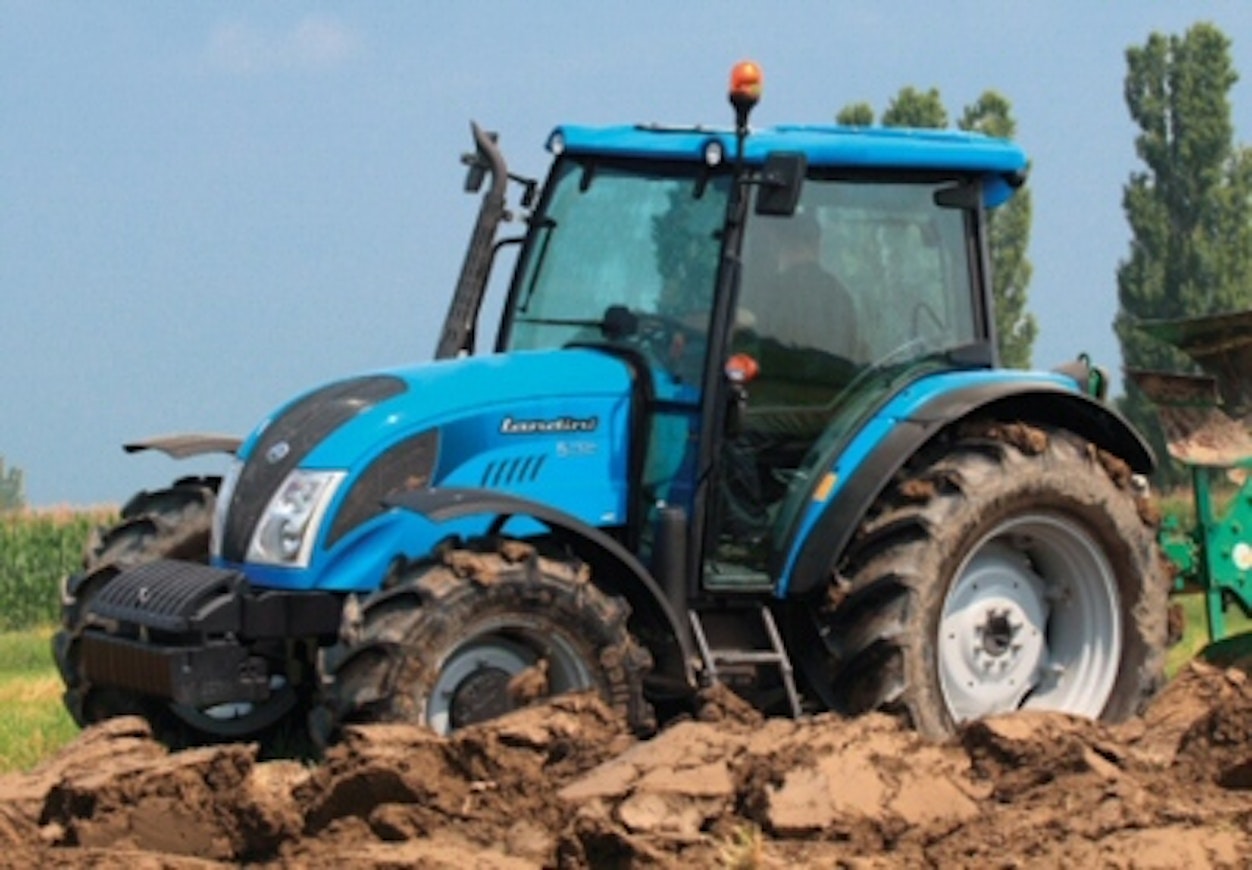

In the Landini lineup, the new model continued with the same 5H designation as the previous 4.4-liter model. However, the exterior appearance was new.
This is an automated translation. Please report any issues in the translation.
| Model | McCormick X50.20 | Landini 5-090H | McCormick X50.30 | Landini 5-100H | McCormick X50.40 | Landini 5-110H | McCormick X50.50 | Landini 5-115H |
|---|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2012-15 | 2012-15 | 2012-15 | 2012-15 | 2012-15 | 2012-15 | 2012-15 | 2012-15 |
| Engine model | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA | 854E-E34TA |
| Cyl/Turbo/Intercooler | 4TA | 4TA | 4TA | 4TA | 4TA | 4TA | 4TA | 4TA |
| Displacement | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ | 3400 cm³ |
| Bore x stroke | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm | 99×110 mm |
| Rated power | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - |
| Gears | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 |
| Synchronized gears | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 |
| Powershift gears | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Reverser | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Speeds in km/h | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 |
| Hydr. flow l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. |
| Lift capacity | 4750 kg | 4750 kg | 4750 kg | 4750 kg | 4750 kg | 4750 kg | 4750 kg | 4750 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 |
| Front tyres 4WD | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 | 380/70R24 |
| Rear tyres 4WD | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 |
| Weight 4WD | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg |
| Height with cab | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm |
| Length (2WD/4WD) | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm |
| Wheelbase (2WD/4WD) | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm |
| Fuel tank | 102 l | 102 l | 102 l | 102 l | 102 l | 102 l | 102 l | 102 l |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air suspension seat | -/x | -/x | -/x | -/x | -/x | -/x | -/x | -/x |
| Air conditioning | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
