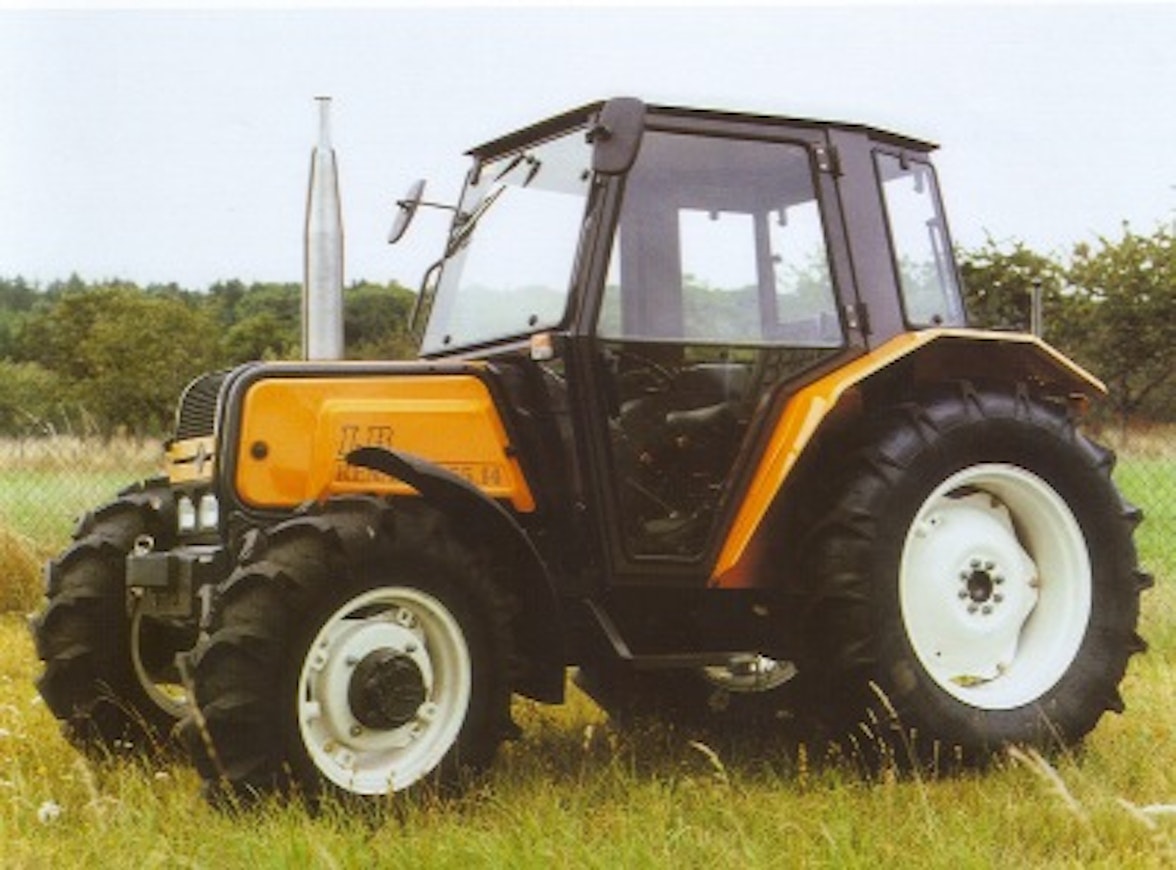

Siirry sivupalkkiinSiirry alaosaanRenault 50-12 LB – 80-14 LB

In 1986, Renault introduced a new series of tractors for viticulture and fruit growing developed together with Carraro. The engine was an air-cooled Deutz with a power output of 45-76 hp. In 1987, conventional agricultural tractors were also made from the two smallest models in the series, which were named the LB series. Technically, these models had little in common with Renault’s larger tractors. The hydraulics were quite powerful relative to their power class, and the transmission was equipped with a mechanical shuttle shift. The LB models were available either with a roll bar or a cab. A new cab was introduced in 1995.
In 1991, the 67-horsepower 70-12/14 LB was introduced, and in 1995 the 76-horsepower 80-14 LB. Production volumes of these larger models remained low.
This is an automated translation. Please report any issues in the translation.
| Model | Renault 50-12 LB | Renault 55-12 LB 55-14 LB |
|---|---|---|
| Manufacturer name | Renault | Renault |
| Imported to Finland | No | No |
| Years | 1987-93 | 1987-98 |
| Engine model | Deutz F3 L 912 | Deutz F3 L 912 |
| Cyl/Turbo/Intercooler | 3 | 3 |
| Displacement | 2827 cm³ | 2827 cm³ |
| Bore x stroke | 100×120 mm | 100×120 mm |
| Rated power | 45/2350 hp DIN/rpm | 52/2350 hp DIN/rpm |
| Torque | - | - |
| Gears | 8+8 | 12+12 |
| Reverser | mech. | mech. |
| Speeds in km/h | 2,9-30,0 | 0,5-30,0 |
| Hydr. flow l/min | 36.5 l/min | 36.5 l/min |
| Lift controls | mech. | mech. |
| Lift capacity | 3410 kg | 3410 kg |
| PTO speeds | 540 | 540/ajo |
| Brakes | wet disc | wet disc |
| Steering | hydrost. | hydrost. |
| Turning circle m 2WD | 6.7 | 6.7 |
| Front tyres 2WD | 6.00-16 | 7.50-16 |
| Rear tyres 2WD | 13.6-28 | 14.9-28 |
| Weight 2WD | 1930 kg | 1990 kg |
| Height with cab | 223 cm | 225 cm |
| Length (2WD/4WD) | 330 cm | 333/361 cm |
| Fuel tank | 62 l | 62 l |
| Cab noise level | 88 dB | 88 dB |
| Solid cab | (x) | (x) |
| Synchronized gears | - | 12+12 |
| Turning circle m 4WD | - | 6.7 |
| Front tyres 4WD | - | 12.4-20 |
| Rear tyres 4WD | - | 14.9-28 |
| Weight 4WD | - | 2260 kg |
| Diff. lock | - | friction lock |
