Siirry sivupalkkiinSiirry alaosaanRenault 58-32 – 90-34 MA/ME/MS/MX/PA/PE/PS/PX/Tracfor




At the beginning of 1989, the M&P series with a power range of 54-83 hp was launched on the market. In the model designation jungle, the models starting with M (5 models) are equipped with MWM engines, and those starting with P (2 models) have Perkins engines. Models ending with A are equipped with a rollover protection structure, those ending with E do not have this, S endings indicate a standard cab, and X endings indicate a comfort cab. In the numbers, the initial part indicates the power class, which is again slightly optimistic compared to the actual power. The 32 models are rear-wheel drive, and the 34 models are four-wheel drive.

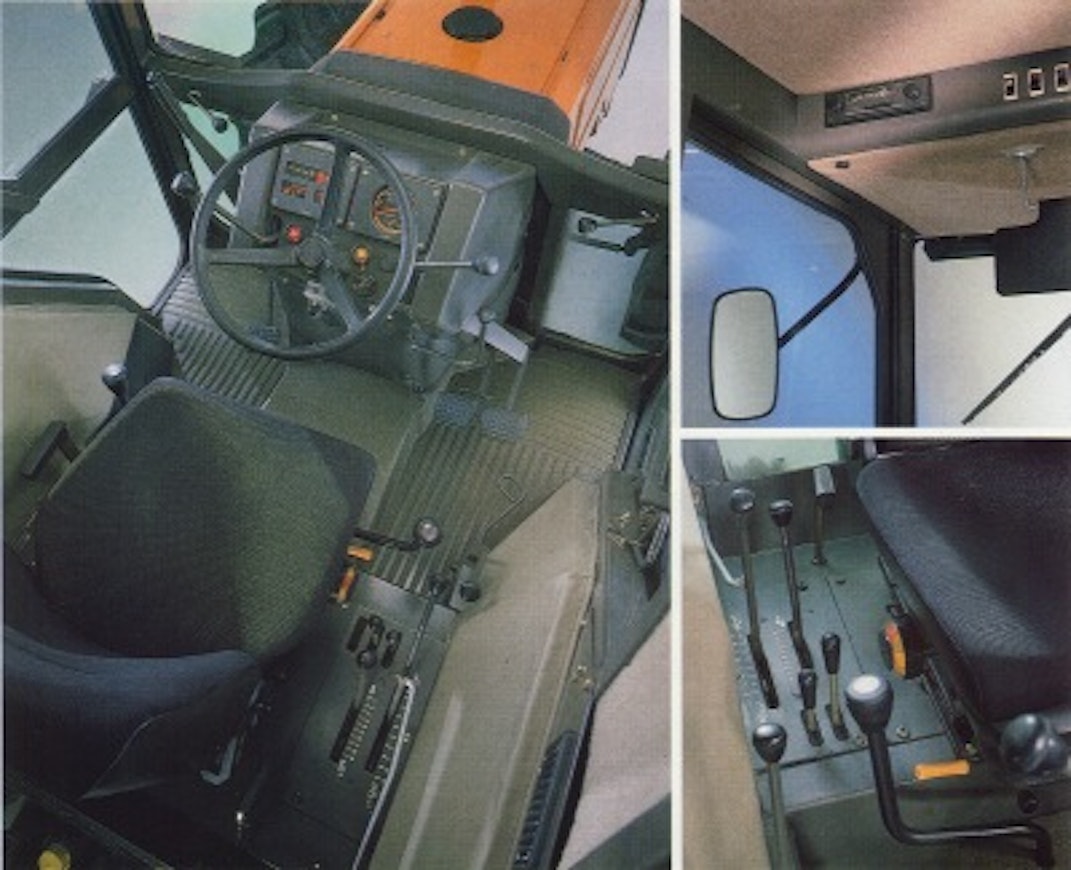

The design of the M&P series was new, as was the cab. Regardless of the model version, the tractor featured suspended pedals and a mechanical directional shuttle under the steering wheel. The range shift lever was on the left, and the main gear lever was on the right. The noise level of the comfort cab was 82 dB. The transmission was the same 12+12 used in previous models, with an optional mechanical power shift. A 40 km/h speed option was available as an extra. The clutch disc diameter varied depending on the model: 11″, 12″, or 13″. Maneuverability had now reached a modern level thanks to the new front axles with a 50-degree steering angle. The PTO speeds of 540/1000 rpm could be selected from the cab. The brakes had been upgraded to an oil-immersed system as seen in larger models. The lifting capacity was the same as in the previous RS series: 2810 kg, with one auxiliary cylinder 3750 kg, and with two cylinders 4480 kg.
Above the MX and PX models were the Tracfor models, which featured a higher equipment level, including a power shift.
This is an automated translation. Please report any issues in the translation.
| Model | Renault 58-32 MX 58-34 MX | Renault 65-32 MX 65-34 MX | Renault 70-32 PX 70-34 PX | Renault 75-32 MX 75-34 MX | Renault 80-32 PX 80-34 PX | Renault 85-32 MX 85-34 MX | Renault 90-32 MX 90-34 MX |
|---|---|---|---|---|---|---|---|
| Manufacturer name | Renault | Renault | Renault | Renault | Renault | Renault | Renault |
| Imported to Finland | No | No | No | No | No | No | No |
| Years | 1989-93 | 1989-93 | 1989-93 | 1989-93 | 1989-93 | 1989-93 | 1989-93 |
| Engine model | MWM D226-3 | MWM D226-3 | Perkins 4-236 | MWM D226-4 | Perkins 4-248 | MWM D226-4 | MWM D226-4 |
| Cyl/Turbo/Intercooler | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Displacement | 3117 cm³ | 3117 cm³ | 3864 cm³ | 4156 cm³ | 4070 cm³ | 4156 cm³ | 4156 cm³ |
| Bore x stroke | 105×120 mm | 105×120 mm | 98,4×127 mm | 105×120 mm | 101×127 mm | 105×120 mm | 105×120 mm |
| Rated power | 54/2250 hp DIN/rpm | 60/2430 hp DIN/rpm | 65/2250 hp DIN/rpm | 70/2350 hp DIN/rpm | 75/2350 hp DIN/rpm | 78/2350 hp DIN/rpm | 83/2350 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - |
| Gears | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 |
| Synchronized gears | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 | 12+12 |
| Powershift gears | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
| Reverser | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Speeds in km/h | 0,7-28,0 | 0,8-30,0 | 0,8-29,0 | 0,8-30,3 | 0,8-30,0 | 0,8-30,3 | 0,8-30,0 |
| Max. speed | 30 (40) km/h | 30 (40) km/h | 30 (40) km/h | 30 (40) km/h | 30 (40) km/h | 30 (40) km/h | 30 (40) km/h |
| Hydr. flow l/min | 26,2/38 l/min | 28,3/41,3 l/min | 36 l/min | 40 l/min | 40 l/min | 40 l/min | 40 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 2810 kg | 2810 kg | 2810 kg | 3750 kg | 3750 kg | 3750 kg | 4480 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.8 | 7.8 | 7.8 | 8.1 | 8.1 | 8.1 | 8.1 |
| Turning circle m 4WD | 8.26 | 8.26 | 8.58 | 8.64 | 8.64 | 8.64 | 8.64 |
| Front tyres 2WD | 6.50-16 | 7.50-16 | 7.50-16 | 7.50-18 | 7.50-18 | 7.50-18 | 7.50-18 |
| Front tyres 4WD | 9.5-24 | 11.2-24 | 12.4-24 | 13.6-24 | 13.6-24 | 13.6-24 | 13.6-24 |
| Rear tyres 2WD | 14.9-28 | 16.9-28 | 16.9-30 | 16.9-34 | 16.9-34 | 16.9-34 | 16.9-34 |
| Rear tyres 4WD | 14.9-28 | 16.9-28 | 16.9-30 | 16.9-34 | 16.9-34 | 16.9-34 | 16.9-34 |
| Weight 2WD | 2630 kg | 2660 kg | 2900 kg | 3200 kg | 3220 kg | 3420 kg | 3700 kg |
| Weight 4WD | 3070 kg | 3170 kg | 3230 kg | 3670 kg | 3580 kg | 3800 kg | 3890 kg |
| Height with cab | 239 cm | 242 cm | 244 cm | 250 cm | 250 cm | 250 cm | 250 cm |
| Length (2WD/4WD) | 362/374 cm | 364/378 cm | 371/392 cm | 393/406 cm | 387/403 cm | 393/406 cm | 393/406 cm |
| Wheelbase (2WD/4WD) | 227/224 cm | 227/224 cm | 234/237 cm | 243/239 cm | 238/239 cm | 243/239 cm | 243/239 cm |
| Fuel tank | 115 l | 115 l | 115 l | 115 l | 115 l | 115 l | 115 l |
| Cab noise level | 82 dB | 82 dB | 82 dB | 82 dB | 82 dB | 82 dB | 82 dB |
| Solid cab | x | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
