Renault 92-98, 496-498

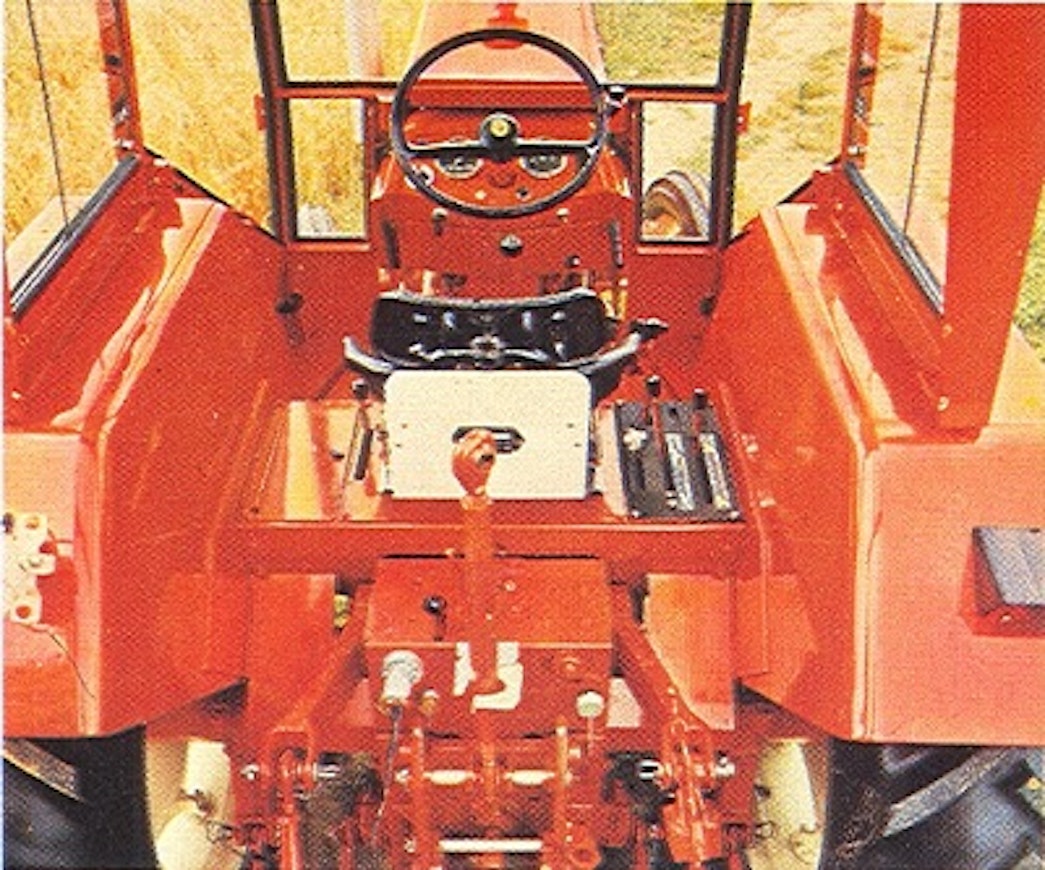

71Renault98ohjaamo

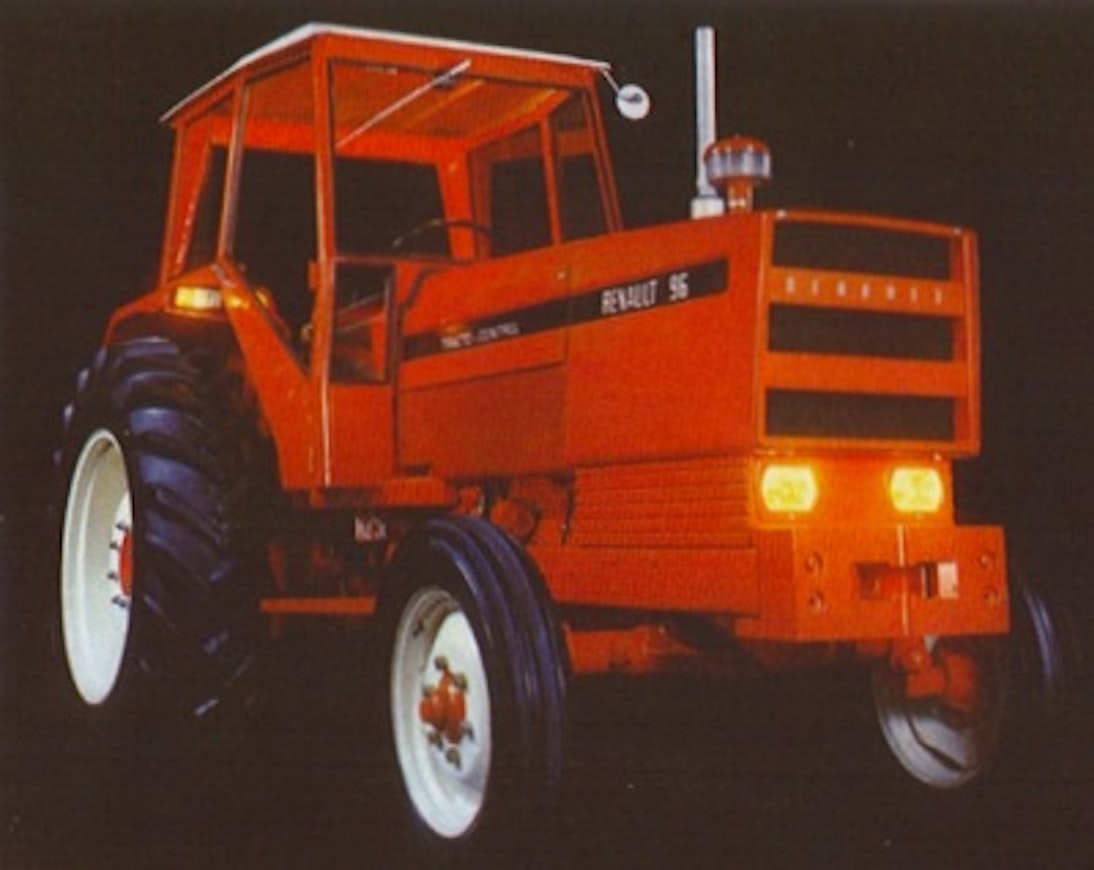

69Renault96
71Renault98ohjaamo
69Renault96
Manufacturer
Models
Renault 92, Renault 94, Renault 96/496, Renault 98/498
Years
1969-73
Info

In the summer of 1969, the Renault lineup expanded into a larger size category than before. The models introduced at that time, the 94 and 96, with their angular design, set the direction for Renault’s 1970s lineup. Also new was a factory-installed, flat-floor safety cab mounted on rubber cushions, which was standard in the larger model. The 94 was equipped with an air-cooled 3.4-liter MWM engine producing 72 hp. The 96 had a water-cooled 4.2-liter MWM engine with 82 hp. Later that same autumn, a smaller model was added to the lineup. The 92 (62 hp) was also equipped with the 3-cylinder MWM engine used in the 89 model.

In the spring of 1970, the first 6-cylinder Renault tractor was introduced: the 98 (90 hp). The engine was an air-cooled MWM.

The fully synchronized transmission had 8 forward and 2 reverse gears. The 96 and 98 models had a 12" clutch, while the others had an 11" clutch. Power take-off speeds were 540 and 1000 rpm. Lift capacity was 2500 kg. In the autumn of 1970, four-wheel-drive models 496 and 498 were introduced. The front axle was manufactured by ZF. Steering was hydrostatic in the four-wheel-drive models as well as in the 98.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelRenault 92Renault 94Renault 96/496Renault 98/498
Manufacturer nameRenaultRenaultRenaultRenault
Imported to FinlandNoNoNoNo
Years1969-711969-731969-731970-73
Engine modelMWM D 226-3MWM D 326-4MWM D 226-4MWM D 325-6
Cyl/Turbo/Intercooler3446
Displacement3116 cm³3402 cm³4156 cm³5103 cm³
Bore x stroke105×120 mm95×120 mm105×120 mm95×120 mm
Rated power62/2500 hp DIN/rpm72/2500 hp DIN/rpm82/2500 hp DIN/rpm90/2350 hp DIN/rpm
Gears8+28+28+28+2
Synchronized gears8+28+28+28+2
Speeds in km/h2,2-21,92,4-24,32,4-24,32,2-21,8
Hydr. flow l/min31.3 l/min31.3 l/min31.3 l/min31.3 l/min
Lift controlsmech.mech.mech.mech.
Lift capacity2500 kg2500 kg2500 kg2500 kg
PTO speeds540/1000540/1000540/1000540/1000
Brakesdry discdry discdry discdry disc
Steeringmech./powermech./powerpower, 4WD hydrost.hydrost.
Front tyres 2WD6.50-206.50-206.50-207.50-20
Rear tyres 2WD16.9-2813.6-3815.5-3818.4-30
Weight 2WD3115 kg3145 kg3430 kg3710 kg
Length (2WD/4WD)364 cm405 cm417/415 cm437/431 cm
Wheelbase (2WD/4WD)228 cm228 cm238/237 cm254/253 cm
Fuel tank96 l96 l106 l-
Turning circle m 2WD-8.78.99.18
Turning circle m 4WD--9.710.2
Front tyres 4WD--8.5-2411.2-24
Rear tyres 4WD--16.9-3416.9-38
Weight 4WD--3655 kg4095 kg
Height with cab--246/245 cm243/239 cm
Solid cab--xx
