Siirry sivupalkkiinSiirry alaosaanRenault Palès 210-240

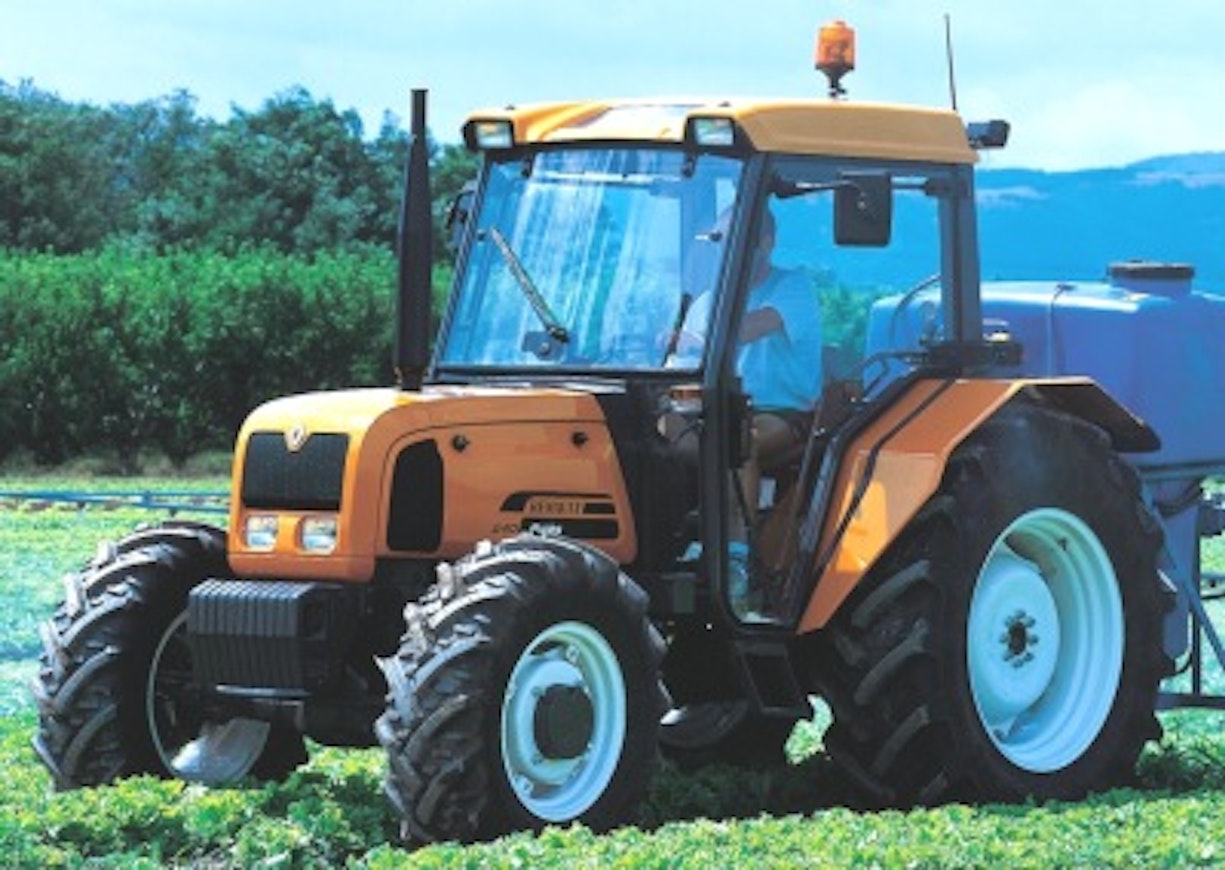

In the spring of 1998, Renault introduced the new tractor series Dionis and Fructus for viticulture and fruit growing, developed together with Carraro. At the same time, a third new model series, Palès, was also introduced, intended for general use as the successor to the LB series. The new models were powered by air-cooled Deutz engines. The direction changer was a long lever located behind the steering wheel. As an optional accessory for the Palès, a hydraulic direction changer and an electric hitch were available. In 1999, a 40 km/h speed option was also introduced. At that time, the gear transmission had 24+24 speeds with the help of a mechanical quick-shift. The Palès was available either with a rollover bar or a cab. In England, the Palès was previously known by the name Herdsman. The Palès, Dionis, and Fructus remained in production in Renault colors for a year after the larger models were changed to Claas.
This is an automated translation. Please report any issues in the translation.
| Model | Renault Palès 210 | Renault Palès 210 | Renault Palès 230 | Renault Palès 240 |
|---|---|---|---|---|
| Manufacturer name | Renault | Renault | Renault | Renault |
| Imported to Finland | No | No | No | No |
| Years | 1998-2002 | 2002-04 | 1998-2004 | 1998-2004 |
| Engine model | Deutz F3L 912 | Deutz F3L 912 | Deutz F4L 912 | Deutz F4L 913 |
| Cyl/Turbo/Intercooler | 3 | 3 | 4 | 4 |
| Displacement | 2827 cm³ | 2827 cm³ | 3770 cm³ | 4086 cm³ |
| Bore x stroke | 100×120 mm | 100×120 mm | 100×120 mm | 102×120 mm |
| Rated power | 52/2350 hp DIN/rpm | 56/2350 hp DIN/rpm | 67/2350 hp DIN/rpm | 76/2350 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 12+12 | 12+12 | 12+12 | 12+12 |
| Synchronized gears | 12+12 | 12+12 | 12+12 | 12+12 |
| Powershift gears | opt. | opt. | opt. | opt. |
| Reverser | mech. | mech. | mech. | mech. |
| Speeds in km/h | 1,2-25,4 | 1,2-25,4 | 1,4-28,9 | 1,5-29,9 |
| Max. speed | 30 (40) km/h | 30 (40) km/h | 30 (40) km/h | 30 (40) km/h |
| Hydr. flow l/min | 29 l/min | 29 l/min | 37.5 l/min | 37.5 l/min |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 3476 kg | 3614 kg | 3578 kg | 3578 kg |
| PTO speeds | 540/ajo | 540/ajo | 540/750/ajo | 540/750/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.7 | 6.7 | 6.8 | - |
| Turning circle m 4WD | 7.5 | 7.5 | 8.3 | 8.4 |
| Front tyres 2WD | 7.50-16 | 7.50-16 | 7.50-16 | - |
| Front tyres 4WD | 12.4R20 | 12.4R20 | 12.4R20 | 12.4R20 |
| Rear tyres 2WD | 14.9R28 | 16.9R28 | 16.9R28 | - |
| Rear tyres 4WD | 14.9R28 | 16.9R28 | 16.9R28 | 16.9R30 |
| Weight 2WD | 2305 kg | 2305 kg | 2495 kg | - |
| Weight 4WD | 2500 kg | 2600 kg | 2560 kg | 2600 kg |
| Height with cab | 228 cm | 244 cm | 236/247 cm | 238/250 cm |
| Length (2WD/4WD) | 333/356 cm | 333/356 cm | 374 cm | 375 cm |
| Wheelbase (2WD/4WD) | 198/210 cm | 198/210 cm | 211/223 cm | - |
| Fuel tank | 62 l | 62 l | 62 l | 62 l |
| Solid cab | (x) | (x) | (x) | (x) |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. |
