Versatile 300 – 900

Manufacturer
Models

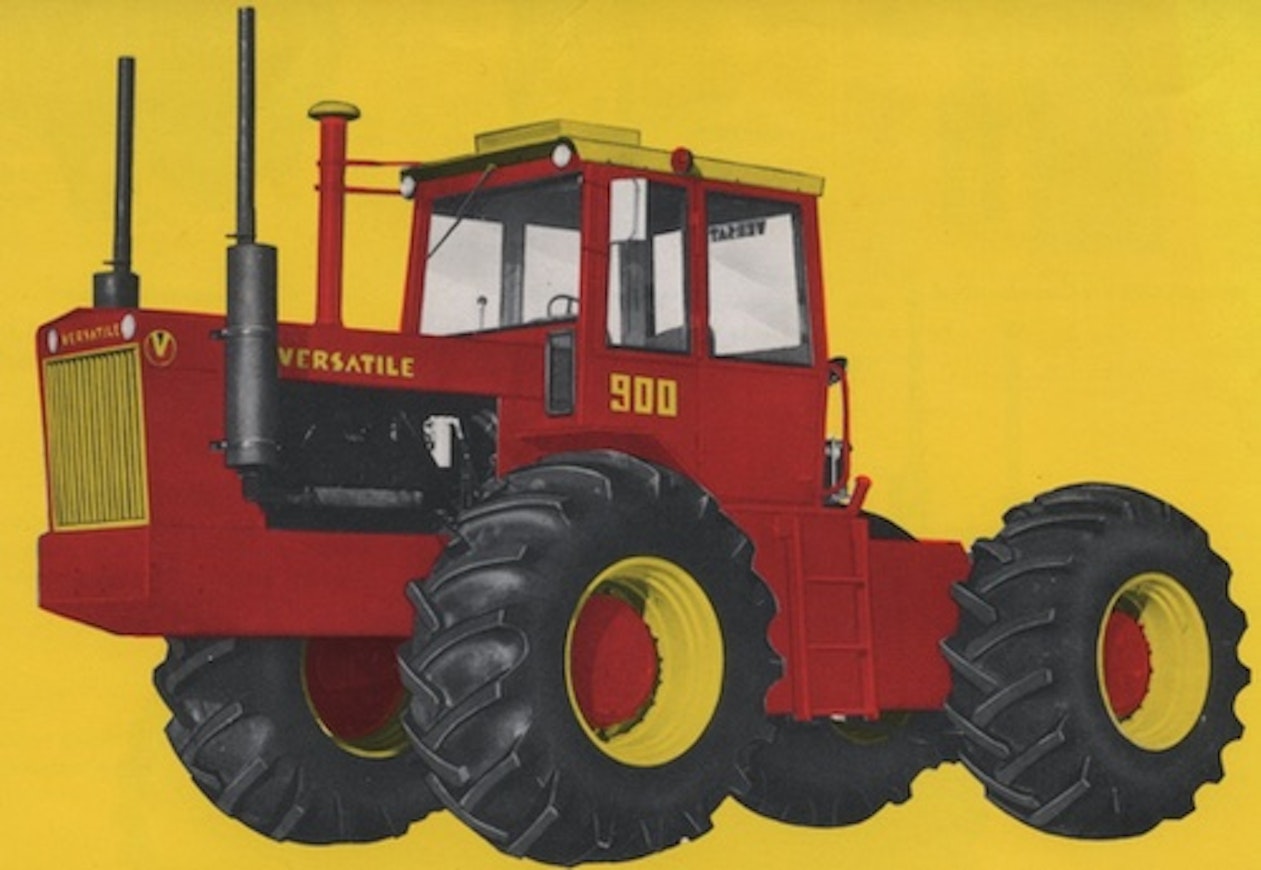

Versatile 300, Versatile 700, Versatile 800, Versatile 850, Versatile 900
Years
1973-75
Info

The first Versatile tractors fell into the 100–145 hp class. In 1973 the company introduced its first broader model range, featuring tractors of up to 300 hp. The smallest, the Versatile 300, was the successor to the earlier 125 model. It was powered by a Cummins 6.2 L V6 developing 142 hp and used a hydro-mechanical transmission with two purely mechanical road gears. For light work you could engage the hydrostatic drive, and for heavy field work the hydro-mechanical mode—where the combination of two gears and the hydrostat provided high drawbar pull with stepless speed adjustment between 3 and 12.5 km/h. Switching between modes required using the clutch. A PTO was standard, but the three-point hitch was an option. Only 200 units of the 300 model were built, all in 1973.

The larger range comprised four models rated between 220 and 300 hp, all powered by Cummins engines. The gearbox was a 12+4 constant-mesh unit, followed by a Dana-Spicer two-disc ceramic 14″ clutch. On Versatile tractors the brake was positioned on the driveshaft. Air conditioning was offered as an optional extra in the cab. At this stage Versatile marketed its tractors primarily on single wide tires rather than duals.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelVersatile 300Versatile 700Versatile 800Versatile 850Versatile 900
Manufacturer nameVersatileVersatileVersatileVersatileVersatile
Imported to FinlandNoNoNoNoNo
Years1973-731973-751973-751973-751973-75
Engine modelCAT 378Cummins V-555Cummins N855-C235Cummins NT855-C280Cummins V-903
Cyl/Turbo/IntercoolerV6V866TV8
Displacement6194 cm³9085 cm³14016 cm³14016 cm³14794 cm³
Bore x stroke95,25×117,5 mm117,5×104,8 mm139,7×152,4 mm139,7×152,4 mm139,7×120,65 mm
Rated power142/2800 hp DIN/rpm220/2850 hp DIN/rpm235/2100 hp DIN/rpm280/2100 hp DIN/rpm300/2400 hp DIN/rpm
Gears2+hydrost.12+412+412+412+4
Synchronized gears?----
Powershift gearshydrost.----
Speeds in km/h0-24,84,2-23,04,2-23,04,2-23,04,2-23,0
Hydr. flow l/min60.6 l/min88.9 l/min88.9 l/min88.9 l/min98.4 l/min
Lift controlsmech.mech.mech.mech.mech.
Lift capacity2000 kg5611 kg5611 kg5611 kg5611 kg
PTO speeds1000----
Brakesdrum brakesdisc brakesdisc brakesdisc brakesdisc brakes
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.
Front tyres 4WD18.4-3424.5-3224.5-3224.5-3224.5-32
Rear tyres 4WD18.4-3424.5-3224.5-3224.5-3224.5-32
Weight 4WD5307 kg7711 kg8210 kg8391 kg7825 kg
Height with cab315 cm330 cm330 cm330 cm330 cm
Length (2WD/4WD)539 cm643 cm643 cm643 cm643 cm
Wheelbase (2WD/4WD)279 cm330 cm330 cm330 cm330 cm
Fuel tank273 l700 l700 l700 l700 l
Solid cabxxxxx
Turning circle m 4WD-10.3310.3310.3310.33
