Siirry sivupalkkiinSiirry alaosaanVolvo BM T 800 – T 814

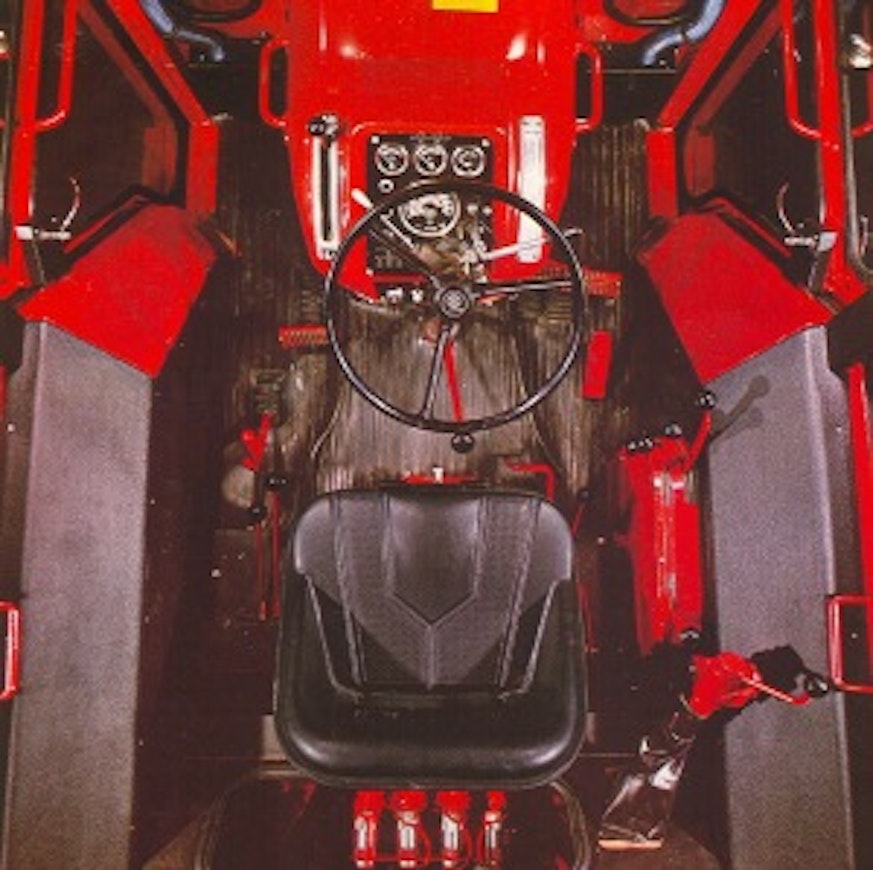

The Iso BM Volvo T 800 was introduced in 1966 as the successor to the Bison 470. When it came to market, it had a very modern appearance. The T 800's engine was a new 5.1-liter six-cylinder with a power output of 94 hp. The T 800 was equipped with a 14" clutch, drawbar sensing, power take-off, and alternator. The cabin was manufactured by Hara and was nowhere near as good as the later one in the T 650.

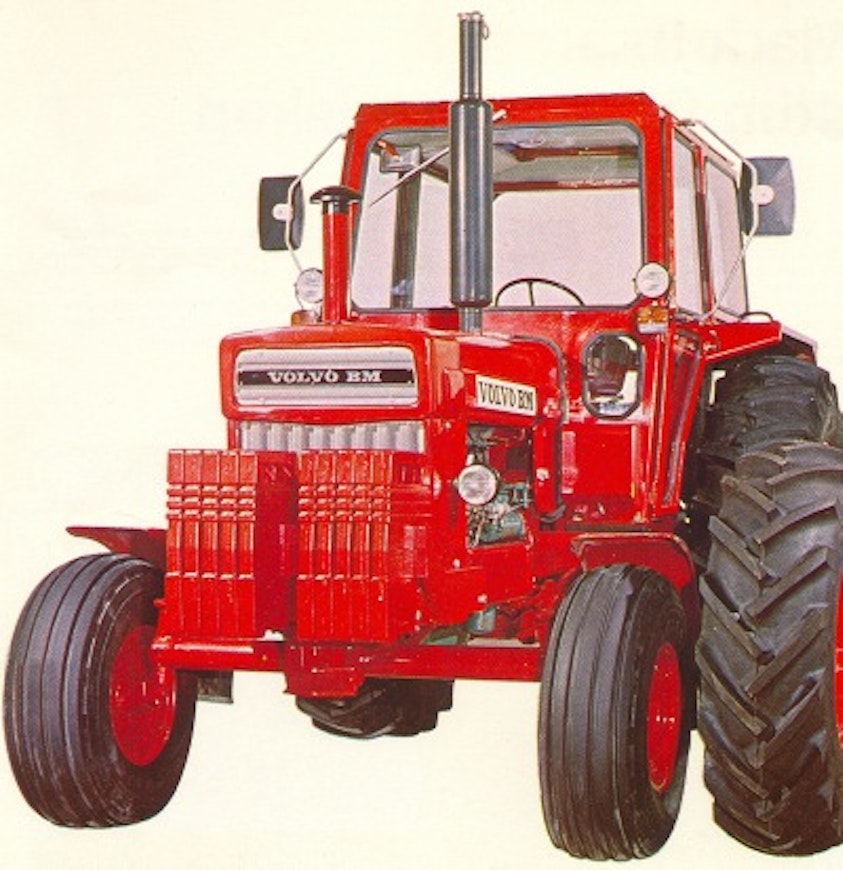

The turbo model T 810 and its four-wheel-drive version T 814 were introduced in 1969. They had 113 hp. Power was increased in 1972 (various versions of power ratings have been reported in different sources). In 1975, the engine grew to 5.5 liters and power increased to 106 and 136 hp. An overdrive gear later became an optional extra for the rear-wheel-drive models. The front axle of the T 814 came from Volvo’s four-wheel-drive loaders.
This is an automated translation. Please report any issues in the translation.
| Model | Volvo BM T 800 | Volvo BM T 800 | Volvo BM T 800 | Volvo BM T 810/814 | Volvo BM T 810/814 | Volvo BM T 810/814 |
|---|---|---|---|---|---|---|
| Manufacturer name | Volvo BM | Volvo BM | Volvo BM | Volvo BM | Volvo BM | Volvo BM |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1966-72 | 1972-75 | 1975-78 | 1969-72 | 1972-75 | 1975-80 |

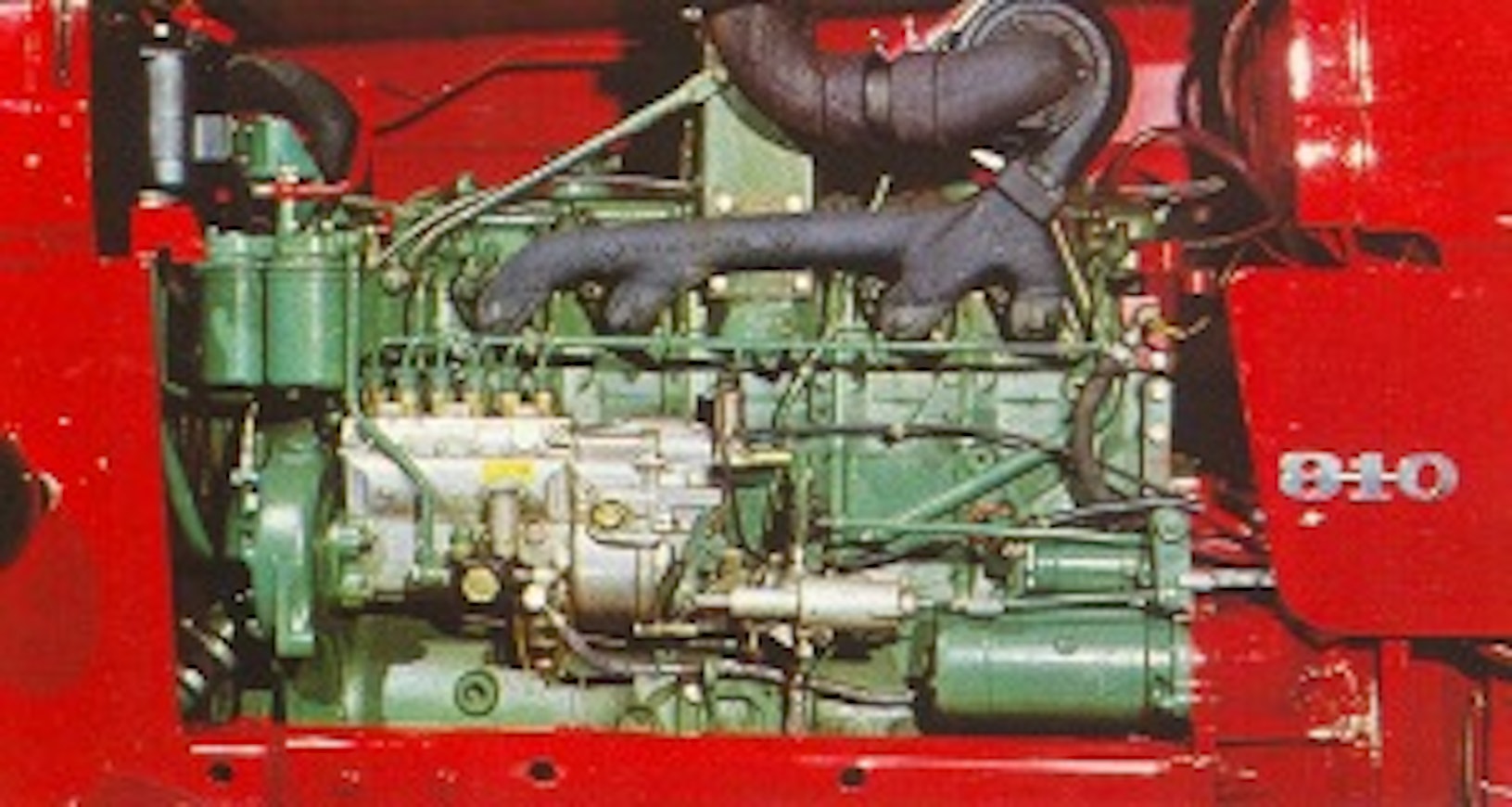

| Engine model | D 50 A | D 50 | D 60 | TD 50 | TD 50 | TD 60 |
| Cyl/Turbo/Intercooler | 6 | 6 | 6 | 6T | 6T | 6T |
| Displacement | 5130 cm³ | 5130 cm³ | 5480 cm³ | 5130 cm³ | 5130 cm³ | 5480 cm³ |
| Bore x stroke | 95,25×120 mm | 95,25×120 mm | 98,47×120 mm | 95,25×120 mm | 95,25×120 mm | 98,47×120 mm |

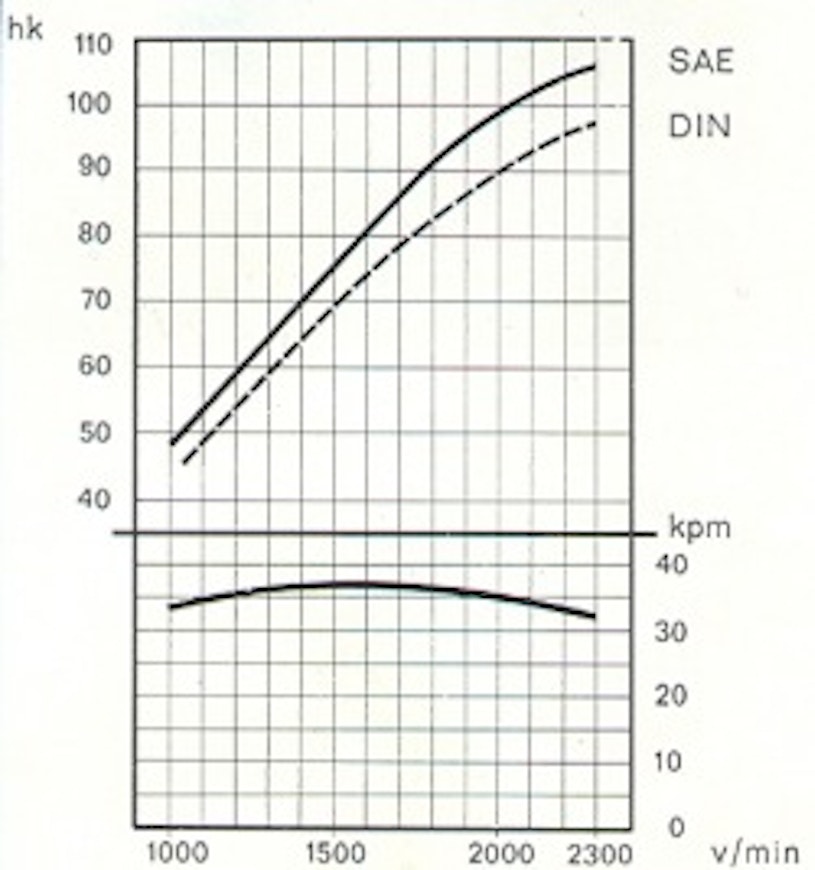

| Rated power | 94/2300 hp DIN/rpm | 102/2300 hp DIN/rpm | 106/2300 hp DIN/rpm | 113/2300 hp DIN/rpm | 128/2300 hp DIN/rpm | 140/2300 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 8+2 | 8+2 | 8+2 | 8+2 | 8+2 | 8+2 |

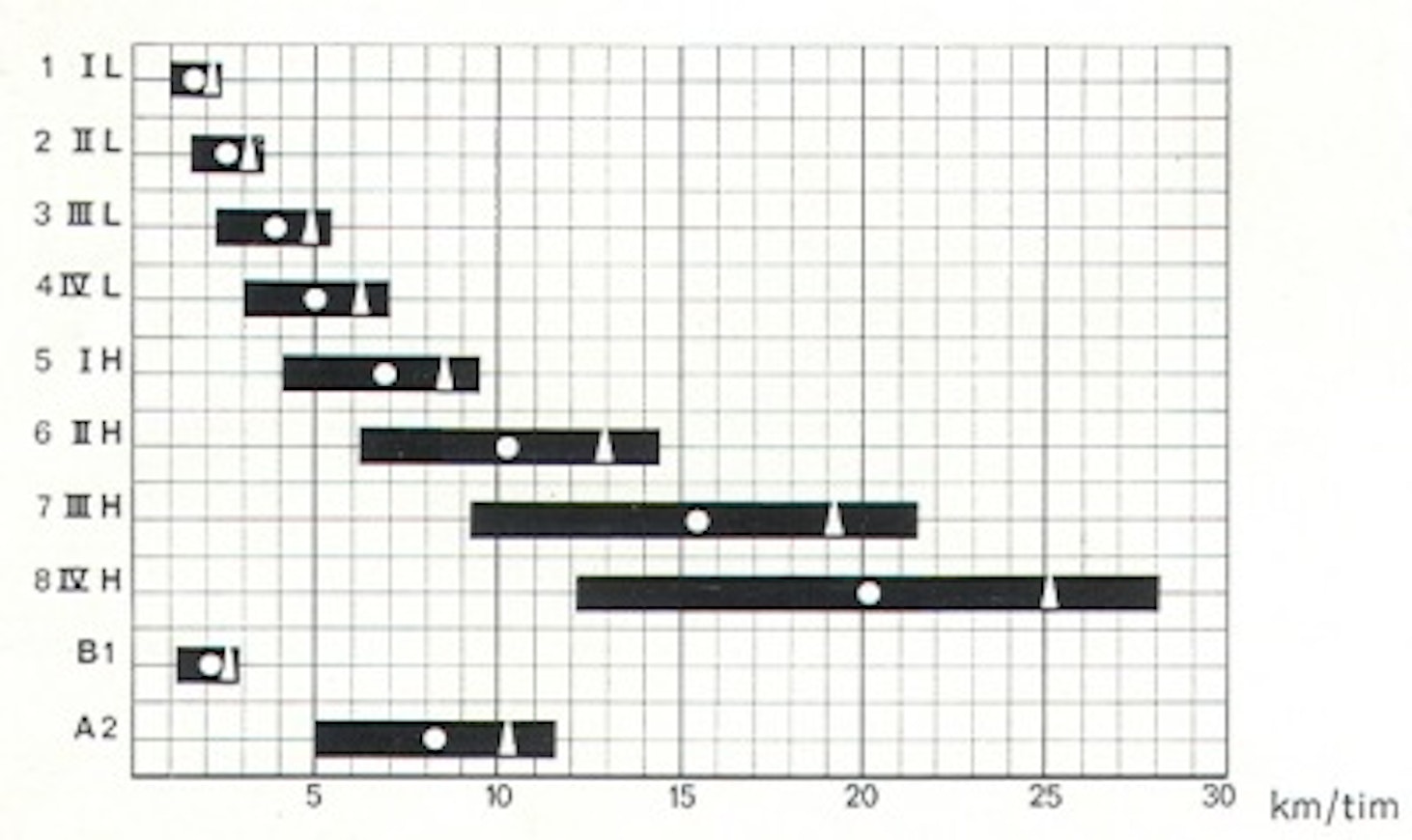

| Speeds in km/h | 2,4-28,1 | 2,7-32,2 | 2,5-30,0 | 2,4-28,4 | 3,2-30,4 | 3,2-30,0 |
| Hydr. flow l/min | 30 l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min |
| Hydraulic pressure | 160 bar | 160 bar | 160 bar | 160 bar | 160 bar | 160 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 2400 kg | 2400/3400 kg | 3400 kg | 3000 kg | 3000/3400 kg | 3400/4000 kg |
| PTO speeds | 540/ajo | 540/ajo | 540/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo |
| Brakes | dry disc | dry disc | dry disc | dry disc | dry disc | dry disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 10 | 10 | 10 | 10 | 10 | 10 |
| Front tyres 2WD | 7,50-18 | 11,00-16 | 11,00-16 | 11,00-16 | 11,00-16 | 11,00-16 |
| Rear tyres 2WD | 18,4-34 | 18,4-38 | 18,4-38 | 18,4-38 | 18,4-38 | 18,4-38 |
| Weight 2WD | 4490 kg | 5130 kg | 5400 kg | 5900 kg | 5820 kg | 5920 kg |
| Height with cab | 257 cm | 270 cm | 270 cm | - | 270 cm | 270 cm |
| Length (2WD/4WD) | 396 cm | 396 cm | 396 cm | 424/436 cm | 424/436 cm | 424/436 cm |
| Wheelbase (2WD/4WD) | 269 cm | 270 cm | 270 cm | 269/284 cm | 270/284 cm | 270/284 cm |
| Fuel tank | 150 l | 150 l | 150 l | 150 l | 150 l | 150 l |
| Solid cab | (x) | x | x | x | x | x |
| Cab noise level | - | 89 dB | 87.5 dB | 90N dB | 89 dB | 86,5/80,5 dB |
| Powershift gears | - | - | opt. | - | - | opt. |
| Turning circle m 4WD | - | - | - | 11.8 | 11.8 | 11.8 |
| Front tyres 4WD | - | - | - | 14.9-24 | 14.9-24 | 14.9-24 |
| Rear tyres 4WD | - | - | - | 18.4-38 | 18.4-38 | 18.4-38 |
| Weight 4WD | - | - | - | 6440 kg | 6440 kg | 6940 kg |
