Manufacturer
Models
Fahr MDL
Years
1958-64
Info

Fahr combine harvester production began in 1951 with the self-propelled model MD 1, which had a 30-horsepower gasoline engine and a cutting width of 210 cm. It was soon followed by more powerful models MD 2, 3, 4, and 5, equipped with a wider cutting table. In 1955, the MDL was introduced below these models. It initially had a cutting width of 150 cm and a gasoline-powered industrial engine based on the Porsche 356 engine. In 1958, the cutting width increased to 180 cm, and alongside the gasoline engine came a 34-horsepower MB diesel engine. In 1959, a 210 cm cutting table was also offered.

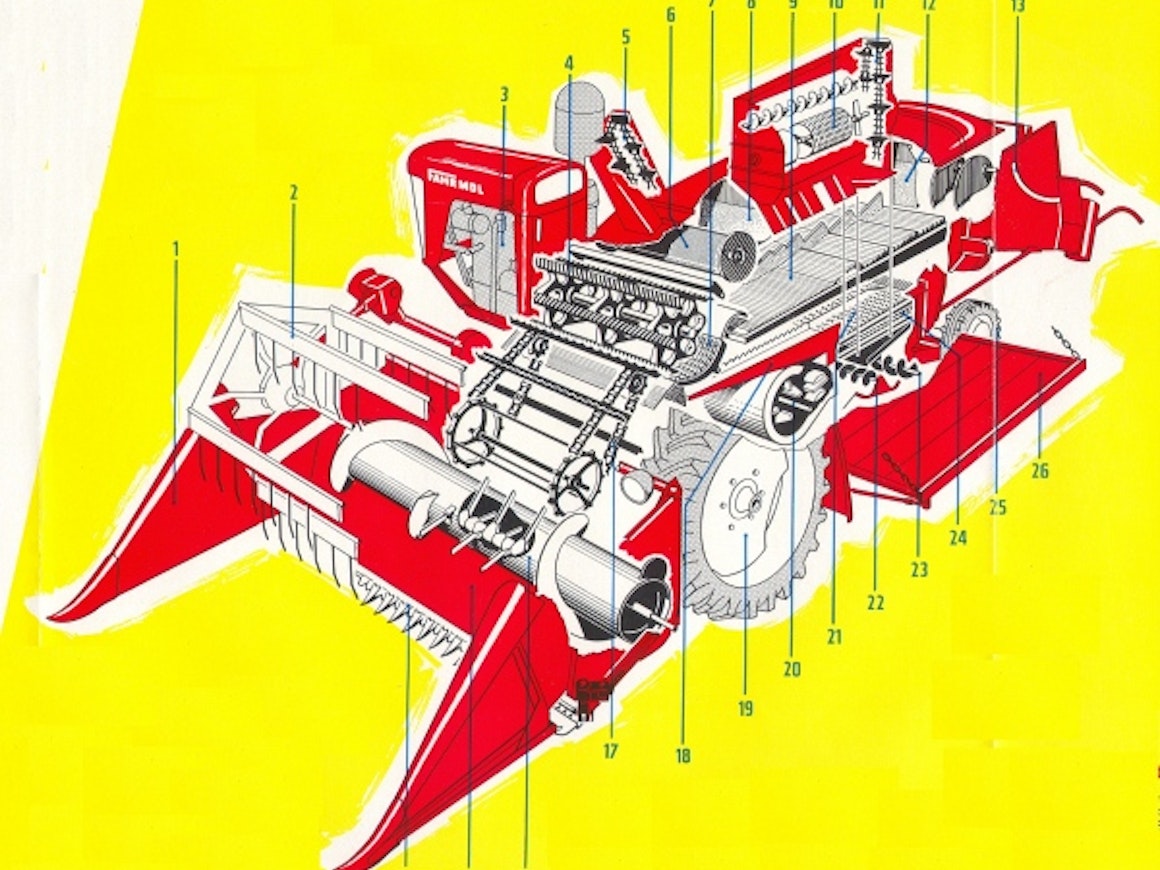

The engine was placed on the side of the cabin. Lifting the cutting table was done mechanically with a hand lever, and lowering with a foot pedal. With the 210 cm cutting table, the lifting was hydraulic. The reel speed could be switched between two options. The threshing drum speed could be adjusted between 1100 and 1550 rpm by adjusting the variator wheel. A total of over 8,000 Fahr MDL units were manufactured. A parallel model to the MDL, largely identical to it, was the pull-type combine MDT. Additionally, at the same time, large MDS, MDM, and MDG models were in production, but their production numbers remained low.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFahr MDL
Imported to FinlandYes
Years1958-64
EngineMB
Engine typeOM 636
Displacement1767 cm³
Cyl/turbo4
Power34 hp DIN
Alternative hpbens. 35 hp
Transmissionmech.
Gears2
Speed min-max.1,6-15,0 km/h
Cutting width180 cm
Cutting width, alternative150-210 cm
Reel diameter100 cm
Threshing cyl. diameter46 cm
Threshing cyl. width90 cm
Number of straw walkers1-part throw walker
Area of walkers205 dm²
Lenght of walkers205 cm
Straw shieve75 dm²
Bottom shieve75 dm²
Total screening area150
Overall lenght650 cm
Overall width250 cm
Height without cabin230 cm
Weight without cabin2390 kg
Grain tank7 (lisäv.) hl
Tyres front (Finland)8-32
Tyres front, alternative11.2-28
Tyres rear (Finland)4.50-16
Tyres rear, alternative7.00-12
Reel forward/backw. adjustmentmech.
Reel speed adjustmentbelt wheels
Threshing cyl. speed adjustmentmech. variator
Bottom sieveconvertible
Brakesmech. disc
