Siirry sivupalkkiinSiirry alaosaanDronningborg D-1900 – D-2600




In Dronningborg combines, only two threshing drum widths were used for a long time: 112 cm and 140 cm. The first model equipped with the wider version was the D-2500 introduced at the end of the 1960s, which was powered by a turbocharged six-cylinder Perkins engine. As a smaller alternative, the D-2200 was introduced in 1971, featuring a 6.1-liter Perkins engine without a turbocharger. Both models had a hydrostatic drive transmission, controlled by a hand lever. The diameters of the threshing drums were 50 cm in the smaller model and 57.5 cm in the larger one. There were also differences in the length of the threshing bars and the size of the sieves. Hydraulic unloading of the grain tank was standard.

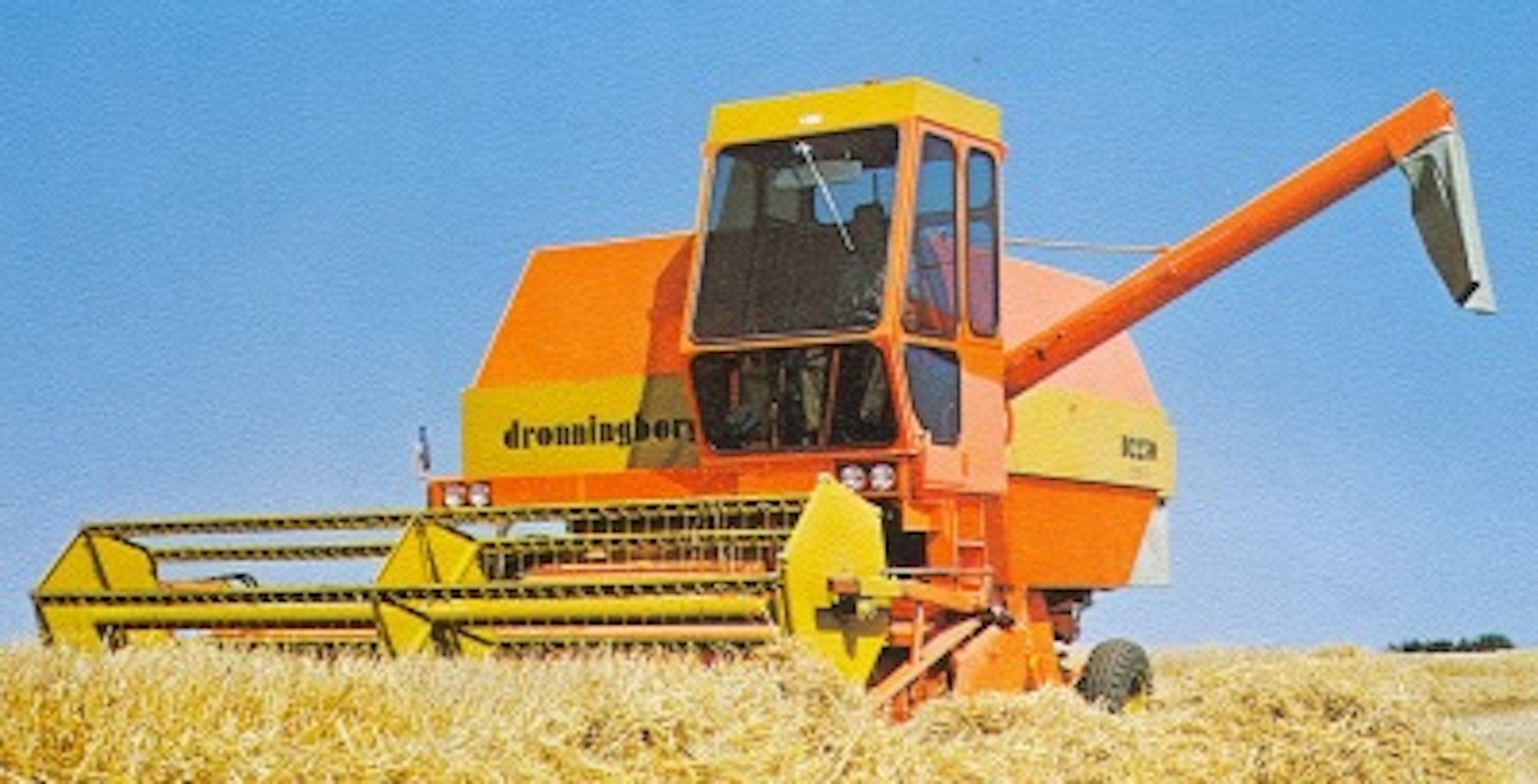

In the mid-1970s, the updated models D-2250 and D-2600 were introduced, the latter receiving a 206-horsepower V8 Perkins engine. The maximum cutting width was 677 cm. The grain tanks were larger than before, and a factory-installed cab was available. In 1977, the D-1900 was introduced at the lower end of the range, equipped with the 140-cm threshing mechanism, with a slightly smaller threshing drum diameter once again.
This is an automated translation. Please report any issues in the translation.
| Model | Dronningborg D-1900 | Dronningborg D-2250 | Dronningborg D-2500 | Dronningborg D-2600 |
|---|---|---|---|---|
| Imported to Finland | No | No | No | No |
| Years | 1977-80 | 1974-78 | 1969-74 | 1975-79 |
| Engine | Perkins | Perkins | Perkins | Perkins |
| Engine type | 6.354 | 6.372 | 6.354 | V8-540 |
| Displacement | 5797 cm³ | 6090 cm³ | 5797 cm³ | 8849 cm³ |
| Cyl/turbo | 6 | 6 | 6T | V8 |
| Power | 110 hp DIN | 130 SAE hp DIN | 135 hp DIN | 206 hp DIN |
| Fuel tank | 160 l | 200 l | 300 l | 300 l |
| Transmission | hydr. | hydr. | hydr. | hydr. |
| Gears | 2 | 2 | 2 | 2 |
| Speed min-max. | 0-20 km/h | 0-22 km/h | 0-22 km/h | 0-22 km/h |
| Cutting width | 433 cm | 494 cm | 555 cm | 555 cm |
| Cutting width, alternative | 372 cm | 433 cm | 433, 494, 677 cm | 494, 677 cm |
| Threshing cyl. diameter | 45 cm | 50 cm | 57.5 cm | 57.5 cm |
| Threshing cyl. width | 140 cm | 140 cm | 140 cm | 140 cm |
| Number of straw walkers | 5 | 5 | 5 | 5 |
| Area of walkers | 520 dm² | 530 dm² | 570 dm² | 570 dm² |
| Lenght of walkers | 370 cm | 380 cm | 406 cm | 406 cm |
| Straw shieve | 180 dm² | 200 dm² | 250 dm² | 250 dm² |
| Bottom shieve | 140 dm² | 140 dm² | 170 dm² | 170 dm² |
| Total screening area | 320 | 340 | 420 | 420 |
| Overall lenght | 880 cm | 940 cm | 1185 cm | 1185 cm |
| Overall width | 487 cm | 548 cm | 609 cm | 609 cm |
| Width without header | 306 cm | 300 cm | 347 cm | 347 cm |
| Height without cabin | 300 cm | 370 (310) cm | 372 (320) cm | 410 (340) cm |
| Weight without cabin | 6300 kg | 7000 kg | 7800 kg | 8000 kg |
| Grain tank | 34 hl | 34.5 hl | 36 hl | 42 hl |
| Unl. height | 315 cm | 310 cm | 300 cm | 300 cm |
| Tyres front (Finland) | 18.4-26 | 18.4-30 | 23.1-26 | 23.1-26 |
| Tyres rear (Finland) | 11.5-15 | 11.5-15 | 13.5-17 | 13.5-17 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | converter | converter | converter | converter |
| Bottom sieve | convertible | convertible | convertible | convertible |
| Brakes | mech. disc | mech. disc | mech. disc | mech. disc |
| Reverser | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper |
