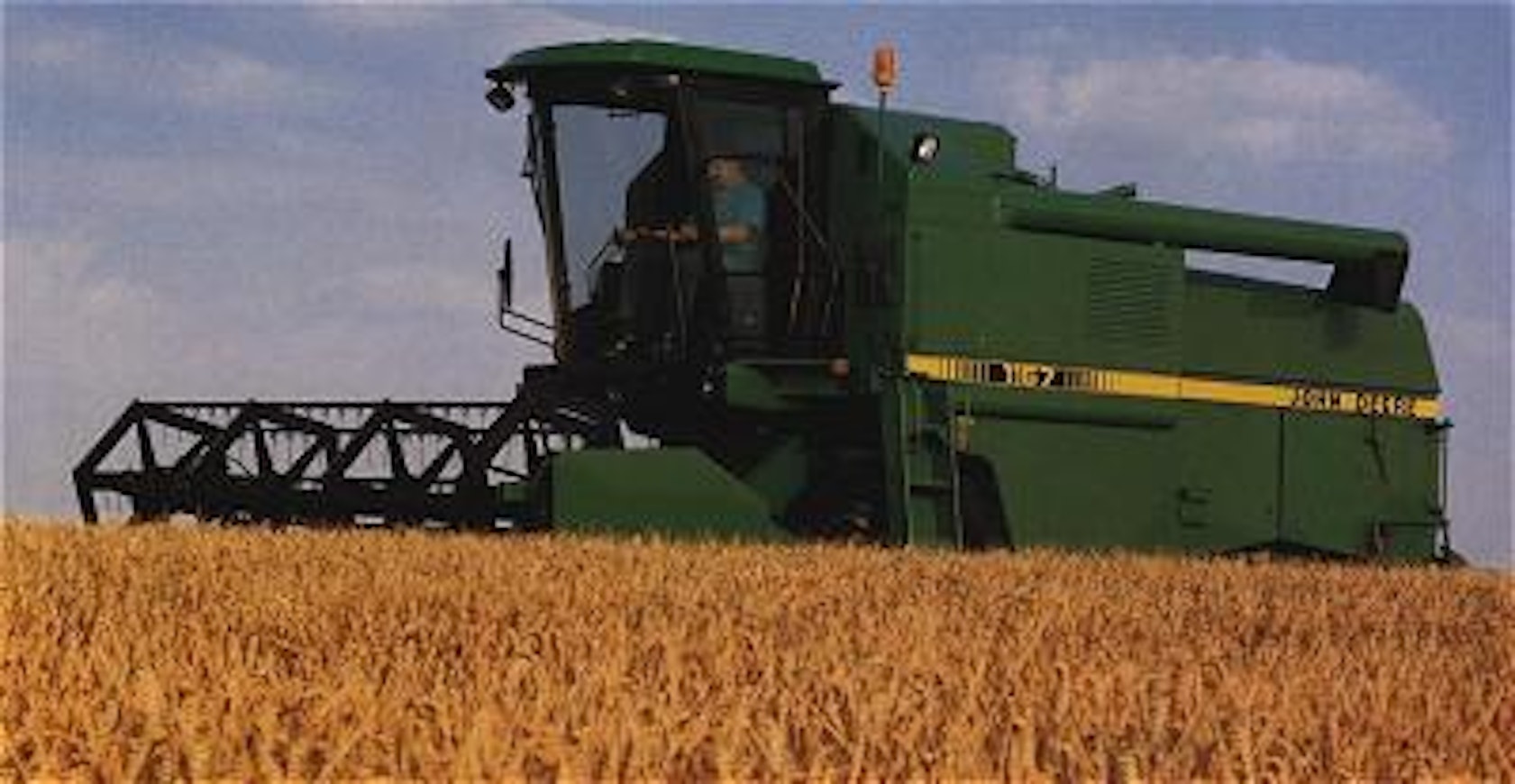

Large JD combines transitioned from the 1000 series to the 1100 series at the beginning of 1989. The most important innovations were the adjustable 800 series header and the hillside threshing system. In addition to the standard models, a tiltable hillside threshing version 1169H was also available.

This is an automated translation. Please report any issues in the translation.

John Deere 1166

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

John Deere 1177

John Deere 1177 Hydro/4

John Deere 1188 Hydro/4

John Deere 1166 – 1188

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	John Deere 1166	John Deere 1177	John Deere 1177 Hydro/4	John Deere 1188 Hydro/4
Imported to Finland	Yes	Yes	Yes	Yes
Years	1989-90	1989-90	1989-90	1988-90
Engine	JD	JD	JD	JD
Engine type	6539 TZ03	6539 TZ02	6466 AZ02	6466 AZ01
Displacement	5883 cm³	5883 cm³	7640 cm³	7640 cm³
Cyl/turbo	6 T	6 T	6 T	6 T
Power	125 hp DIN	150 hp DIN	195 hp DIN	195 hp DIN
Fuel tank	300 l	300 l	300 l	300 l
Transmission	mech.	mech.	hydr.	hydr.
Gears	4	4	4	4
Speed min-max.	1,1-20 km/h	1,1-20 km/h	0-20 km/h	0-20 km/h
Cutting width	425 cm	485 cm	485 cm	550 cm
Cutting width, alternative	365 cm	550 cm	550 cm	610 cm
Reel diameter	110 cm	110 cm	110 cm	110 cm
Header length	37-47 cm	37-47 cm	37-47 cm	37-47 cm
Threshing cyl. diameter	61 cm	61 cm	61 cm	61 cm
Threshing cyl. width	104 cm	130 cm	130 cm	156 cm
Number of straw walkers	4	5	5	6
Area of walkers	390 dm²	485 dm²	485 dm²	585 dm²
Lenght of walkers	375 cm	375 cm	375 cm	375 cm
Straw shieve	180 dm²	228 dm²	228 dm²	275 dm²
Bottom shieve	148 dm²	187 dm²	187 dm²	218 dm²
Total screening area	350	4455	4455	525
Overall lenght	908 cm	908 cm	908 cm	908 cm
Overall width	465 cm	525 cm	525 cm	600 cm
Width without header	294 cm	352 cm	352 cm	374 cm
Height with cabin	396 cm	396 cm	396 cm	396 cm
Weight with cabin	8850 kg	9500 kg	9500 kg	10300 kg
Weight without header	7750 kg	8400 kg	8400 kg	9200 kg
Grain tank	44 hl	60 hl	60 hl	60 hl
Unl. height	360 cm	418 cm	418 cm	418 cm
Tyres front (Finland)	23.1-26	28.1-26	28.1-26	28.1-26
Tyres front, alternative	28.1-26	30.5-32	30.5-32	30.5-32
Tyres rear (Finland)	13/65-18	13/65-18	13/65-18	13/65-18
Reel forward/backw. adjustment	hydr.	hydr.	hydr.	hydr.
Reel speed adjustment	elec.	elec.	elec.	elec.
Threshing cyl. speed adjustment	adj, in cabin	hydr.	hydr.	hydr.
Bottom sieve	adj.	adj.	adj.	adj.
Brakes	wet disc	wet disc	wet disc	wet disc
Reverser	x	x	x	x
Heating	x	x	x	x
Slope levelling	x	x	x	x
Type of cutting platform floating	gas damper	gas damper	gas damper	gas damper
Tyres rear, alternative	-	14.9-24	14.9-24	14.9-24
