Here is the translation to English:

The Brazilian CWS models were renewed for the 2010 season. The changes were listed as follows: a redesigned hydraulic system with four pumps, a new electrical system, a new control system with two steering cylinders, a new drive system for the sieves, a new drive system for the chopper, a new feeder housing with its conveyor, as well as a new appearance. The threshing gap adjustment was now done electronically, and the chaff spreader adjustment could also be done from the cab. A new 600 series header was available, and the larger models used the 600R series. The header featured a new feeder conveyor. The engines had a power boost feature for unloading. The noise level in the cab was reported as 79 dB.

Due to emission requirements, the CWS was withdrawn from the European market in 2012.

This is an automated translation. Please report any issues in the translation.

John Deere 1470 CWS

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

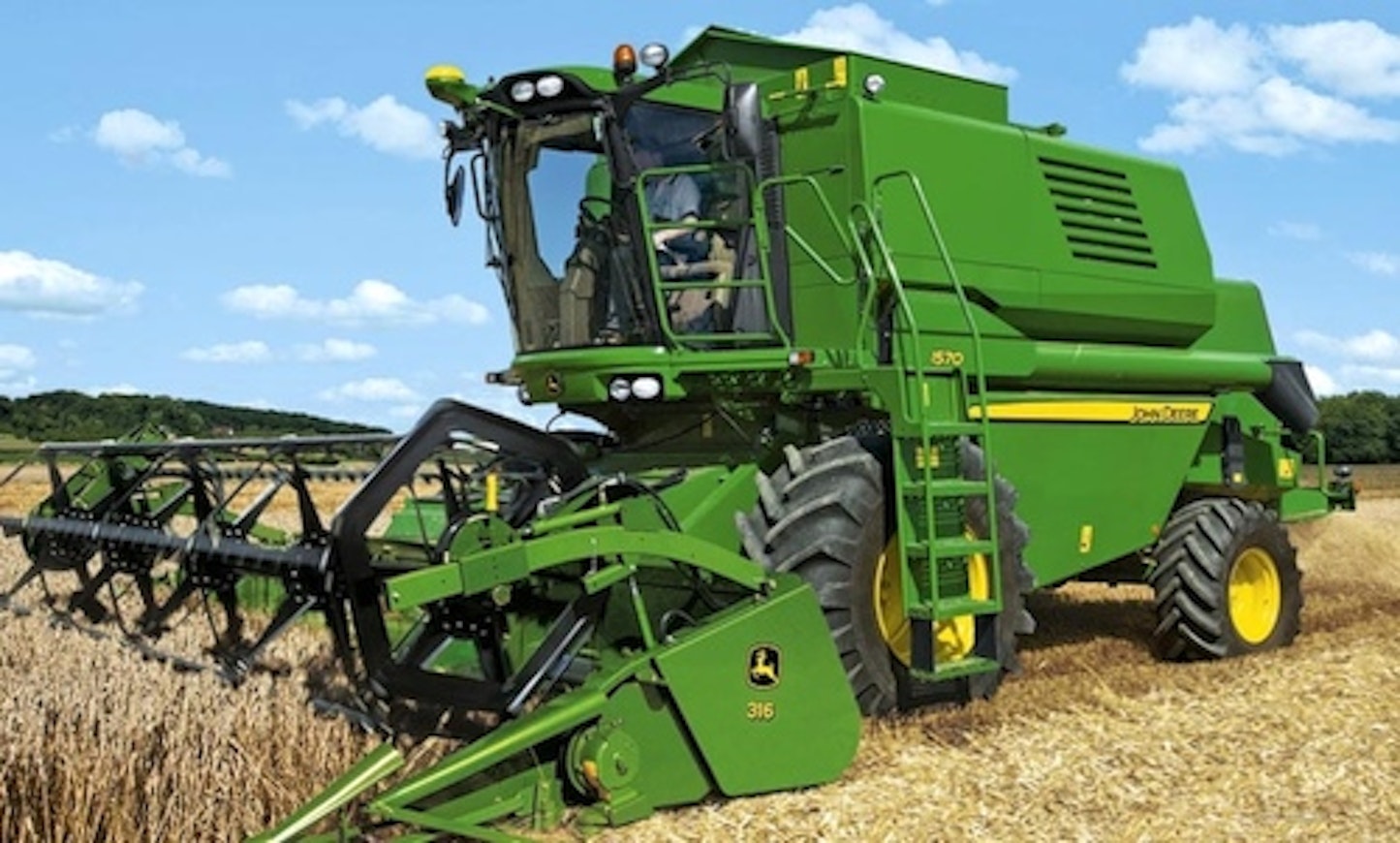

John Deere 1570 CWS

John Deere 1470 CWS – 1570 CWS

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	John Deere 1470 CWS	John Deere 1570 CWS
Imported to Finland	Yes	Yes
Years	2009-12	2009-12
Engine	JD	JD
Engine type	6068 H	6068 H
Displacement	6788 cm³	6788 cm³
Cyl/turbo	6 TI	6 TI
Power	-	-
Fuel tank	470 l	470 l
Transmission	hydr.	hydr.
Gears	3	3
Speed min-max.	0-25 km/h	0-25 km/h
Cutting width	460 cm	550 cm
Cutting width, alternative	425-550 cm	425-610 cm
Reel diameter	110 cm	110 cm
Header length	35-45 cm	55-72 cm
Threshing cyl. diameter	61 cm	61 cm
Threshing cyl. width	130 cm	156 cm
Number of straw walkers	5	6
Area of walkers	483 dm²	579 dm²
Lenght of walkers	375 cm	375 cm
Straw shieve	245 dm²	295 dm²
Bottom shieve	188 dm²	238 dm²
Total screening area	460	560
Overall lenght	790+pöytä cm	790+pöytä cm
Overall width	490 cm	580 cm
Width without header	365 cm	394 cm
Height with cabin	398 cm	400 cm
Weight with cabin	11780 kg	13270 kg
Weight without header	10500 kg	11500 kg
Grain tank	60 hl	68 hl
Unl. height	455 cm	455 cm
Tyres front (Finland)	800/65R32	800/65R32
Tyres front, alternative	900/55R32	900/55R32
Tyres rear (Finland)	540/65R24	540/65R24
Reel forward/backw. adjustment	hydr.	hydr.
Reel speed adjustment	elec.	elec.
Threshing cyl. speed adjustment	adj, in cabin	adj, in cabin
Bottom sieve	adj.	adj.
Brakes	wet disc	wet disc
Reverser	x	x
Air conditioning	x	x
Heating	x	x
Grain loss indicator	x	x
Floating cutting platform	x	x
Slope levelling	x	x
Type of cutting platform floating	autom.	autom.
