Challenger MT851-MT867

Manufacturer
Models
Challenger MT851, Challenger MT856, Challenger MT862, Challenger MT867
Years
2020-2023
Info

At the end of 2020, Challenger announced new MT800 series tractors, which had hardly anything in common with their predecessors. Instead, they were almost identical to Fendt's earlier introduced 1100 Vario MT series. Challenger had, of course, had a significant role in developing both model lines. The engines were MAN's 15.2- and 16.2-liter models, which had considerably higher maximum torque than previous Agco Powers, but the torque increase remained between 10 and 16%. The maximum power was achieved already at 400 rpm. The Tier 4F emission standard engines featured a hydraulically driven cooling fan, variable geometry turbocharger, urea injection, cooled exhaust gas recirculation, oxidation catalyst, and particulate filter.

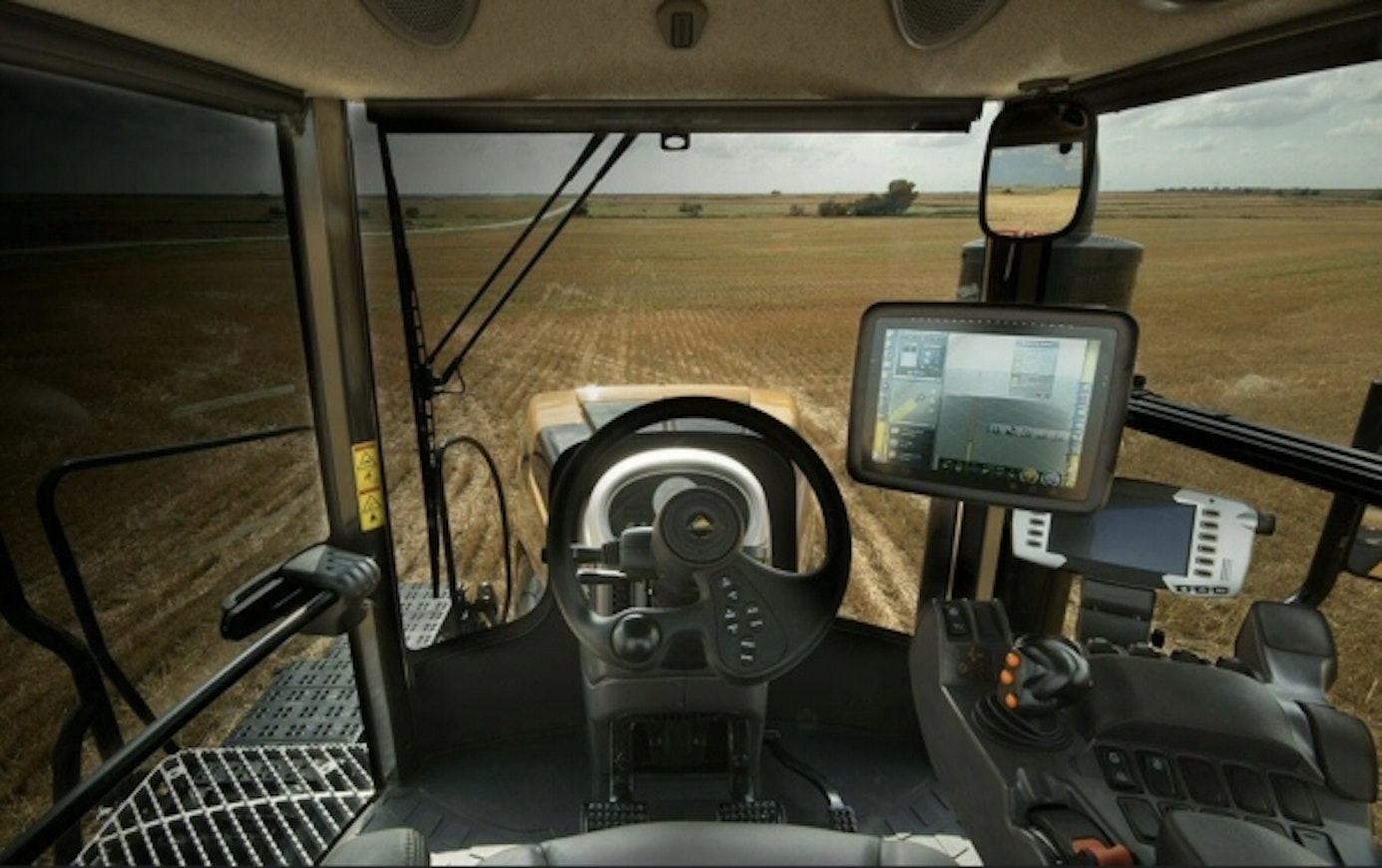

Fendt's stepless TA400T transmission had two hydraulic pumps, one of which could be disengaged to save fuel when the load was sufficiently low. The hydraulic variable displacement pump output was either 220 or, with two pumps, 439 liters per minute. The center rollers in the tracked chassis were hydraulically suspended. The hitch hook turned 28 degrees to each side during turns, and the lift arms moved 12 degrees. The cab was the same Fendt cab as in the MT700, but the controls had minor differences from Fendt. The AccuTerminal size was 10.4 inches.

In Europe, the focus was on selling the same tractors under the Fendt name, and the same conclusion was reached in the USA in 2023. This marked the end of the Challenger brand.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelChallenger MT851Challenger MT856Challenger MT862Challenger MT867
Imported to FinlandNoNoNoNo
Years2020-232020-232020-232020-23
Engine modelMAN D3876MAN D3876MAN D3876MAN D4276
Cyl/Turbo/Intercooler6TI6TI6TI6TI
Displacement15260 cm³15260 cm³15260 cm³16200 cm³
Bore x stroke138×170 mm138×170 mm138×170 mm142×170 mm
Max power----
Torque----
Gearssteplesssteplesssteplessstepless
Synchronized gearssteplesssteplesssteplessstepless
Powershift gearssteplesssteplesssteplessstepless
Reverserhydr.hydr.hydr.hydr.
Max. speed 40 km/h40 km/h40 km/h40 km/h
Hydr. flow l/min220 (439) l/min220 (439) l/min220 (439) l/min220 (439) l/min
Hydraulic pressure200 bar200 bar200 bar200 bar
Lift controlselec.elec.elec.elec.
Lift capacity6800 (9072) kg6800 (9072) kg6800 (9072) kg6800 (9072) kg
PTO speeds1000/13001000/13001000/13001000/1300
Brakeswet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.
Rear tyres 4WD699 mm699 mm699 mm699 mm
Weight 4WD19051 kg19051 kg19051 kg19051 kg
Height with cab375 cm375 cm375 cm375 cm
Length (2WD/4WD)676 cm676 cm676 cm676 cm
Wheelbase (2WD/4WD)300 cm300 cm300 cm300 cm
Fuel tank1320+AB135 l1320+AB135 l1320+AB135 l1320+AB135 l
Solid cabxxxx
Air suspension seatxxxx
Air conditioningxxxx
Trip computerxxxx
Creeper gearxxxx
