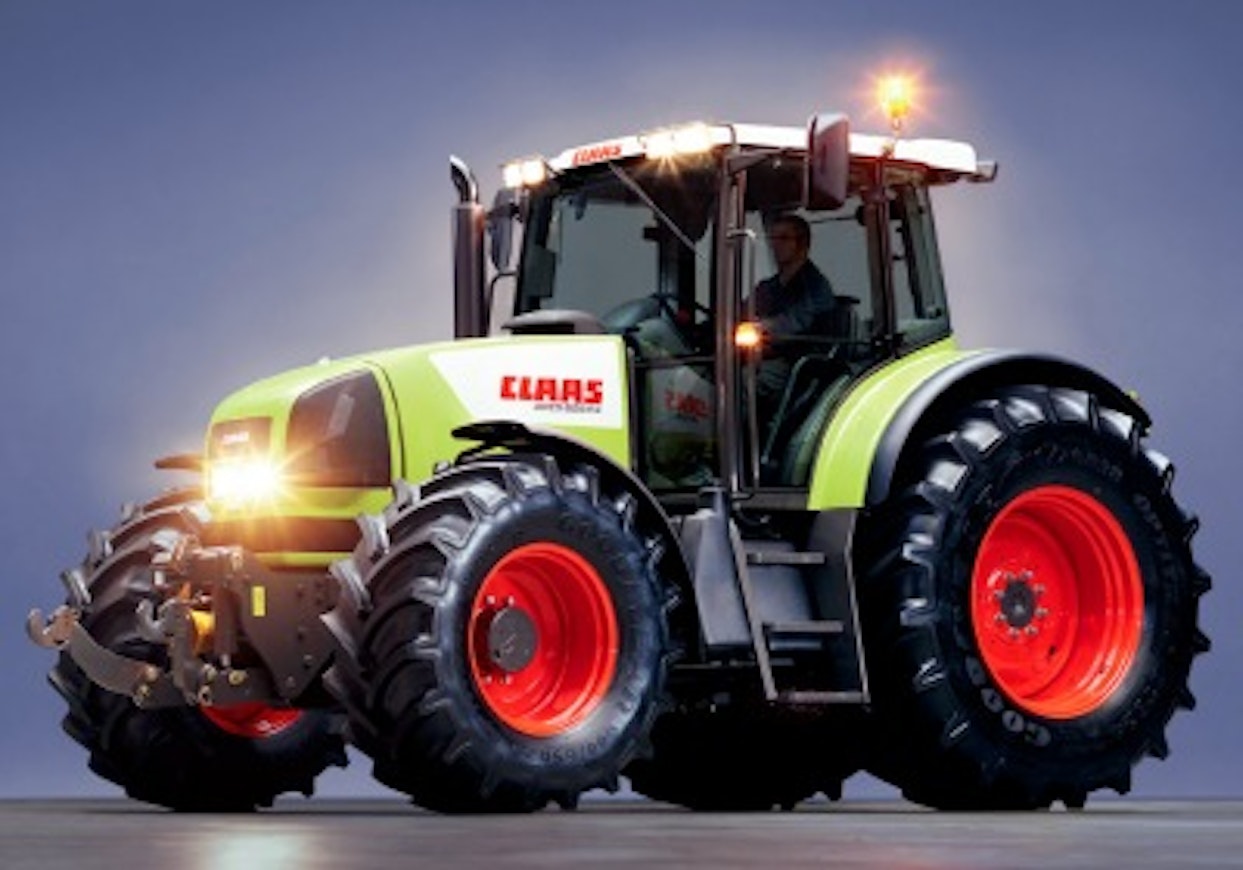

The Ares 800 series models updated in 2002 changed to Claas models with almost no modifications. There were slight changes in the torque figures of the engines. The Powershift transmission was no longer available for the 800 series. There were two equipment levels: Comfort and Premium, the latter including, among other things, quick-shift automation, front axle suspension, a 4-valve cylinder block, an onboard computer, and millimeter tires.

The Ares 800 series featured familiar technology such as Deere's 6.8-liter engines, Gima's 32+32 transmission, Carraro front axle, 110 l/min load-sensing hydraulics, and cab suspension.

This is an automated translation. Please report any issues in the translation.

Claas Ares 816

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Claas Ares 826

Claas Ares 836

Claas Ares 816 RZ – 836 RZ

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Claas Ares 816	Claas Ares 826	Claas Ares 836
Manufacturer name	Claas	Claas	Claas
Imported to Finland	No	No	No
Years	2002-07	2002-07	2002-07
Engine model	DPS 6068 TRT	DPS 6068 HRT	DPS 6068 HRT
Cyl/Turbo/Intercooler	6T	6TI	6TI
Displacement	6788 cm³	6788 cm³	6788 cm³
Bore x stroke	106,5×127 mm	106,5×127 mm	106,5×127 mm
Rated power	156/2200 hp DIN/rpm	175/2200 hp DIN/rpm	194/2200 hp DIN/rpm
Max power	164/2000 hp DIN/rpm	181/2000 hp DIN/rpm	205/2000 hp DIN/rpm
Torque	-	-	-
Gears	32+32	32+32	32+32
Synchronized gears	32+32	32+32	32+32
Powershift gears	4-step	4-step	4-step
Reverser	hydr.	hydr.	hydr.
Max. speed	40 km/h	40 km/h	40 km/h
Hydr. flow l/min	110 l/min	110 l/min	110 l/min
Hydraulic pressure	200 bar	200 bar	200 bar
Lift controls	elec.	elec.	elec.
Lift capacity	7690 kg	7690 kg	7690 kg
PTO speeds	540/750/1000	540/750/1000	540/750/1000
Brakes	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.
Turning circle m 4WD	9.8	9.8	9.8
Front tyres 4WD	16.9R28	16.9R28	16.9R30
Rear tyres 4WD	20.8R38	20.8R38	20.8R42
Weight 4WD	6555 kg	6555 kg	6750 kg
Height with cab	303 cm	303 cm	309 cm
Length (2WD/4WD)	454 cm	454 cm	462 cm
Wheelbase (2WD/4WD)	288 cm	288 cm	288 cm
Fuel tank	275 (345) l	275 (345) l	300 (370) l
Cab noise level	73 dB	73 dB	72 dB
Solid cab	x	x	x
Diff. lock	disc lock	disc lock	disc lock
Autom. differential locks	x	x	x
Air suspension seat	x	x	x
Air conditioning	x	x	x
Trip computer	-/x	-/x	-/x
Creeper gear	opt.	opt.	opt.
