Siirry sivupalkkiinSiirry alaosaanEbro 135-188

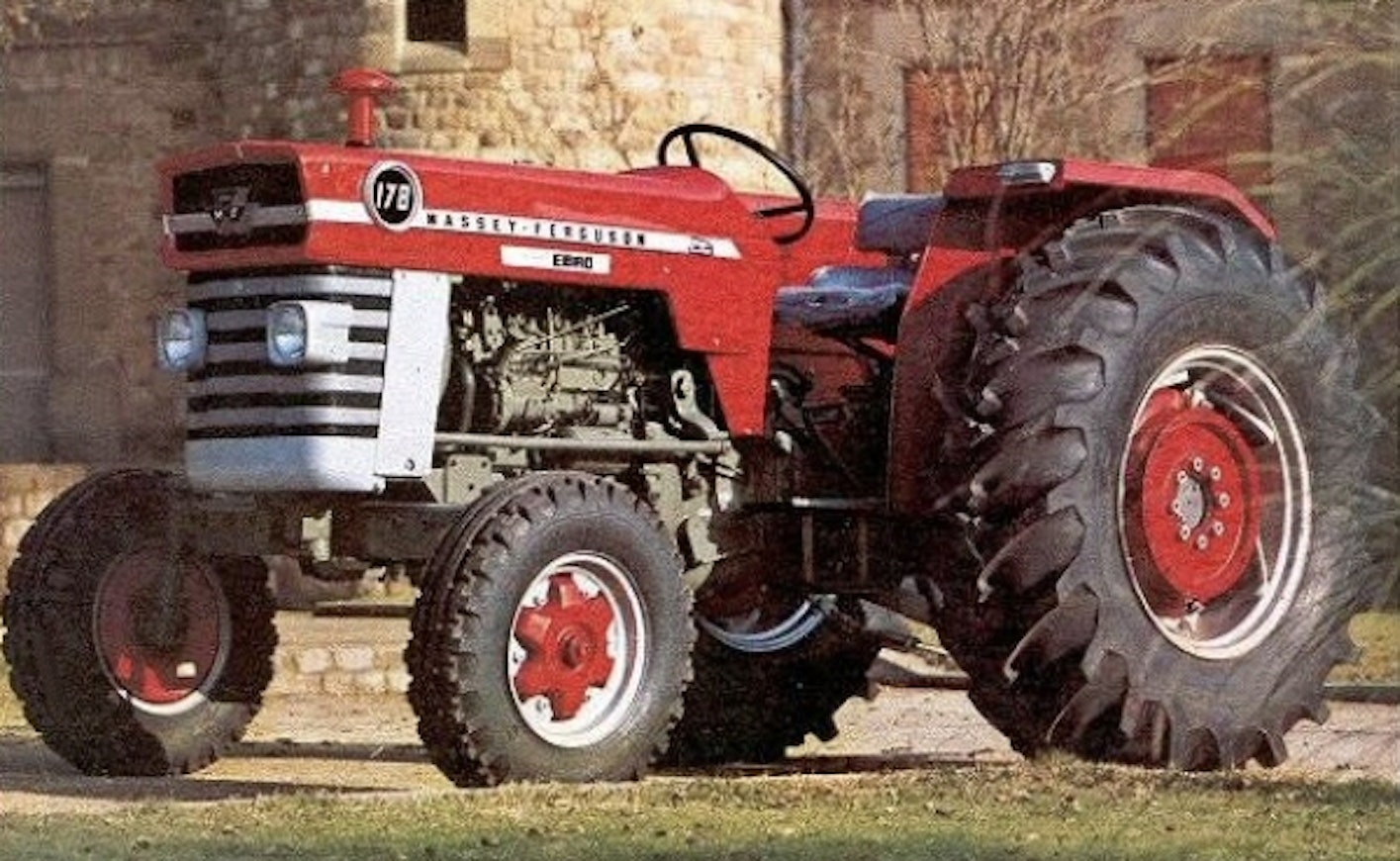

In 1971 the Ebro range was joined by models from its main shareholder, Massey Ferguson, which were built in Madrid. In fact, the 135 had already been assembled for Massey Ferguson since 1967. There were a few differences compared with the versions made in other countries. The 135 always had a 6+2 gearbox (or a 12+4 Multi-Power). The 147 was essentially the same tractor with an 8+2 gearbox and a couple of extra horsepower. The 157 was a slightly stripped-down version of the 165. The Spanish 165, in turn, was a 69-hp tractor equipped with the 3.86-litre A4.236 engine, but it featured dry disc brakes. Early 178s were apparently imported from England. A bit later, the 178 became largely equivalent to the international 185 model, but still retained dry disc brakes. The 188 had Multi-Power and oil-bath brakes. At least the 135, 165, 178 and 188 were also available in four-wheel-drive. This range remained in production into the early 1980s.
A tractor-crawler version based on the 178 was also produced, called the Ebro TC-75.
From 1974 to 1979 a six-cylinder, 98-hp MF 1195 Ebro was built, notable for its angular styling.
Starting in 1978 Motor Ibérica manufactured the models 245, 275, 285 and 297 in Spain, all sold under the Massey Ferguson name. The 1980s models included the 247, 267, 277 and 290. Massey Ferguson production in Spain ended in 1987, by which time approximately 70,000 units had been built.
Massey Ferguson combines were also part of Ebro’s production program. These included, among others, the 227 based on the 187, as well as the 427 and 527.
This is an automated translation. Please report any issues in the translation.
| Model | Ebro 135 | Ebro 147 | Ebro 157 | Ebro 165 | Ebro 178 | Ebro 178 | Ebro 188 |
|---|---|---|---|---|---|---|---|
| Manufacturer name | Ebro | Ebro | Ebro | Ebro | Ebro | Ebro | Ebro |
| Imported to Finland | No | No | No | No | No | No | No |
| Years | 1971-79 | 1971-81 | 1973-76 | 1972-76 | 1972-? | ?-78 | 1973-78 |
| Engine model | AD 3.152 | AD 3.152S | AD4.203 | A4.236 | A4.248 | A4.248 | A4.248 |
| Cyl/Turbo/Intercooler | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Displacement | 2500 cm³ | 2500 cm³ | 3330 cm³ | 3860 cm³ | 4065 cm³ | 4065 cm³ | 4065 cm³ |
| Bore x stroke | 91,44×127 mm | 91,44×127 mm | 91,44×127 mm | 98,4×127 mm | 100,96×127 mm | 100,96×127 mm | 100,96×127 mm |
| Rated power | 45,5/2250 hp DIN/rpm | 47/2250 hp DIN/rpm | 62/2250 hp DIN/rpm | 69/2200 hp DIN/rpm | 72,5/2000 hp DIN/rpm | 75/2200 hp DIN/rpm | 75/2000 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - |
| Gears | 6+2/12+4 | 8+2 | 8+2 | 8+2 | 6+2/12+4 | 8+2 | 12+4 |
| Powershift gears | -/hydr. | - | - | - | -/hydr. | - | hydr. |
| Speeds in km/h | 2,4-26,6 | - | - | - | 2,2-24,0 | 2,2-24,0 | 2,2-30,6 |
| Hydr. flow l/min | 16 l/min | - | 14.1 l/min | - | 14.1 l/min | 30.7 l/min | 42.7 l/min |
| Hydraulic pressure | 175 bar | - | 175 bar | - | 207 bar | - | 170 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1290 kg | - | 1630 kg | - | 1757 kg | 1770 kg | 1770 kg |
| PTO speeds | 540/ajo | 540/ajo | 540/ajo | 540/ajo | 540/ajo | 540/ajo | 540 |
| Brakes | drum brakes | drum brakes | dry disc | dry disc | dry disc | dry disc | wet disc |
| Steering | mech. | mech. | mech. | mech. | power | power | power |
| Turning circle m 2WD | 5.8 | - | 6.2 | - | 7.1 | 7.1 | 8.1 |
| Front tyres 2WD | 4.00-15 | 6.00-16 | 6.50-16 | 7.00-16 | 6.00-19 | 7.50-16 | 7.50-16 |
| Rear tyres 2WD | 11.2-28 | 13.6-28 | 13.6-36 | 16.9-30 | 13.6-36 | 18.4-30 | 18.4-30 |
| Weight 2WD | (1450) kg | (1550) kg | (2200) kg | (2200) kg | (2948) kg | (2700) kg | (2750) kg |
| Height with cab | (137) cm | (140) cm | (162) cm | (168) cm | (165) cm | (170) cm | (170) cm |
| Length (2WD/4WD) | 300 cm | 300 cm | 332 cm | 340 cm | 348 cm | 345 cm | 369 cm |
| Wheelbase (2WD/4WD) | 183 cm | 183 cm | 198 cm | 207 cm | 213 cm | 213 cm | 228 cm |
| Fuel tank | 38.6 l | 38.6 l | 75 l | 83 l | 82 l | 86 l | 86 l |
