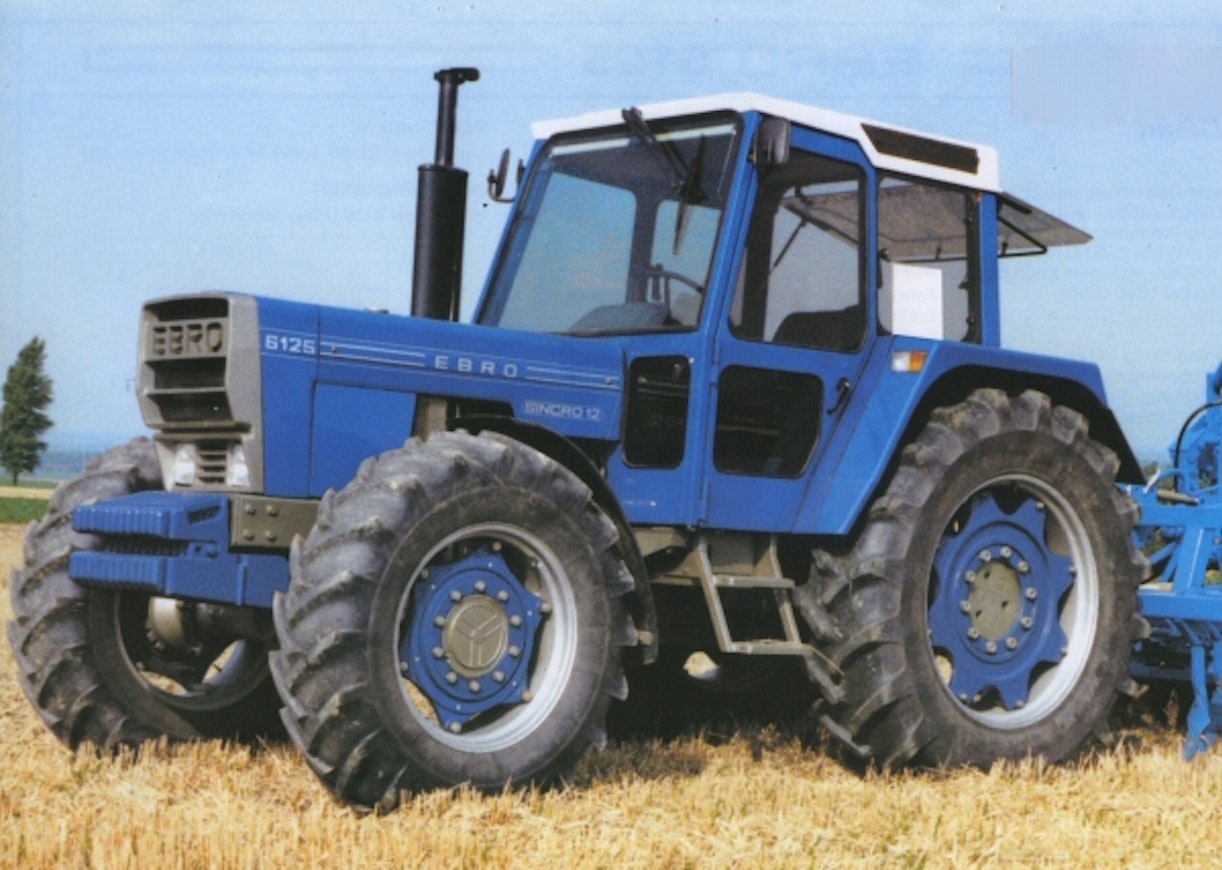

Siirry sivupalkkiinSiirry alaosaanEbro 6080-6125

The larger models of the Ebro 6000 series were redesigned in 1981. The exterior was new, as was the cab, and overall comfort of use was improved. The 6100 now had more power—115 HP was reported in Spain; the table shows the figures given for the German market. The 6090’s wheelbase was lengthened. The engagement of four‐wheel drive and differential lock was hydraulic. The front axle was a Carraro unit with a central pivot. The 6080 remained in the lineup only until 1983. In 1986 two power‐limited models were introduced: the 6095 and the 6115.
During the 6000‐series era, Ebro’s sales in Central Europe reached their peak. For example, sales began in Germany in 1984, and about half of the annual output of 32,000 tractors was exported. In 1986 Ebro’s tractor production passed into Kubota’s ownership, and the smaller models were replaced by Kubotas. In 1988 the 8070, 8100, 8110, and 8135 were introduced; compared with the 6000 series, they featured upgraded hydraulics and improved drivetrains. The last Ebro tractors were the H 100, H 115, and H 135 built between 1991 and 1994; instead of Perkins engines, they used 6.0‐liter units adapted from Nissan’s Spanish‐market delivery‐van engines. In total, just over 300,000 Ebro tractors were manufactured.
This is an automated translation. Please report any issues in the translation.
| Model | Ebro 6090 | Ebro 6095/6096 | Ebro 6100 | Ebro 6115 | Ebro 6125 |
|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No |
| Years | 1981-88 | 1986-88 | 1981-88 | 1986-88 | 1981-88 |
| Engine model | T4.236 | A6.372 | A6.372 | AT6.354.3 | AT6.354.3 |
| Cyl/Turbo/Intercooler | 4T | 6 | 6 | 6T | 6T |
| Displacement | 3860 cm³ | 6090 cm³ | 6090 cm³ | 5800 cm³ | 5800 cm³ |
| Bore x stroke | 98,4×127 mm | 100,96×127 mm | 100,96×127 mm | 98,4×127 mm | 98,4×127 mm |
| Rated power | 84/2200 hp DIN/rpm | 96/2000 hp DIN/rpm | 109/2200 hp DIN/rpm | 116/2200 hp DIN/rpm | 130/2200 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Synchronized gears | 12 | 12 | 12 | 12 | 12 |
| Speeds in km/h | 0,8-31,4 | 0,8-29,2 | 0,8-32,2 | 0,8-32,2 | 0,8-32,2 |
| Max. speed | 23,5/31,4 km/h | - | - | 30,5/37,3 km/h | 30,5/37,3 km/h |
| Hydr. flow l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min |
| Hydraulic pressure | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 4300 kg | 4300 kg | 6100 kg | 6100 kg | 6100 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.98 | 10.8 | 11.2 | 11.2 | 11.2 |
| Front tyres 4WD | 13.6-28 | 13.6-28 | 13.6-28 | 14.9-28 | 14.9-28 |
| Rear tyres 4WD | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 |
| Weight 4WD | 3914 kg | 4140 kg | 4270 kg | 4270 kg | 4550 kg |
| Height with cab | 271 cm | 271 cm | 271 cm | 271 cm | 271 cm |
| Length (2WD/4WD) | 400 cm | 420 cm | 420 cm | 420 cm | 420 cm |
| Wheelbase (2WD/4WD) | 242 cm | 259 cm | 252 cm | 259 cm | 259 cm |
| Fuel tank | 125 l | 125 l | 165 l | 165 l | 165 l |
