Agrifull 345-80

Manufacturer
Models
Agrifull 345, Agrifull 60, Agrifull 70, Agrifull 80
Years
1976-77
Info

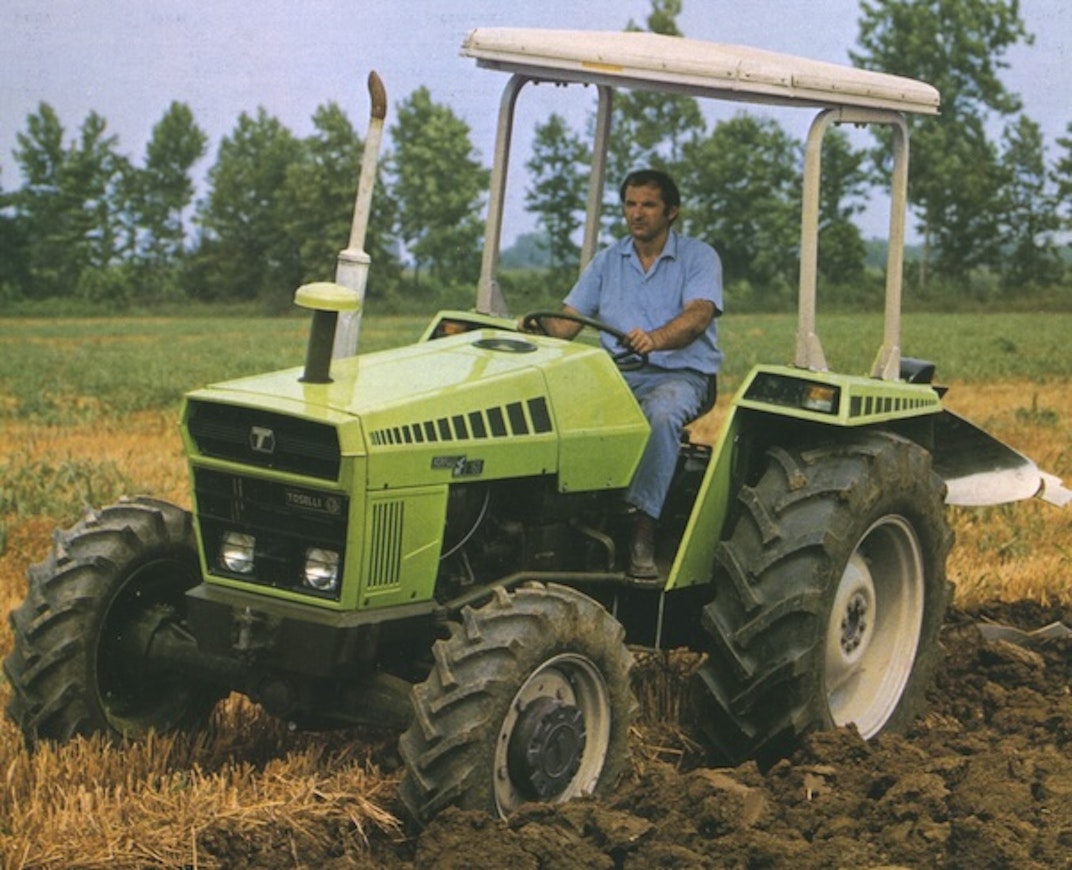

Toselli, which had manufactured small crawler tractors, introduced its first wheeled tractors in the early 1970s. These were narrow models designed for viticulture, with 30 and 45 horsepower. Toselli merged with two other agricultural machinery manufacturers to form Agrifull and expanded its range to include basic tractors. The 345 model introduced in 1976 was based on the earlier narrow model, but the 60, 70, and 80 models were new. All were equipped with VM diesel engines. The larger models featured synchronized 8+2 or 12+4 transmissions. Power take-off (PTO) was standard equipment on all. The tractors were fitted with a rollover protection structure with a roof. All models were available with either 2-wheel or 4-wheel drive. The technology was very basic: the steering was non-assisted, the brakes were ineffective, and the hydraulic performance was modest.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelAgrifull 345Agrifull 60Agrifull 70Agrifull 80
Manufacturer nameAgrifullAgrifullAgrifullAgrifull
Imported to FinlandNoNoNoNo
Years1976-771976-771976-771976-77
Engine modelVM 398 SVVM 1053 SUVM 104 SUVM 1054 SU
Cyl/Turbo/Intercooler3344
Displacement2149 cm³2856 cm³3456 cm³3808 cm³
Bore x stroke98×95 mm105×110 mm100×110 mm105×110 mm
Rated power48/2600 hp DIN/rpm56/2300 hp DIN/rpm68/2300 hp DIN/rpm77/2300 hp DIN/rpm
Gears6+28+48+412+4
Speeds in km/h2,3-23,22,1-23,02,2-24,91,6-23,1
Lift controlsmech.mech.mech.mech.
PTO speeds540/ajo540/ajo540/ajo540/ajo (1000)
Steeringmech.mech.mech.mech.
Turning circle m 2WD6.6---
Turning circle m 4WD7---
Front tyres 2WD5.50-166.00-166.50-167.50-16
Front tyres 4WD7.50-189.50-209.50-2411.2-24
Rear tyres 2WD12.4-2813.6-2814.9-3016.9-30
Rear tyres 4WD12.4-2813.6-2814.9-3016.9-30
Weight 2WD1600 kg2010 kg2400 kg3030 kg
Weight 4WD1850 kg2280 kg2630 kg3350 kg
Height with cab210 cm236 cm239 cm260 cm
Length (2WD/4WD)304 cm352 cm372 cm400 cm
Wheelbase (2WD/4WD)196 cm214 cm230 cm250 cm
Creeper gearopt.--opt.
Torque----
Synchronized gears-8+48+412+4
Fuel tank-80 l80 l140 l
