Ford 2600 – 4600

78Ford4600

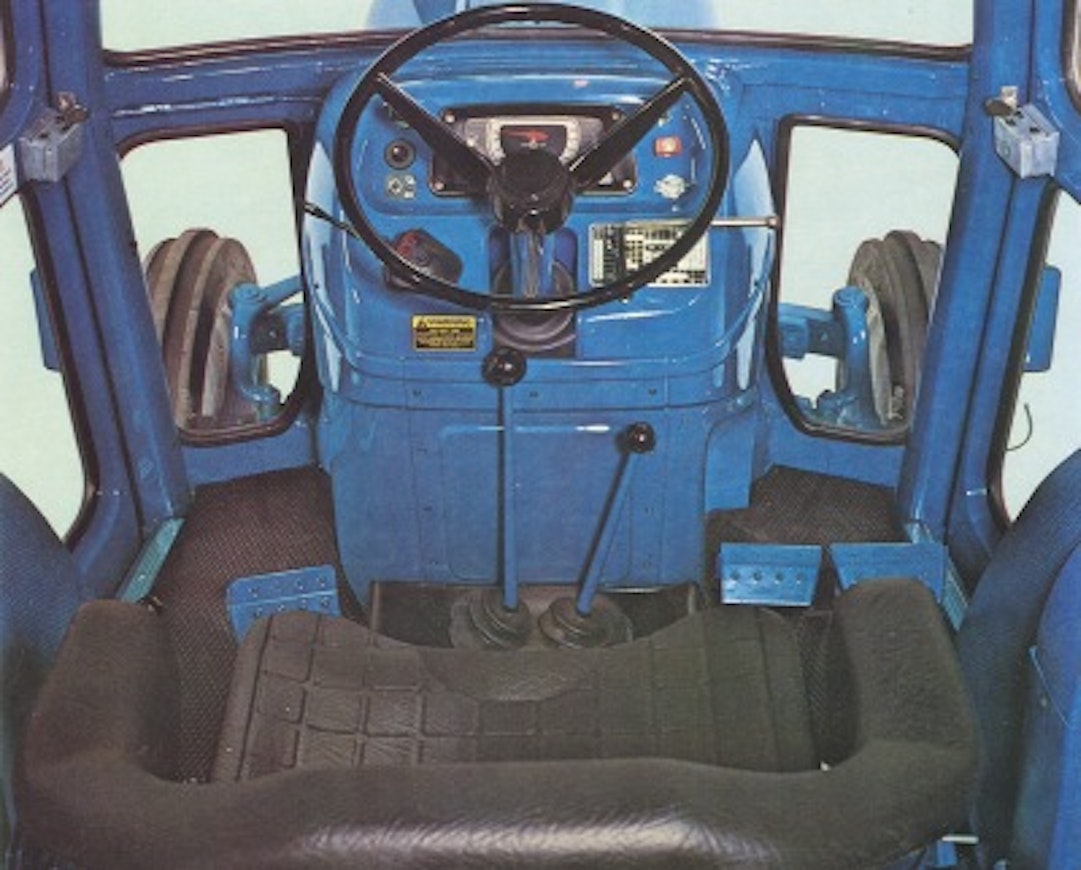

79Ford4600ohjaamo
78Ford4600
79Ford4600ohjaamo
Manufacturer
Models
Ford 2600, Ford 2600, Ford 3600, Ford 3600, Ford 4100, Ford 4600, Ford 4600
Years
1975-81
Info

At the end of 1975, the 1000 series was replaced by the 600 series models. A year later, a new cab was completed, representing the best of its time. The technology in the 600 series remained largely unchanged. Power steering was now also boosted in the smaller models, except for the 2600. Electricity was now produced by an alternator. The hydraulics were more efficient than before. Up to the 3600 model, the hydraulic pump was powered by a gear at the rear end of the camshaft, but it was now a gear-type pump. Additionally, in these models, the rear axle was implemented without reduction gears; the brakes were drum brakes, and the power take-off engagement was based on a dual clutch instead of the hydraulic multi-plate clutch used in the larger models.

In 1978, the lineup was complemented by the 54-horsepower 4100, which also had a 3.0-liter engine like the earlier 3055. Otherwise, the technology mostly corresponded to that of the 4600. To reduce the price, the 4100 was sold in Finland with the Syvänen cab. At the same time, four-wheel-drive models of the 3600 and 4600 were introduced, featuring a front axle manufactured by Carraro. The lifting capacity of the 4600 was increased in 1979.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFord 2600Ford 2600Ford 3600Ford 3600Ford 4100Ford 4600Ford 4600
Manufacturer nameFordFordFordFordFordFordFord
Imported to FinlandYesYesYesYesYesYesYes
Years1975-761976-811975-761976-811976-811975-761976-81
Cyl/Turbo/Intercooler3333333
Displacement2590 cm³2590 cm³2868 cm³2868 cm³2977 cm³3294 cm³3294 cm³
Bore x stroke107×97 mm107×97 mm107×107 mm107×107 mm107×112 mm112×112 mm112×112 mm
Rated power36/2000 hp DIN/rpm36/2000 hp DIN/rpm47/2000 hp DIN/rpm47/2000 hp DIN/rpm54/2200 hp DIN/rpm61/2200 hp DIN/rpm61/2200 hp DIN/rpm
Torque-------
Gears8+28+28+28+28+28+28+2
Speeds in km/h2,6-28,02,7-29,42,6-28,02,8-30,32,6-27,22,4-27,02,6-27,2
Hydr. flow l/min31.4 l/min31.4 l/min31.4 l/min31.4 l/min32 l/min32 l/min32 l/min
Hydraulic pressure176 bar176 bar176 bar176 bar176 bar176 bar176 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech.
Lift capacity1270 kg1270 kg1270 kg1270 kg1990 kg1450 kg1450/1990 kg
PTO speeds540540540540540540540
Brakesdrum brakesdrum brakesdrum brakesdrum brakeswet discwet discwet disc
Steeringmech.mech.powerpowerpowerpowerpower
Turning circle m 2WD6.16.16.16.16.877
Front tyres 2WD5,50-166,00-167,50-167,50-167,50-167,50-167,50-16
Rear tyres 2WD12,4-2813,6-2812,4-3212,4-3212,4-3612,4-3613,6-36
Weight 2WD2020 kg2400 kg2050 kg2430 kg2650 kg2480 kg2780 kg
Height with cab234 cm253 cm234 cm253 cm263/250 cm254 cm267 cm
Length (2WD/4WD)322 cm322 cm322 cm322 cm344 cm352 cm352/356 cm
Wheelbase (2WD/4WD)193 cm193 cm195 cm195 cm197 cm216 cm215/209 cm
Fuel tank49 l57 l49 l57 l57 l60 l57 l
Cab noise level85 dB82 dB85 dB85 dB85 dB91 dB85 dB
Solid cabxxxxxxx
Engine model--175DF175DF183DF201DF201DF
Turning circle m 4WD------10
Front tyres 4WD------11.2-24
Rear tyres 4WD------13.6-36
Weight 4WD------3100 kg
Diff. lock------friction lock
