Siirry sivupalkkiinSiirry alaosaanFordson Major E27N

The renewed Fordson Major E27N, also known as the "Mörkö-Majori" ("Monster Major"), was introduced in 1945. Its engine was the same 30-year-old side-valve engine as in its predecessor. The petrol version produced 28.5 hp, and the gasoline version 35 hp. Except for the gearbox, the powertrain was renewed. New features included a single-plate clutch, a gear-type reduction hub, and steering brakes. The E27N was painted dark blue with orange rims. Optional equipment included a hydraulic lifting device, headlights, and electric start.

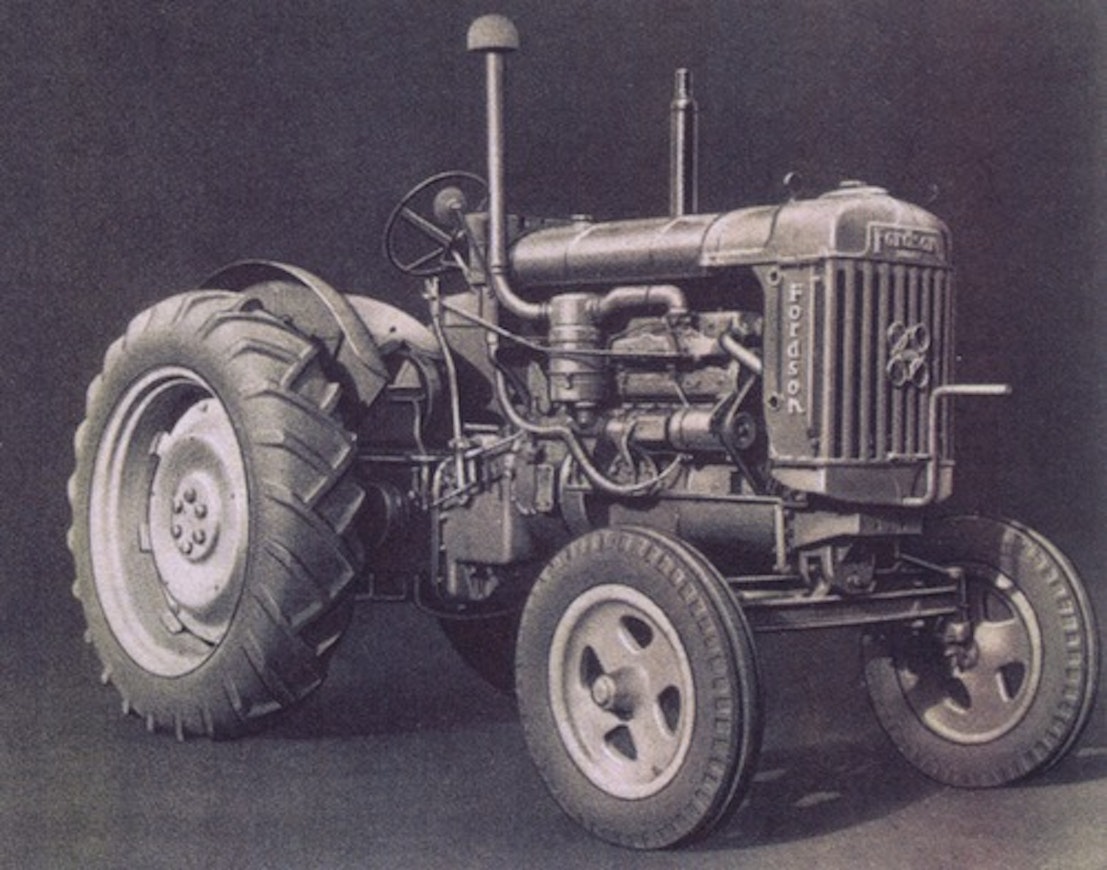

From 1947 onwards, a diesel model equipped with the Perkins P6, producing 45 hp, became available. The diesel model could be identified by the badge on the grille, as seen on the tractor in the picture. The diesel model had much more tractive power than the petrol version, but its price was also nearly twice as high.
This is an automated translation. Please report any issues in the translation.
| Model | Fordson Major E27N | Fordson Major E27N Diesel |
|---|---|---|
| Manufacturer name | Fordson Major | Fordson Major |
| Imported to Finland | Yes | Yes |
| Years | 1945-51 | 1947-51 |
| Cyl/Turbo/Intercooler | 4 | 6 |
| Displacement | 4380 cm³ | 4727 cm³ |
| Bore x stroke | 104,8×127 mm | 88,9×127 mm |
| Rated power | 28,5-35,4/1100 hp DIN/rpm | 45/1500 hp DIN/rpm |
| Gears | 3+1 | 3+1 |
| Speeds in km/h | 4,0-14,2 | 5,3-18,6 |
| Hydr. flow l/min | 7.8 l/min | 8 l/min |
| Hydraulic pressure | 100 bar | 130 bar |
| Lift controls | (mech.) | (mech.) |
| Lift capacity | (800) kg | (800) kg |
| PTO speeds | 540 | 694 |
| Brakes | drum brakes | drum brakes |
| Steering | mech. | mech. |
| Turning circle m 2WD | 6.4 | 6.4 |
| Front tyres 2WD | 6.00-19 | 6.00-19 |
| Rear tyres 2WD | 11-36 | 11-36 |
| Weight 2WD | (2000) kg | (2880) kg |
| Height with cab | (162) cm | (167) cm |
| Length (2WD/4WD) | 338 cm | 338 cm |
| Wheelbase (2WD/4WD) | 196 cm | 196 cm |
| Fuel tank | 79.5 l | 79 l |
| Engine model | - | P6 (TA) |
