Siirry sivupalkkiinSiirry alaosaanHanomag R435-R460, R440-R545






Here is the English translation of the text:

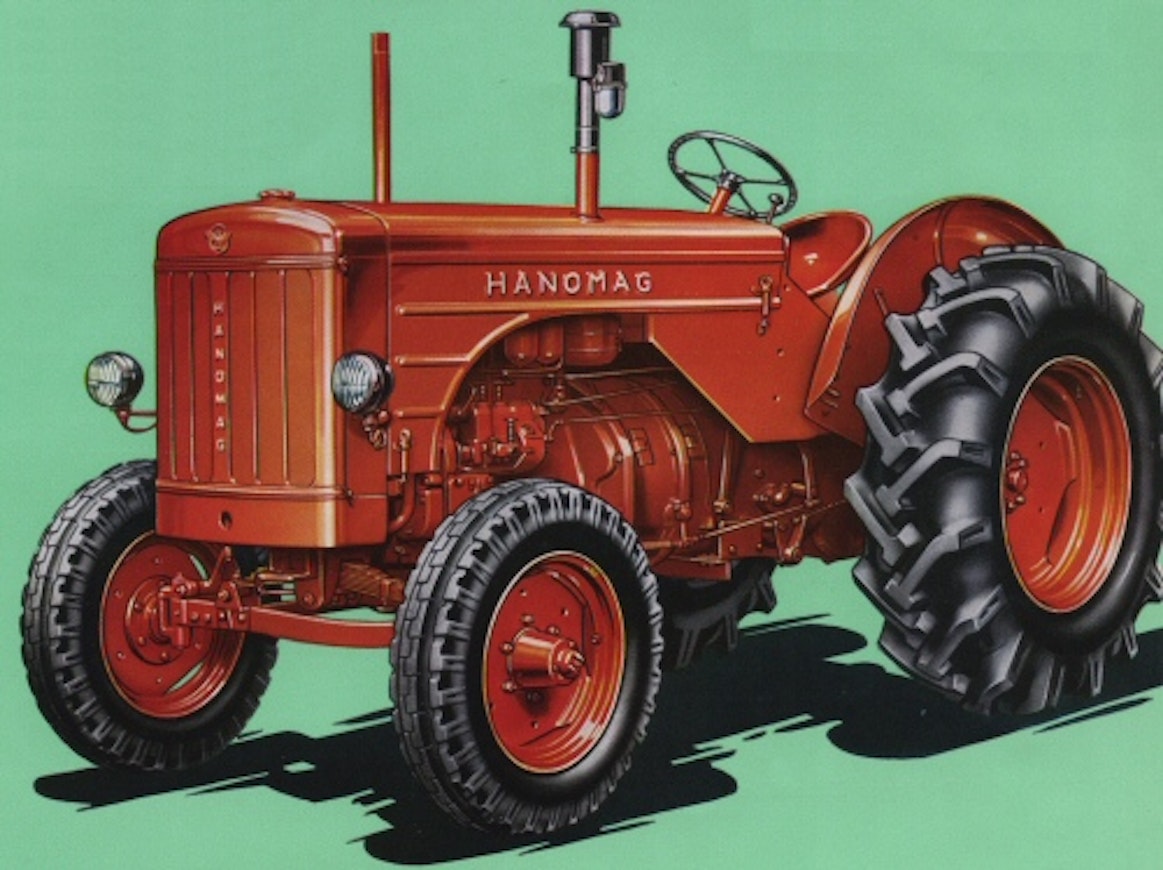

In the 1957 model lineup, the R35 received the model designation R435 in Germany and R440 for export markets. The appearance was more rounded in line with the style of smaller models. A dual clutch was an optional accessory. The lifting device was more powerful than before.
In 1960, the R435 was replaced by the R442 Brilliant, in which the engine power was increased to 42 horsepower. The lifting capacity had grown to 1500 kilograms, the wheelbase was longer, and the steering gear was new. As an optional accessory, the Pilot adaptation sensitivity adjustment was available. Also, a version allowing higher power when using the power take-off remained in production, with the model designation R442/50 Robust.

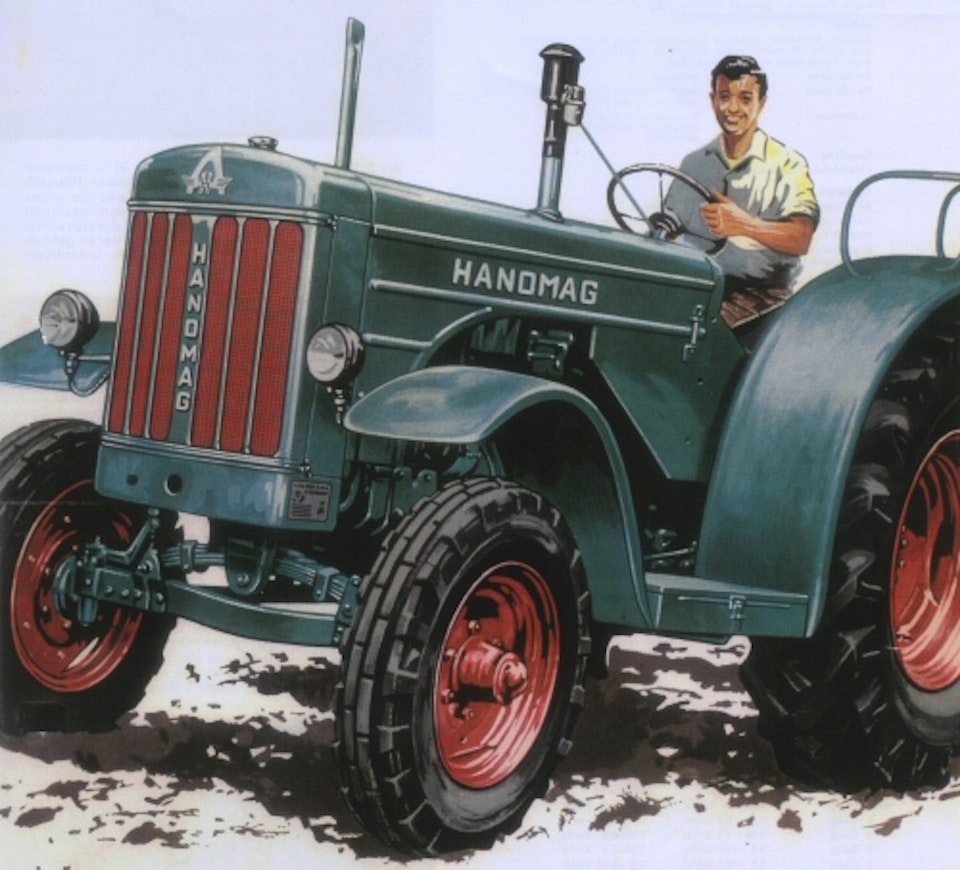

The R45 was renamed R445 E and the R55 to R455 E without changes. On export markets, the designations were R540 and R545. In 1958, these were replaced by the 50- and 55-horsepower R450 and R450 E. These models were also available with a 25 cm longer wheelbase. In the R460 introduced in 1960, the long wheelbase was standard. It was also available in a 30 km/h version. The 4th and 5th gears were synchronized. By November 1960, Hanomag had produced 200,000 tractors.
This is an automated translation. Please report any issues in the translation.
| Model | Hanomag R435 R440 | Hanomag R435/45 | Hanomag R442 Brilliant R440 | Hanomag R442/50 Robust | Hanomag R445 E R540 | Hanomag R450 R540 | Hanomag R455 E R545 | Hanomag R450 E R545 | Hanomag R460 R545 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Hanomag | Hanomag | Hanomag | Hanomag | Hanomag | Hanomag | Hanomag | Hanomag | Hanomag |
| Imported to Finland | Yes | No | Yes | No | Yes | Yes | Yes | Yes | Yes |
| Years | 1957-60 | 1957-60 | 1960-62 | 1960-62 | 1957-58 | 1958-61 | 1955-58 | 1958-61 | 1960-64 |
| Engine model | D 28 | D 28 LA | D 28 | D 28 LA | D 57 | D 57 | D 57 | D 57 | D 57 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Displacement | 2799 cm³ | 2799 cm³ | 2799 cm³ | 2799 cm³ | 5702 cm³ | 5702 cm³ | 5702 cm³ | 5702 cm³ | 5702 cm³ |
| Bore x stroke | 90×110 mm | 90×110 mm | 90×110 mm | 90×110 mm | 110×150 mm | 110×150 mm | 110×150 mm | 110×150 mm | 110×150 mm |
| Rated power | 35/1900 hp DIN/rpm | 35(45)/1900 hp DIN/rpm | 42/2200 hp DIN/rpm | 42(50)/2200 hp DIN/rpm | 45/1200 hp DIN/rpm | 50/1250 hp DIN/rpm | 55/1300 hp DIN/rpm | 55/1300 hp DIN/rpm | 60/1350 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - | - | - |
| Gears | 5+1 (10+2) | 5+1 (10+2) | 5+1 (10+2) | 5+1 (10+2) | 5+1 (10-2) | 5+1 (10+2) | 5+1 (10+2) | 5+1 (10+2) | 5+1 (10+2) |
| Speeds in km/h | 3,9-19,6 | 3,7-18,3 | 3,9-19,4 | 4,1-19,9 | 3,5-17,3 | 3,7-18,5 | 4,0-19,9 | 3,9-19,8 | 4,1-19,7 / 3,7-30,0 |
| Max. speed | 20/25 km/h | - | 20/25 km/h | 20/25 km/h | - | 20/25 km/h | - | 20/25 km/h | 20/30 km/h |
| Hydr. flow l/min | 16 l/min | 16 l/min | 16 l/min | 16 l/min | 16 l/min | 16 l/min | 16 l/min | 16 l/min | 16 l/min |
| Hydraulic pressure | 120 bar | 120 bar | 120 bar | 120/150 bar | 150 bar | 150 bar | 150 bar | 150 bar | 150 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1200 kg | 1200 kg | 1500 kg | 1500 kg | 1400 kg | 1400 kg | 1400 kg | 1400 kg | 1400 kg |
| PTO speeds | 553 | 597 | 600 | 600 | 565 | 565 | 575 | 565 | 565 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Turning circle m 2WD | 7.6 | 7.9 | 7.2 | 7.2 | 8.8 | 8.8 | 8.8 | 8.8 | 9 |
| Front tyres 2WD | 6.00-20 | 6.00-20 | 6.00-20 | 6.00-20 | 6.50-20 | 6.50-20 | 7.50-20 | 7.50-20 | 7.50-20 |
| Rear tyres 2WD | 13-30 | 9-42 | 13-30 | 11-38 | 15-30 | 15-30 | 15-30 | 15-30 | 15-30 |
| Weight 2WD | (1870) kg | (2020) kg | (2180) kg | (2275) kg | (3375) kg | (3375) kg | (3500) kg | (3500) kg | (3500) kg |
| Height with cab | (176) cm | (176) cm | (176) cm | (176) cm | (182) cm | (184) cm | (175) cm | (184) cm | (179) cm |
| Length (2WD/4WD) | 302 cm | 305 cm | 326 cm | 326 cm | 354 cm | 354 cm | 354 cm | 354 cm | 381 cm |
| Wheelbase (2WD/4WD) | 185 cm | 185 cm | 194 cm | 194 cm | 208 cm | 208 cm | 208 cm | 208 cm | 233 cm |
| Fuel tank | 60 l | - | - | - | 85 l | 85 l | 90 l | 90 l | 130 l |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
| Synchronized gears | - | - | - | - | - | - | - | - | 2 |
