IMT 560-569

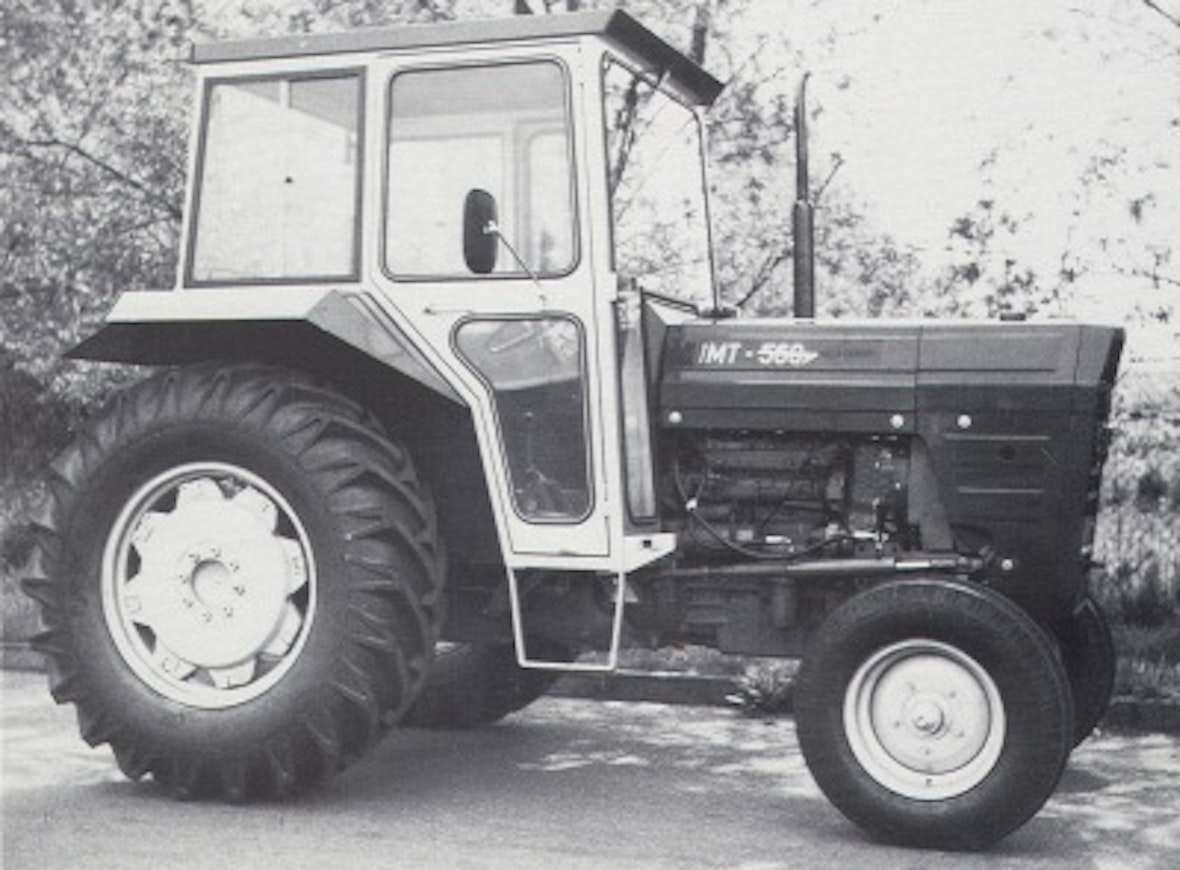

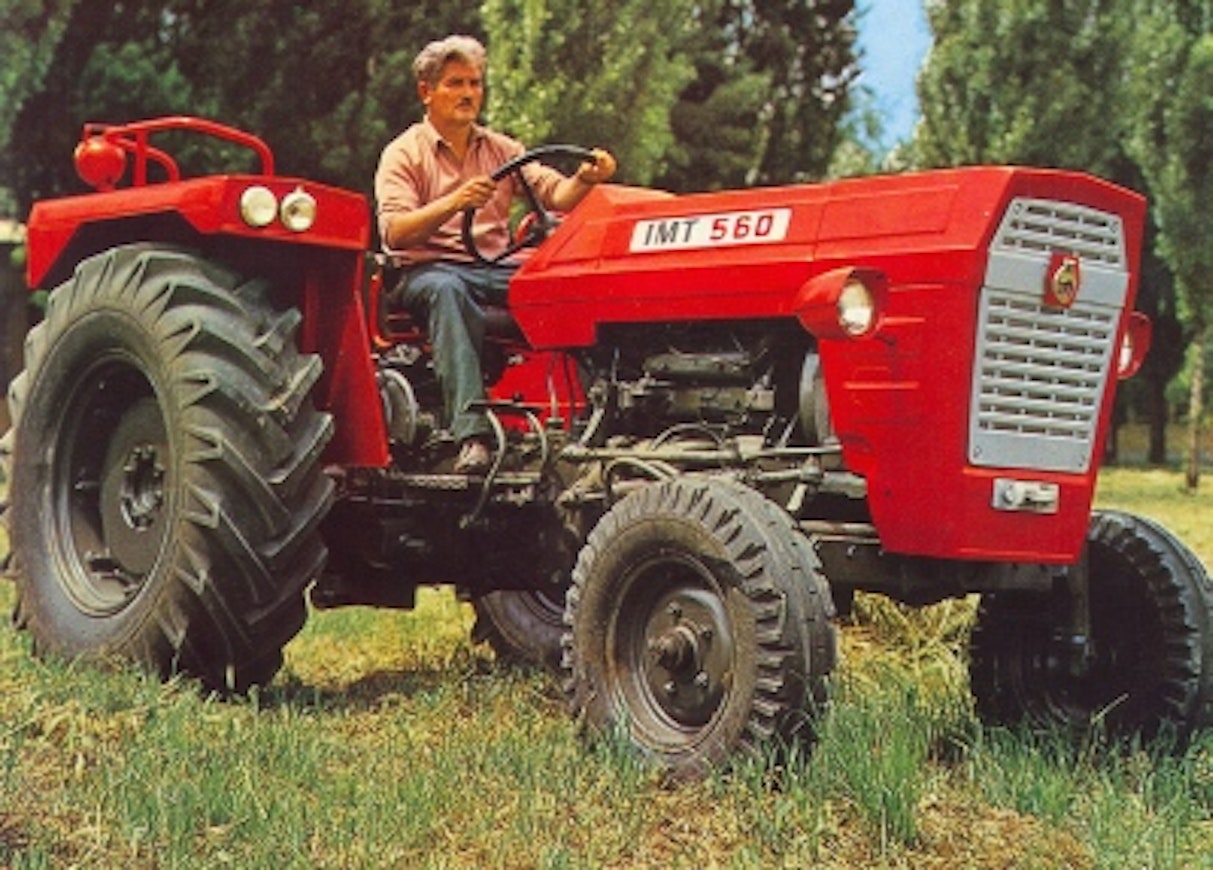

In the mid-1970s, the IMT 558, based on the MF 65, was replaced by the more recently designed 560. The engine was still the old prechamber diesel. The rear axle was new, and the brakes were oil-immersed disc brakes.

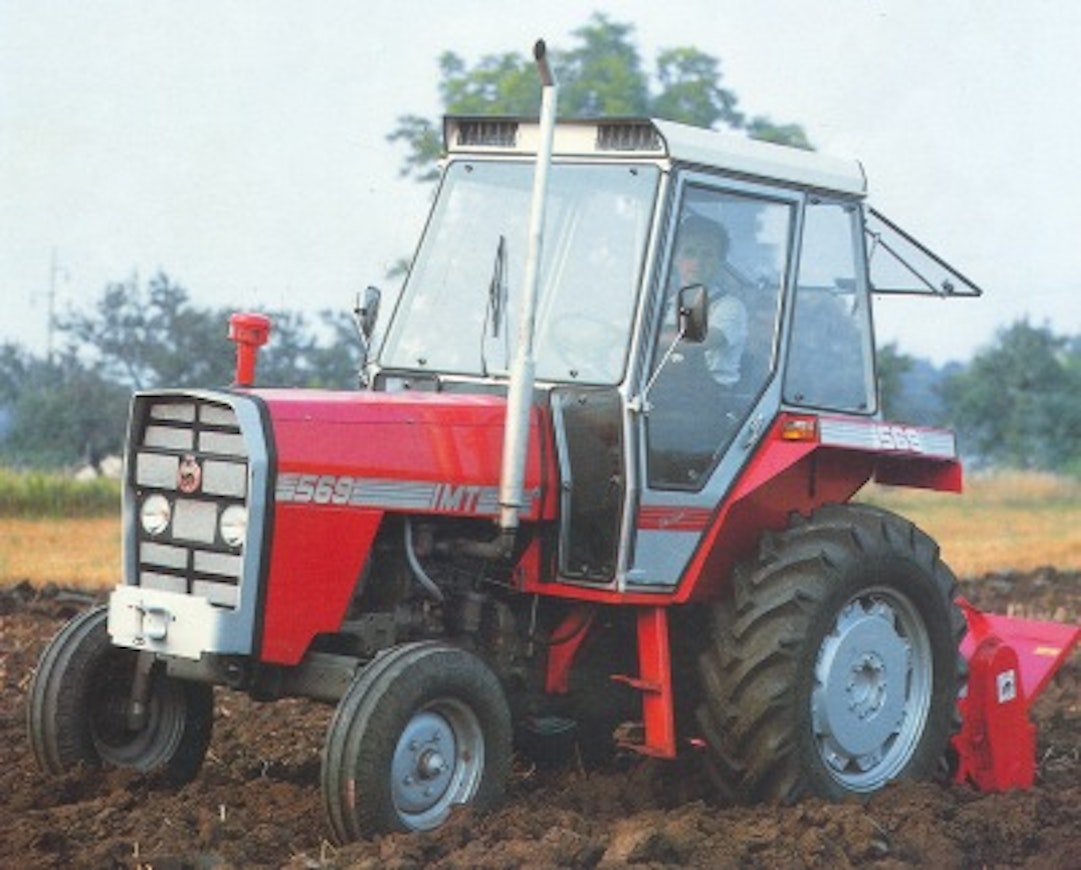

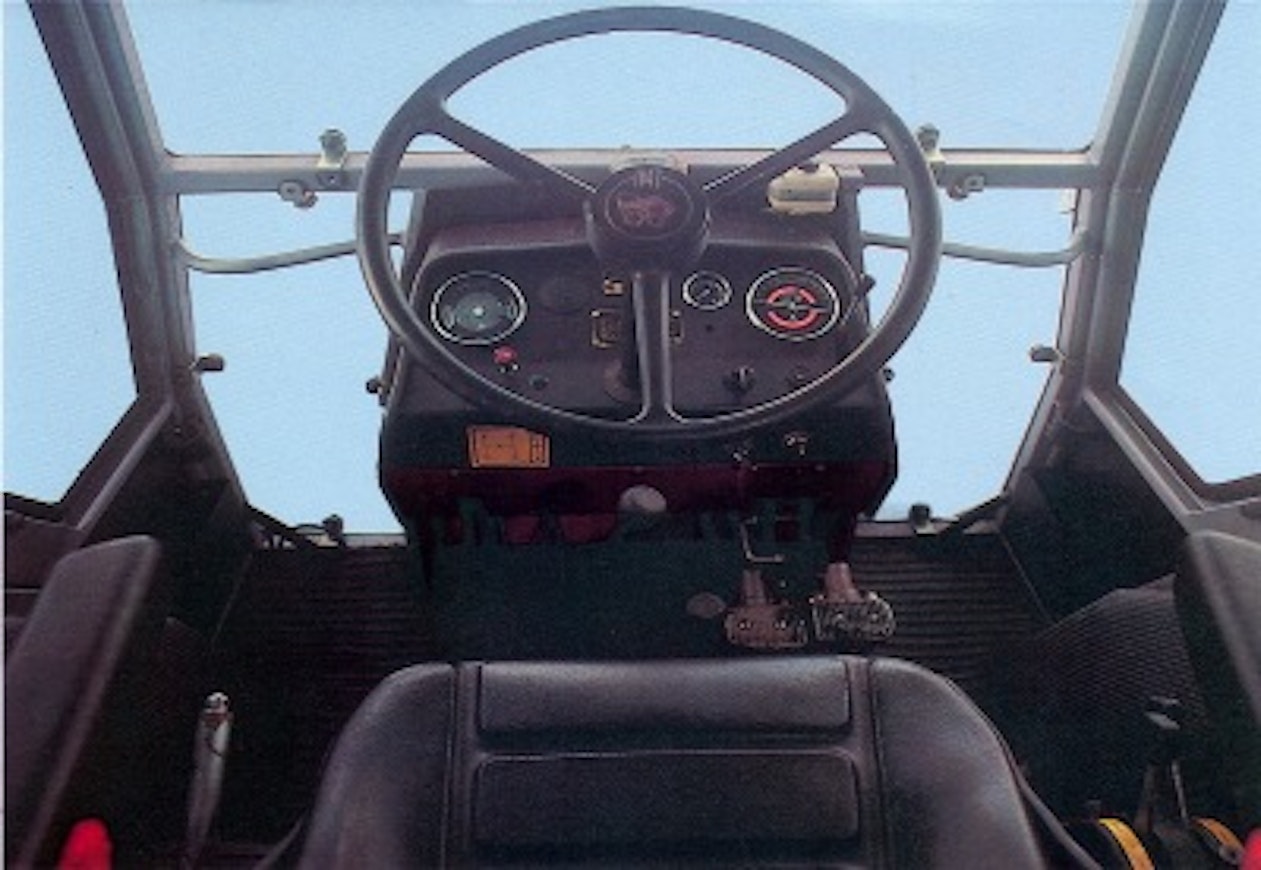

Direct injection diesel was introduced in the models 565 and 569 launched in 1986. At the same time, new cabins and a new design were introduced. The transmission was either the original 6+2 or a partially synchronized 10+2. The lifting capacity was increased to 1900 kilograms. A novelty at the time was four-wheel drive, which was implemented with a side axle. The engagement of the four-wheel drive was mechanical, and there was no differential lock. The ground clearance of the four-wheel drive model was 317 mm. From the late 1990s onwards, these models were available either with the design introduced in 1986 or a newer version.
This is an automated translation. Please report any issues in the translation.
| Model | IMT 560 | IMT 560 | IMT 565 | IMT 569 |
|---|---|---|---|---|
| Manufacturer name | IMT | IMT | IMT | IMT |
| Imported to Finland | No | No | No | No |
| Years | n. 1975-86 | ?- | 1986- | 1986- |
| First year sold | 1975 | - | 1986 | 1986 |
| Last year sold | 1986 | - | - | - |
| Engine model | M 34/T | M 34/T | DM 34/T | DM 34/T |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4 |
| Displacement | 3330 cm³ | 3330 cm³ | 3330 cm³ | 3330 cm³ |
| Bore x stroke | 91,44×127 mm | 91,44×127 mm | 91,44×127 mm | 91,44×127 mm |
| Rated power hp/rpm DIN | 58/2250 | 56/2250 | 63/2250 | 63/2250 |
| Rated power | 58 | 56 | 63 | 63 |
| Rated speed | 2250 | 2250 | 2250 | 2250 |
| Torque Nm/rpm DIN | 201/1200 | 212/1300 | 218/1350 | 218/1350 |
| Gears | 6+2/12+4 | 6+2 | 6+2 | 10+2 |
| Synchronized gears | - | - | - | 4 |
| Powershift gears | -/mech. | - | - | - |
| Speeds in km/h | 2,6-22,8 | 2,6-28,3 | 2,6-28,4 | 2,1-29,3 |
| Hydr. flow l/min | 18/30 l/min | 18/33 l/min | 18/33 l/min | 18/33 l/min |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 1500 kg | 1900 kg | 1900 kg | 1900 kg |
| PTO speeds | 720/ajo | 540/ajo | 540/ajo | 540/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | mech./hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | - | - | 8.94 | 8.94 |
| Turning circle m 4WD | - | - | 9.3 | 9.3 |
| Front tyres 2WD | 7.50-16 | 7.50-16 | 7.50-16 | 7.50-16 |
| Front tyres 4WD | - | 9.5-24 | 9.5-24 | 9.5-24 |
| Rear tyres 2WD | 16.9-28 | 14.9-28 | 16.9-28 | 16.9-28 |
| Rear tyres 4WD | - | 14.9-28 | 16.9-28 | 16.9-28 |
| Weight 2WD | 2700 kg | 3180 kg | 3185 kg | 3185 kg |
| Weight 4WD | - | 3650 kg | 3425 (3650) kg | 3425 (3650) kg |
| Height with cab | (182) cm | 264 cm | 247 (264) cm | 247 (264) cm |
| Length (2WD/4WD) | 399 cm | 392 cm | 392 cm | 392 cm |
| Wheelbase (2WD/4WD) | 221 cm | 221/222 cm | 221/222 cm | 221/222 cm |
| Fuel tank | 90 l | 90 l | 96 l | 96 l |
| Cab noise level | 85 dB | 85 dB | 85 dB | 85 dB |
| Creeper gear | - | opt. | opt. | opt. |
