Siirry sivupalkkiinSiirry alaosaanIMT 5100-5210

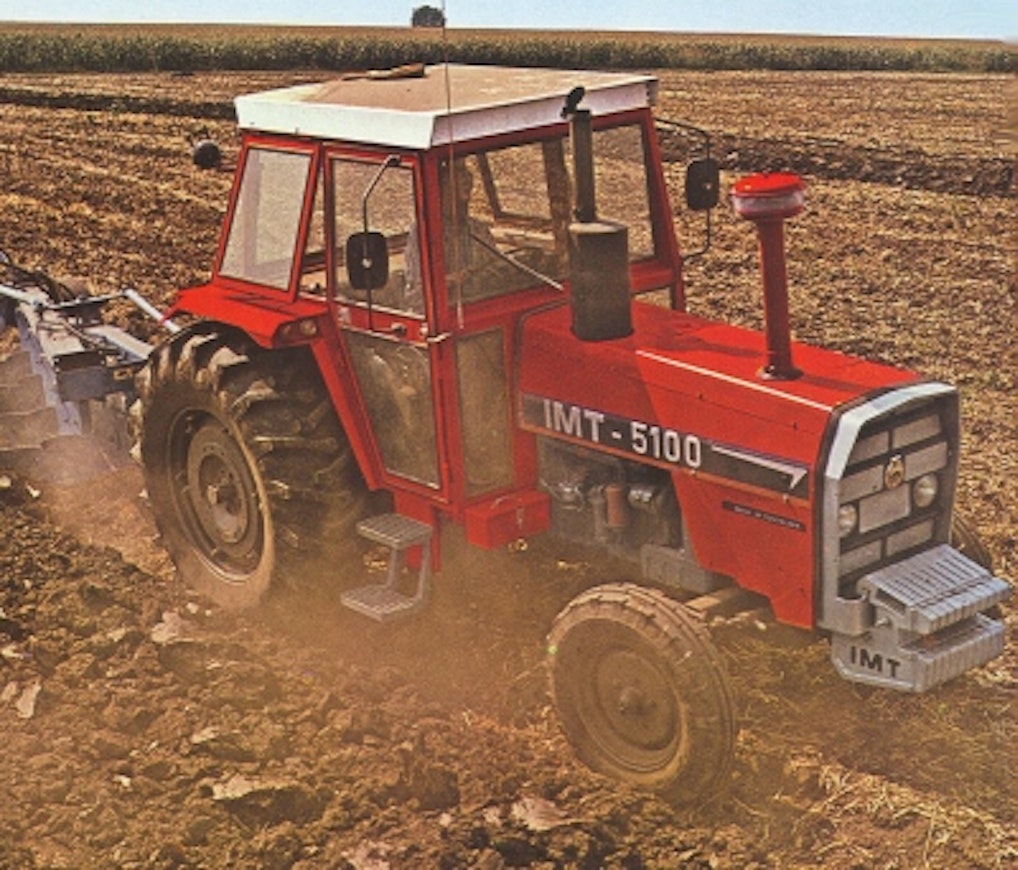

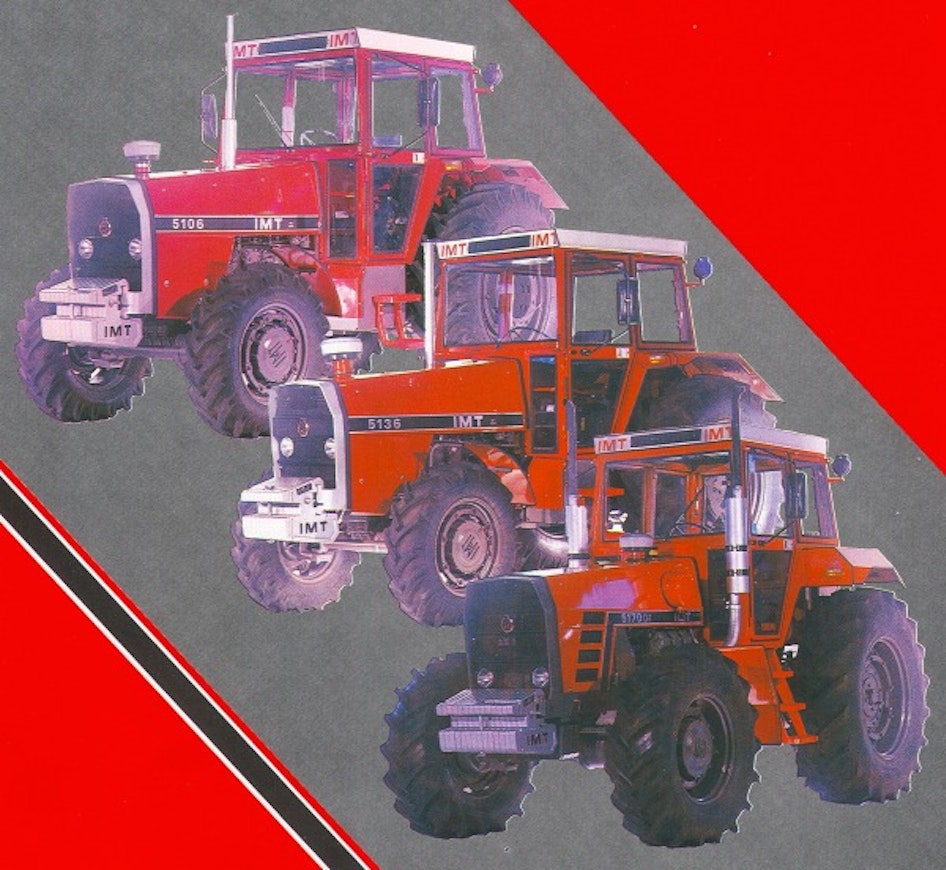

The large IMT tractors 5100/5106 (98 hp) and the turbocharged 5130/5136 (120 hp) were introduced in 1982. The models ending with a 6 were four-wheel drive. The engine was a 5.8-liter six-cylinder made under Perkins license. The transmission was IMT's own 10+2, and the gear levers were, as usual, in the center. Old MF technology was also found in the hydraulic dual pump, whose outputs could be combined if necessary to meet the needs of external hydraulics. The brakes were air-operated. Bosch's electric lift became an optional accessory in 2001.
Many new large models were introduced in the 1990s. The 162-horsepower 5170 was the first IMT tractor to have a differential lock on the front axle. The engine was an unsupercharged 9.6-liter V6 from Mercedes. The transmission was fully synchronized 16+4. In the 170-horsepower class, a 7.4-liter Valmet engine was also later used. A genuine Perkins engine was used in the 136-horsepower 5135 model. A late 1990s innovation is the 210-horsepower 5210, which was technically mostly comparable to the 5170 model.
According to at least GDR sources, IMT's quality was considered among the best of Eastern tractors. However, based on brochures, it seems the manufacturer's ambition was not very high. For example, the brochure used for illustration here is poor in terms of image quality and printing. Technical information is missing, even though headings for it are provided. Many brochures contain basic errors, and the English translations are subpar.
This is an automated translation. Please report any issues in the translation.
| Model | IMT 5100/5106 | IMT 5130/5136 | IMT 5133 | IMT 5135 | IMT 5170 | IMT 5210 |
|---|---|---|---|---|---|---|
| Manufacturer name | IMT | IMT | IMT | IMT | IMT | IMT |
| Imported to Finland | No | No | No | No | No | No |
| Years | 1982- | 1982- | - | - | - | 1997- |
| Engine model | S 46/T | TS 46/T | TS 46/T | 1006-6T | OM401 | OM441 |
| Cyl/Turbo/Intercooler | 6 | 6T | 6T | 6T | V6 | V6 |
| Displacement | 5797 cm³ | 5797 cm³ | 5797 cm³ | 5987 cm³ | 9560 cm³ | 11309 cm³ |
| Bore x stroke | 98,4×127 mm | 98,4×127 mm | 98,4×127 mm | 100×127 mm | 125×130 mm | 130×142 mm |
| Rated power | 98-105/2250 hp DIN/rpm | 120-135/2250 hp DIN/rpm | 133/2250 hp DIN/rpm | 136/2200 hp DIN/rpm | 162-173/2250 hp DIN/rpm | 210/2100 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 10+2 | 10+2 | 10+2 | 8+8 | 16+4 | 16+4 |
| Synchronized gears | 4 | 4 | 10+2 | 8+8 | 16+4 | 16+4 |
| Speeds in km/h | 3,5-27,6 | ?-27,9 | - | - | ?-27,0 | ?-27,0 |
| Hydr. flow l/min | 32+42 l/min | 35+38 l/min | 35+38 l/min | 35+38 l/min | 38+42 l/min | 38+42 l/min |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | elec. | mech. (elec.) | mech. (elec.) |
| Lift capacity | 3500 kg | 3500 kg | 3800 kg | 5000 kg | 5000 kg | 5000 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 2WD | 7.50-20 | 11.00-16 | - | - | - | - |
| Front tyres 4WD | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 | 16.9-28 | 16.9-28 |
| Rear tyres 2WD | 18.4-34 | 18.4-38 | - | - | - | - |
| Rear tyres 4WD | 18.4-34 | 18.4-38 | 2×9.5-48 | 18.4-38 | 20.8-38 | 20.8-38 |
| Weight 2WD | 5470 kg | 5510 kg | - | - | - | - |
| Weight 4WD | 6000 kg | 6040 kg | 6025 kg | 6400 kg | 8170 kg | 8170 kg |
| Height with cab | 282 cm | 282 cm | 282 cm | 287 cm | - | 299 cm |
| Length (2WD/4WD) | 482 cm | 482 cm | 550 cm | 513 cm | - | 513 cm |
| Wheelbase (2WD/4WD) | 275 cm | 275 cm | - | - | - | - |
| Fuel tank | 260/290 l | 260 l | 260 l | 260 l | 350 l | 350 l |
| Cab noise level | 87 dB | 88 dB | - | - | 87 dB | - |
| Solid cab | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | - | - | - |
| Reverser | - | - | - | x | - | - |
| Powershift gears | - | - | - | - | x | x |
| Diff. lock | - | - | - | - | autom. | autom. |
