John Deere 820-1120

68JD1020pikkukuvat
67JD1020
67JD1020ohjaamo
73JD1120
68JD1020pikkukuvat
67JD1020
67JD1020ohjaamo
73JD1120
Manufacturer
Models
John Deere 820, John Deere 920, John Deere 920, John Deere 1020, John Deere 1020, John Deere 1120, John Deere 1120
Years
1967-75
Info

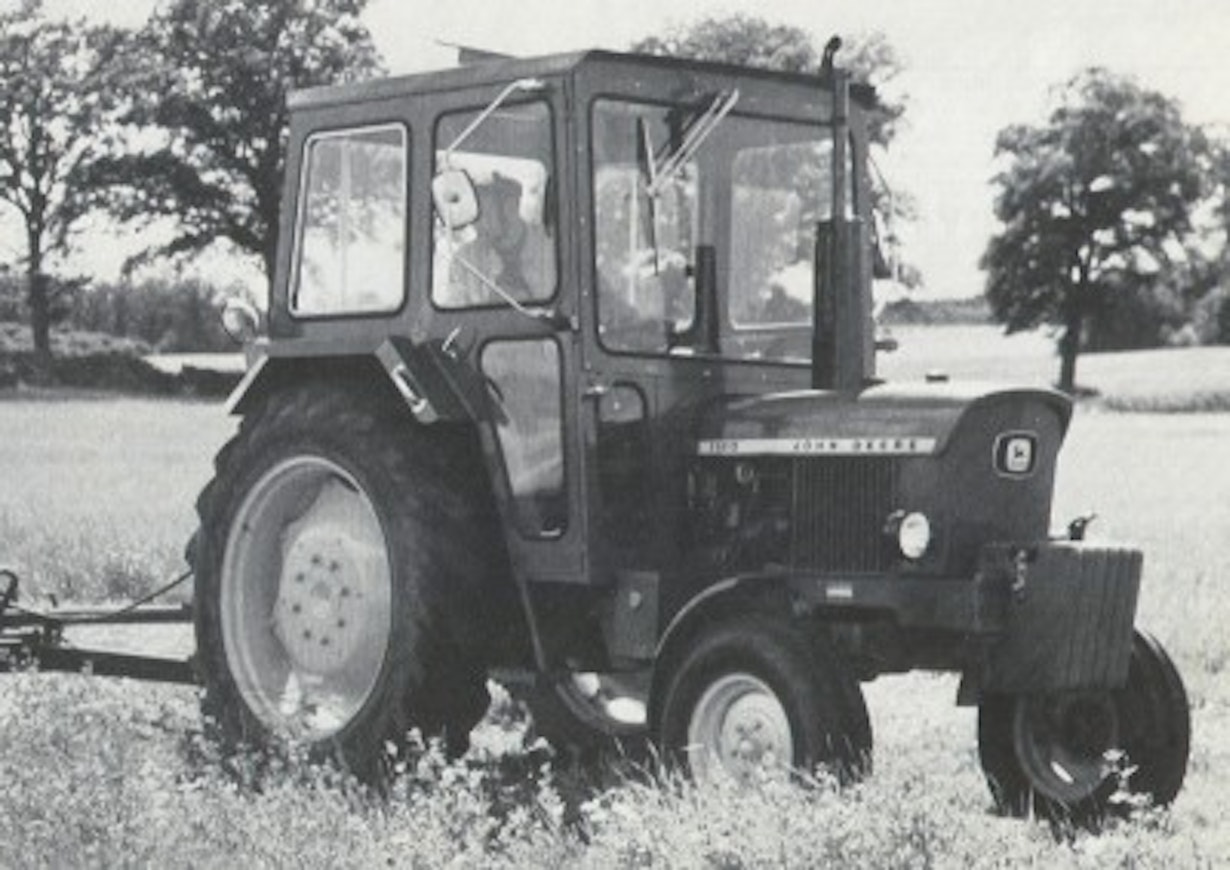

In 1967, the company's name also changed from Lanz to John Deere in Germany. At the end of the same year, the small 20-series tractors 820-1120, which replaced the JD-Lanz 10-series, were introduced. The power classes were 32, 37, 44, and 49 horsepower. The transmission was completely new. The largest model, the 1120, was imported to Finland and, like the 1020, featured a closed and at the time very efficient hydraulic system. The lineup differed only slightly from comparable American models 820-1520.

The power of the 820 increased to 35 horsepower already the following year. The power of the other models was increased in 1971. At the same time, a hydraulic LS quick-shift was made available as an optional extra for the 1120.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere 820John Deere 920John Deere 920John Deere 1020John Deere 1020John Deere 1120John Deere 1120
Manufacturer nameJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn DeereJohn Deere
Imported to FinlandNoNoNoNoNoNoYes
Years1967-741967-711971-741967-711971-741967-711971-75
Cyl/Turbo/Intercooler3333333
Displacement2490 cm³2490 cm³2490 cm³2490 cm³2490 cm³2695 cm³2695 cm³
Bore x stroke98×110 mm98×110 mm98×110 mm98×110 mm98×110 mm102×110 mm102×110 mm
Rated power32/2100 hp DIN/rpm37/2300 hp DIN/rpm41/2300 hp DIN/rpm44/2500 hp DIN/rpm46/2500 hp DIN/rpm49/2500 hp DIN/rpm51/2500 hp DIN/rpm
Torque-------
Gears8+48+48+48+48+48+4/16+88+4/16+8
Speeds in km/h2,0-23,42,0-23,62,0-23,62,0-23,62,1-24,51,8-27,41,8-27,4
Max. speed 25 km/h25 km/h25 km/h25 km/h25 km/h--
Lift controlsmech.mech.mech.mech.mech.mech.mech.
PTO speeds540540540540540540540
Brakeswet discwet discwet discwet discwet discwet discwet disc
Steeringmech.mech.mech.mech.mech.mech./powermech./power
Turning circle m 2WD6.36.36.36.66.66.66.6
Front tyres 2WD5.50-166.00-166.00-166.50-166.50-167.50-167.50-16
Rear tyres 2WD11.2-2812.4-3212.4-3212.4-3614.9-2813.6-3613.6-36
Weight 2WD(1850) kg(1975) kg(1975) kg(2020) kg(2050) kg(2190) kg2520 kg
Length (2WD/4WD)343 cm343 cm343 cm343 cm343 cm343 cm343 cm
Wheelbase (2WD/4WD)189 cm189 cm189 cm205 cm205 cm205 cm205 cm
Fuel tank62.5 l62.5 l62.5 l62.5 l62.5 l62.5 l62.5 l
Engine model---152 D152 D164 D164 D
Hydr. flow l/min---49 l/min49 l/min49 l/min49 l/min
Hydraulic pressure---154 bar154 bar154 bar154 bar
Powershift gears----opt.opt.opt.
Lift capacity----1590 kg-1620 kg
Height with cab------255 cm
Cab noise level------82 dB
