John Deere 8570-8970

93JD8770
93JD8770ohjaamo
93JD8770nopeudet
93JD8770
93JD8770ohjaamo
93JD8770nopeudet
Manufacturer
Models
John Deere 8570, John Deere 8770, John Deere 8870, John Deere 8970
Years
1993-96
Info

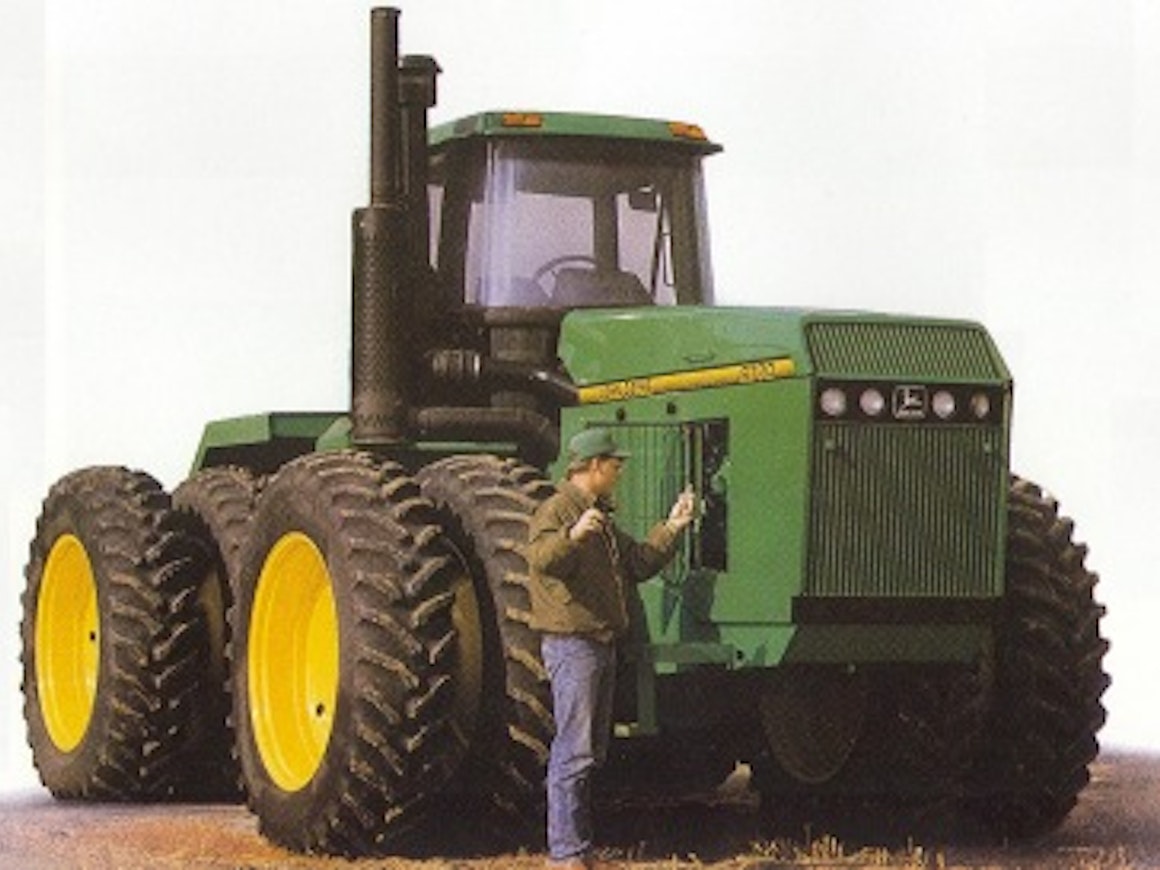

For the year 1993, a new Power-Plus series, the 70-series, was introduced, consisting of models 8570/250 hp, 8770/300 hp, 8870/350 hp, and 8970/400 hp. The engines were equipped with electronic injection pump control. The power had increased slightly compared to the 60-series, and there was still an additional 25 hp boost available over the stated power. Both of the middle models featured the familiar 10.1-liter engine. The 8570 was equipped with JD's 7.6-liter engine and the 8970 with Cummins' 14.0-liter engine. The basic transmission was a 12-speed Syncro. For an additional price, a PowrSync quick shift was available. The three largest models could also be equipped with a 12-speed full powershift.

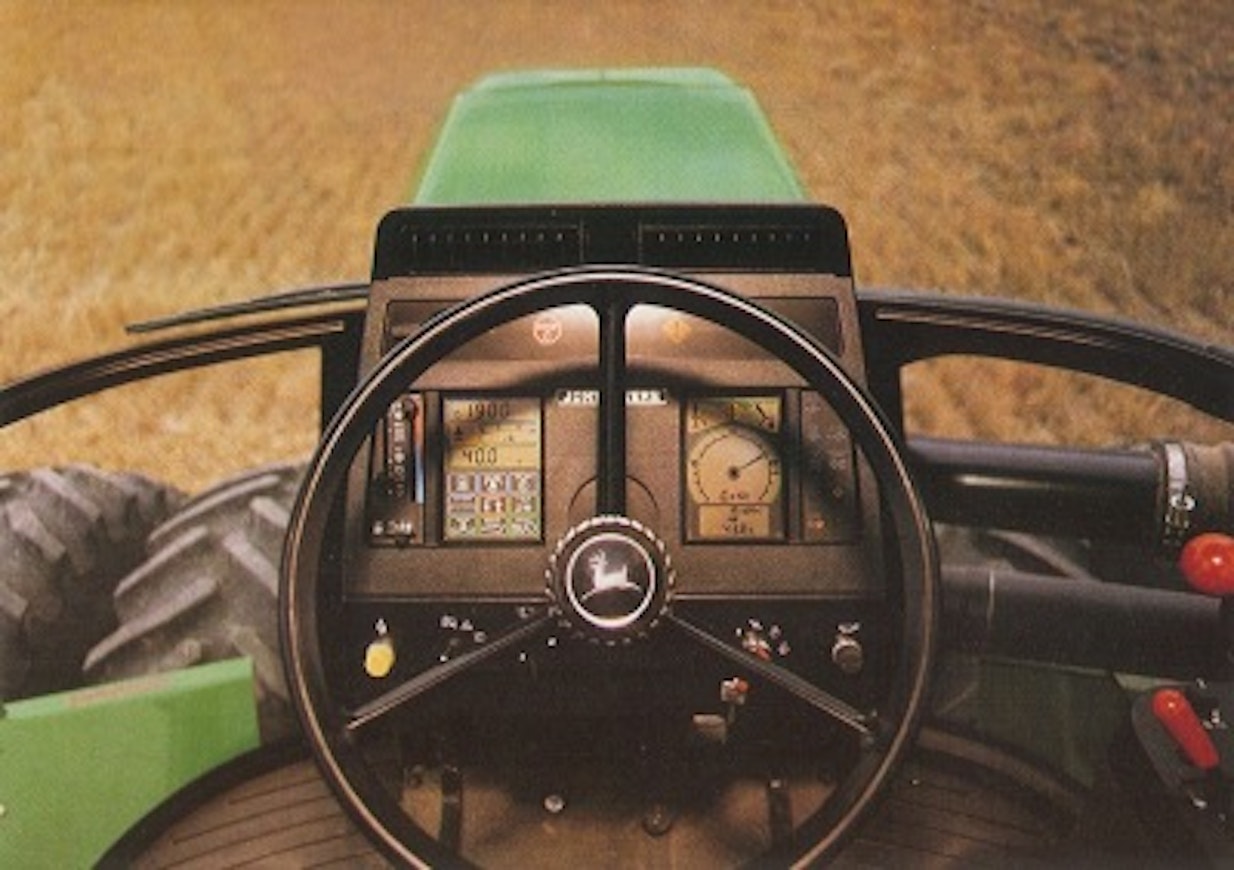

A new feature was Field Cruise Control, which maintained a constant speed regardless of changing conditions. A radar-based onboard computer was available as an option. The cab was mostly unchanged, but the noise level had again been reduced slightly. The two largest models had four-wheel brakes. The 70-series tractors could be equipped with triple wheels, meaning three wheels could be mounted on each corner.

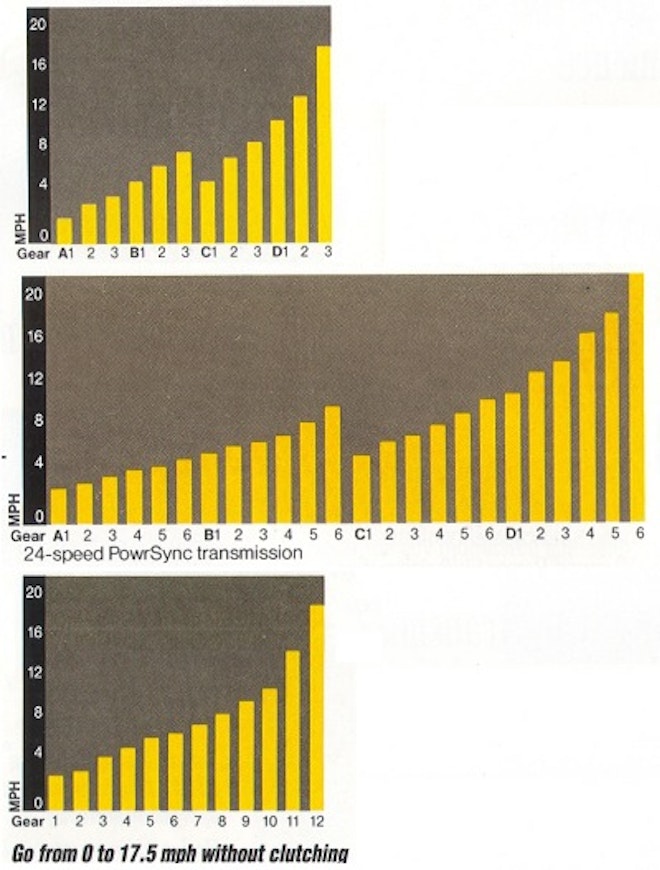

Speeds in mph

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere 8570John Deere 8770John Deere 8870John Deere 8970
Manufacturer nameJohn DeereJohn DeereJohn DeereJohn Deere
Imported to FinlandNoNoNoNo
Years1993-961993-961993-961993-96
Engine model607661016101Cummins N14
Cyl/Turbo/Intercooler6TI6TI6TI6TI
Displacement7636 cm³10144 cm³10144 cm³14016 cm³
Bore x stroke115,8×120,7 mm130×127 mm130×127 mm139,7×152,4 mm
Rated power250/2100 hp DIN/rpm300/2100 hp DIN/rpm350/2100 hp DIN/rpm400/2100 hp DIN/rpm
Gears12+412+412+412+4
Synchronized gears12+412+412+412+4
Powershift gearsopt.opt.opt.opt.
Speeds in km/h3,2-28,63,2-28,63,2-28,63,2-28,2
Hydr. flow l/min126 l/min126 l/min126 l/min126 l/min
Lift controlselec.elec.elec.-
Lift capacity6796 kg6796 kg6796 kg-
PTO speeds1000100010001000
Brakeswet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.848.848.848.84
Front tyres 4WD24.5R3224.5R3224.5R3230.5-32
Rear tyres 4WD24.5R3224.5R3224.5R3230.5-32
Weight 4WD13410 kg14260 kg14260 kg14460 kg
Fuel tank835 l835 l835 l835 l
Cab noise level74 dB73.5 dB73.5 dB74 dB
Solid cabxxxx
Air suspension seatxxxx
Air conditioningxxxx
Trip computerpartialpartialpartialpartial
