Siirry sivupalkkiinSiirry alaosaanMAN N1 – R3

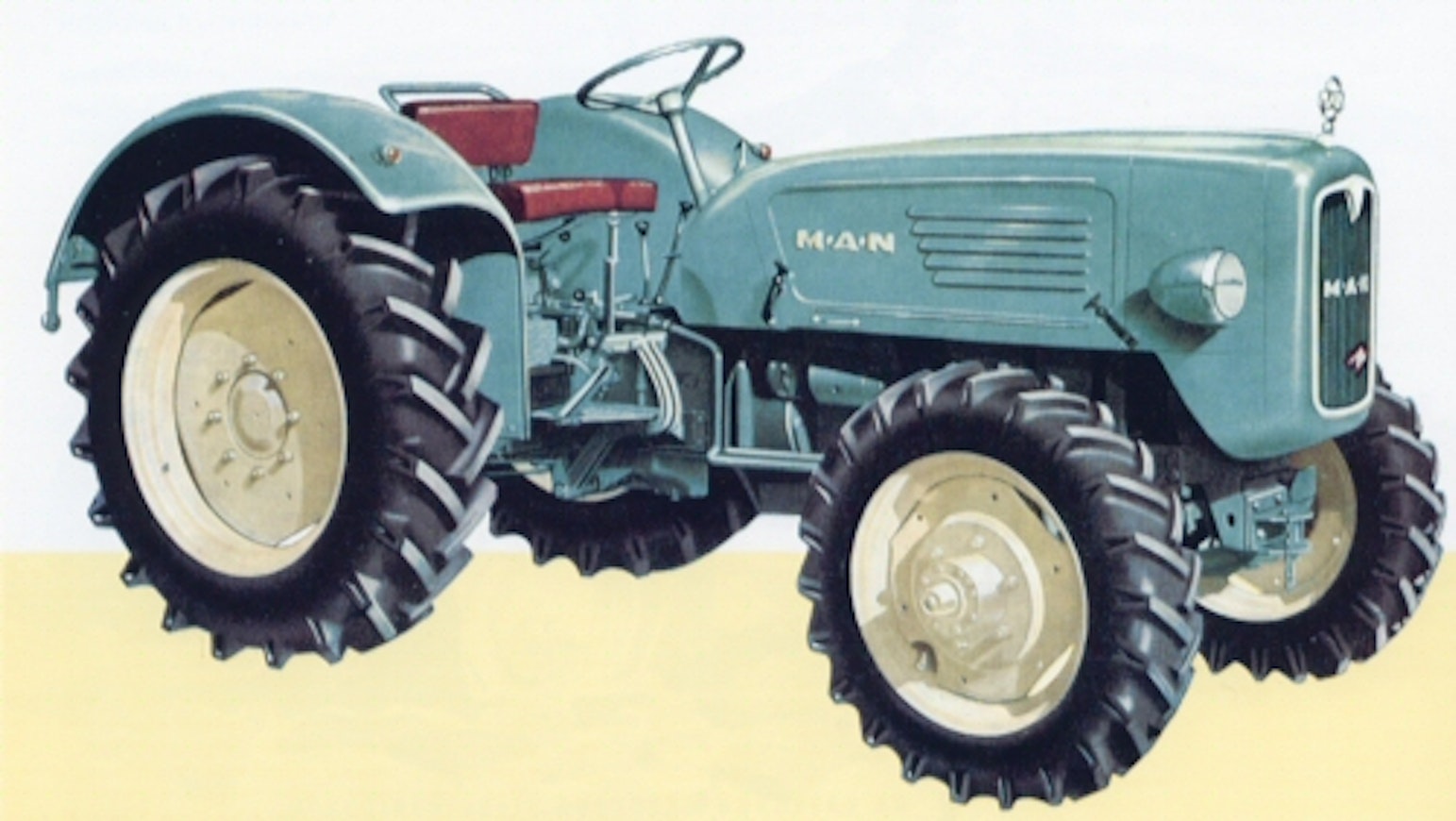

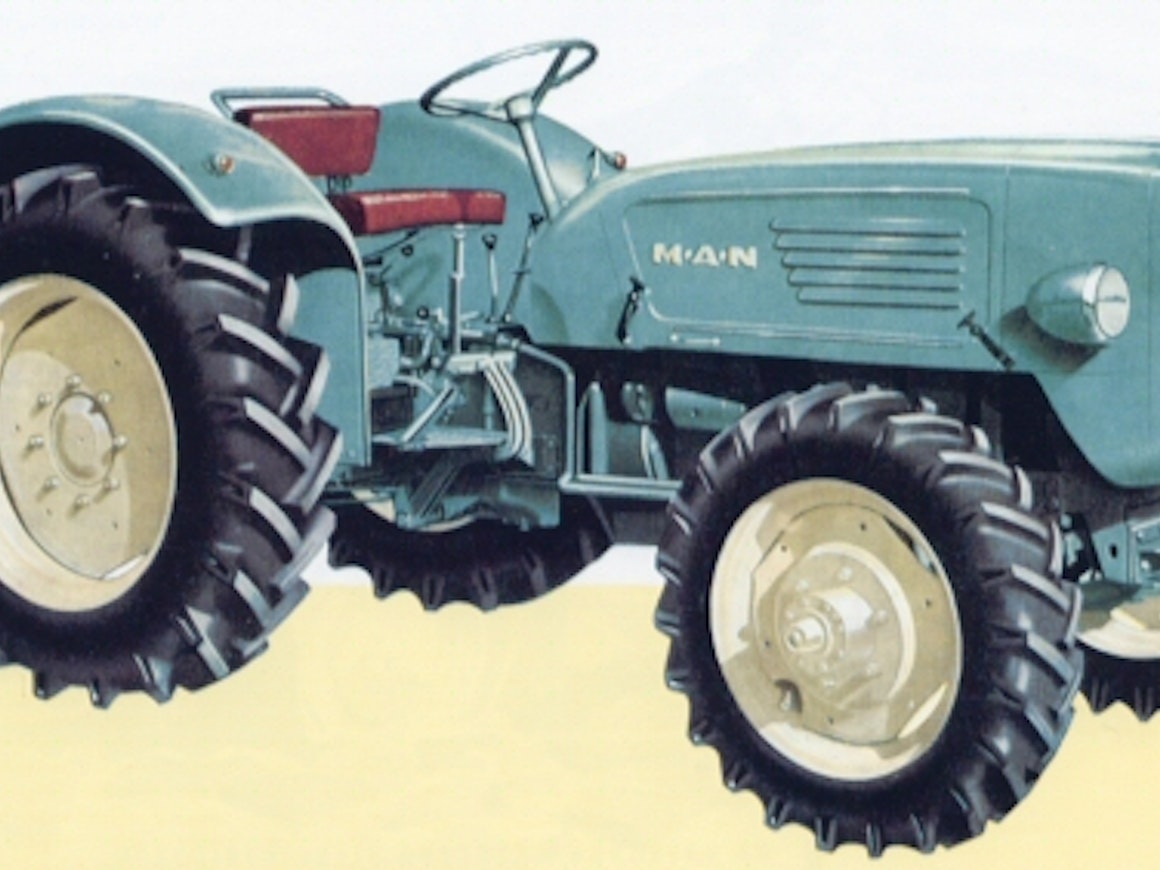

By the 1960s, MAN made decisions to improve the profitability of its tractor production. Small models were gradually phased out, and focus was placed on three power categories: 28, 35, and 45 hp. New models introduced at the end of 1960 were the 3-cylinder, 35-horsepower P-models. The appearance was modernized to a more streamlined look, and the design returned to a lower and shorter concept, which was now based on a medium-length chassis. The engine was 1.9 liters, whereas the previous P-model had a 3.9-liter engine. Correspondingly, the torque figures were significantly weaker than before. The gearbox chosen was the latest ZF 8+4-speed. The lifting capacity was reduced to 1.2 tons. Prices were still 10 to 20% above those of competitors.
In 1961, 4-cylinder R-models were introduced, retaining a 2000 kg lifting device, as well as 2-cylinder N-models (28 hp). All four-wheel drive models came standard with a dual clutch. In Finland, this MAN model range was sold by OTK. The SAE power ratings for the P- and R-models were listed here as 39 and 50 hp. Approximately 400 MAN tractors were sold in Finland, of which nearly all were four-wheel drive.
Unlike tractor production, MAN’s truck production grew strongly in the early 1960s. In the summer of 1962, a decision was made to sell the tractor production to the Mannesmann Group, which had already acquired Porsche-Diesel. Mannesmann planned for MAN, focused on heavier tractors, to complement the Porsche range. However, the end result was that the last MAN tractor was produced in February 1963.
This is an automated translation. Please report any issues in the translation.
| Model | MAN 2 N 1 / 4 N 2 | MAN 2 P 1 / 4 P 1 | MAN 2 R 3 / 4 R 3 |
|---|---|---|---|
| Manufacturer name | MAN | MAN | MAN |
| Imported to Finland | No | Yes | Yes |
| Years | 1961-63 | 1960-63 | 1961-62 |
| Engine model | D 9422 M2 | D 8613 M | D 8614 M |
| Cyl/Turbo/Intercooler | 2 | 3 | 4 |
| Displacement | 1664 cm³ | 1915 cm³ | 2560 cm³ |
| Bore x stroke | 94×120 mm | 86×110 mm | 86×110 mm |
| Rated power | 28/1850 hp DIN/rpm | 35/2400 hp DIN/rpm | 45/2200 hp DIN/rpm |
| Gears | 8+4 | 8+4 | 8+4 |
| Speeds in km/h | 1,2-19,0 / 1,7-27,1 | 1,1-18,4 / 1,6-26,3 | 1,1-19,1 / 1,6-27,0 |
| Max. speed | 20/29 km/h | 20/29 km/h | 19/27 km/h |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 1700/1200 kg | 1200/1300 kg | 2000 kg |
| PTO speeds | 540/1000 | 550/1100/ajo | 540/1080/ajo |
| Brakes | drum brakes | drum brakes | drum brakes |
| Steering | mech. | mech. | mech. |
| Turning circle m 2WD | 5,8 jarrulla | 6,0 jarrulla | 6,6 jarrulla |
| Turning circle m 4WD | 6,0 jarrulla | 6,6 jarrulla | 7,0 jarrulla |
| Front tyres 2WD | 5.00-16 | 5.50-16 | 6.00-20 |
| Front tyres 4WD | 6.50-20 | 6.50-20 | 10.00-18 |
| Rear tyres 2WD | 11.2/10-28 | 12.4/11-28 | 14.9/13-30 |
| Rear tyres 4WD | 11.2/10-28 | 12.4/11-28 | 14.9/13-30 |
| Weight 2WD | (1600) kg | (1670) kg | (2350) kg |
| Weight 4WD | (1720) kg | (1920) kg | (2500) kg |
| Height with cab | (150) cm | (153/150) cm | (153) cm |
| Length (2WD/4WD) | 311/311 cm | 323/334 cm | 332/332 cm |
| Wheelbase (2WD/4WD) | 190/185 cm | 198/197 cm | 210/210 cm |
| Fuel tank | 42 l | 60 l | 68 l |
| Torque | - | - | - |
| Hydr. flow l/min | - | 16 l/min | 16 l/min |
| Hydraulic pressure | - | 150 bar | 150 bar |
