Siirry sivupalkkiinSiirry alaosaanMassey Ferguson 1080-1100




Favorites of the American MF lineup included the 1100, which externally resembled the European 100 series. It had a 6-cylinder Perkins engine (110 hp SAE). Above it were the turbocharged 1130 (120 hp) and the 1150 equipped with a V8 engine.

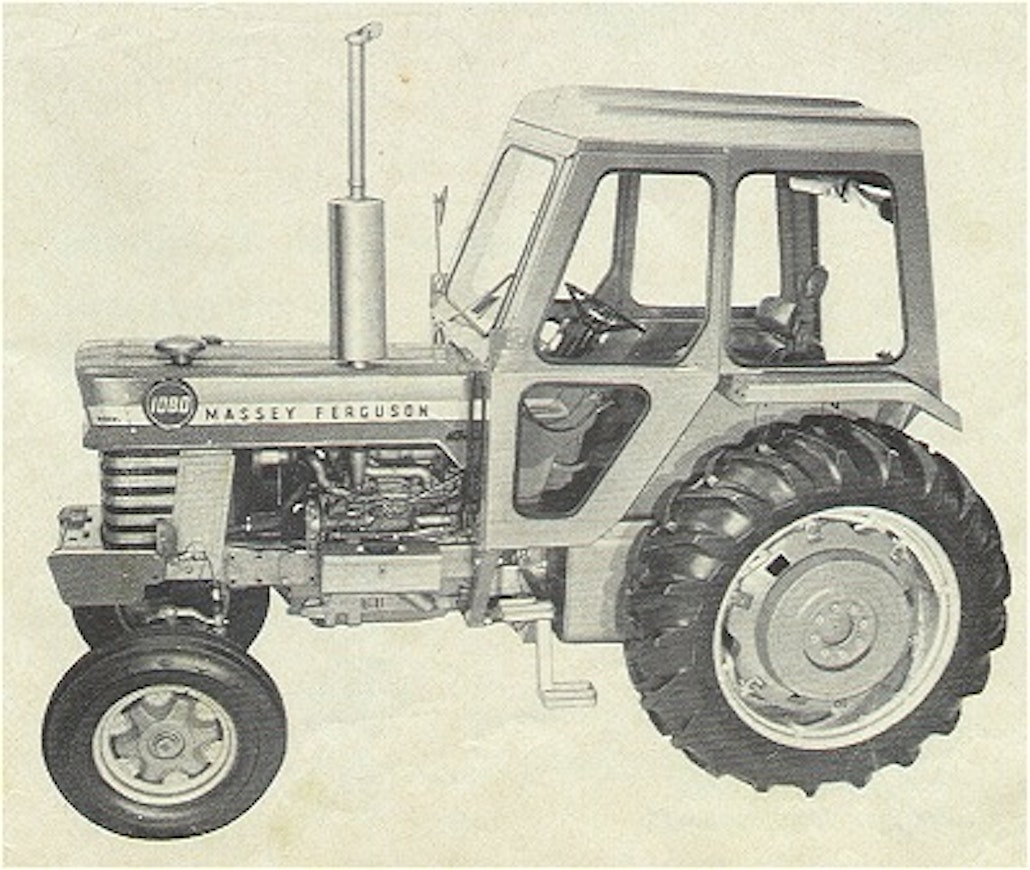

In Europe, a more significant model was the French-made 1080, equipped with a 5.2-liter four-cylinder engine. Its technical differences compared to smaller MF models included a 12″ single-plate clutch, hydrostatic steering, cast iron rims, and from the start, oil-bath brakes that were fully hydraulic without any mechanical linkage.
Compared to smaller MF tractors, the 1080 had a notably long wheelbase. The fuel tanks were placed under the cab floor. In the flat-floored cab, the gear levers were located on the dashboard, and the steering wheel was adjustable in length and height. In 1971, a four-wheel-drive model was introduced, where the four-wheel drive could be engaged while driving, and power was transmitted through a central axle.
This is an automated translation. Please report any issues in the translation.
| Model | Massey Ferguson 1080 | Massey Ferguson 1100 |
|---|---|---|
| Manufacturer name | Massey Ferguson | Massey Ferguson |
| Imported to Finland | Yes | Yes |
| Years | 1969-74 | 1964-72 |
| Engine model | A4.318 | A6.354 |
| Cyl/Turbo/Intercooler | 4 | 6 |
| Displacement | 5210 cm³ | 5797 cm³ |
| Bore x stroke | 114,3×127 mm | 98,4×127 mm |
| Rated power | 88/2200 hp DIN/rpm | 104/2400 hp DIN/rpm |
| Torque | - | - |
| Gears | 12+4 | 12+4 |
| Powershift gears | hydr. | hydr. |
| Speeds in km/h | 2,9-32,6 | 3,2-28,5 |
| Hydr. flow l/min | 30 l/min | 76 l/min |
| Hydraulic pressure | 157 bar | 170 bar |
| Lift controls | mech. | mech. |
| Lift capacity | 2440 kg | 2360/2940 kg |
| PTO speeds | 540 (1000) | 540/1000/ajo |
| Brakes | dry disc | hydr. wet disc |
| Steering | hydrost. | hydrost. |
| Turning circle m 2WD | 7.2 | 8.3 |
| Turning circle m 4WD | 8,7 jarruilla | - |
| Front tyres 2WD | 9,00-16 | 7,50-18 |
| Front tyres 4WD | 12.4-28 | - |
| Rear tyres 2WD | 16,9-38 | 18,4-34 |
| Rear tyres 4WD | 16.9-38 | - |
| Weight 2WD | 4140 kg | 4820 kg |
| Weight 4WD | 4590 kg | - |
| Length (2WD/4WD) | 391/417 cm | 422 cm |
| Wheelbase (2WD/4WD) | 248/259 cm | 259 cm |
| Fuel tank | 158/210 l | 132 l |
| Cab noise level | 101N/94N dB | - |
| Solid cab | -/x | - |
| Height with cab | - | 260 cm |
