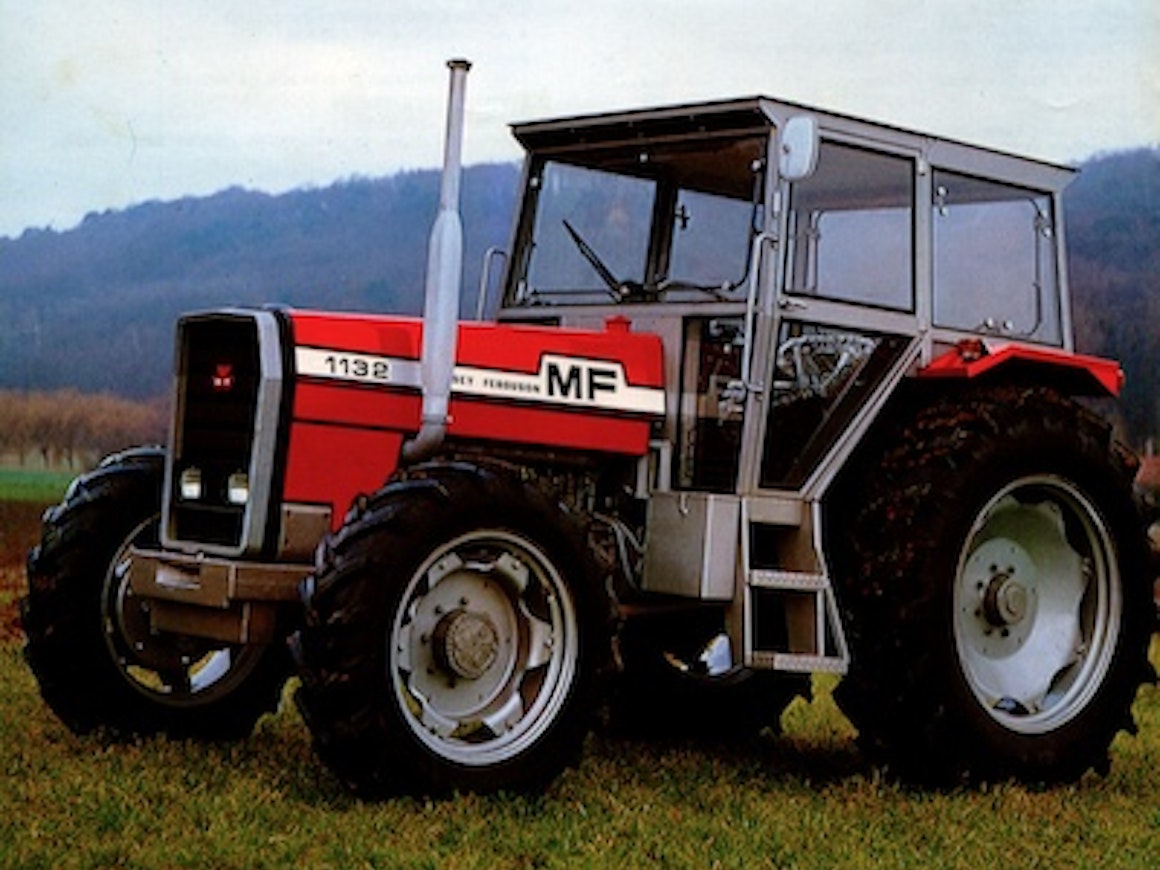

Massey Ferguson 1102-1132

77MF1132
Manufacturer
Models
Massey Ferguson 1102, Massey Ferguson 1132
Years
1976-79
Info

Massey Ferguson became the owner of the German family company Eicher in 1970. As a result, MF's product range included Eicher-manufactured tractors for viticulture and fruit growing, and correspondingly, Eicher tractors began to feature increasingly more MF-like technology and Perkins engines.

In 1976, the MF 1102 and 1132 models were introduced for sale in some countries, based on the new Eicher Wotan 3105 and 3133 models, which had a more angular design reminiscent of MF, differing from earlier Eicher models. The engine in these models was Eicher's 5.9-liter six-cylinder, which was turbocharged in the larger model. The transmission was ZF's 16+7, also used in Fendt and IH tractors (the highest reverse gear had been disabled). In the most important sales market, France, the faster quick-shift gear combined with the highest basic gear was also removed, resulting in 15+7 gears. The transmission featured a mechanical direction reverser, and the gear lever was located on the side. The lifting capacity of 4900 kilograms was high for its time. Draft control was implemented via the drawbars.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMassey Ferguson 1102Massey Ferguson 1132
Manufacturer nameMassey FergusonMassey Ferguson
Imported to FinlandNoNo
Years1976-791976-79
Engine modelEicher EDK6Eicher EDK6
Cyl/Turbo/Intercooler66T
Displacement5886 cm³5886 cm³
Bore x stroke100×125 mm100×125 mm
Rated power105/2300 hp DIN/rpm132/2300 hp DIN/rpm
Torque--
Gears15+715+7
Powershift gearsmech.mech.
Reversermech.mech.
Speeds in km/h0,9-22,31,1-24,3
Hydr. flow l/min44 l/min44 l/min
Hydraulic pressure170 bar170 bar
Lift controlsmech.mech.
Lift capacity4900 kg4900 kg
PTO speeds540/1000540/1000
Brakeswet discwet disc
Steeringhydrost.hydrost.
Turning circle m 2WD10.4-
Turning circle m 4WD1212
Front tyres 2WD11.00-16-
Front tyres 4WD11.2-3812.4-38
Rear tyres 2WD16.9-38-
Rear tyres 4WD16.9-3818.4-38
Weight 4WD4600 kg5000 kg
Height with cab272 cm272 cm
Length (2WD/4WD)444 cm458 cm
Wheelbase (2WD/4WD)273 cm274 cm
Fuel tank250 l250 l
Solid cabxx
